Exhaust Hose Bellows for Volvo Penta & OMC — 3863450 | GH Marine
Exhaust Hose Bellows for Volvo Penta & OMC — 3863450 | GH Marine is backordered and will ship as soon as it is back in stock.
GH MARINE / BELLOWS & RELATED PARTS
About this part

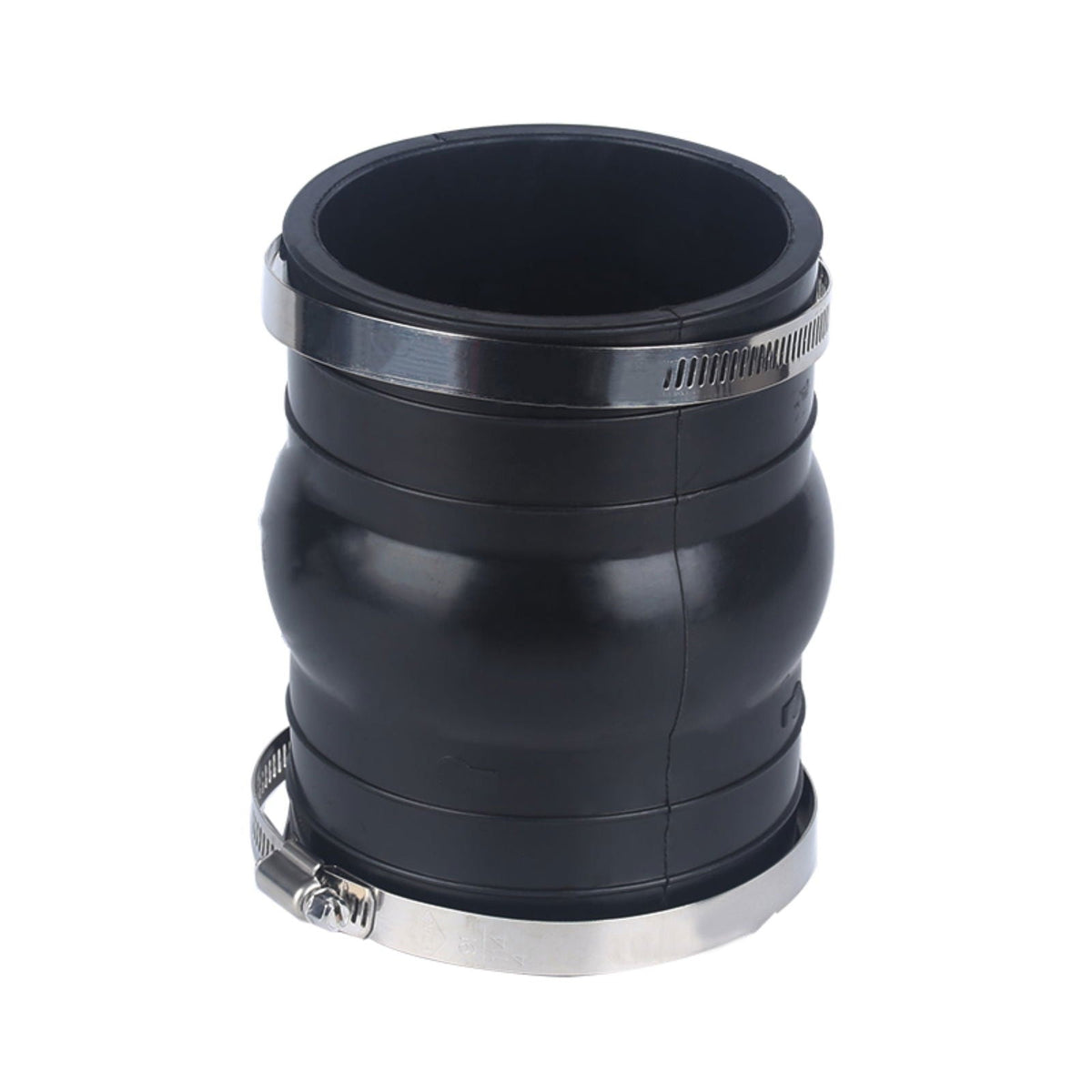

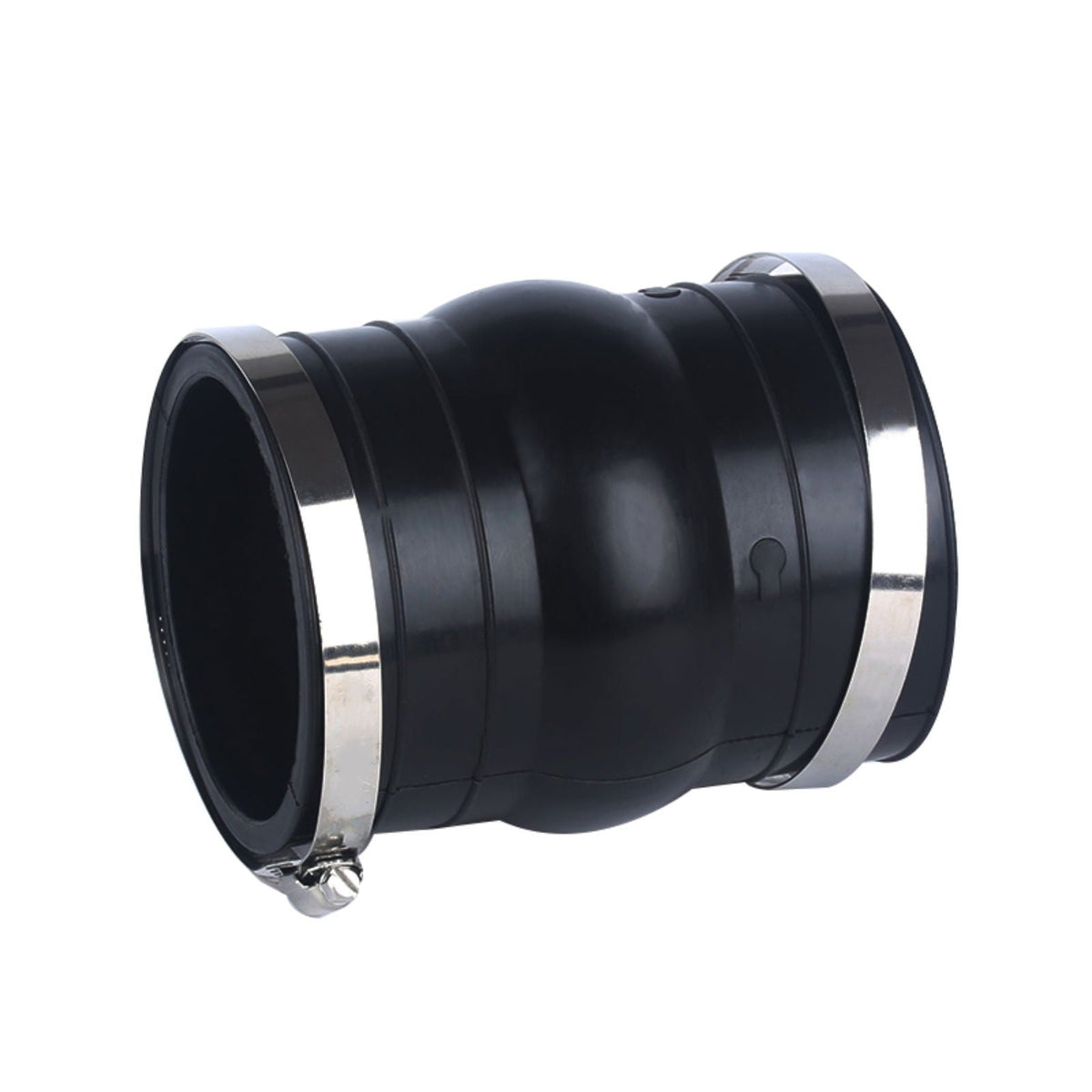

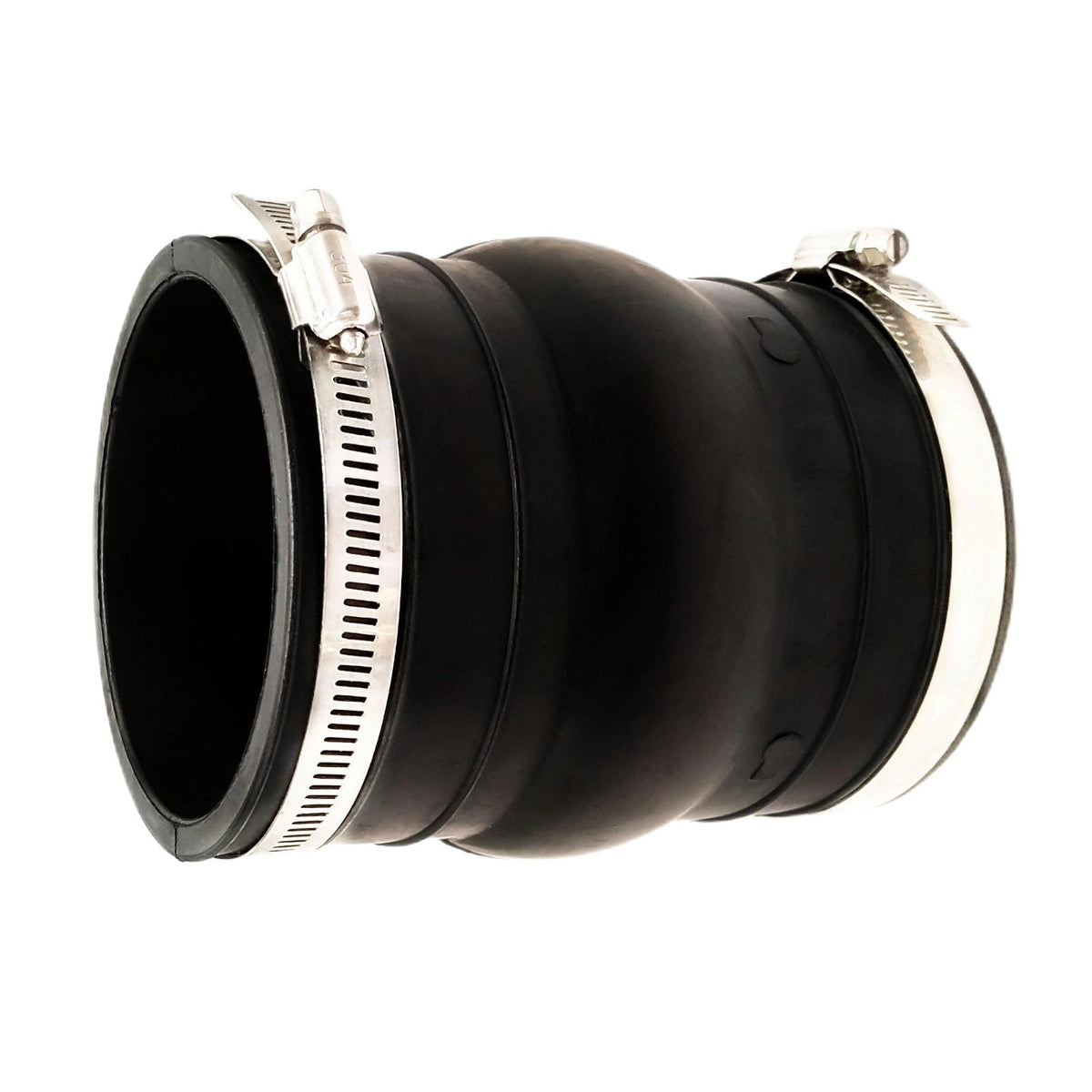

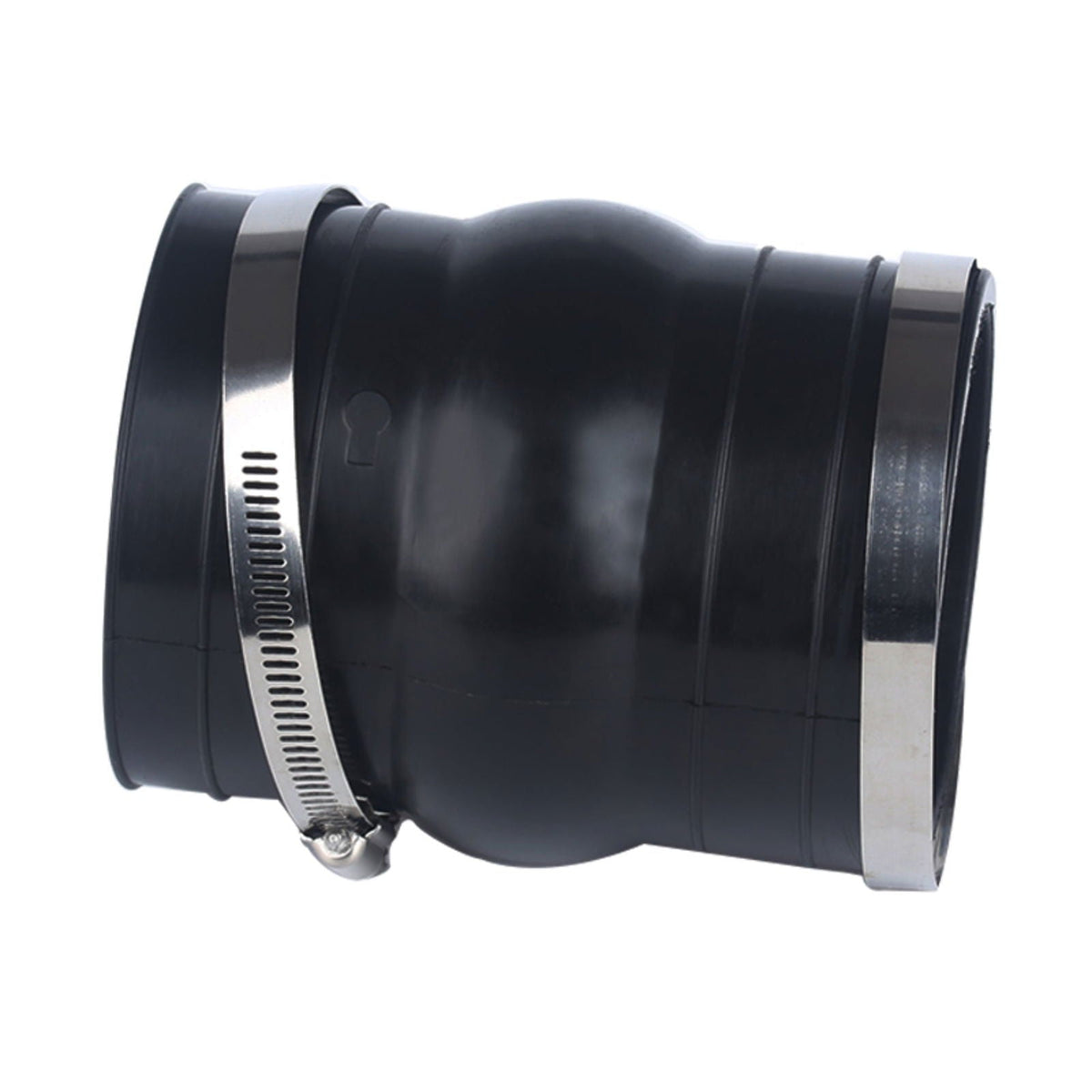

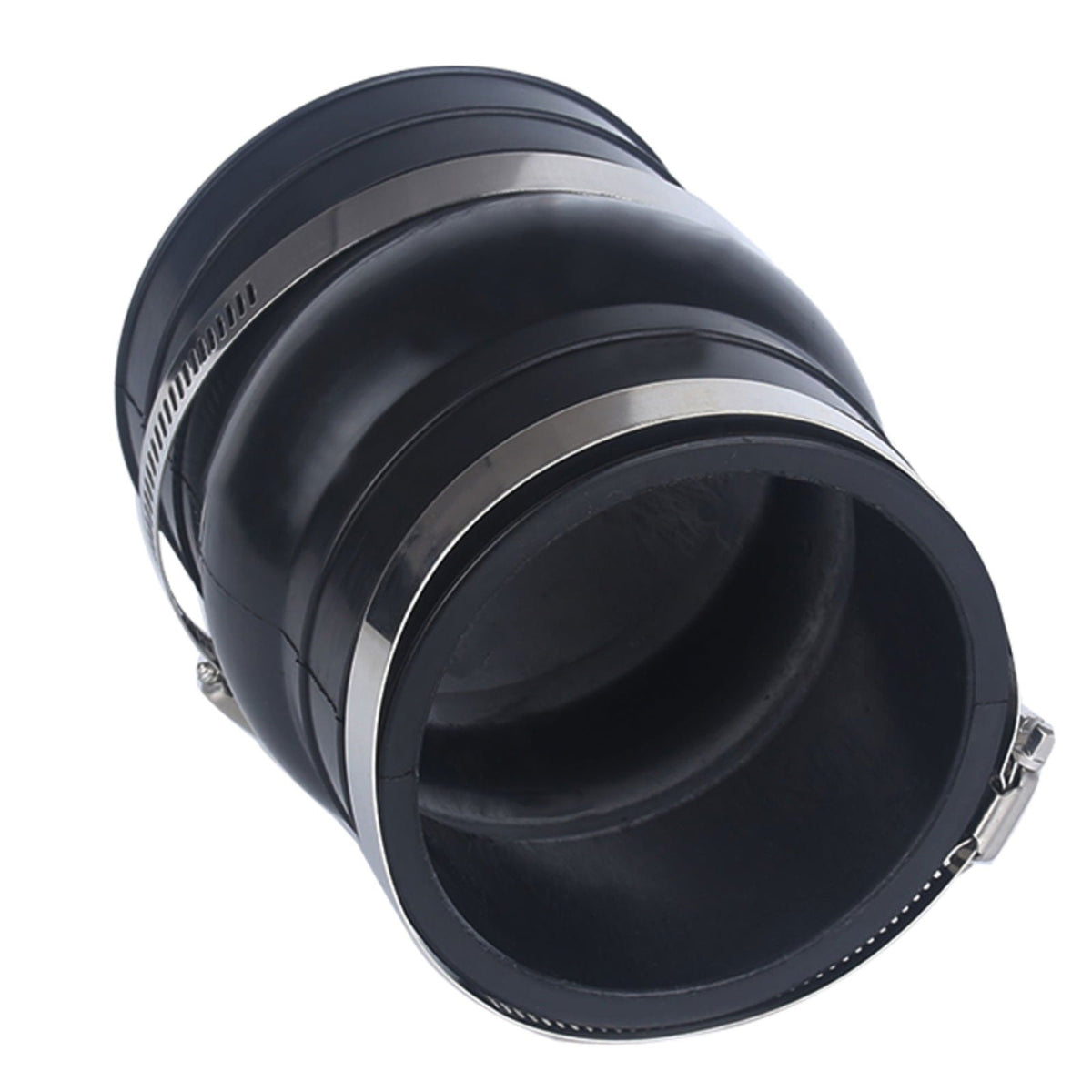

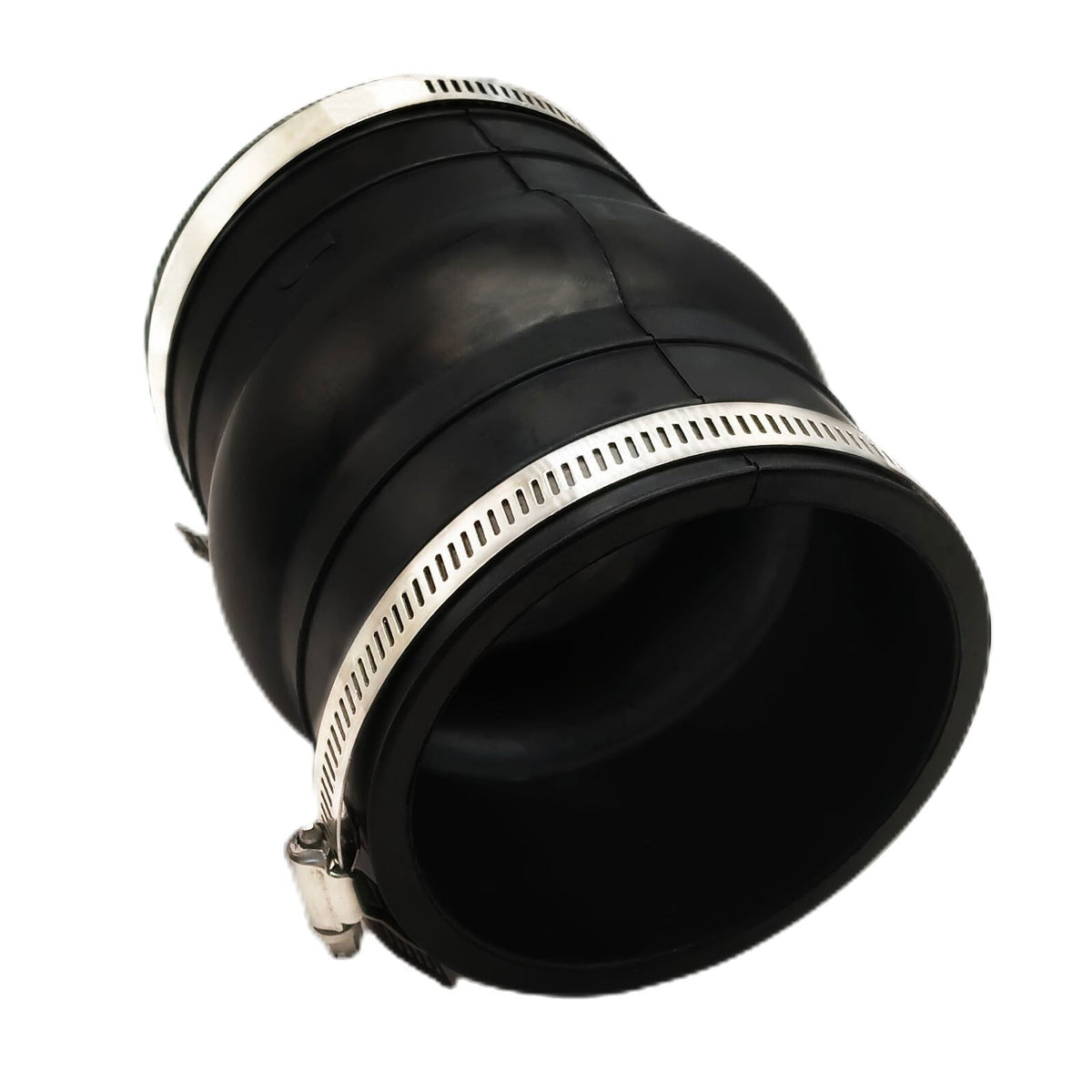

Exhaust hose bellows referenced to Volvo Penta 3863450 / 3852741 for the marine exhaust connections and engine model families listed below, with a 4-inch inside diameter. This is an individual replacement bellows, not a complete manifold conversion kit.
Match the application
Match the original hose part number, connection dimensions and full engine designation together. Engine displacement alone does not establish fit, and the model list does not establish coverage of every production year or exhaust configuration.
-
Volvo Penta · 3.0L GL
Volvo Penta 3.0L GL, 3.0 L displacement.
-
Volvo Penta · 3.0L GS
Volvo Penta 3.0L GS, 3.0 L displacement.
-
Volvo Penta · 3.0L GI
Volvo Penta 3.0L GI, 3.0 L displacement.
-
Volvo Penta · 3.0L GLM
Volvo Penta 3.0L GLM, 3.0 L displacement.
-
Volvo Penta · 3.0L GLP
Volvo Penta 3.0L GLP, 3.0 L displacement.
-
Volvo Penta · 3.0L GSM
Volvo Penta 3.0L GSM, 3.0 L displacement.
-
Volvo Penta · 3.0L GSP
Volvo Penta 3.0L GSP, 3.0 L displacement.
-
Volvo Penta · 4.3L GL
Volvo Penta 4.3L GL, 4.3 L displacement.
-
Volvo Penta · 4.3L GS
Volvo Penta 4.3L GS, 4.3 L displacement.
-
Volvo Penta · 4.3L GI
Volvo Penta 4.3L GI, 4.3 L displacement.
-
Volvo Penta · 4.3L GXI
Volvo Penta 4.3L GXI, 4.3 L displacement.
-
Volvo Penta · 4.3L OSI
Volvo Penta 4.3L OSI, 4.3 L displacement.
-
Volvo Penta · 5.0L FL
Volvo Penta 5.0L FL, 5.0 L displacement.
-
Volvo Penta · 5.0L FI
Volvo Penta 5.0L FI, 5.0 L displacement.
-
Volvo Penta · 5.0L GL
Volvo Penta 5.0L GL, 5.0 L displacement.
-
Volvo Penta · 5.0L GXI
Volvo Penta 5.0L GXI, 5.0 L displacement.
-
Volvo Penta · 5.0L OSI
Volvo Penta 5.0L OSI, 5.0 L displacement.
-
Volvo Penta · 5.7L GL
Volvo Penta 5.7L GL, 5.7 L displacement.
-
Volvo Penta · 5.7L GI
Volvo Penta 5.7L GI, 5.7 L displacement.
-
Volvo Penta · 5.7L GXI
Volvo Penta 5.7L GXI, 5.7 L displacement.
-
Volvo Penta · 5.7L OSI
Volvo Penta 5.7L OSI, 5.7 L displacement.
-
Volvo Penta · 5.7L OSXI
Volvo Penta 5.7L OSXI, 5.7 L displacement.
-
Volvo Penta · 5.7L GIL
Volvo Penta 5.7L GIL, 5.7 L displacement.
-
Volvo Penta · 5.7L GXIL
Volvo Penta 5.7L GXIL, 5.7 L displacement.
-
Volvo Penta · 5.8L FL
Volvo Penta 5.8L FL, 5.8 L displacement.
-
Volvo Penta · 5.8L FI
Volvo Penta 5.8L FI, 5.8 L displacement.
-
Volvo Penta · 5.8L FSI
Volvo Penta 5.8L FSI, 5.8 L displacement.
-
Volvo Penta · 7.4L GL
Volvo Penta 7.4L GL, 7.4 L displacement.
-
Volvo Penta · 7.4L GI
Volvo Penta 7.4L GI, 7.4 L displacement.
-
Volvo Penta · 7.4L GSI
Volvo Penta 7.4L GSI, 7.4 L displacement.
-
Volvo Penta · 8.2L GSI
Volvo Penta 8.2L GSI, 8.2 L displacement.
For OMC applications, identify the required hose through the OMC part-number references below; the Volvo Penta model list is not an OMC model-fitment list.
Numbers to compare
Bellows references
| Volvo Penta | 3863450; 3852741 |
|---|---|
| Evinrude / Johnson / OMC / BRP | 3852741; 778067 |
| Mallory Marine | 9-72800 |
| GLM | 89222 |
| Sierra Marine | 18-2780-1 |
Different hose configuration
3852742 identifies a separate exhaust hose version, cross-referenced to GLM 89230 and Sierra 18-2781. Do not substitute that version for the 3863450 / 3852741 bellows solely because the numbers are similar.
| Volvo Penta; Evinrude / Johnson | 3852742 |
|---|---|
| GLM | 89230 |
| Sierra Marine | 18-2781 |
Additional identification numbers
| Evinrude / Johnson | 0778066; 0912376; 0913592 |
|---|---|
| Mallory — reference number | 89222 |
| Reference number | 0763891 |
Use these additional numbers for identification only; they are not a declaration of direct interchangeability with this bellows.
Technical details
| Product type | Manifold exhaust hose bellows |
|---|---|
| Brand | GH Marine |
| Inside diameter | 4 in |
| Application | Replacement exhaust hose connection in a matching marine exhaust installation |
Supplied contents
- Exhaust hose bellows — references 3863450 / 3852741
Workshop sequence
General workshop guidance only; use the service procedure for your exact drive or engine configuration.
- Stop the engine, allow the exhaust system to cool, and follow the applicable service manual for system isolation before working on the connection.
- Compare the replacement bellows with the removed hose and inspect the mating connections before installation.
- Follow the engine-specific service procedure for fitting, securing and checking the exhaust connection before returning the vessel to service.
About GH Marine
GH Marine focuses on bellows and related marine service parts. Compare the application details, reference numbers and supplied contents together to select the part for your repair.
