About this part
Transom bellows seal kit for Volvo Penta SX, SX-S, SX-C, SX-R, SX-M, DP-S, DP-S1, and DP-SM sterndrives, as well as most OMC Cobra sterndrives from 1986 onward. Referenced to component numbers including 3854127 (U-joint bellows), 3850426 (shaved exhaust bellows), and 911826 (shift cable bellows).
This is a transom service-parts kit, not a complete sterndrive assembly. Because individual component references are not a single OEM number for the complete kit, confirm the full drive designation, clutch arrangement, and exhaust connection style before ordering.
Match the application
This kit covers the listed Volvo Penta SX and DP-S series sterndrives and most OMC Cobra sterndrives from 1986 onward. Do not select the complete kit solely by reference 22197130, boat year, or general "SX" or "Cobra" branding alone; compare your drive designation and installed bellows, clutch, and mounting-seal configuration.
-
Volvo Penta · SX
Confirm the full drive designation and compare the U-joint bellows, exhaust bellows, and mounting-seal requirements against your existing installation.
Application match
-
Volvo Penta · SX-S
Confirm the full drive designation and compare the U-joint bellows, exhaust bellows, and mounting-seal requirements against your existing installation.
Application match
-
Volvo Penta · SX-C
Confirm the full drive designation and compare the U-joint bellows, exhaust bellows, and mounting-seal requirements against your existing installation.
Application match
-
Volvo Penta · SX-R
Confirm the full drive designation and compare the U-joint bellows, exhaust bellows, and mounting-seal requirements against your existing installation.
Application match
-
Volvo Penta · SX-M
Confirm the full drive designation and compare the U-joint bellows, exhaust bellows, and mounting-seal requirements against your existing installation.
Application match
-
Volvo Penta · DP-S
Confirm the full drive designation and compare the U-joint bellows, exhaust bellows, and mounting-seal requirements against your existing installation.
Application match
-
Volvo Penta · DP-S1
Confirm the full drive designation and compare the U-joint bellows, exhaust bellows, and mounting-seal requirements against your existing installation.
Application match
-
Volvo Penta · DP-SM
Confirm the full drive designation and compare the U-joint bellows, exhaust bellows, and mounting-seal requirements against your existing installation.
Application match
-
OMC · Cobra
Year: 1986 and later
Fits most OMC Cobra models from 1986 onward, not every configuration. Distinguish clutch-dog installations from cone-clutch installations, confirm whether the exhaust connection uses a bellows or an exhaust boot, and match the U-joint bellows and mounting-seal configuration.
Applies with the stated conditions
Numbers to compare
The numbers below identify individual service components and cross-references associated with this kit; they are not all interchangeable part numbers for the complete kit. Drive-bellows reference 22197130 appears in a separate design group from 3841481 and 3854127, and exhaust references 914036 and 3850426 are associated with different catalog bellows.
Component Reference Numbers by Part
| U-Joint Bellows with Clamp | Volvo Penta / OMC / Evinrude / Johnson: 3854127; Volvo Penta: 3841481, 22197130; Sierra: 18-2765 |
|---|---|
| "Shaved" Exhaust Bellows with Clamp | OMC: 914036; Volvo Penta / OMC: 3850426; Sierra: 18-1074; Mallory: 9-72711; Reference number: 0767724 |
| Shift Cable Bellows | OMC Cobra: 911826, 89210; Sierra: 18-2763 |
| Gimbal Bearing | Volvo Penta / OMC Cobra: 3853807; Sierra: 18-2100; Mallory: 9-72410; Mercury Mariner: 30-60794A4; Reference numbers: 21905, 0983937 |
| Outdrive Mounting Gasket Kit | Evinrude / Johnson: 508105 |
Additional Reference Numbers by Brand
| Volvo Penta | 3854270, 3858631, 3888916 |
|---|---|
| OMC | 987467 |
| Evinrude / Johnson Outboard | 983973 |
| Sierra | 18-2764, 18-2771 |
| GLM | 21962, 89200 |
| Mallory | 9-72930 |
| RECMAR | REC3841481, RM22197130, REC3850426, REC3888916, RM3858631 |
| CEF | 500514K, CEF500528, CEF500536K |
| Other Reference Number | 333X |
Technical details
| Product type | Transom bellows seal kit |
|---|---|
| Brand | GH Marine |
| Application area | Sterndrive transom assembly (bellows, gimbal bearing, and outdrive mounting seals) |
| Exhaust configuration | "Shaved" exhaust bellows with clamp (not an exhaust boot) |
Supplied contents

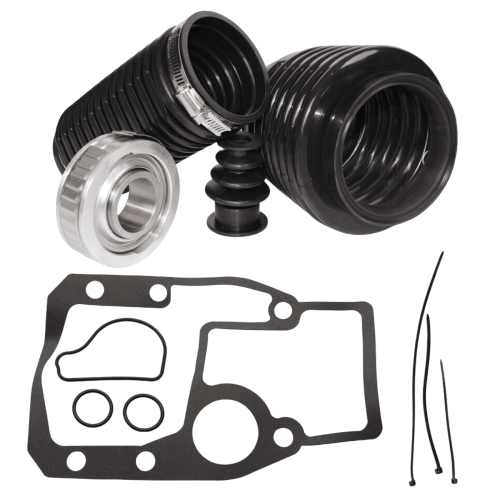

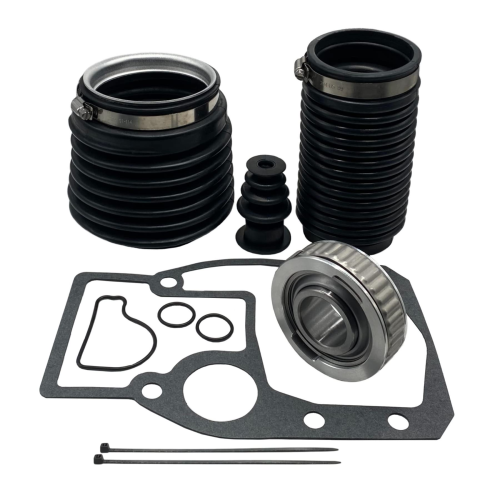

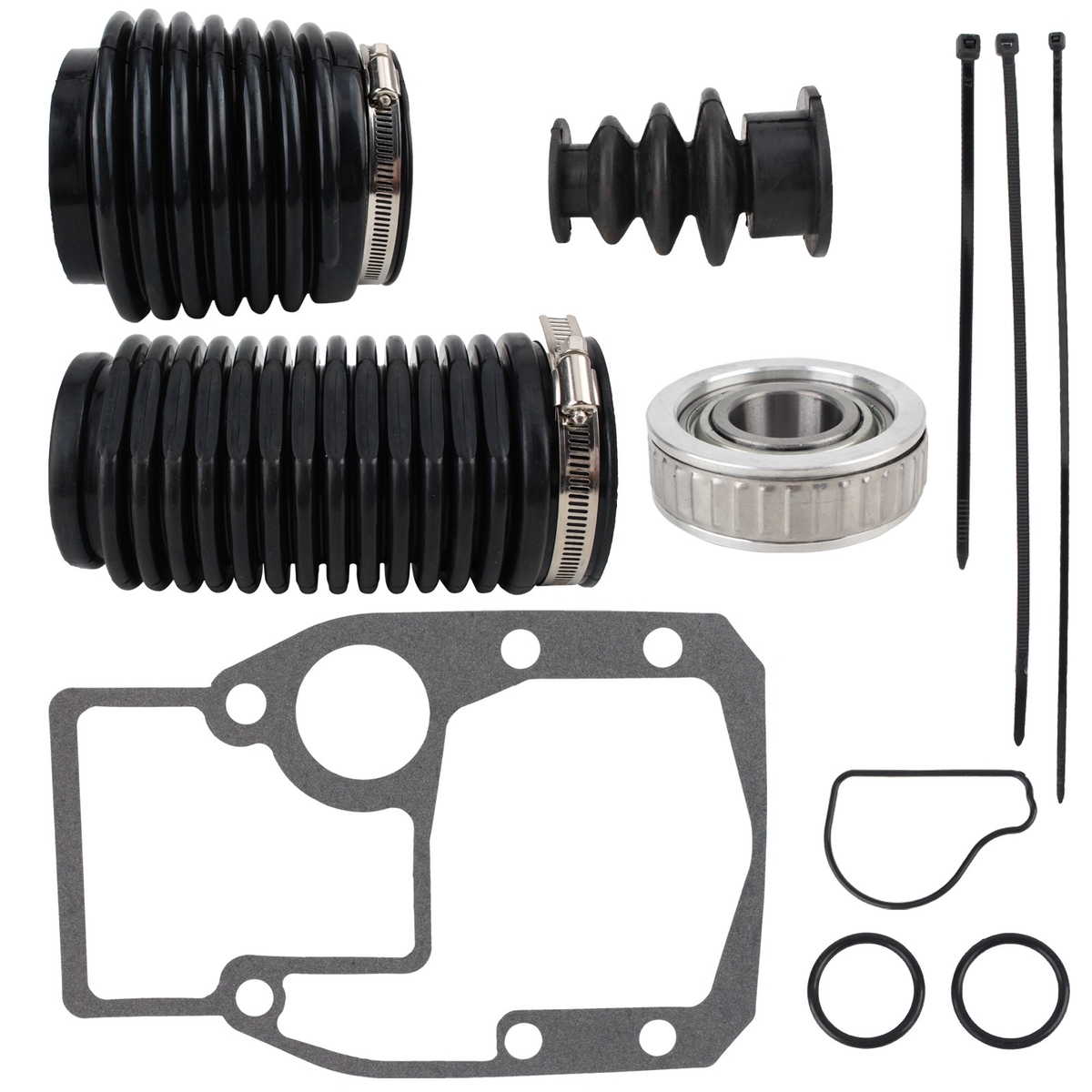

This kit includes the following transom service components:
- U-joint bellows with clamp (referenced to 3854127, 3841481, 18-2765, 22197130)

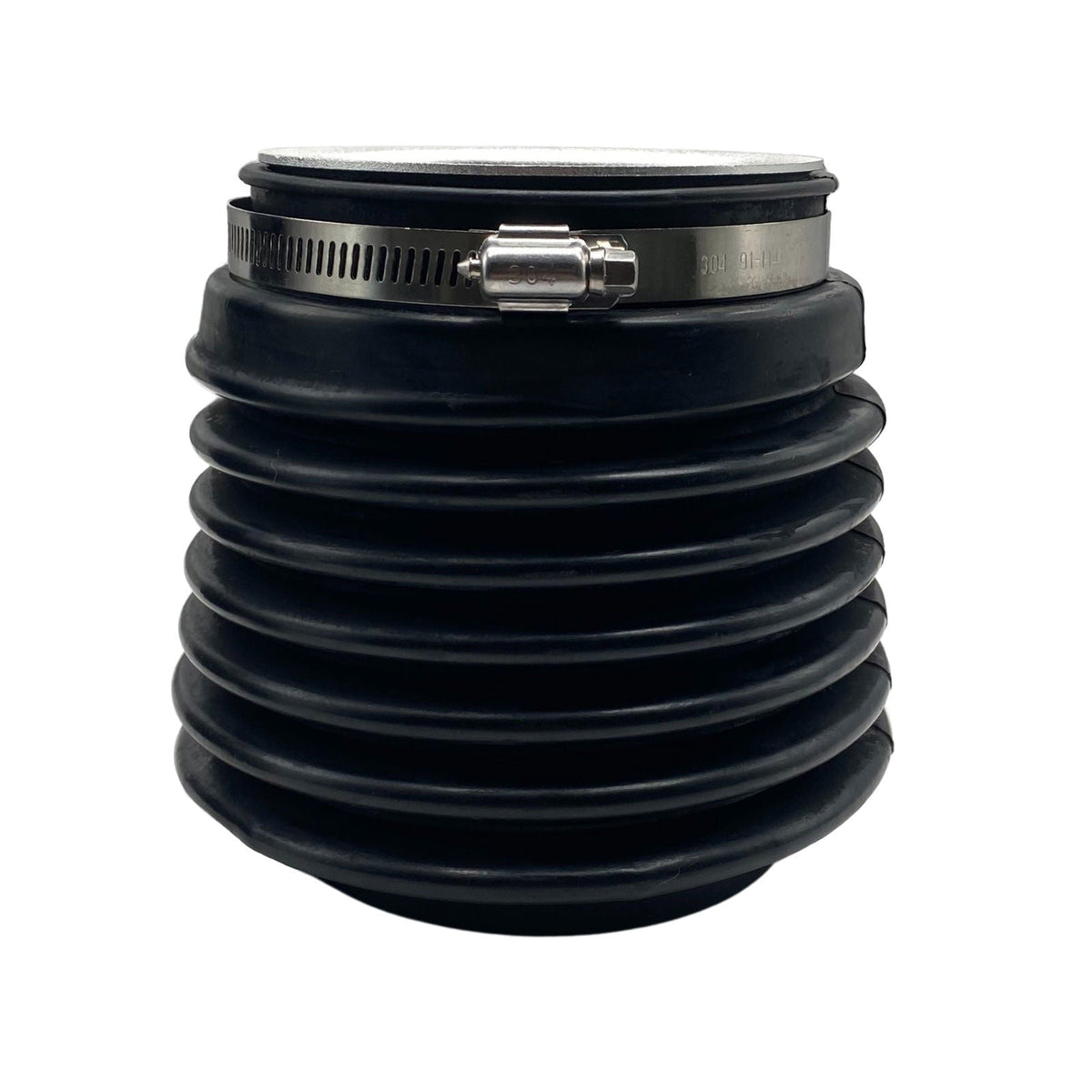

- "Shaved" exhaust bellows with clamp (referenced to 914036, 3850426, 0767724, 18-1074, 9-72711)
- Shift cable bellows (referenced to 911826, 89210, 18-2763)
- Gimbal bearing (referenced to 3853807, 18-2100, 9-72410, 21905, 0983937, 30-60794A4)

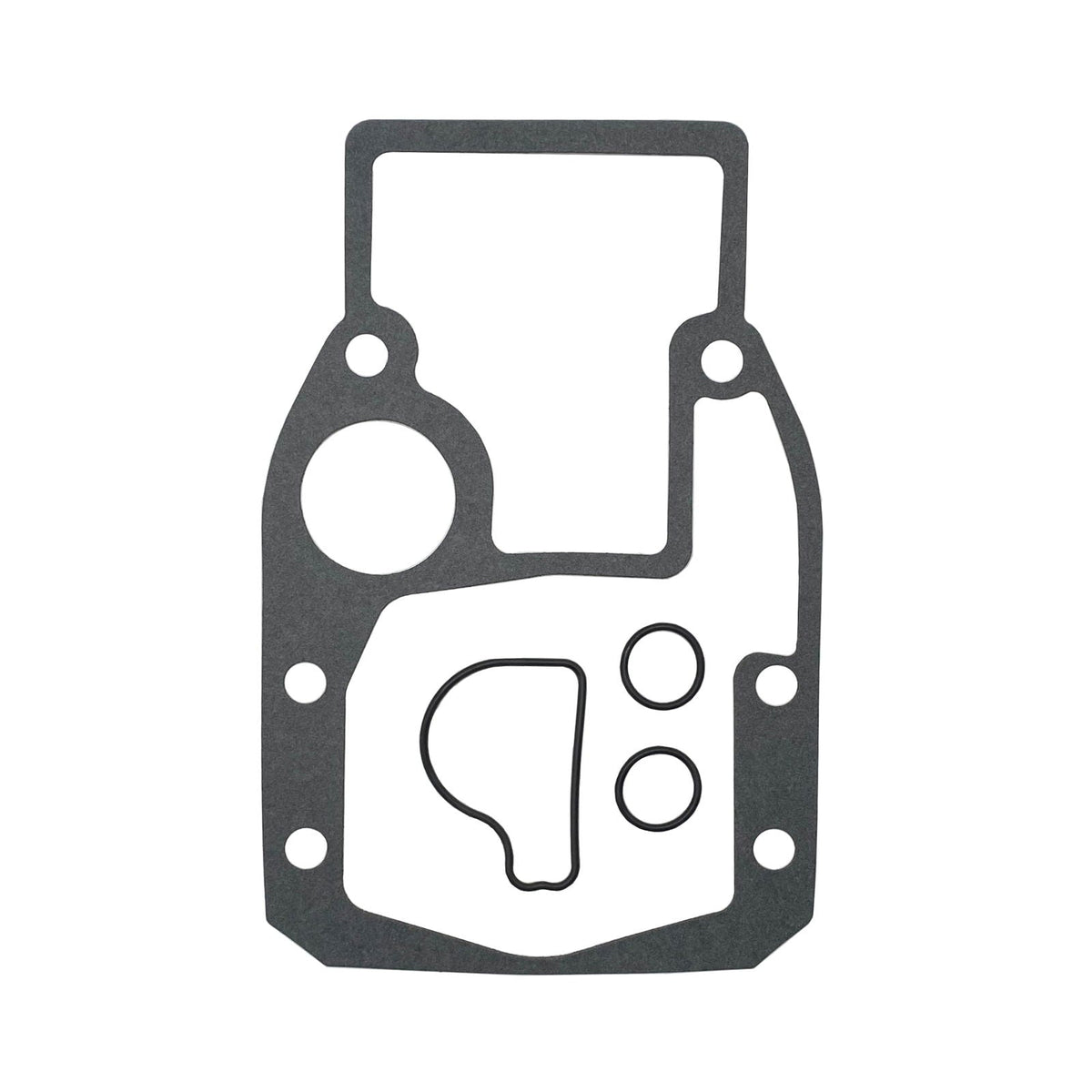

- Outdrive mounting gasket kit (referenced to 508105)
Workshop sequence
General workshop guidance only; use the service procedure for your exact drive or engine configuration.
- Verify the full drive model and compare the U-joint bellows, exhaust connection (bellows vs. exhaust boot), shift cable bellows, gimbal bearing, and mounting gasket layout against the parts removed from the transom assembly.
- Clean and inspect all transom and pivot housing mating surfaces before seating the new bellows and gaskets, ensuring each bellows sits squarely in its groove without twisting or folding.
- Position clamps, apply any manufacturer-specified sealants or adhesives, and seat the gimbal bearing and outdrive mounting gaskets according to the service manual for your specific Volvo Penta or OMC Cobra sterndrive.
Questions from the workshop
Can I order this kit based only on reference 22197130 or the general "SX" or "Cobra" name?
No. Drive-bellows reference 22197130 appears in a separate design group from 3841481 and 3854127, and exhaust references 914036 and 3850426 correspond to different catalog bellows. Always verify your complete drive designation and compare the individual U-joint bellows, exhaust bellows, and mounting-seal references before ordering.
Does this kit fit every OMC Cobra sterndrive from 1986 onward?
It covers most OMC Cobra models from 1986 onward, but not every configuration. You must distinguish between clutch-dog and cone-clutch installations and confirm whether your exhaust setup uses a bellows or an exhaust boot.
About GH Marine
GH Marine focuses on bellows and related marine service parts. Compare the application details, reference numbers and supplied contents together to select the part for your repair.
