Transom Bellows Seal Kit for Volvo Penta SX & DP-S & OMC Cobra
Transom Bellows Seal Kit for Volvo Penta SX & DP-S & OMC Cobra is backordered and will ship as soon as it is back in stock.
GH MARINE / BELLOWS & RELATED PARTS
About this part

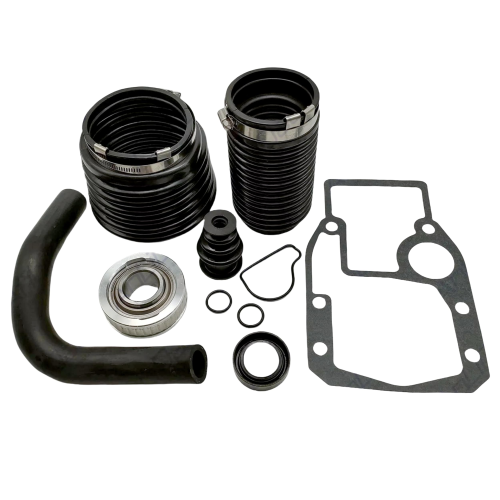

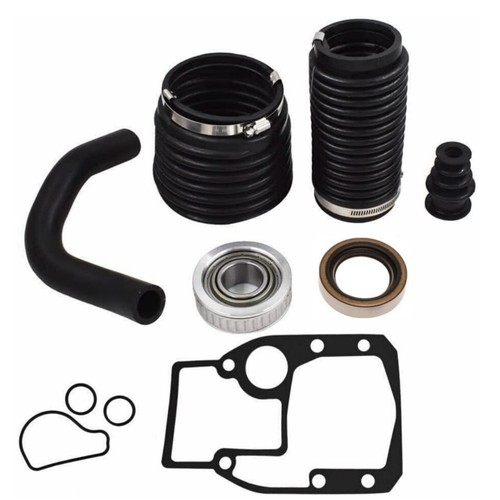

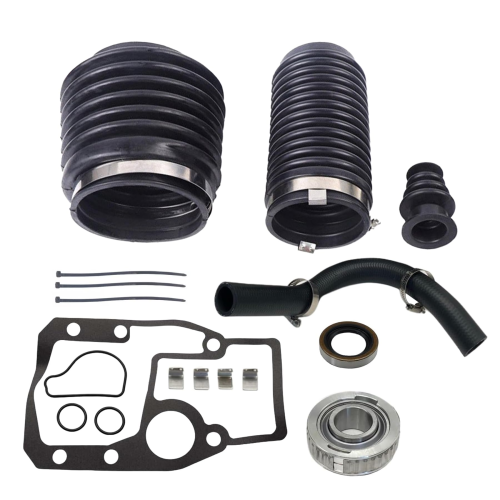

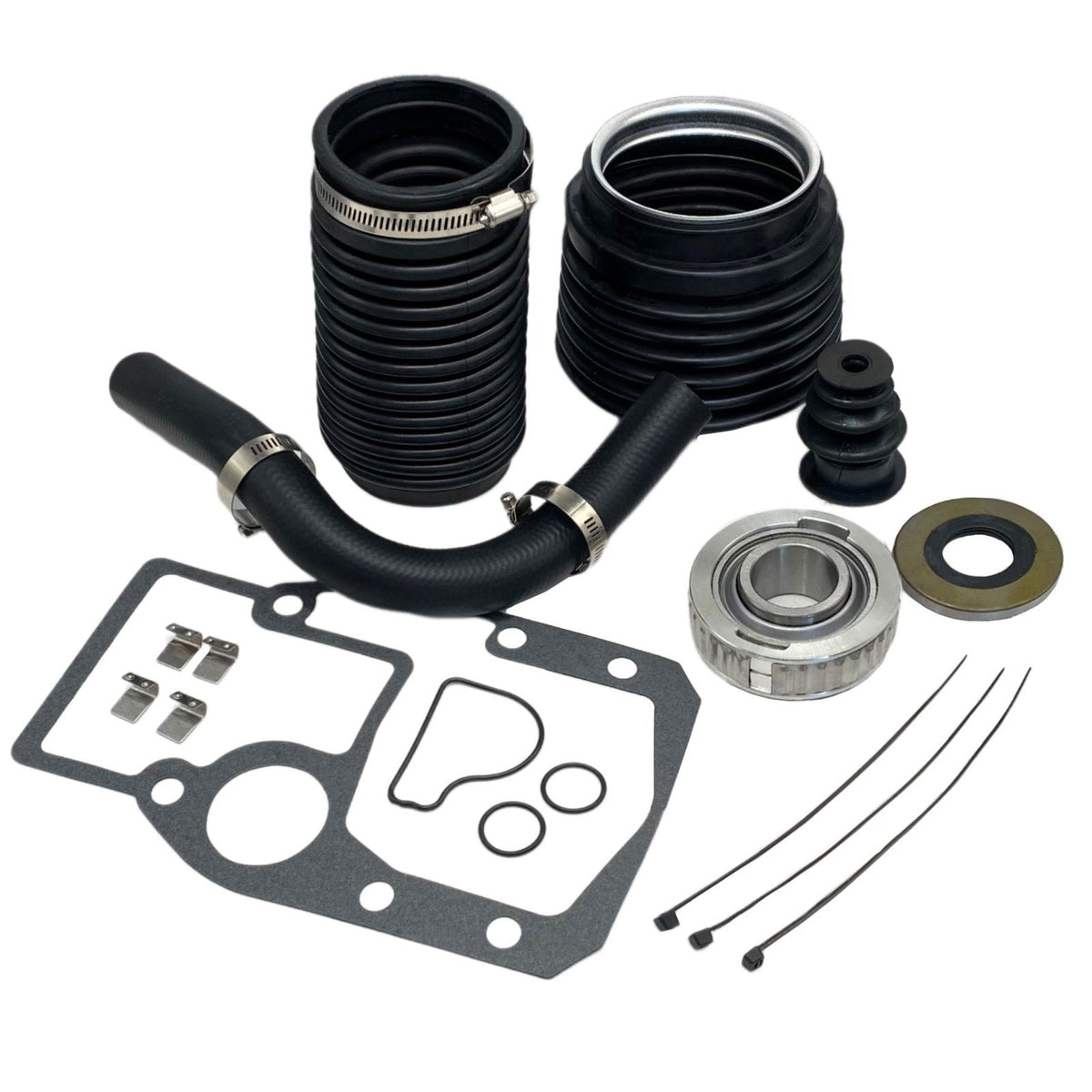

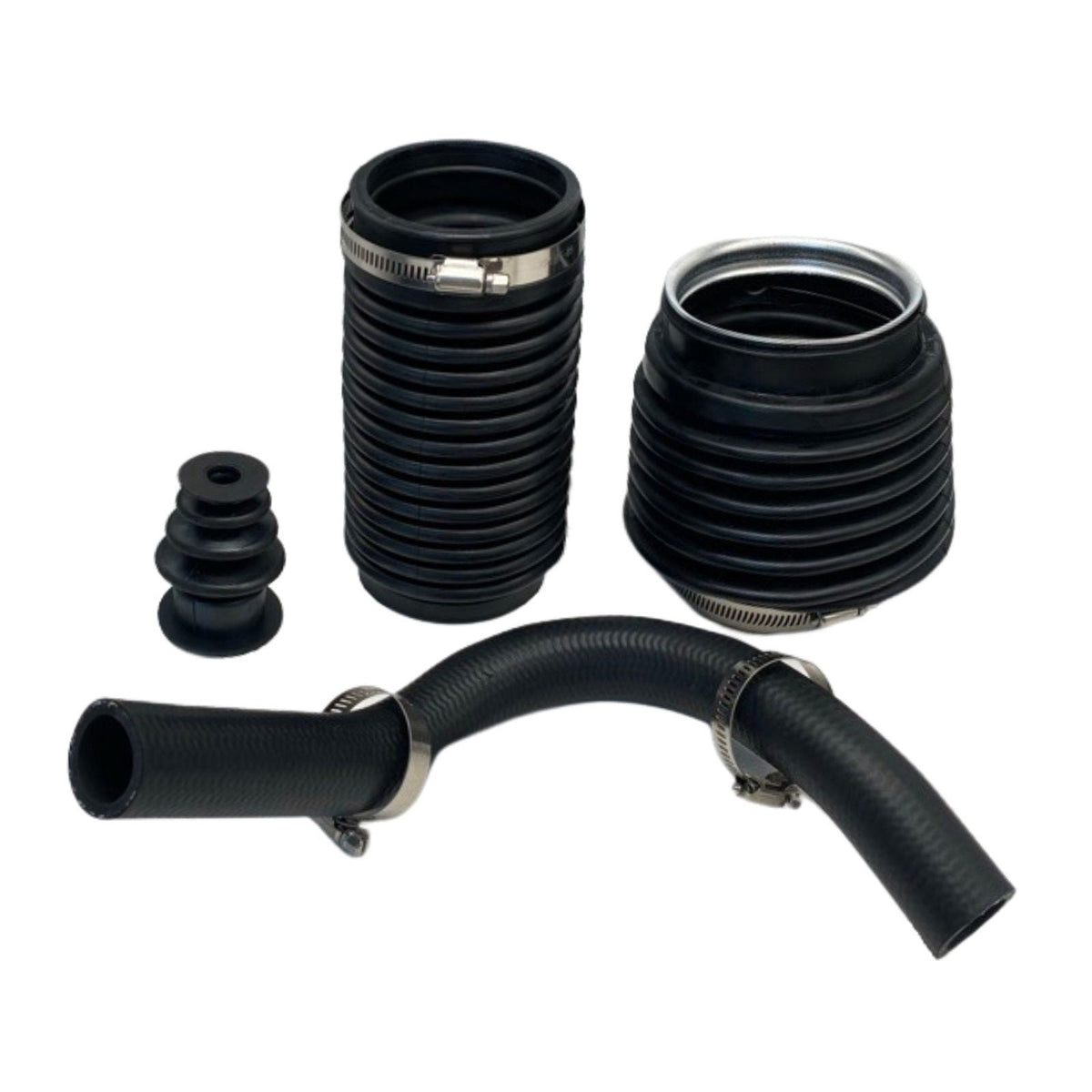

Multi-component transom bellows seal kit containing a U-joint bellows with clamp, exhaust bellows with clamp, shift cable bellows, gimbal bearing, water inlet hose, outdrive mounting gasket kit, and hose clamps. Designed for specified Volvo Penta SX and DP-S series sterndrives and most OMC Cobra sterndrives from 1986 onward when component references and exhaust configurations match.
The listed replacement numbers identify individual components within the kit and should not be treated as a single complete-kit OEM part number.
Match the application
This service kit fits the Volvo Penta SX and DP-S model designations listed below, as well as most 1986 and later OMC Cobra sterndrives subject to clutch and exhaust bellows verification. Identify the complete drive model including its suffix before ordering.
-
Volvo Penta · SX
Sterndrive transom service application.
Application match
-
Volvo Penta · SX-S
Sterndrive transom service application.
Application match
-
Volvo Penta · SX-C
Sterndrive transom service application.
Application match
-
Volvo Penta · SX-R
Sterndrive transom service application.
Application match
-
Volvo Penta · SX-M
Sterndrive transom service application.
Application match
-
Volvo Penta · DP-S
Sterndrive transom service application.
Application match
-
Volvo Penta · DP-S1
Sterndrive transom service application.
Application match
-
Volvo Penta · DP-SM
Sterndrive transom service application.
Application match
-
OMC · Cobra
Year: 1986 and later
Fits most 1986 and later models when the included components match the drive configuration. Confirm the exact drive version, distinguish 1986–1993 dog-clutch arrangements from later cone-clutch arrangements, and verify the exhaust bellows reference number (this kit includes exhaust bellows 3850426 / 18-1074 rather than 914036 / 18-2764) instead of relying on model year alone.
Applies with the stated conditions
Numbers to compare
No single whole-kit OEM number is established for this package. Compare the individual component reference numbers and additional catalogue references below against your existing parts.
| U-Joint Bellows with Clamp (included component references) | Volvo Penta / OMC: 3854127 Volvo Penta: 3841481, 22197130 Sierra: 18-2765 |
|---|---|
| Exhaust Bellows with Clamp (included component references) | Volvo Penta / OMC: 3850426 Sierra: 18-1074 Mallory: 9-72711 Reference number: 0767724 |
| Shift Cable Bellows (included component references) | OMC Cobra: 911826, 89210 Sierra: 18-2763 |
| Gimbal Bearing (included component references) | Volvo Penta / OMC Cobra: 3853807 Mercury Mariner: 30-60794A4 Sierra: 18-2100 Mallory: 9-72410 Reference numbers: 21905, 0983937 |
| Water Inlet Hose (included component references) | Reference numbers: 911830, 778188 |
| Additional Reference Numbers | Volvo Penta: 23075752, 3888916 OMC / OMC Cobra: 983937, 983973, 987467 Sierra: 18-2772-1 GLM: 21906, 89200, 89190 CEF: 500514K, CEF500514K, CEF500528, CEF500536K RECMAR: REC3841481, REC3850426, REC3888916 Other reference numbers: 43.932.60, 508105, RM22197130 |
| Separate Catalogue Version (for exhaust comparison) | Evinrude / Johnson / OMC: 914036 Sierra: 18-2764 Note: 914036 / 18-2764 and 3850426 / 18-1074 represent separate exhaust bellows catalogue versions; verify which version your OMC Cobra drive requires before ordering. |
Technical details
| Product type | Transom Bellows Seal Kit |
|---|---|
| Brand | GH Marine |
| Application position | Sterndrive transom assembly (bellows, gimbal bearing, water inlet hose, and outdrive mounting interface) |
| Kit configuration | Multi-component service kit with gimbal bearing, water inlet hose, and outdrive mounting gasket kit |
Supplied contents
| Component | Quantity & Reference Details |
|---|---|
| U-Joint Bellows with Clamp | 1x (Included — references 3854127, 3841481, 18-2765, 22197130) |

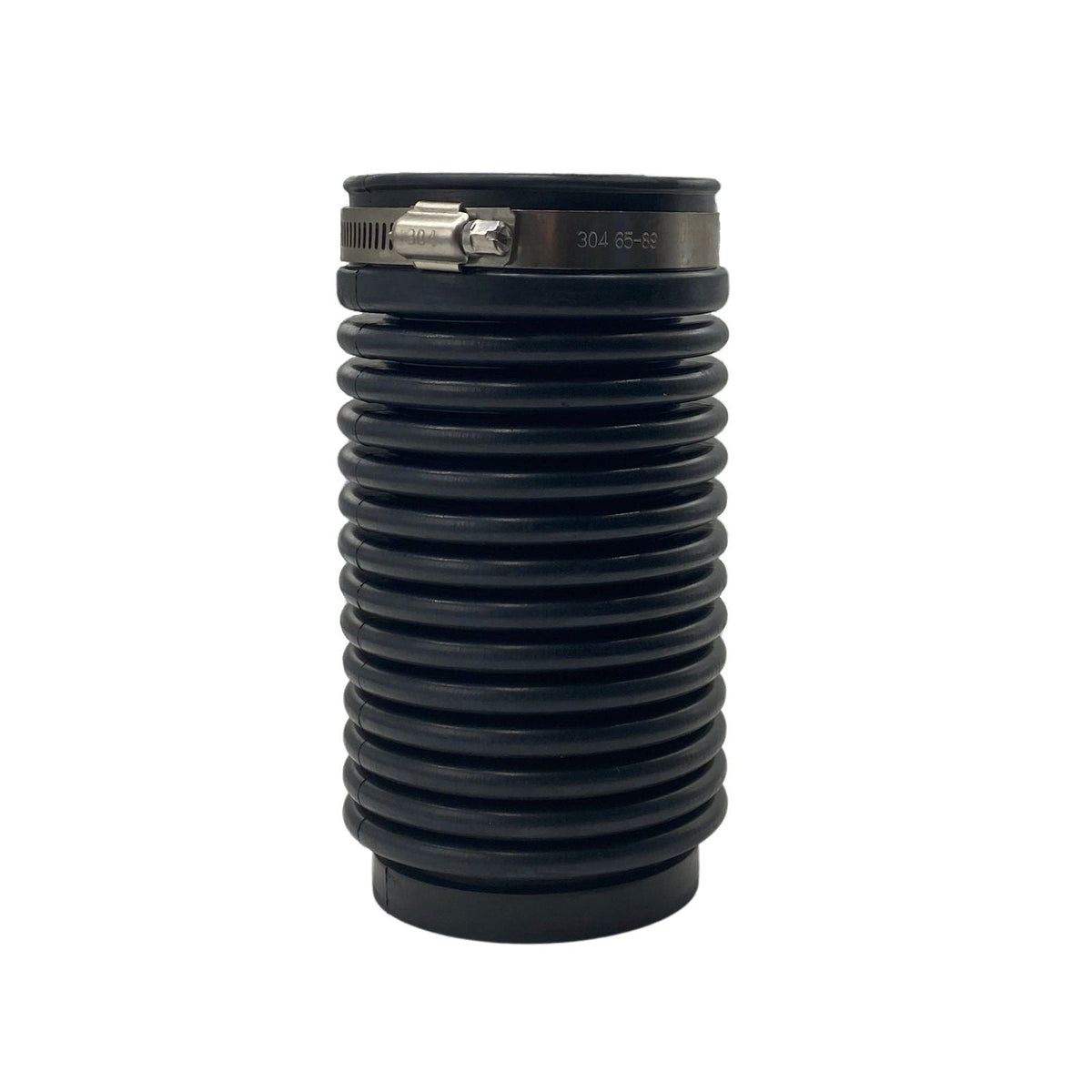

| Exhaust Bellows with Clamp | 1x (Included — references 3850426, 0767724, 18-1074, 9-72711) |

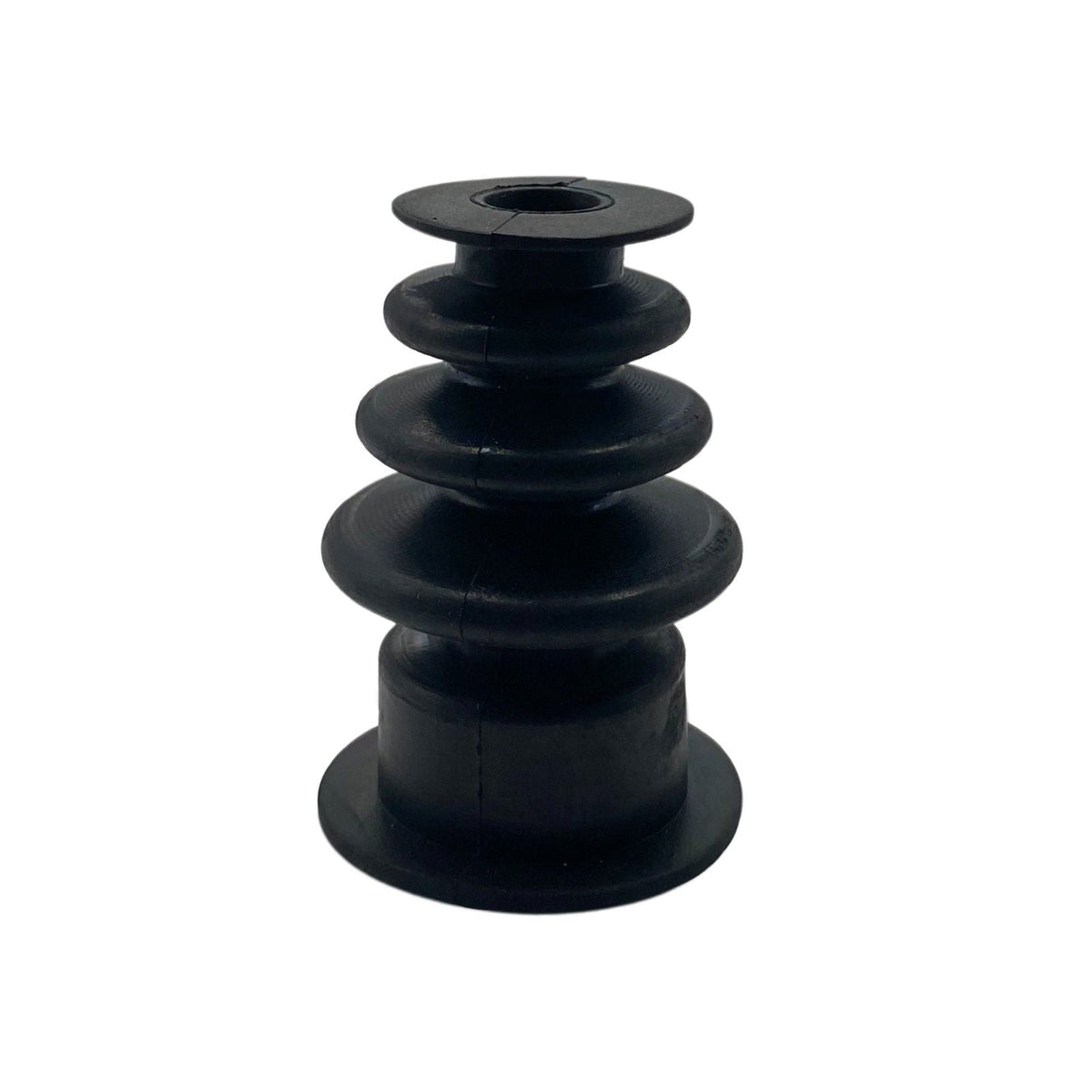

| Shift Cable Bellows | 1x (Included — references 911826, 89210, 18-2763) |

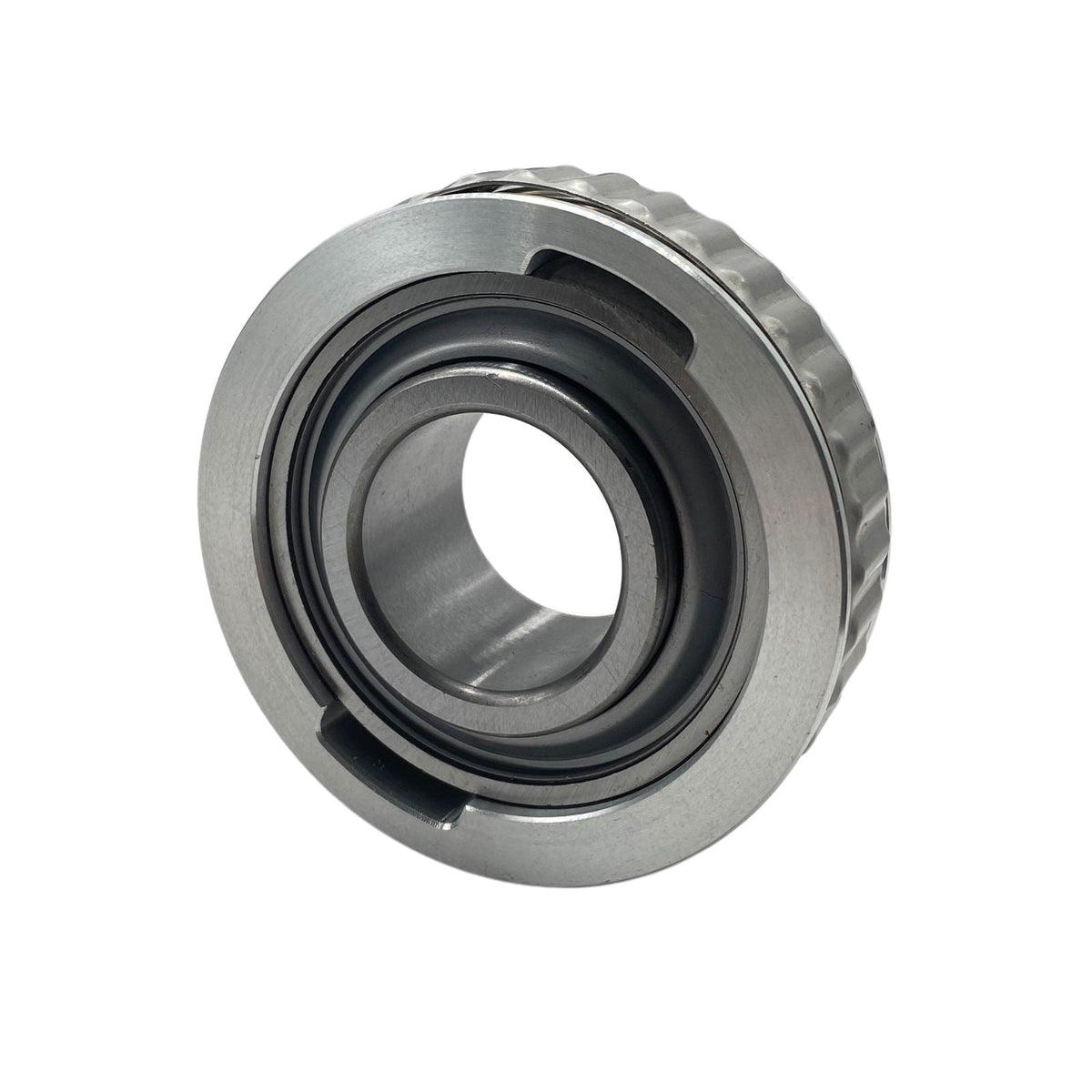

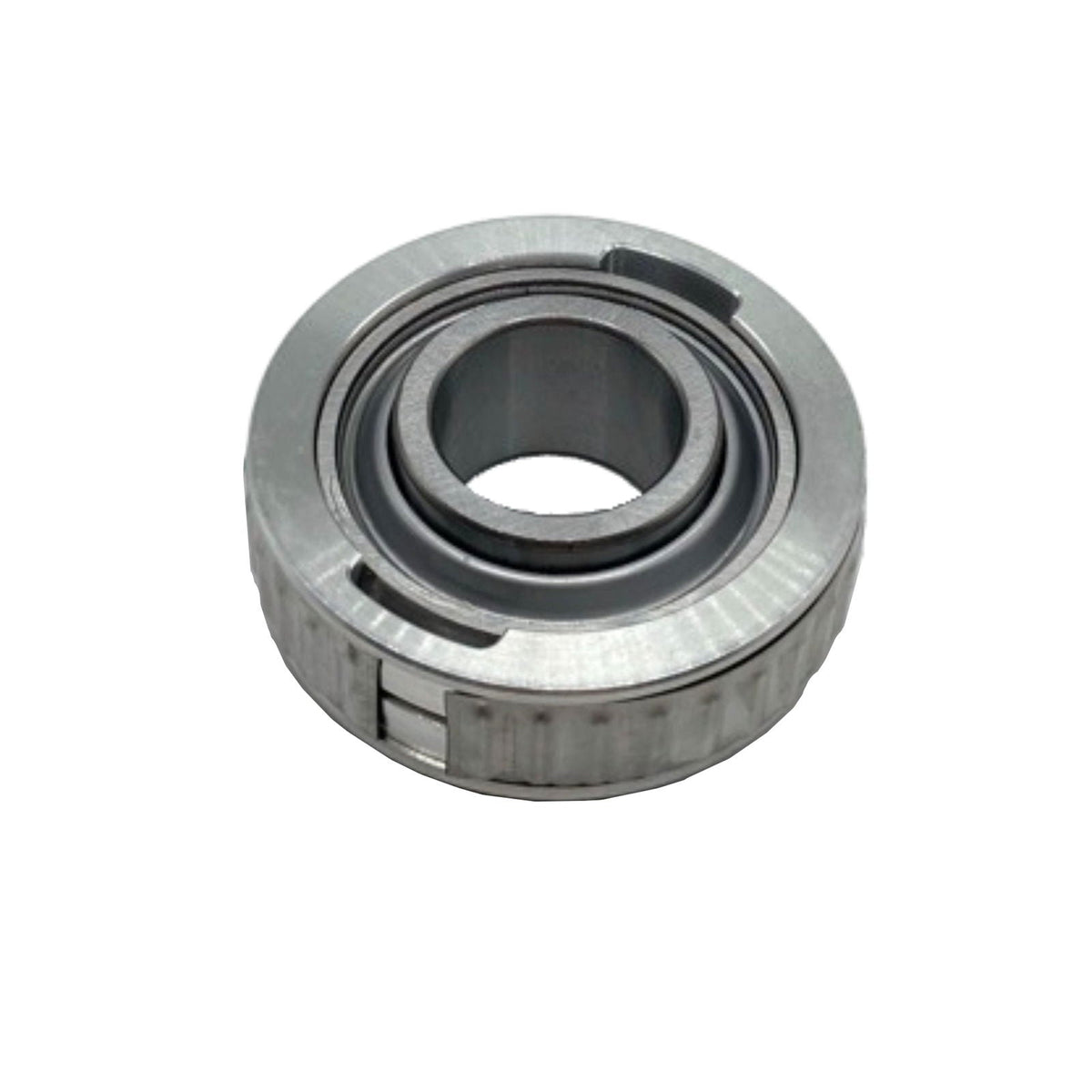

| Gimbal Bearing | 1x (Included — references 3853807, 18-2100, 9-72410, 21905, 0983937, 30-60794A4) |
| Water Inlet Hose | 1x (Included — references 911830, 778188) |

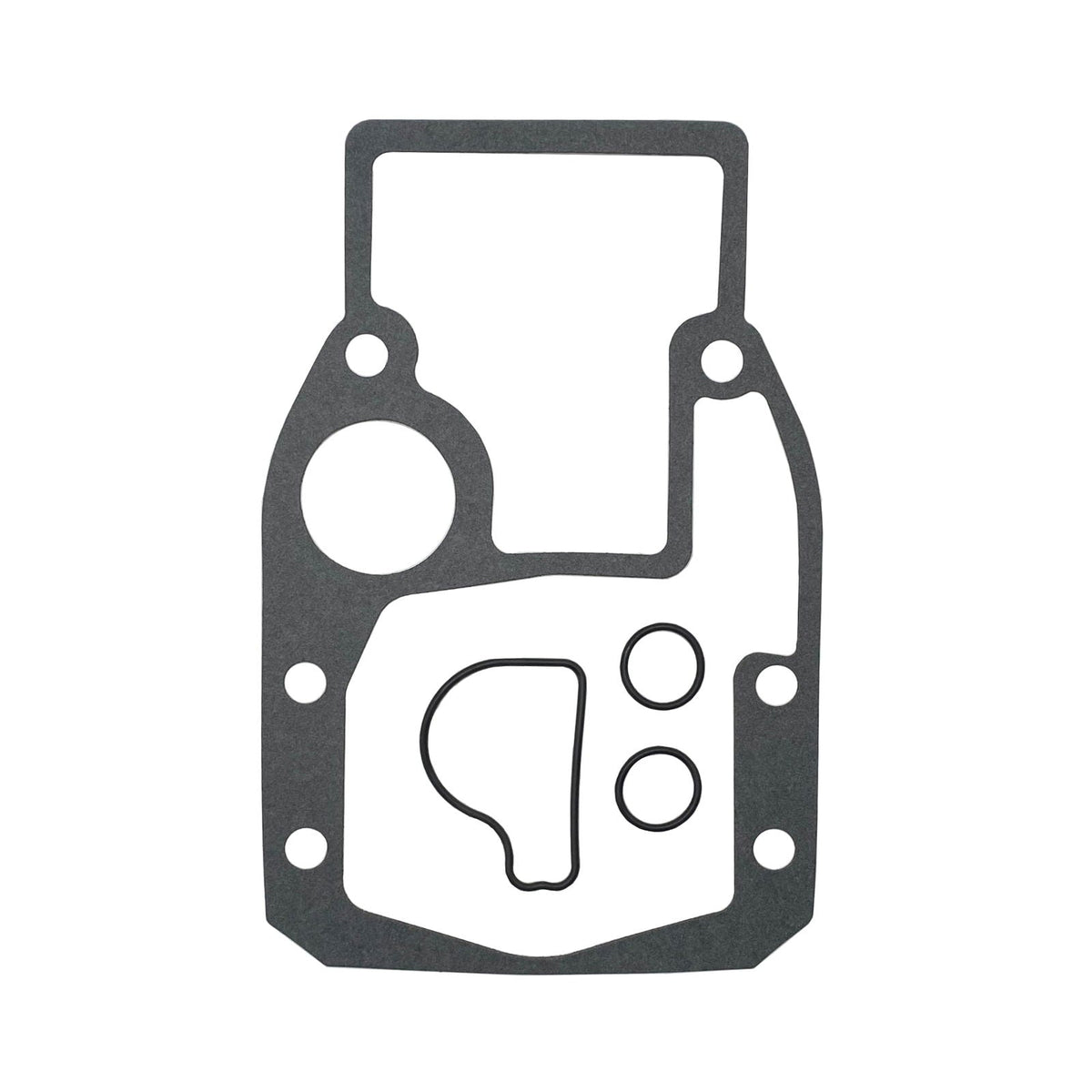

| Outdrive Mounting Gasket Kit | 1x (Included) |
| Hose Clamps | 1x set (Included) |
Workshop sequence
General workshop guidance only; use the service procedure for your exact drive or engine configuration.
- Secure the vessel out of the water, disconnect battery power, and properly support the sterndrive assembly before removing the outdrive and old mounting gaskets.
- Remove the existing U-joint bellows, exhaust bellows, shift cable bellows, water inlet hose, and gimbal bearing, then clean and inspect all housing flanges and sealing surfaces.
- Compare each new component in the kit against the removed parts to verify matching profiles, hose connections, and bearing seating before installation.
- Seat the gimbal bearing and install the new bellows and water inlet hose without twists or folds, positioning clamps and applying any required adhesives strictly according to the service manual for your specific sterndrive model.
- Reinstall the sterndrive using the supplied outdrive mounting gasket kit and verify smooth shift cable movement and full trim/steering clearance across the operating range.
Questions from the workshop
Can I use this kit on Volvo Penta SX-A or DPS-A/B drives?
Do not assume that SX-A or DPS-A/B sterndrives use the same complete kit as the listed SX, SX-S, SX-C, SX-R, SX-M, DP-S, DP-S1, and DP-SM models. Always verify the full drive suffix and individual component part numbers for your unit.
What should I check before ordering for an OMC Cobra sterndrive?
Do not select by the name "Cobra" or model year alone. Distinguish between the 1986–1993 dog-clutch arrangement and later cone-clutch arrangements, confirm whether your drive uses an exhaust boot or bellows, and check whether your exhaust bellows matches 3850426 / 18-1074 (included in this kit) or the separate 914036 / 18-2764 catalogue version.
About GH Marine
GH Marine focuses on bellows and related marine service parts. Compare the application details, reference numbers and supplied contents together to select the part for your repair.
