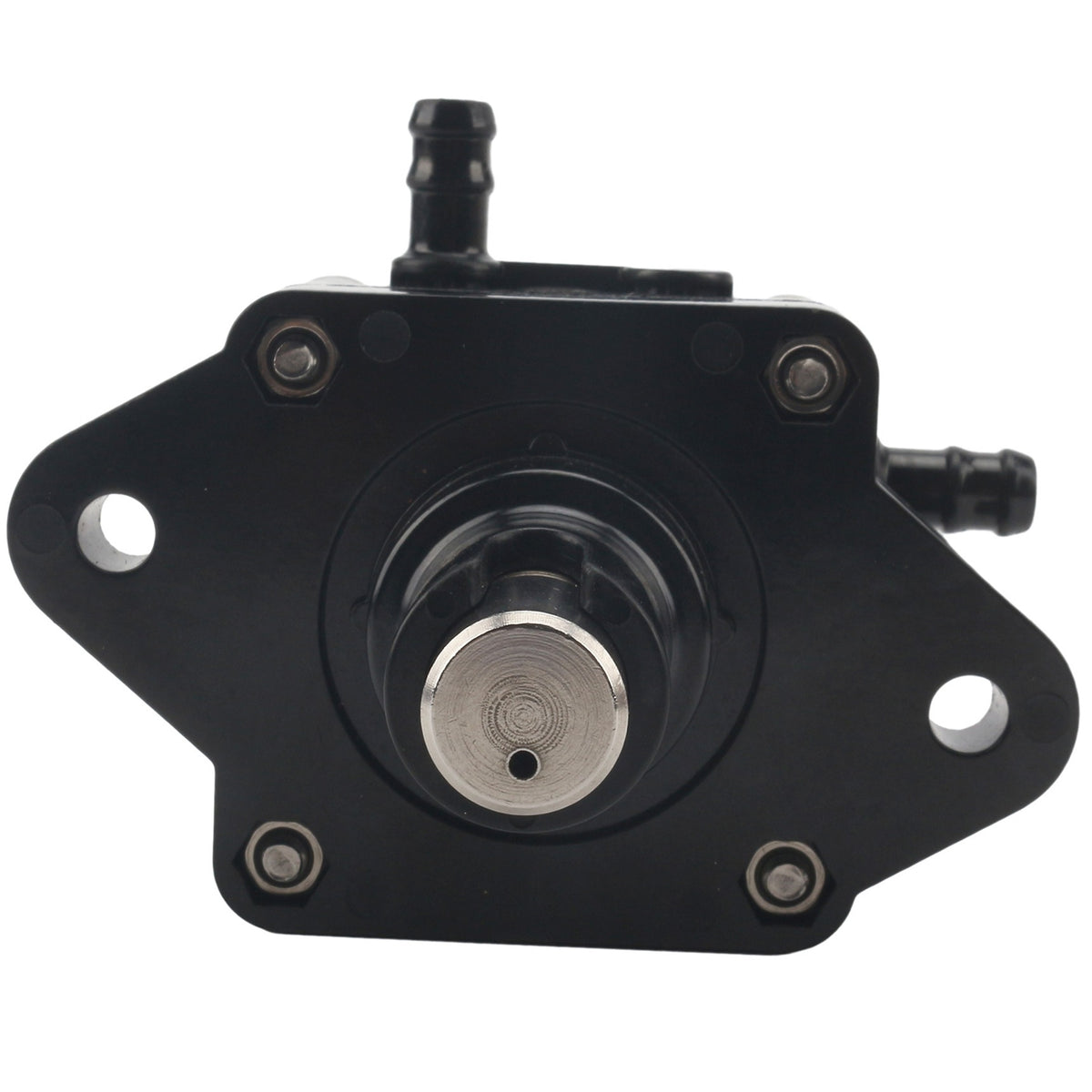

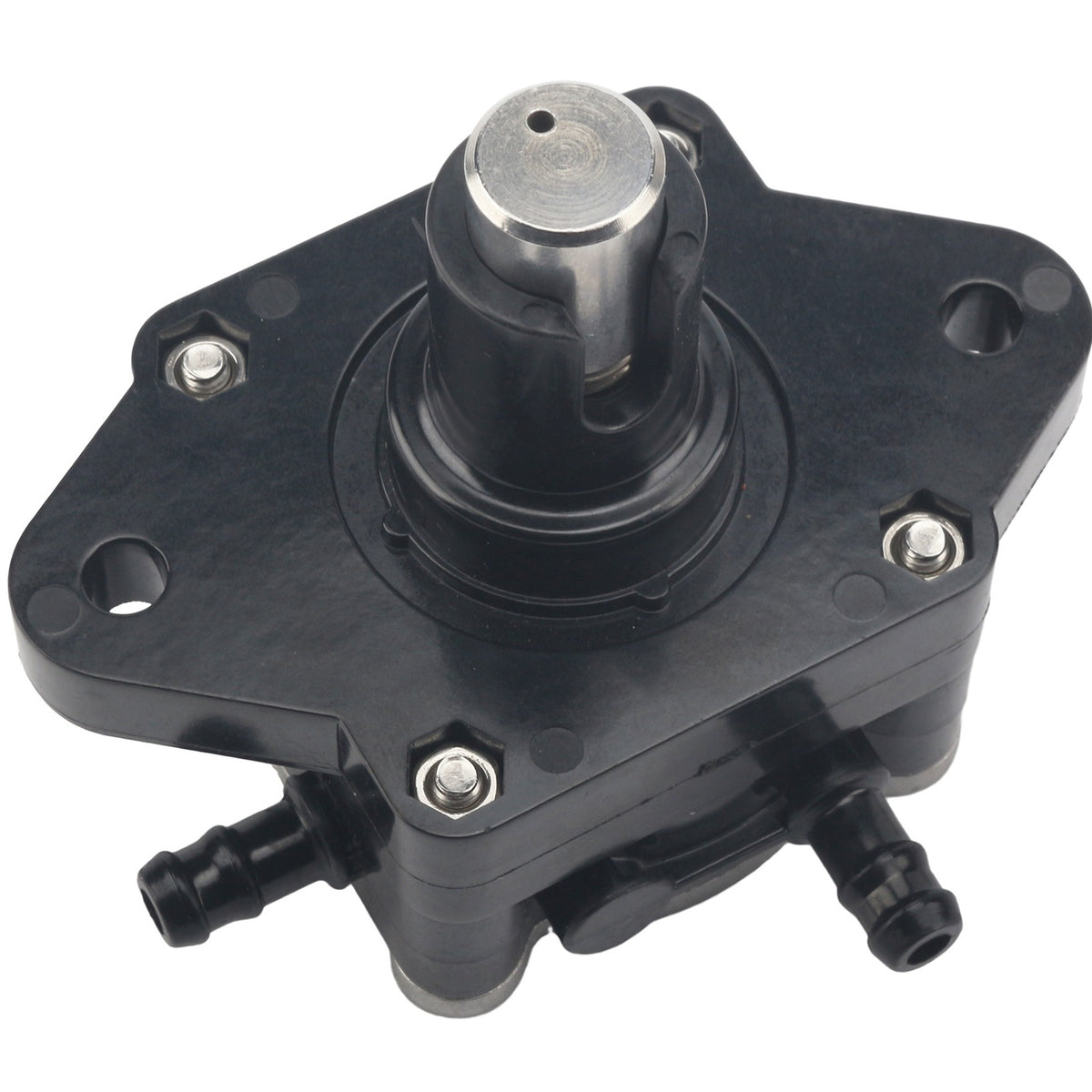

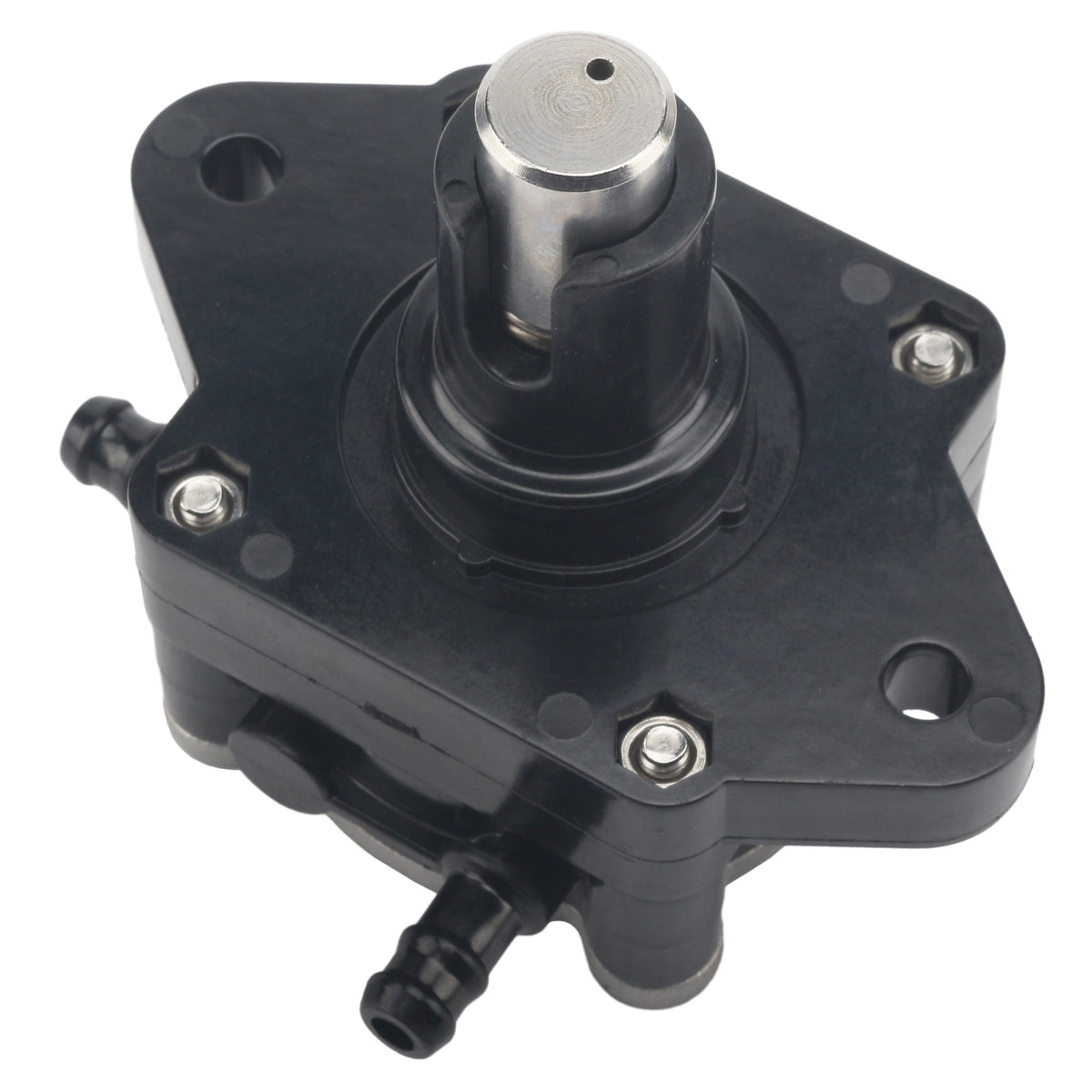

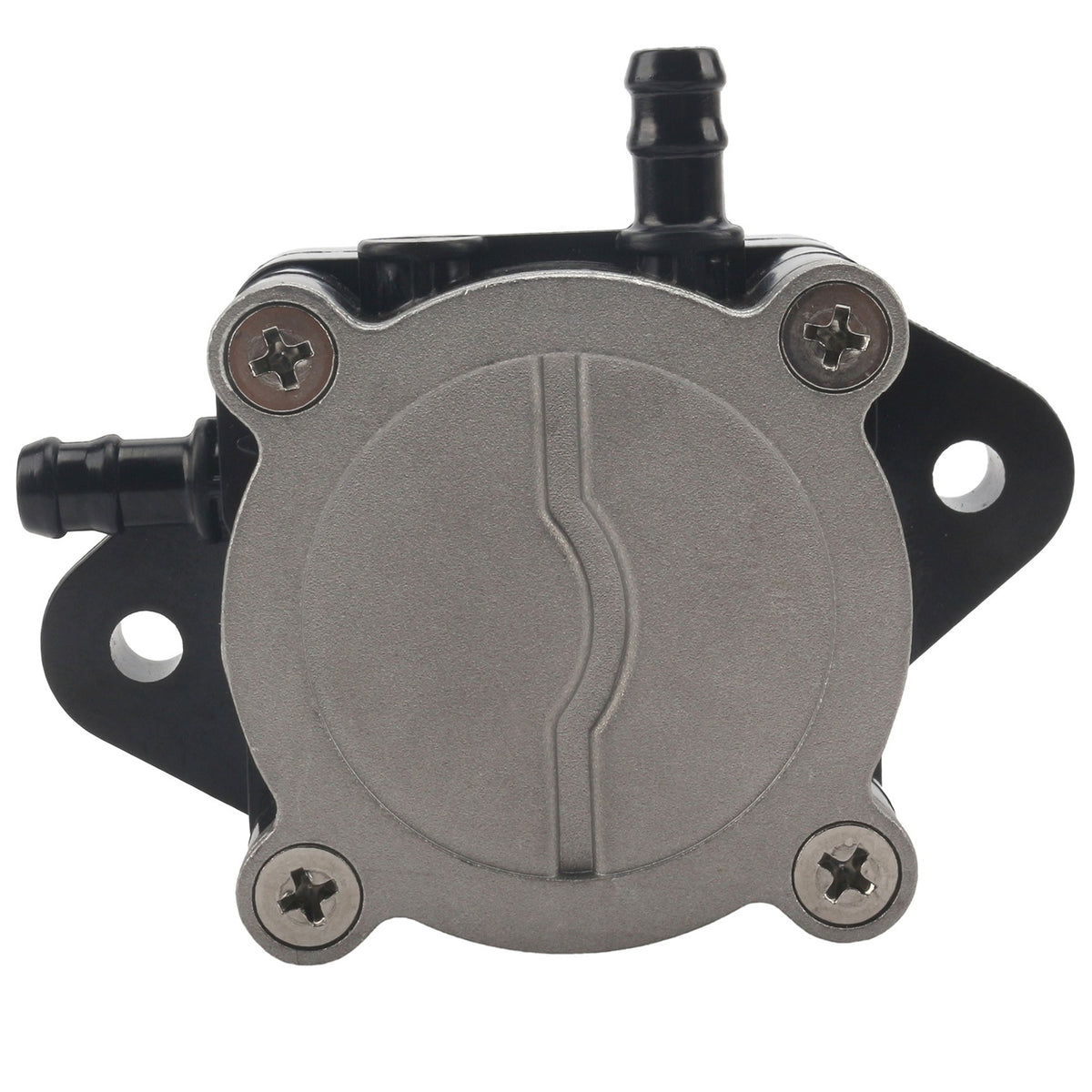

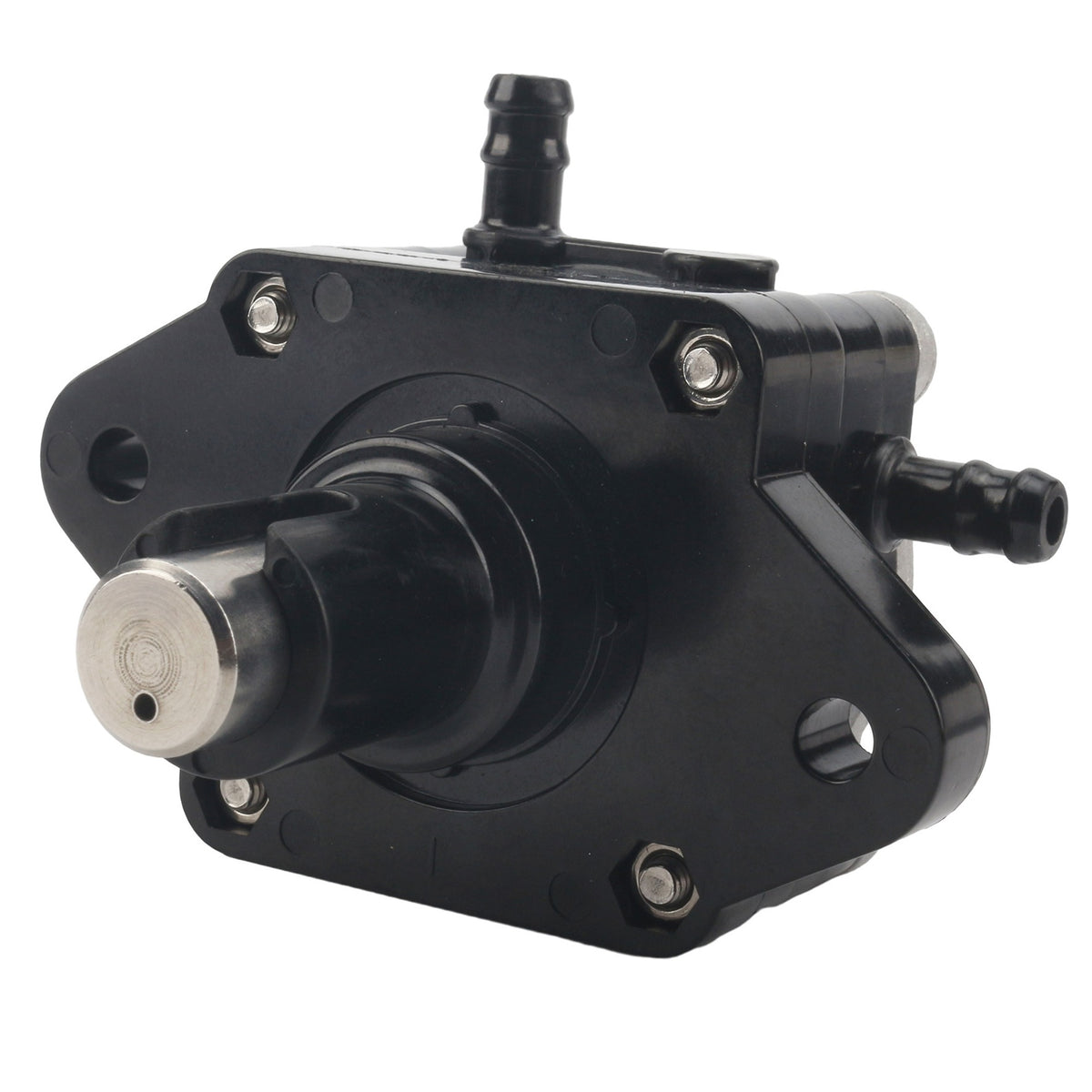

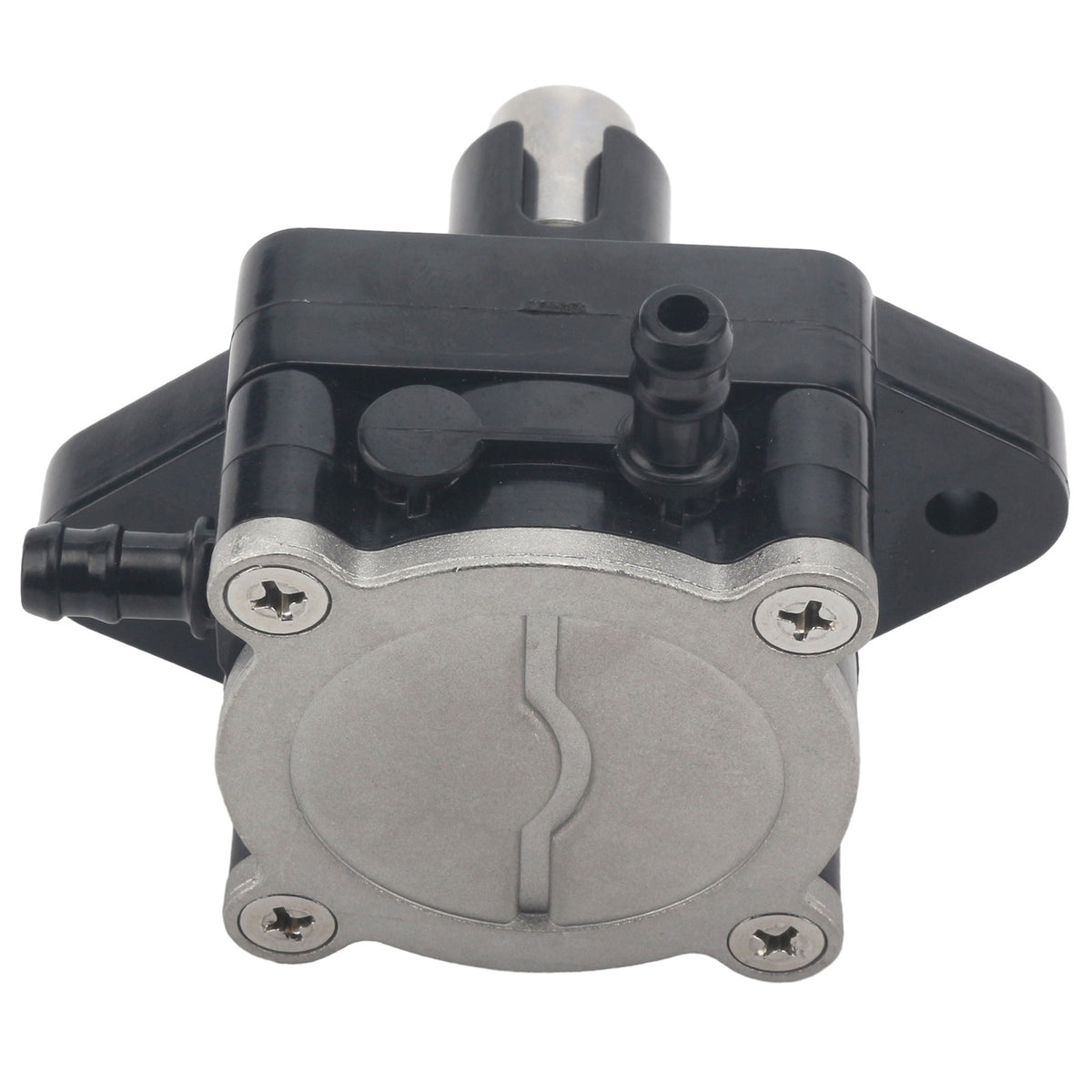

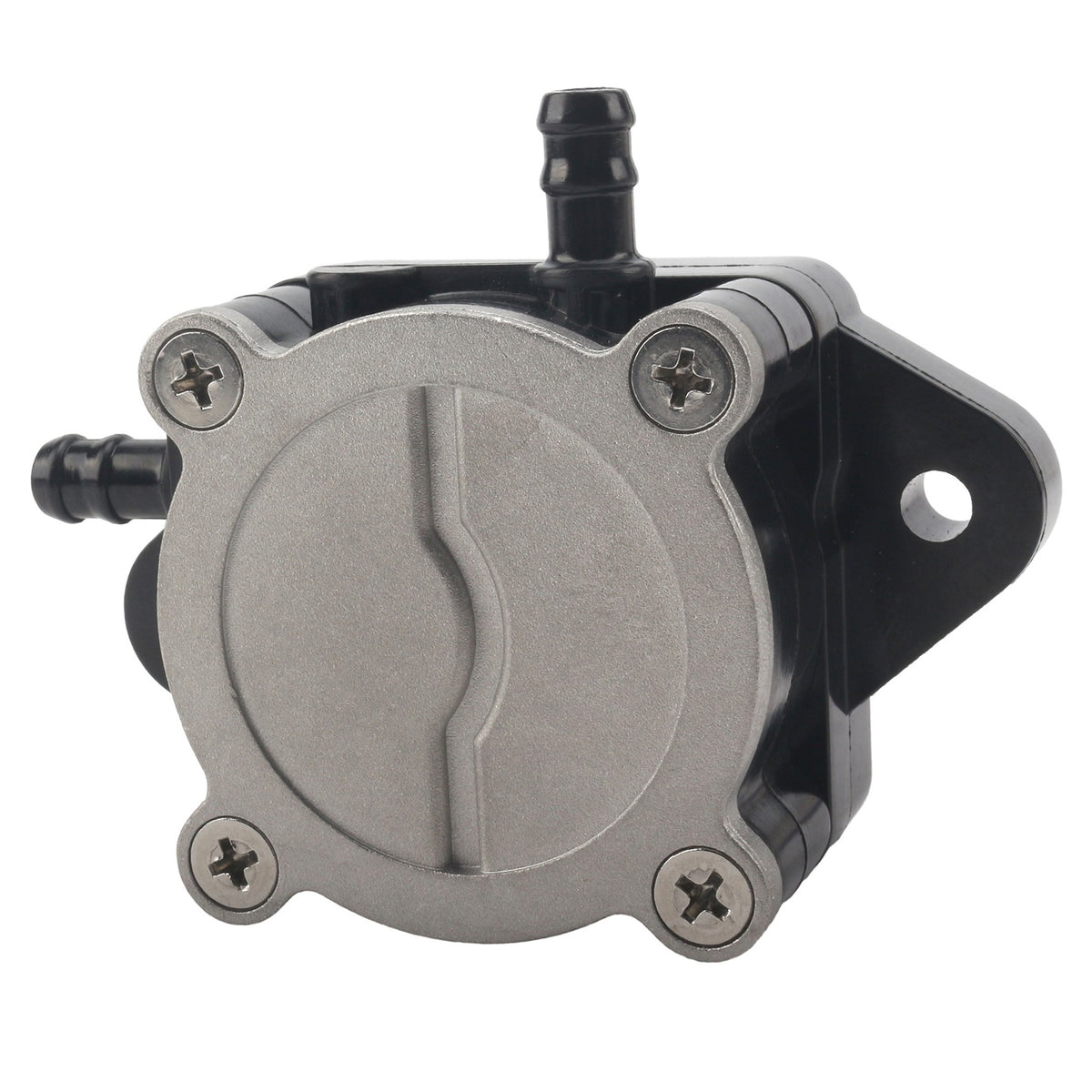

15100-90J11 Mechanical Fuel Pump Assembly

Mechanical Fuel Pump — Compatible with select Suzuki DF40–DF140 and Johnson Evinrude 90–140 HP Four-Stroke

Which pump is this?

This is Suzuki 15100-90J11, the low-pressure mechanical fuel pump on DF-series inline four-cylinder four-strokes. Predecessors: 15100-90J00 / 90J01 / 90J10 / 90J1V. Johnson / Evinrude 4-stroke 90 / 115 / 140 HP 2003–2006 use the same pump as 5036797 (predecessor 5033699) — Suzuki-built BRP motors. Compatible with the 12 rows in the table: DF40–DF140 as dated there, plus J/BJ 90 / 115 / 140 HP 2003–2006. Same suffix -90J11 on 17400-90J11 is a water-pump impeller kit, not this fuel pump. 17670-90J11 is a thermostat. 15100-96J is the DF150–200 pump. 15200-90J is the high-pressure / VST unit. 15100-99E / 5030697 is an earlier DF60/70 family, not this 90J pump.

Signs yours is due

• DF70A / DF90 / DF115 four-stroke cranks, fires, then starves — low-pressure 15100 pump tired, high-pressure 15200 still spinning.
• Fuel weep at the 15100-90J11 body on a DF40–140 cowl, or on a 2003–2006 J/E 90/115/140 four-stroke.
• Old stamp 15100-90J10 / 90J1V / 90J11 or 5036797 / 5033699 — not 17400-90J11.
• Not a 2-stroke DT pump (15100-943xx) and not DF150 15100-96J.

Will it fit?

Compatible with Suzuki DF40/DF40A 2015–2018, DF50/DF50A 2014–2019, DF60/DF60A 2015–2019, DF70/DF70A 2012–2021, DF80/DF80A 2013–2018, DF90/DF90A/DF90T 2001–2019, DF100 2001–2019, DF115 2001–2019, DF140 2001–2019 as printed. Workbook notes also call DF90T from serial 680686 up and DF115T from 681518 up. Johnson/Evinrude: 90 / 115 / 140 HP four-stroke 2003–2006 on 5036797. Horsepower 90 alone is not enough — 2-stroke 90 HP VRO is 21FP007, not this pump.

Engine horsepower alone does not prove fit. Match the number stamped on the pump you remove to the OEM column.

Every row is from this SKU fitment workbook (12 rows after empty-line filter). Same horsepower name shipped different pumps.

OEM and swap numbers

OEM / predecessor numbers keep the engine-brand column. Aftermarket cross-refs are numbers only.

Wrong part

• NOT 17400-90J11 — water-pump impeller kit, same suffix, different product.
• NOT 17670-90J11 — thermostat.
• NOT 15100-96J — DF150 / 175 / 200 pump.
• NOT 15200-90J high-pressure / VST, and NOT 15100-99E / 5030697 (earlier DF60/70).

What ships

One complete low-pressure mechanical fuel-pump assembly (15100-90J11 / 5036797 family). No impeller kit, no VST module, no filter.

Often replaced together

Pump-plus-filter kits 26FFK069–072 are not this single pump. DF150–200 15100-96J is a different SKU. VRO 90/115 2-stroke is 21FP007.

Install

Confirm DF40–140 four-stroke or J/E 90/115/140 4-stroke 2003–2006. Photograph the 15100 vs 15200 stamp — this page is the low-pressure 15100 body. If the box says 17400-90J11 you have a water-pump kit. Prime, leak-check, idle on muffs. DF150 wants 15100-96J, not this SKU.

Frequently Asked Questions

Will this fit my Suzuki 90?

DF90 / DF90A / DF90T four-stroke in the table years, yes. 2-stroke 90 HP is not this pump. Match 15100-90J11, not 17400-90J11.

Johnson 115 HP?

Four-stroke 115 HP 2003–2006 (5036797), yes. 2-stroke 115 HP V4 VRO is 21FP007.

Is 18-1760 this pump?

18-1760 is a cross-ref number for 15100-90J11. We list the number only.

DF40 2010?

This workbook dates DF40 / DF40A 2015–2018. Do not order from 2010 alone.

What ships?

One 15100-90J11 / 5036797 pump. Not 26FFK069–072 kits.

Please note

Aftermarket fuel pump by GHMarine. Not affiliated with the engine brands named above. «Compatible with», «Replaces», and cross-ref numbers mean this part is built to work like the originals listed — always confirm the stamp on the removed pump, the engine model, and the serial range before you order. This page is the pump only, not a multi-part kit.
