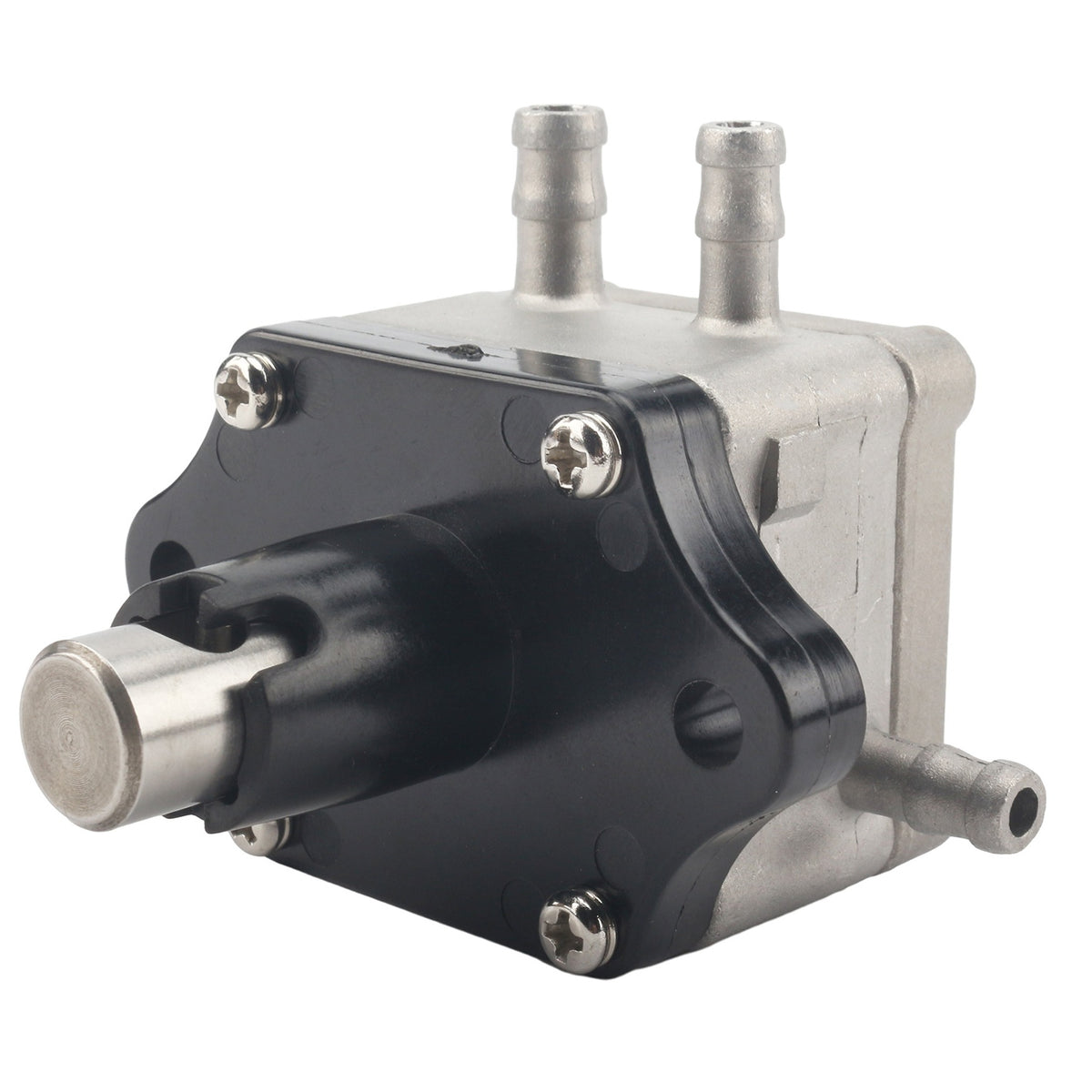

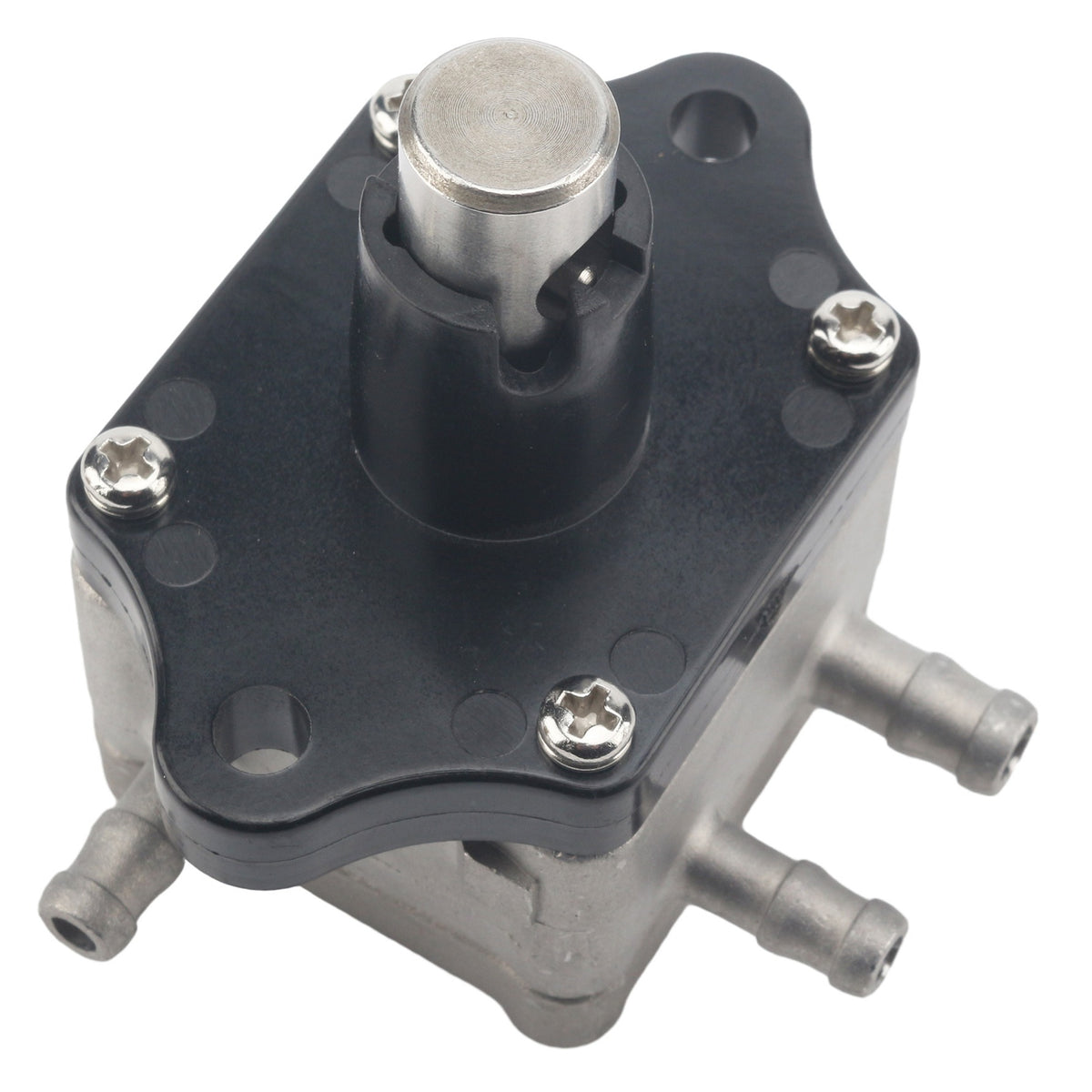

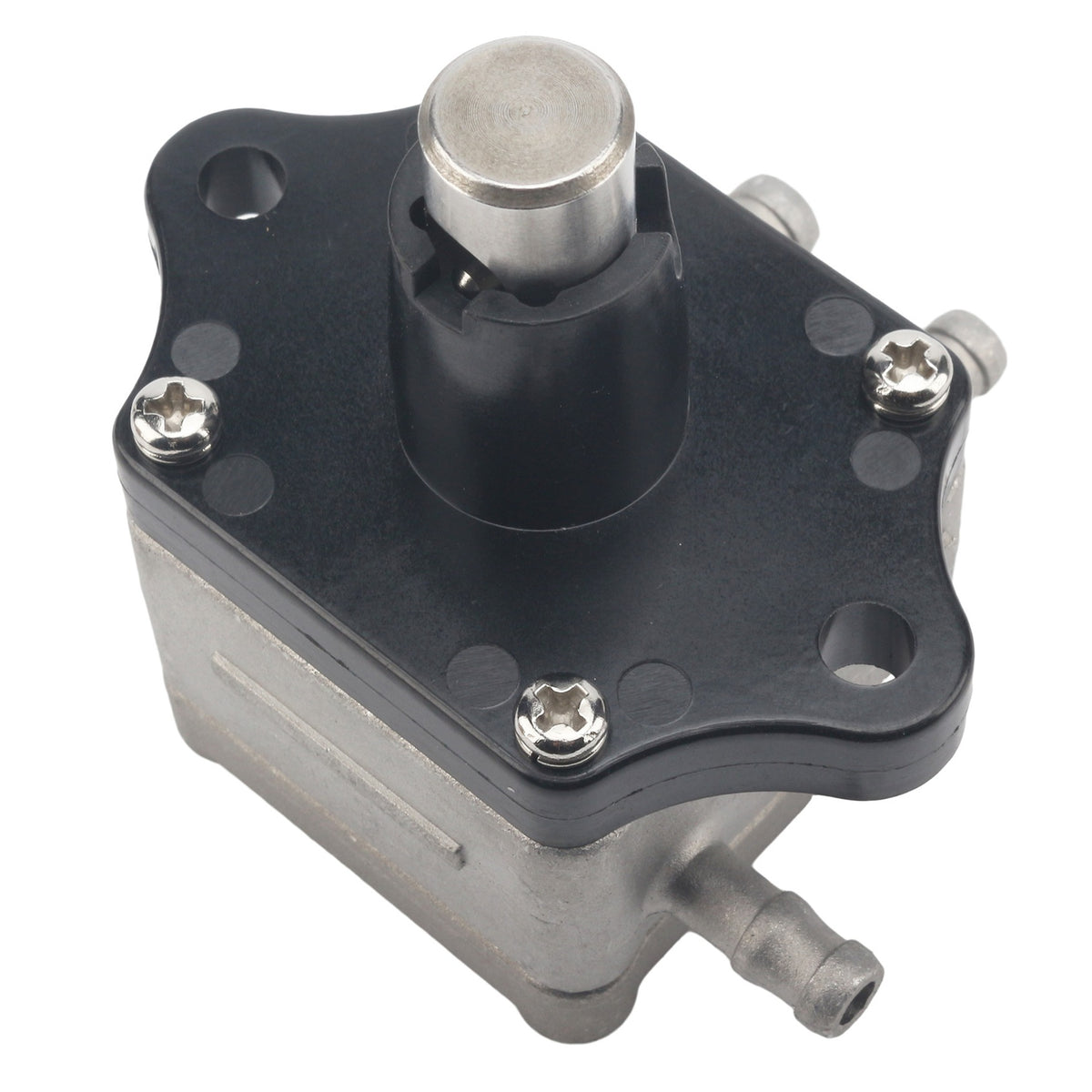

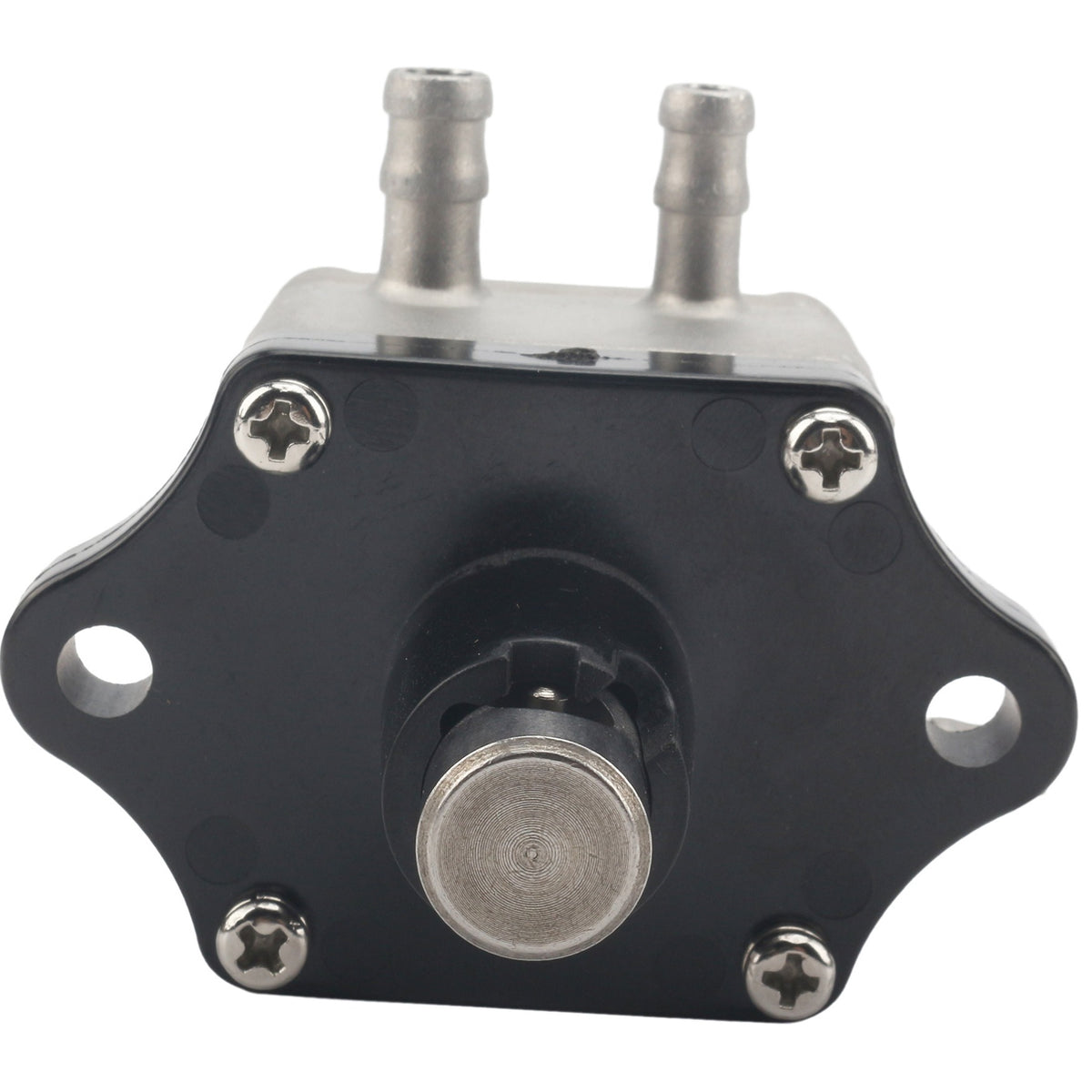

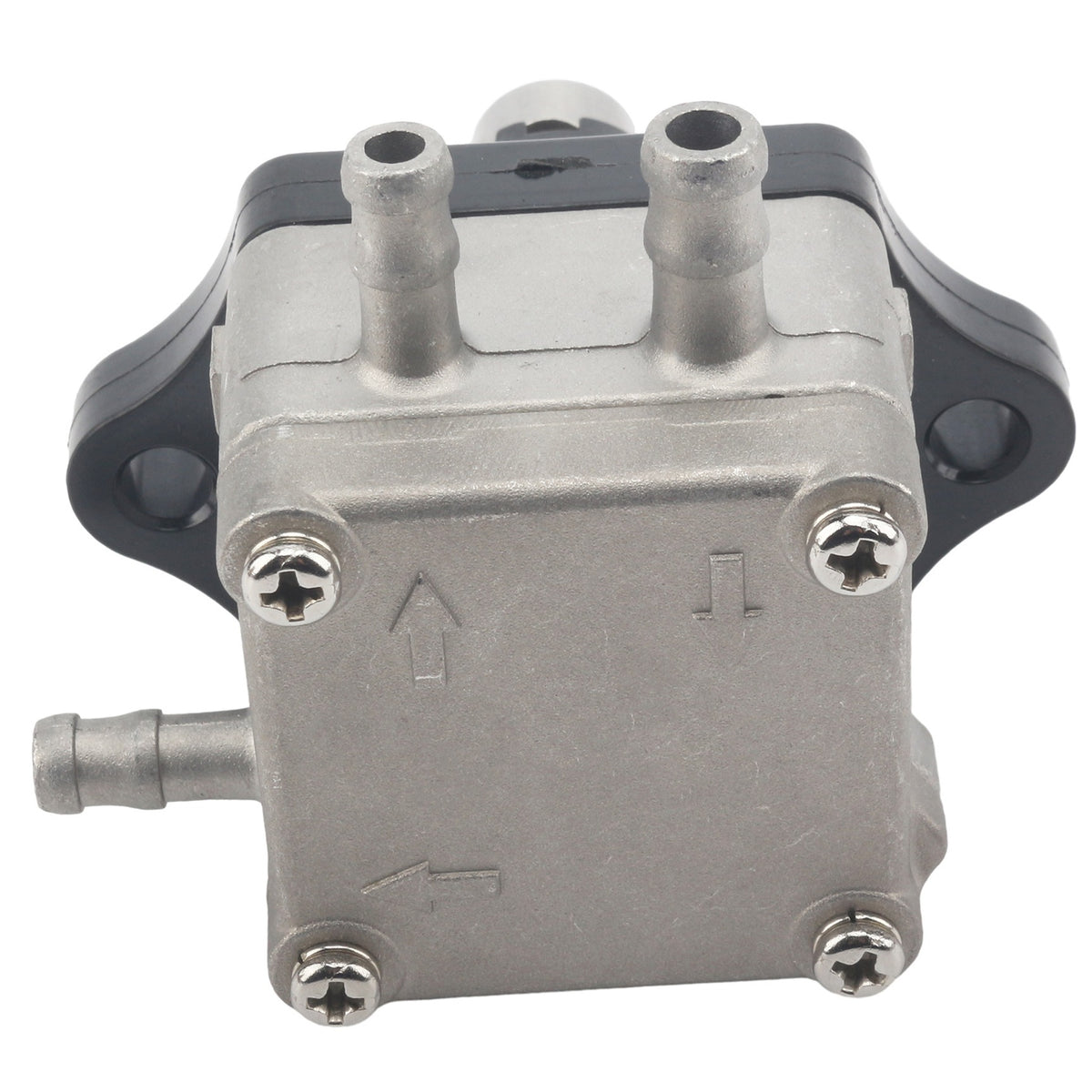

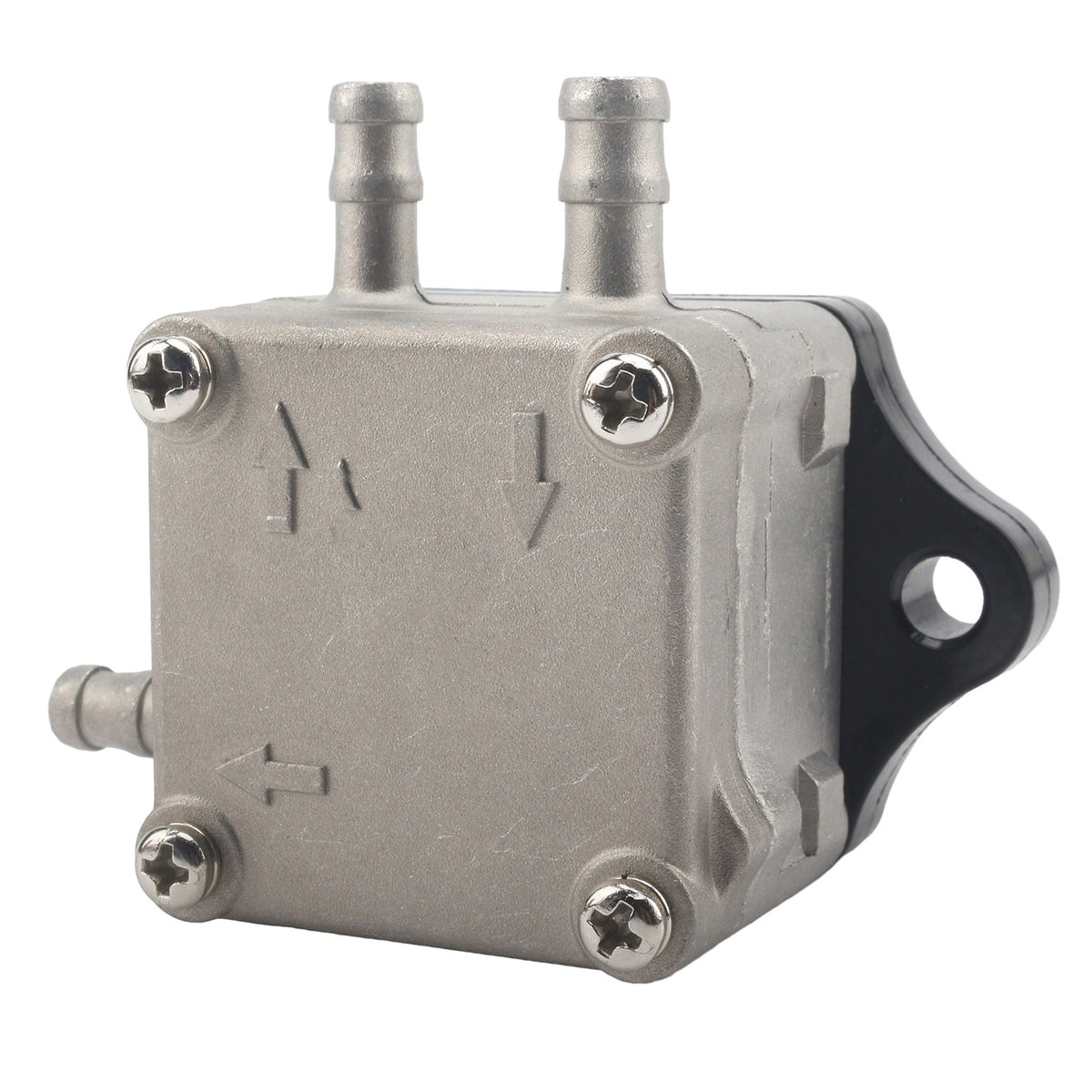

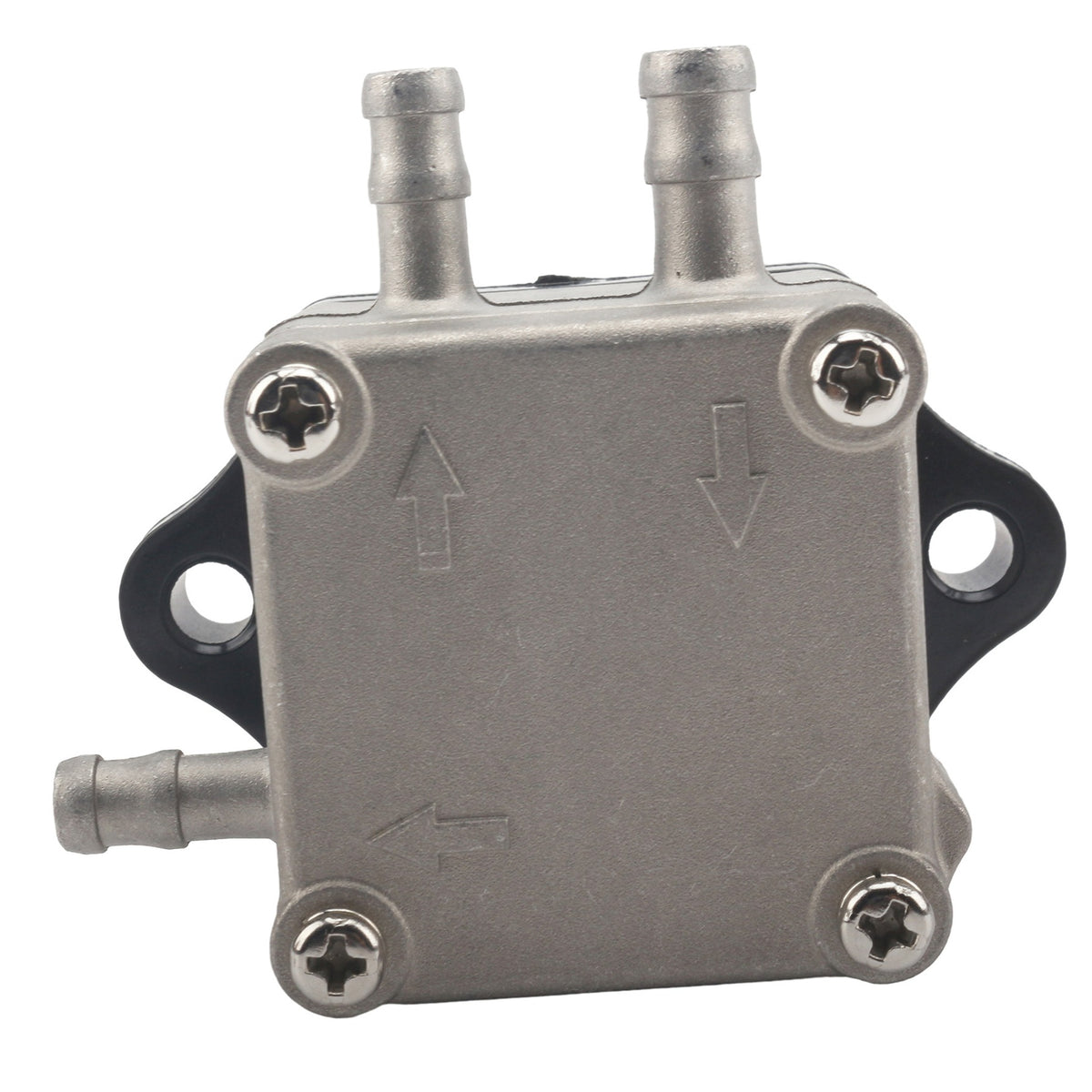

16700-ZV5-003 Mechanical Fuel Pump Assembly

Mechanical Fuel Pump — Compatible with select Honda BF25A–BF90A Four-Stroke

Which pump is this?

This is Honda 16700-ZV5-003, the A-generation cylinder-head mechanical fuel pump. 16700-ZW1-004 is the same family on the same A-generation table. Compatible with BF25, BF30, BF35, BF40, BF45, BF50, BF75 and BF90 A-generation four-stroke rows (about 1997–2007; BF35 / BF45 are short years). The table lists each model twice — once on ZV5-003 and once on ZW1-004 — because both stamps are on this SKU. A 40 HP Honda badge is not enough: BF40A is this page, BF40D is 16700-ZZ5-003 (21FP010). Cross-ref 18-7334 on some internal tables is a Yamaha 663-24410 family number, not this Honda pump.

Signs yours is due

• BF25A–BF90A four-stroke cranks long when hot, then runs after you prime — A-gen head pump diaphragm tired.
• Fuel smell at the cylinder-head pump on an A-series cowl (BF40A / BF50A, not BF40D / BF50D).
• Old stamp is 16700-ZV5-003 or 16700-ZW1-004.
• Not an electric feed pump 16735 on larger EFI Honda, and not BF8–20 16700-ZW9.

Will it fit?

Compatible with Honda A-generation BF25 through BF90 in the table, about 1997–2007 by model (BF35 1997–98, BF45 1998). Serial is often not listed — read A vs D on the cowl. BF40D / BF50D VIN BBDJ / BBEJ is 21FP010. BF8–20 is 16700-ZW9. BF60 is 16700-ZZ3. BF75D / 90D is 16700-ZY9.

Engine horsepower alone does not prove fit. Match the number stamped on the pump you remove to the OEM column.

Every row is from this SKU fitment workbook (16 rows after empty-line filter). Same horsepower name shipped different pumps.

OEM and swap numbers

OEM / predecessor numbers keep the engine-brand column. Aftermarket cross-refs are numbers only.

Wrong part

• NOT 16700-ZZ5-003 — D-generation BF40D / BF50D (21FP010).
• NOT 18-7334 — Yamaha 663-24410 family, not Honda A-gen.
• NOT 16700-ZW9 (BF8–20), 16700-ZZ3 (BF60), or 16700-ZY9 (BF75D / 90D).
• NOT electric feed 16735. NOT pump-plus-filter kits 26FFK040 / 26FFK041 as this SKU.

What ships

One complete mechanical fuel-pump assembly (16700-ZV5-003 / 16700-ZW1-004 family). No filter, no extra hose.

Often replaced together

D-generation BF40D / BF50D is 21FP010. BF8–20 is 16700-ZW9-003. Pump-plus-filter kits 26FFK040 / 26FFK041 are not this single pump.

Install

Read A vs D on the cowl before you open the head cover. Photograph the head-mounted pump hoses. Replace the gasket, align ports, snug evenly — these small Honda pumps warp if over-torqued. Prime, leak-check, idle on muffs. If the old stamp is 16700-ZZ5, you want 21FP010.

Frequently Asked Questions

Will this fit my Honda 40 HP?

Only BF40A (A-generation, about 1998–2007 in the table). BF40D uses 16700-ZZ5 (21FP010).

Is 18-7334 the same?

No. That number is a Yamaha small-pump family. This page is Honda 16700-ZV5 / ZW1 only.

ZV5 vs ZW1?

Both stamps are on this A-generation table. Match the stamp you remove.

Old title said fuel filter.

Template error. Mechanical fuel pump.

What ships?

One pump. Not 26FFK040 / 26FFK041 kits.

Please note

Aftermarket fuel pump by GHMarine. Not affiliated with the engine brands named above. «Compatible with», «Replaces», and cross-ref numbers mean this part is built to work like the originals listed — always confirm the stamp on the removed pump, the engine model, and the serial range before you order. This page is the pump only, not a multi-part kit.
