18-2624 Lower Unit Seal Kit for Mercury 9.9-25HP Outboards | SeaSierra

Product Details

• SKU: 182624
• Brand & Manufacturer: SeaSierra
• Category: Outboard Parts
• Part Type: Lower Unit Seal Kit
• Item Weight: 0.1451
• Package Dimensions:
  • Height: 5.8501
  • Width: 6.8501
  • Depth: 1.0001

Compatibility

This kit is compatible with the following Mercury engines:

• 9.9HP 4-stroke BigFoot: Serial # G760300 and up
• 15HP 4-stroke BigFoot: Serial # G760300 and up
• 15HP Magnum/Marathon 15XD Super 15: ALL
• 18 HP: Serial # 6443973 and up
• 20HP: Serial # 6443973 and up
• 25HP: Serial # 6443973 and up
• 25HP Lightning 3 cylinder: Serial # E268781 and up

Part Numbers and Replacements

• Replaces OEM Part Numbers: MERCURY MARINE 26-85090A2
• GLM Part Number: 87808
• Mallory Part Number: 9-74205
• Sears Part Number: 26-85090A2
• Other Replaced Part Numbers: Chrysler/Force/US Marine 26-85090A2

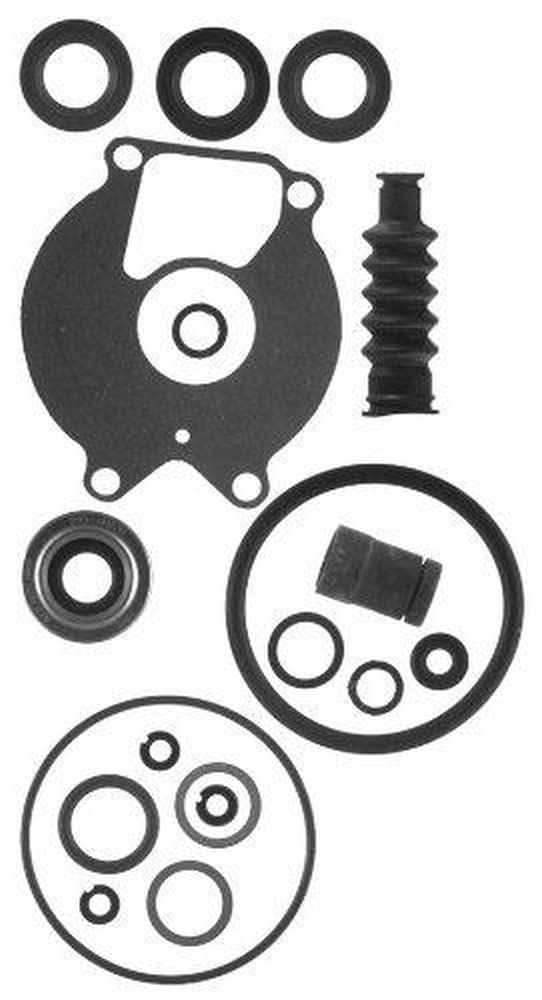

Kit Components

The package includes the following items:

1. Oil Seals (Part Numbers: 18-0579, 18-0580, 18-0586)
2. Gaskets
3. O-rings (Part Numbers: 18-7100-9, 18-7956-9, 18-7188-9, 18-7419, 18-7135)
4. Water Tube Seals
5. Bushings
6. Drain Screw Gasket (Priced Per Pkg of 2) (Part Numbers: 18-2945-9, 18-2560-9, 18-2562-9)
7. Impeller Gasket (Priced Per Pkg of 2) (Part Numbers: 18-2560-9, 18-2562-9)
8. Shift Shaft Boot (Part Number: 18-2742)

Additional Information

• Unit of Measure: EA
• Item Status: A
• Case Packaging: 1
• Standard Packaging: 1
• HSC: 401693
• ECCN: 4016.93.1020
