18-3260 Water Pump Impeller Kit for 4HP 5HP Suzuki Outboards DT4 DT5 | SeaSierra

Product Details

• SKU: 183260
• Brand & Manufacturer: SeaSierra
• Category: Water Pump Repair Kit
• Part Type: Water Pump Impeller Repair Kit
• Item Weight: 0.0801
• Package Dimensions: HEIGHT: 7.2001, WIDTH: 5.8501, DEPTH: 0.7001
• Material: Various Materials (including the strongest marine and chemical corrosion-resistant metal alloy and scientifically engineered high-performance neoprene rubber)
• Engine Type: 2 Stroke
• Mounting Type: Suzuki 4 5 HP outboard

Compatibility

This kit is compatible with the following Suzuki Two Stroke Outboard models:

• 4 HP DT4: 1985-1998
• 5 HP DT5: 1999-2003

It also fits Johnson Evinrude OMC BRP Outboards:

• 4/5 HP Model: J4R4SRC, J4RL4SRC, J5R4SRC, J5RL4SRC, J5RECS, J5RLECS from 1998-2004.

Part Numbers and Replacements

• Replaces OEM Part Numbers:
  • 17400-98652
  • 17400-98651
  • 17400-98650
• Replaces Johnson Evinrude OMC BRP OEM: 5030352
• Replaces Sierra Marine: 18-3260
• Other Replaced Part Numbers: 17400-98652-000, 1740098652, 17400-98651-000, 1740098651, 17400-98650-000, 1740098650

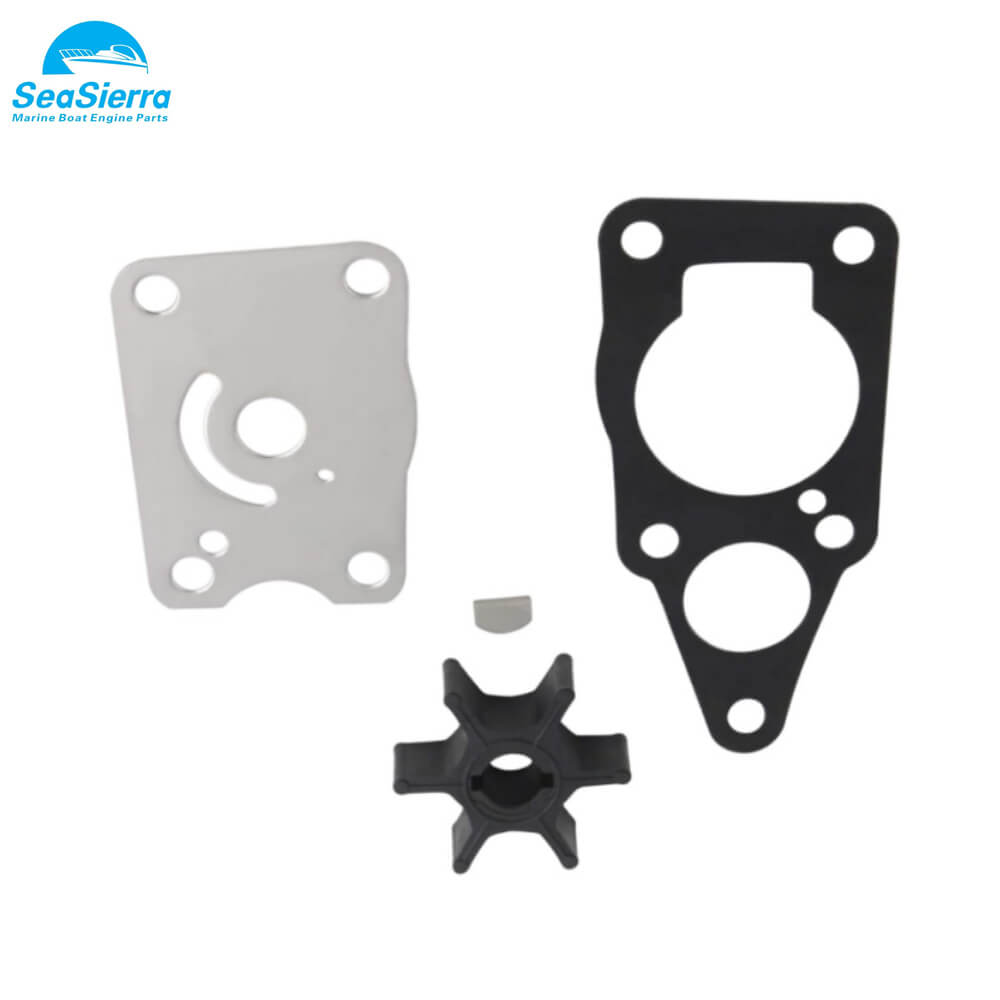

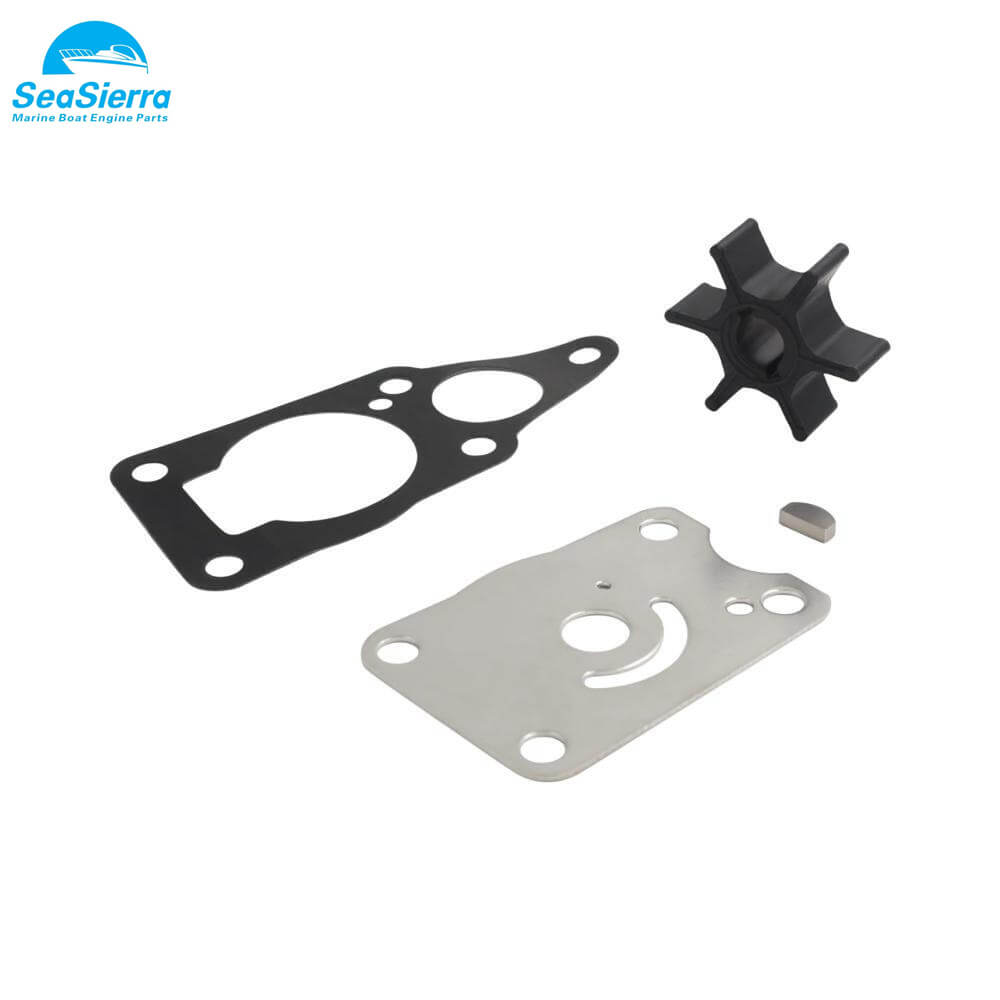

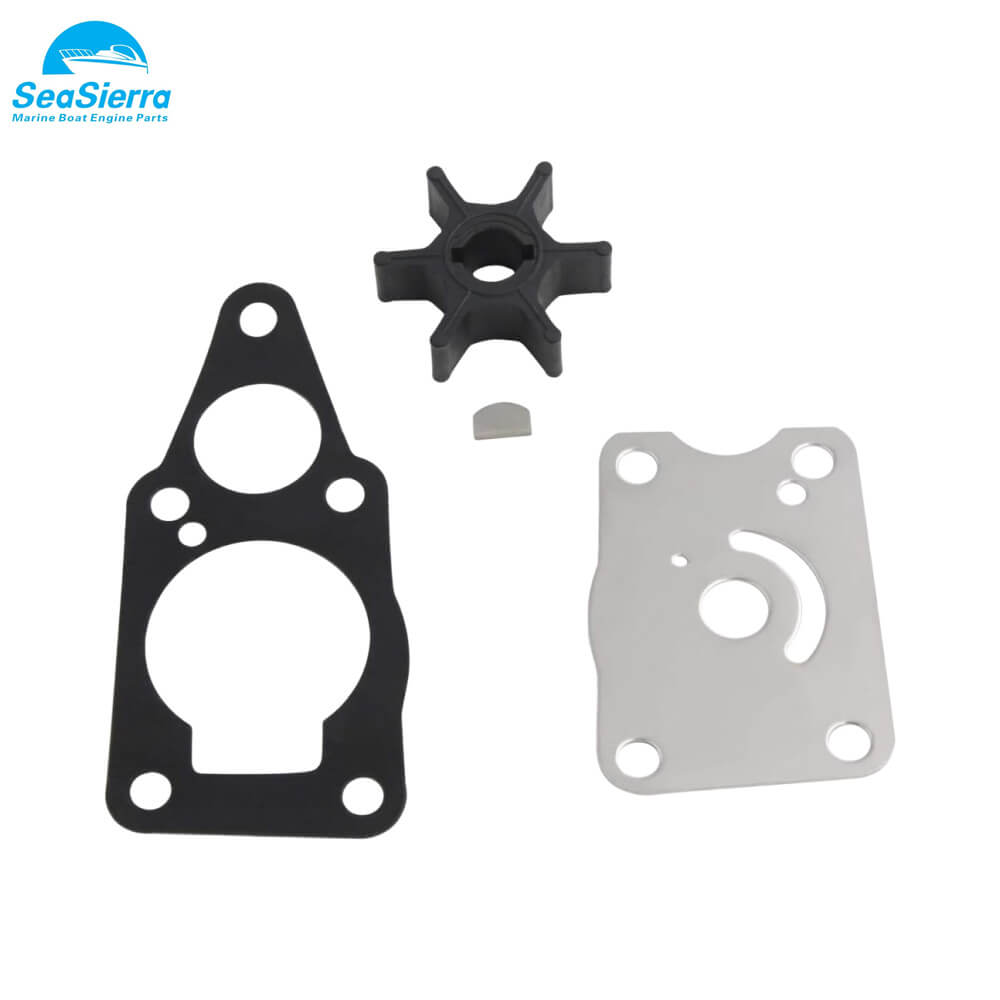

Kit Components

The package includes the following items:

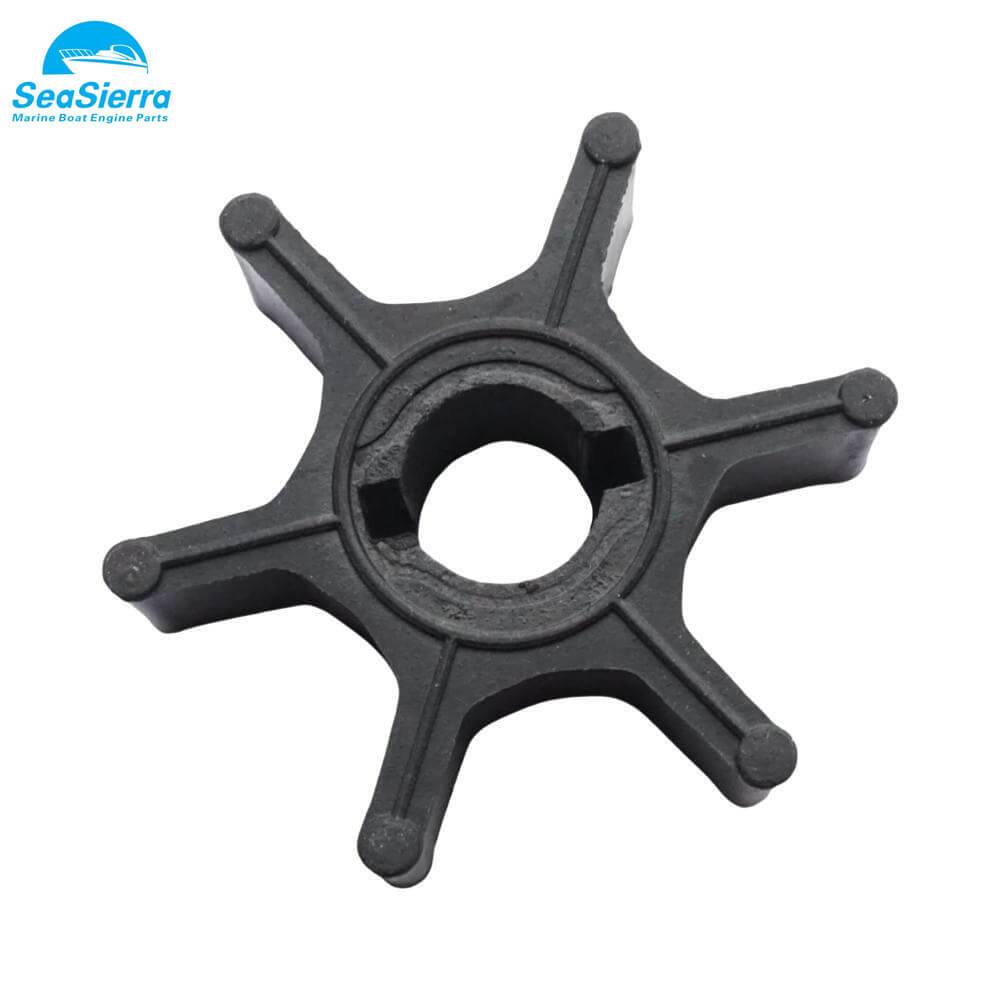

1. Water Pump Impeller (17461-985M0, 17461-98501, 5030188, 18-3097)

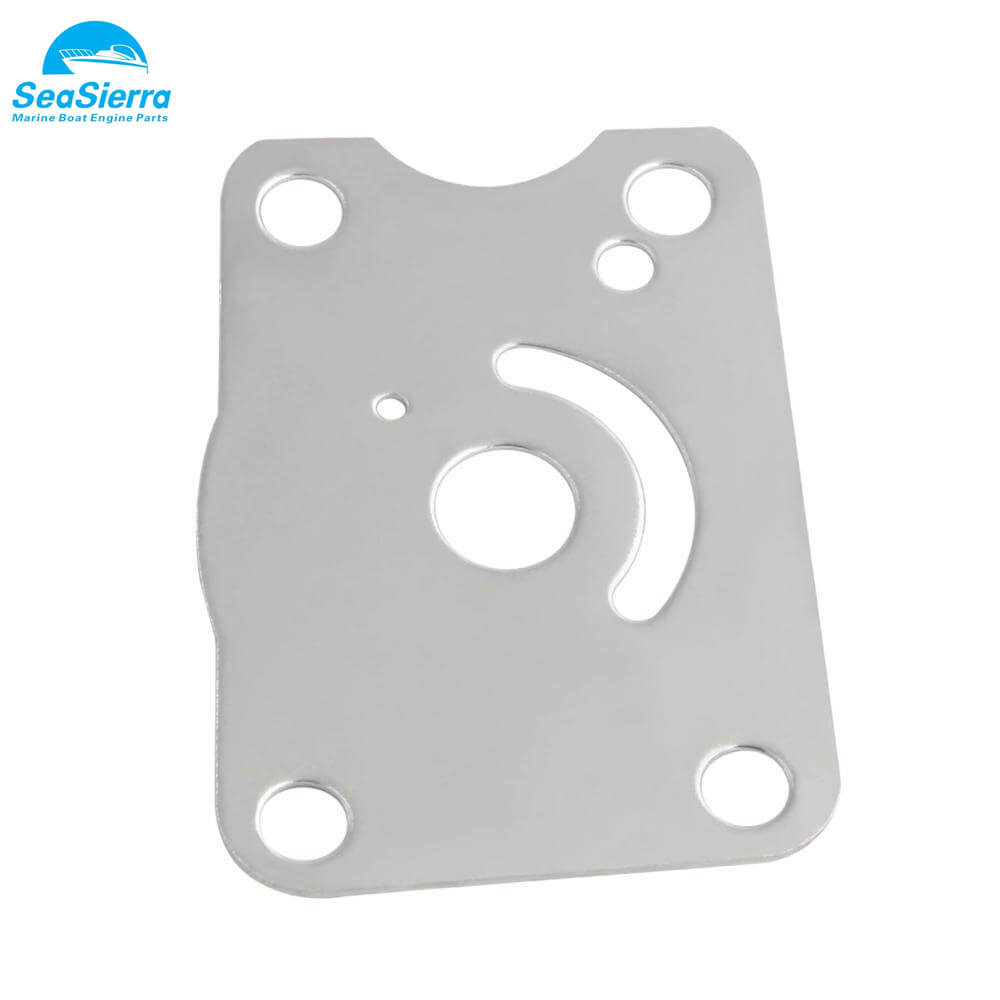

2. Wear Plate (17471-98601, 17471-98600, 5030189)
3. Key (09420-03002, 5030137)

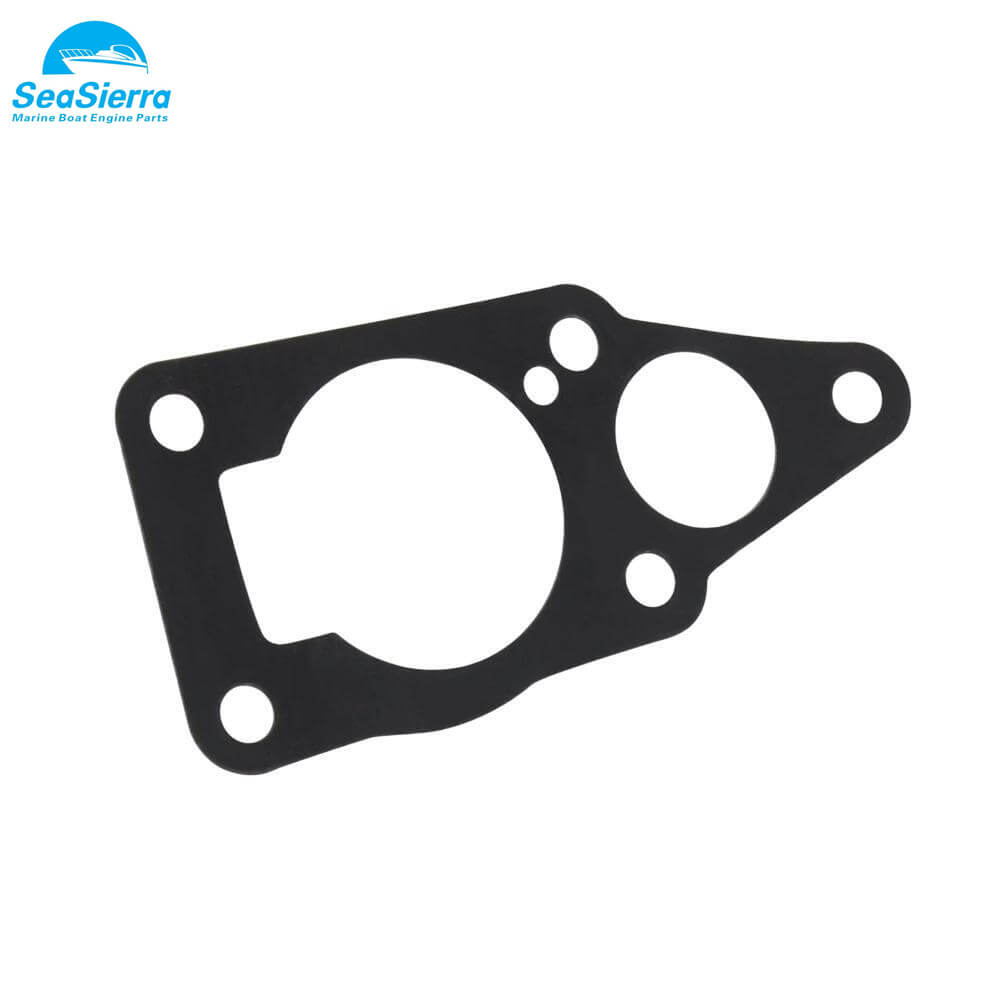

4. Gasket (17472-98611, 17472-98600, 5030190)

Additional Information

• Lubrication: Lubricate with silicone grease, glycerine, or dish soap when installing (not included). Remember to lubricate your pump and NEVER run the pump dry. NEVER pump flammable liquids.
• Note: It's essential to check your outboard engine year, model, or horsepower before purchase. If you have any questions, please do not hesitate to ask.
• Packaging Dimensions: Weight: 0.0801, Height: 7.2001, Depth: 0.7001, Width: 5.8501
• Unit of Measure: EA
• Item Status: A
• Case Packaging: 1
• Standard Packaging: 1
• HSC: 841391
• ECCN: 8413.91.9010
