18-3264-1 Water Pump Impeller Kit for Suzuki 200 225 250 HP DF200 DF225 DF250 | SeaSierra

Product Details

• SKU: 1832641
• Brand & Manufacturer: SeaSierra
• Part Type: Water Pump Impeller Repair Kit
• Item Weight: 1.5 Ounces
• Material: The water pump impeller kit is made of the highest quality marine and chemical corrosion-resistant metal alloy and high-performance neoprene rubber.
• Engine Type: 4 Stroke

Compatibility

This kit is compatible with the following Suzuki Four Stroke Outboard models:

• 200HP DF200: 2004 & UP
• 225HP DF225: 2004 & UP
• 250HP DF250: 2004 & UP

Additionally, it may fit Evinrude Johnson OMC BRP Outboards 200-225-250 HP by Year 2004 & UP Water Pump Kit 5035036.

Part Numbers and Replacements

• Replaces OEM Part Numbers: 17400-93J03, 17400-93J02, 17400-93J01, 17400-93J00, 17400-93J04
• Replaces Sierra Part Number: 18-3264
• Other Replaced Part Numbers: 5035036, 17400-93J05

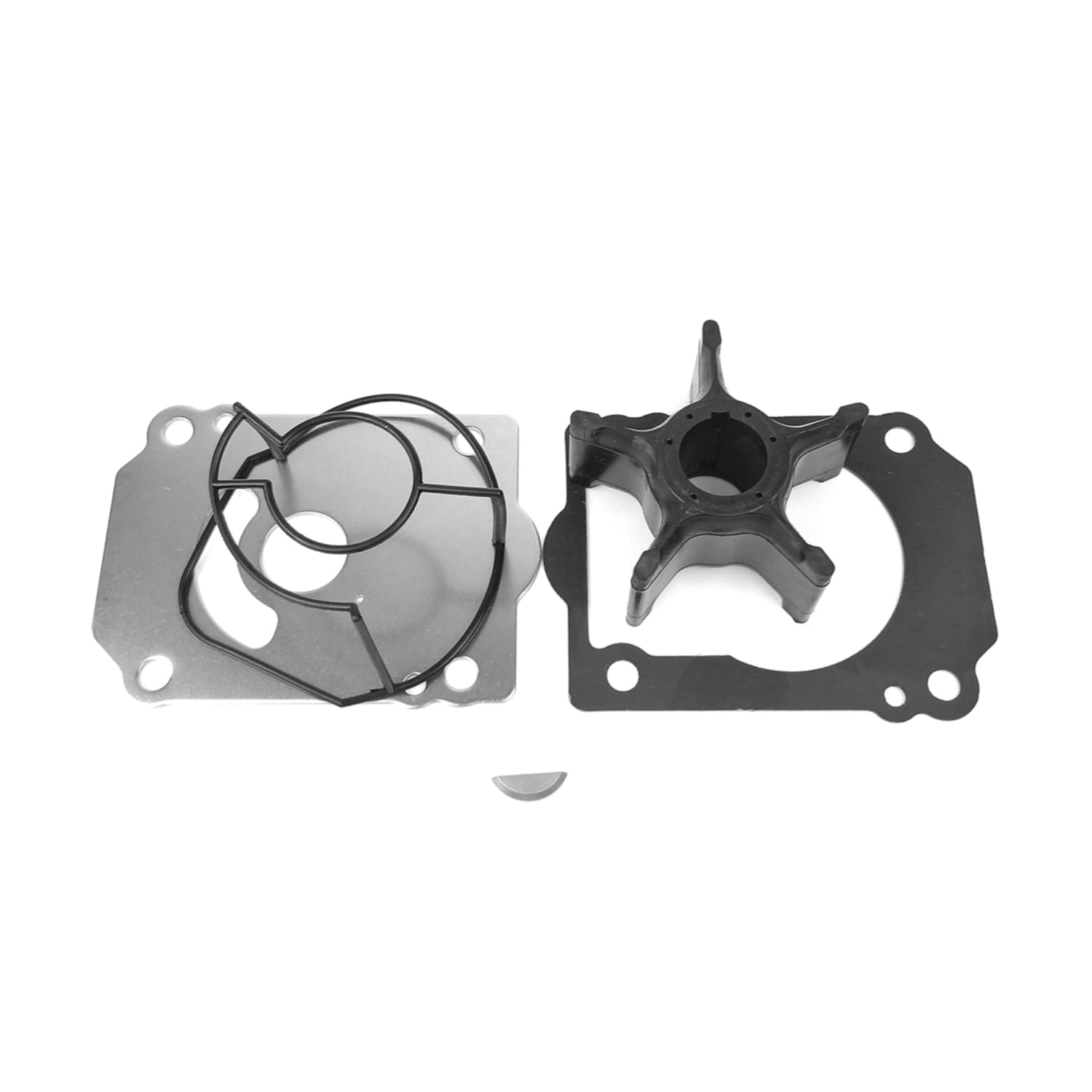

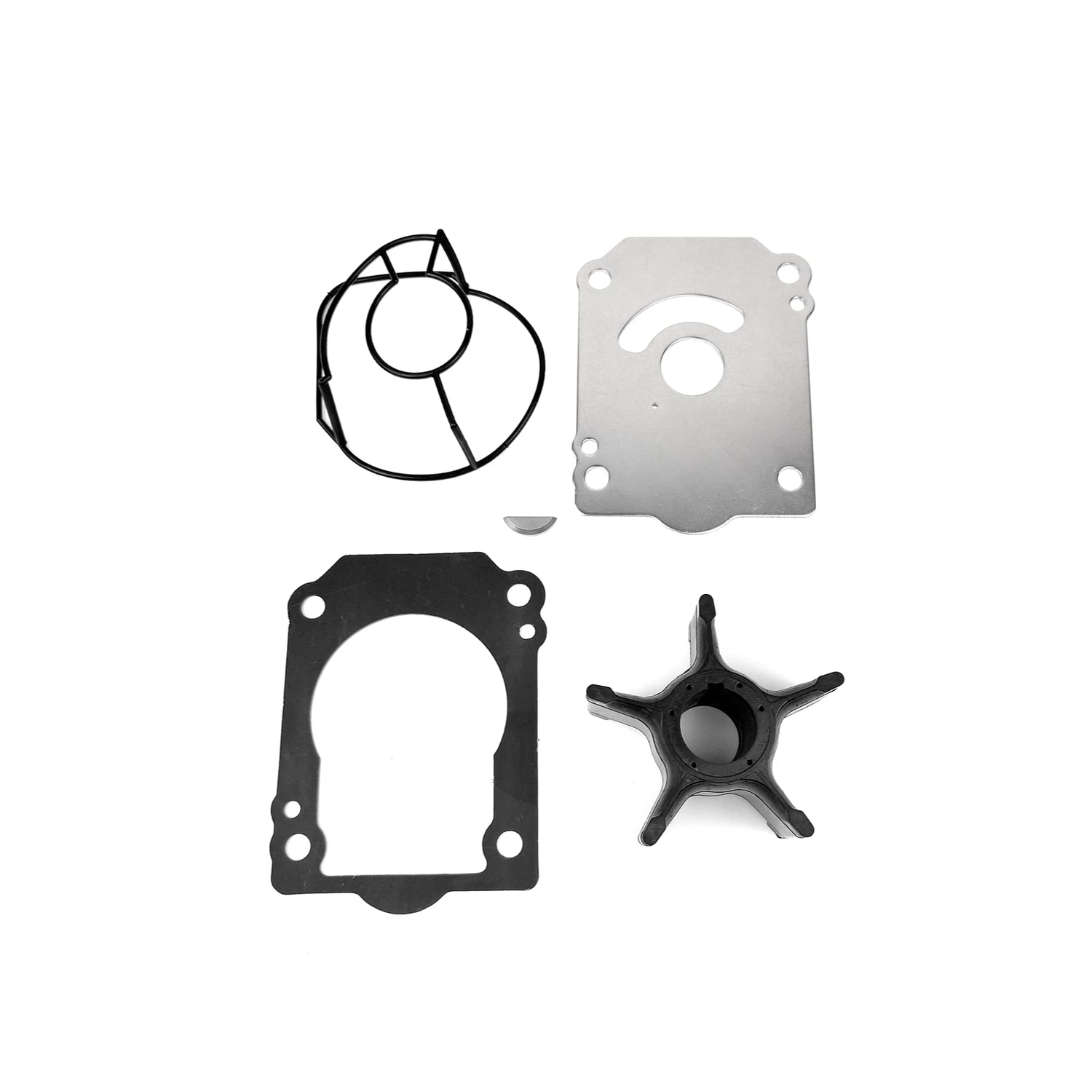

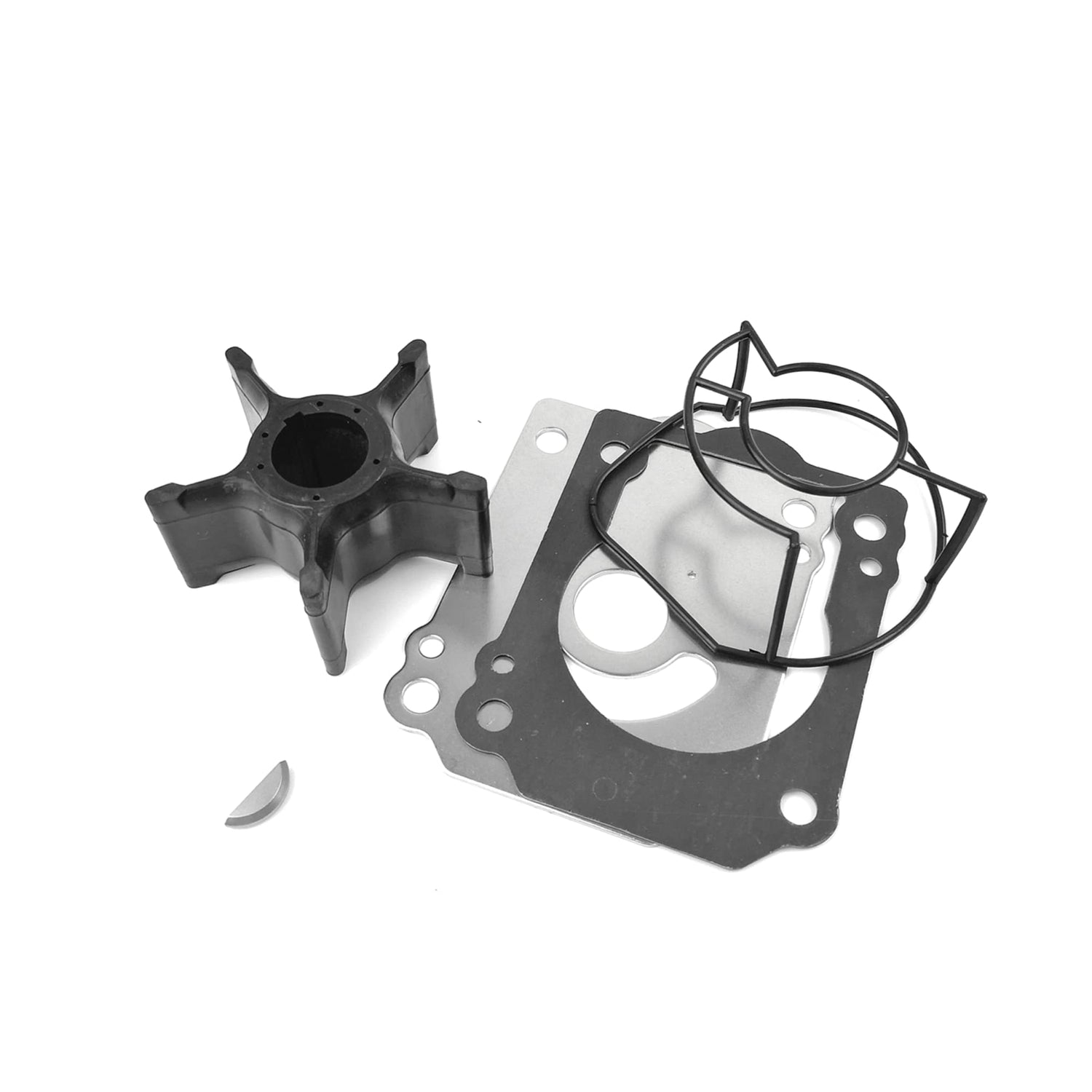

Kit Components

The package includes the following items:

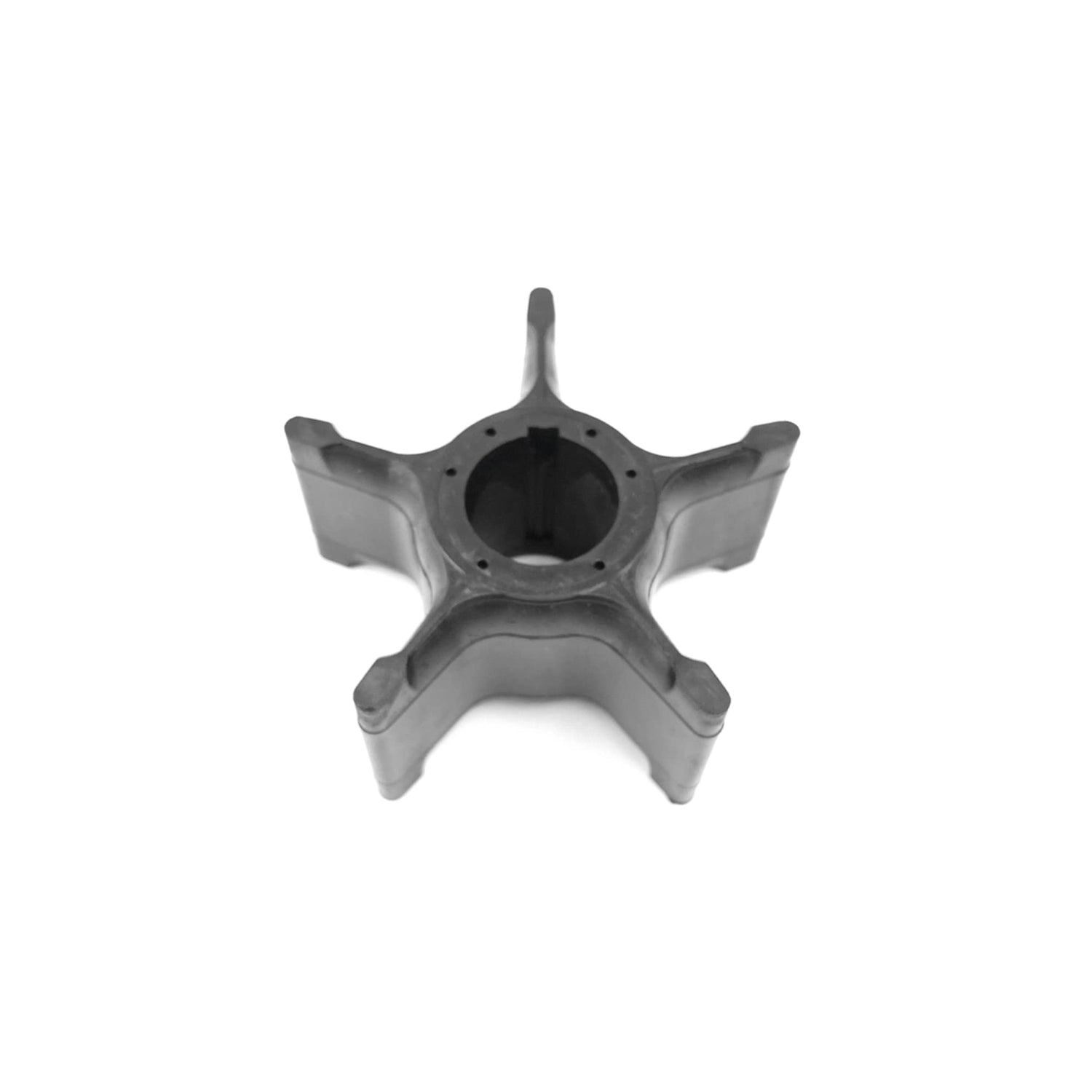

1. Water Pump Impeller (18-3035, 17461-93J00, 5035040) - Suitable for engines with 200-250HP

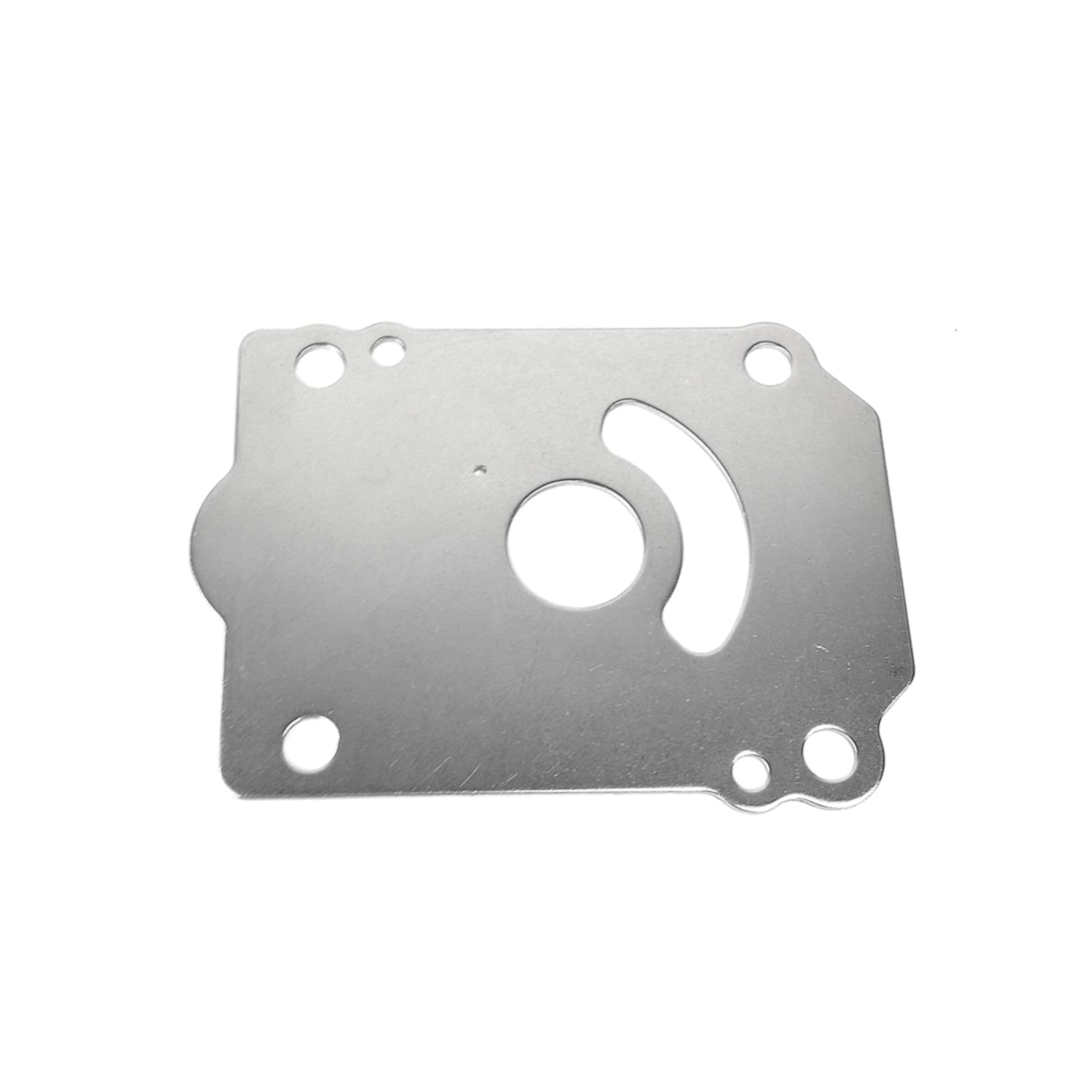

2. Wear Plate (17471-93J02, 17474-93J01, 5035041) - Suitable for engines with 200-250HP

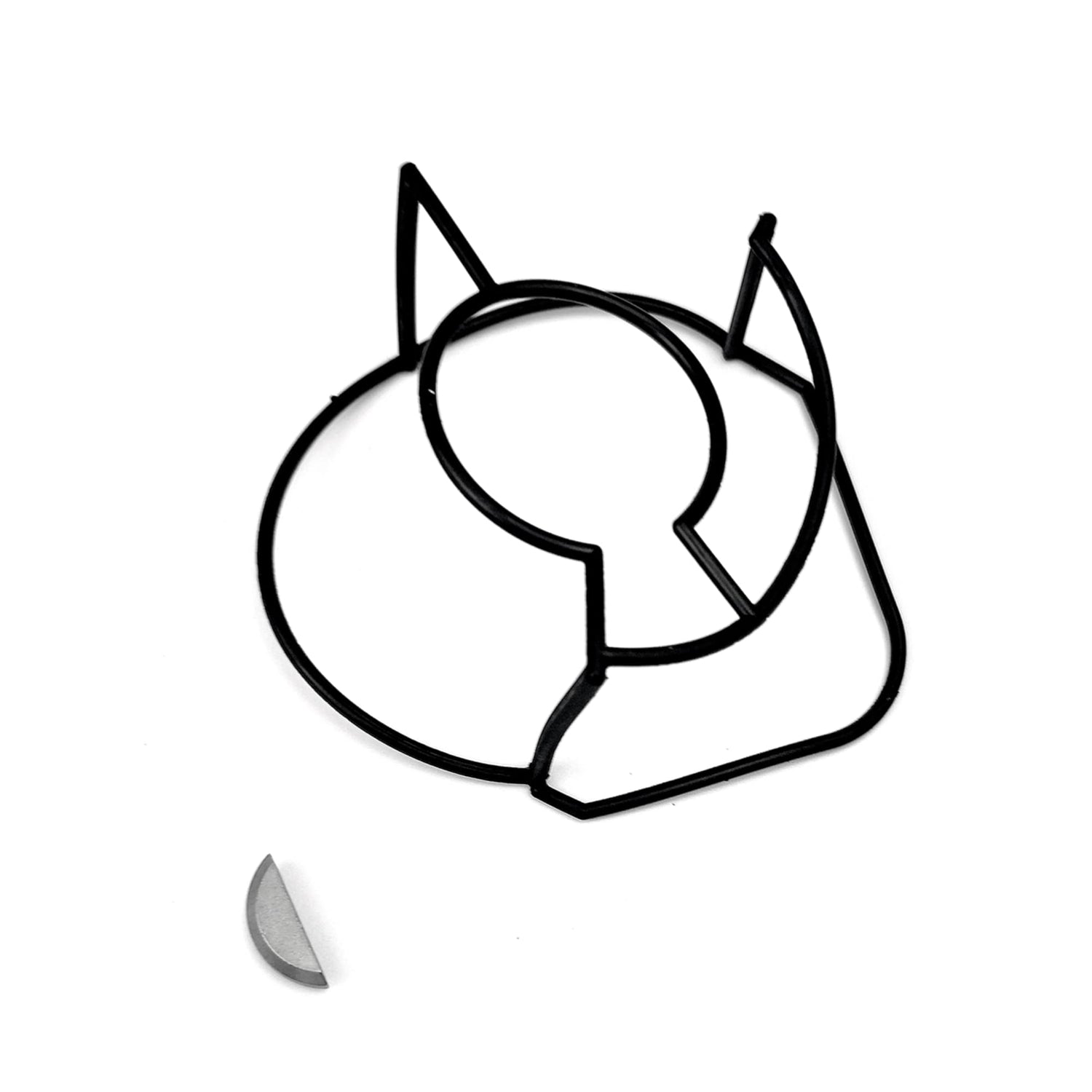

3. Sealing (17416-93J00, 5035039) - Suitable for engines with 200-250HP
4. Key (09420-05009) - Suitable for engines with 200-250HP

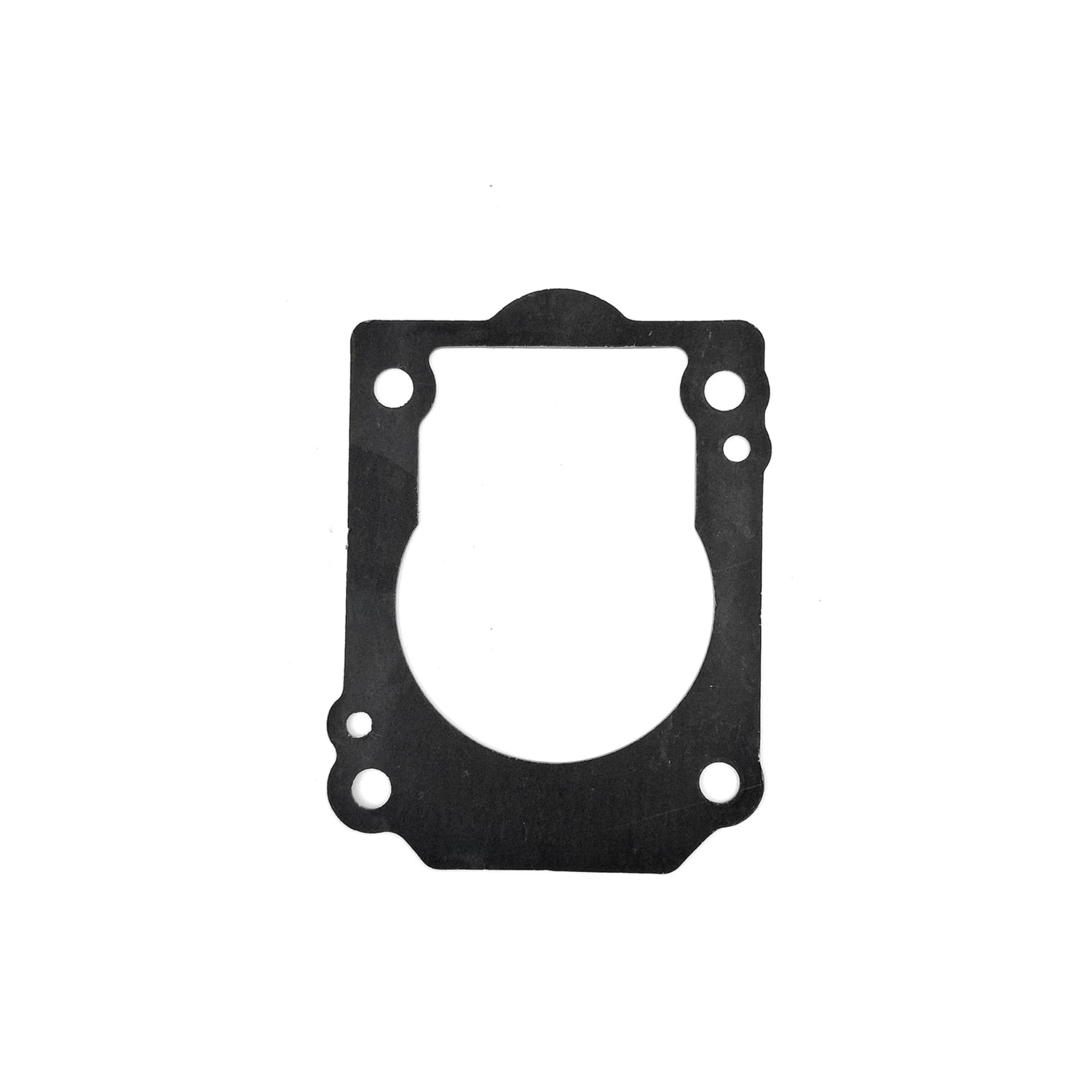

5. Gasket (17472-93J00, 18-0778, 5035042) - Suitable for engines with 200-250HP

Additional Information

• Packaging Dimensions:
  • Weight: 0.7951
  • Height: 3.6
  • Depth: 4.9
  • Width: 7
• Suzuki Outboard Part Numbers: 17400-93J00, 17400-93J01, 17400-93J02, 17400-93J03, 17400-93J04, 17400-93J05
• Other Components: Impeller Plate, Seal, Impeller Key, Insert Cup, Gasket, Water Pump, Impeller
