18-3285 Water Pump Impeller Kit for Honda 4-Stroke 175 200 225 250 HP BF175 BF200 BF225 BF250 | SeaSierra

Product Details

• SKU: 183285
• Brand & Manufacturer: SeaSierra
• Category: Boat Motor Engine Parts
• Part Type: Water Pump Impeller Service Kit
• Item Weight: 0.43
• Package Dimensions: HEIGHT: 1.5, WIDTH: 5.95, DEPTH: 8.9

Compatibility

This kit is compatible with the following Honda Four Stroke Outboard models:

• 175 HP: 2007 and Later (BF175AK1, BF175AK2)
• 200 HP: 2002-2006 (BF200A2, BF200A3, BF200A4, BF200A5, BF200A6), 2007 and Later (BF200AK0, BF200AK1, BF200AK2, BF200AK3)
• 225 HP: 2002-2006 (BF225A2, BF225A3, BF225A4, BF225A5, BF225A6), 2007 and Later (BF225AK0, BF225AK1, BF225AK2, BF225AK3, BF225D)
• 250 HP: All Year (BF250A, FB250D)

Part Numbers and Replacements

• Replaces OEM Part Numbers: 06192-ZY3-000, 06192-ZX2-C00, 06193-ZX2-C00, 06193-ZY3-010, 06193-ZY3-000
• Replaces Sierra Part Number: 18-3285
• Other Replaced Part Numbers: 19210-ZY3-003 (Impeller), 91356-ZY3-000, 91356-ZY3-003 (O-ring), 90752-ZY3-003 (Key Driveshaft), 19234-ZY3-000 (Water Pump Gasket)

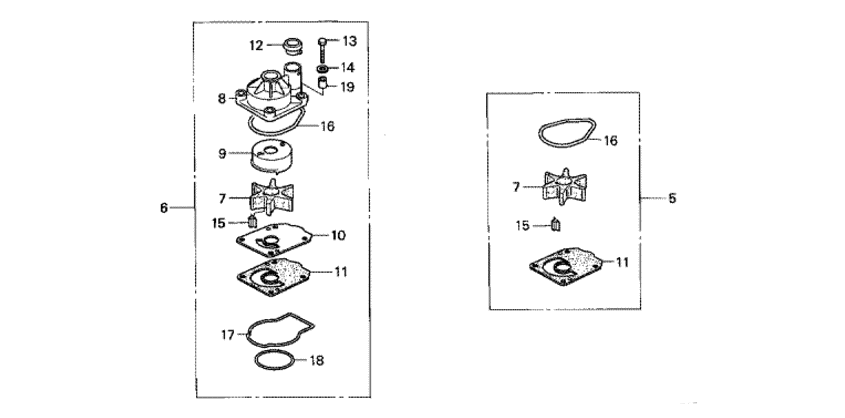

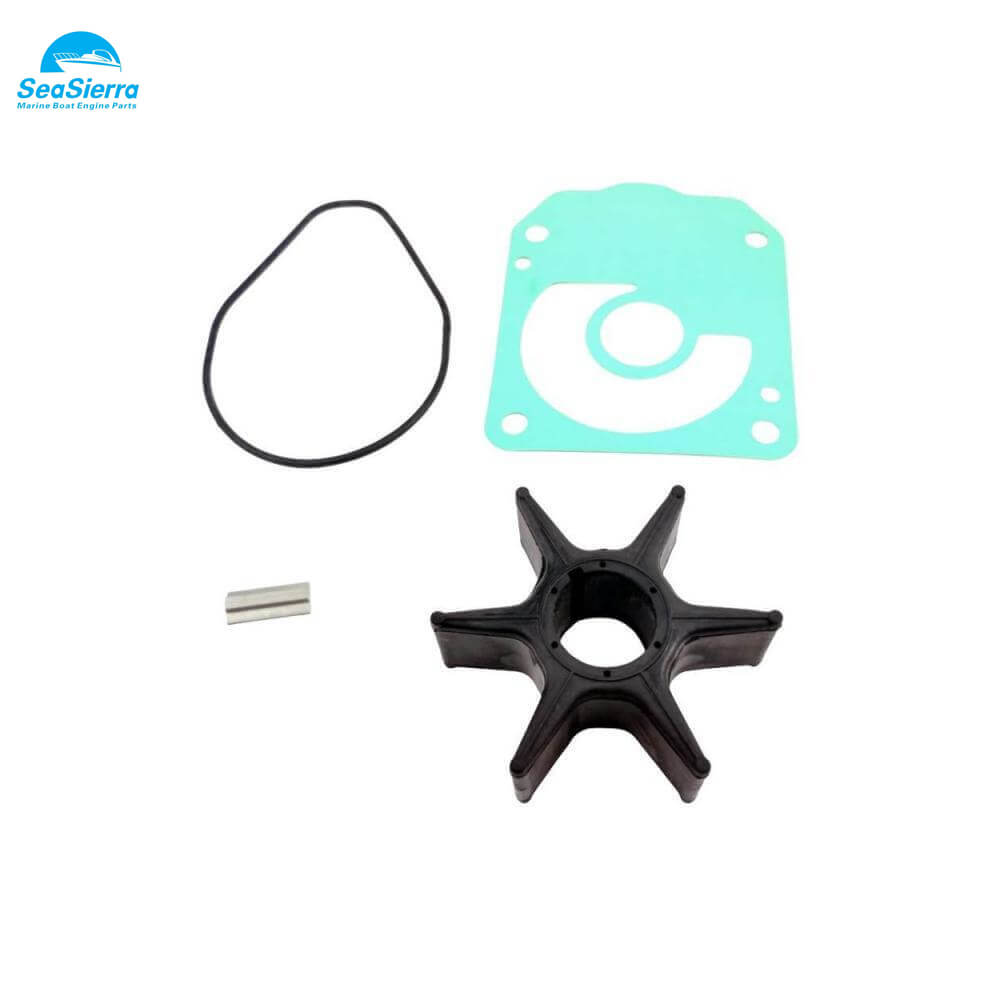

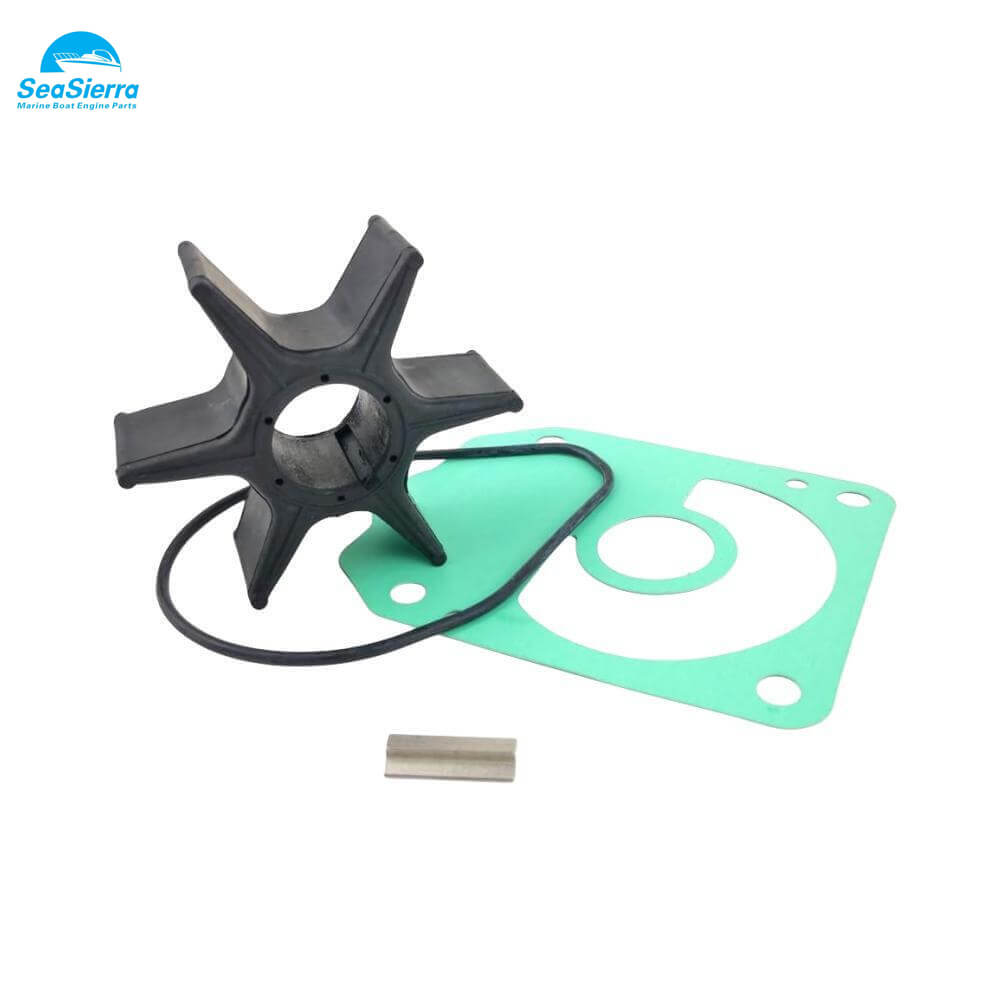

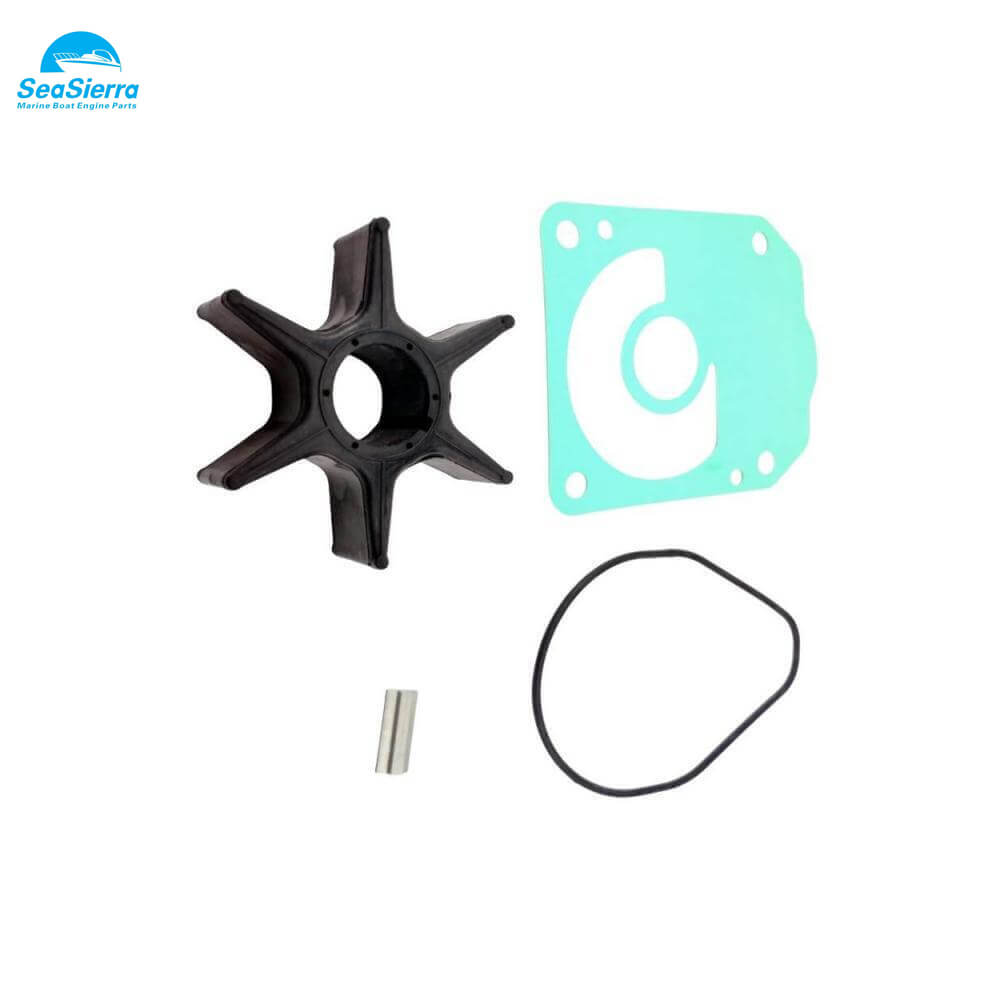

Kit Components

The package includes the following items:

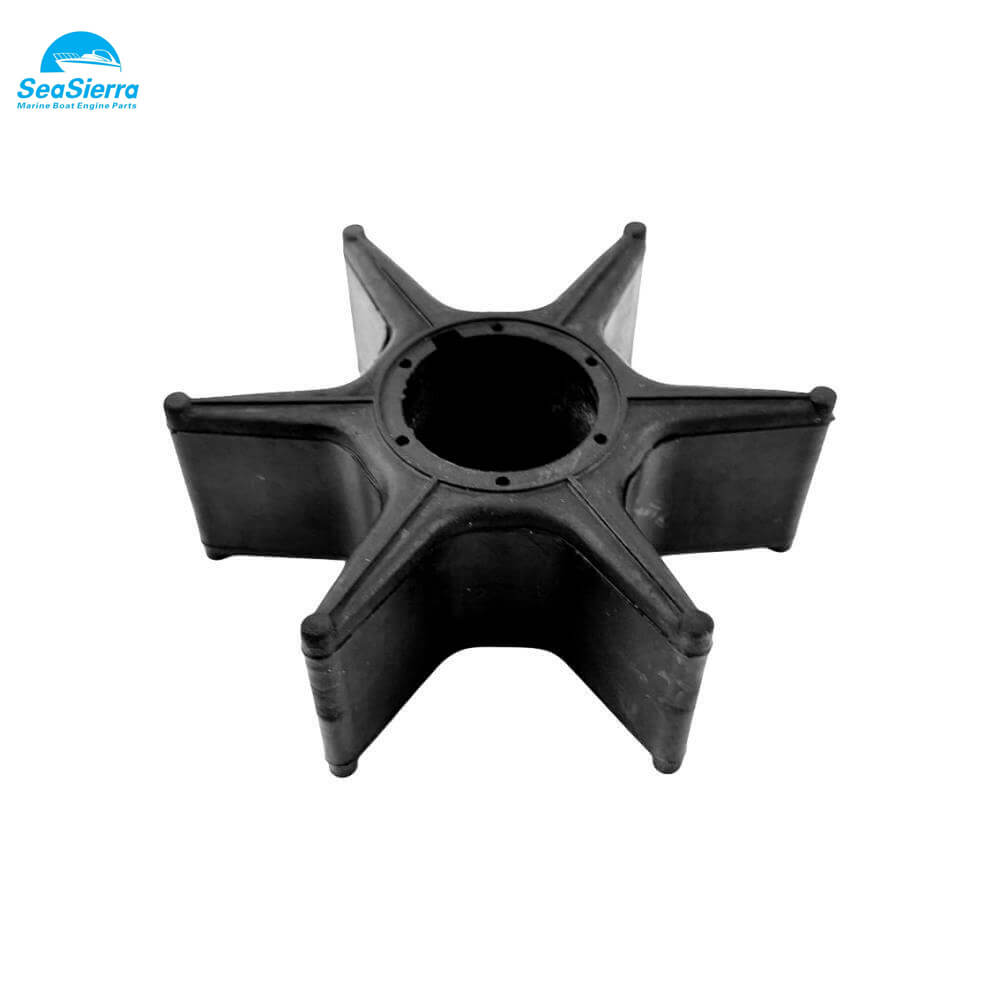

1. Water Pump Impeller (19210-ZY3-003, Sierra 18-3031)

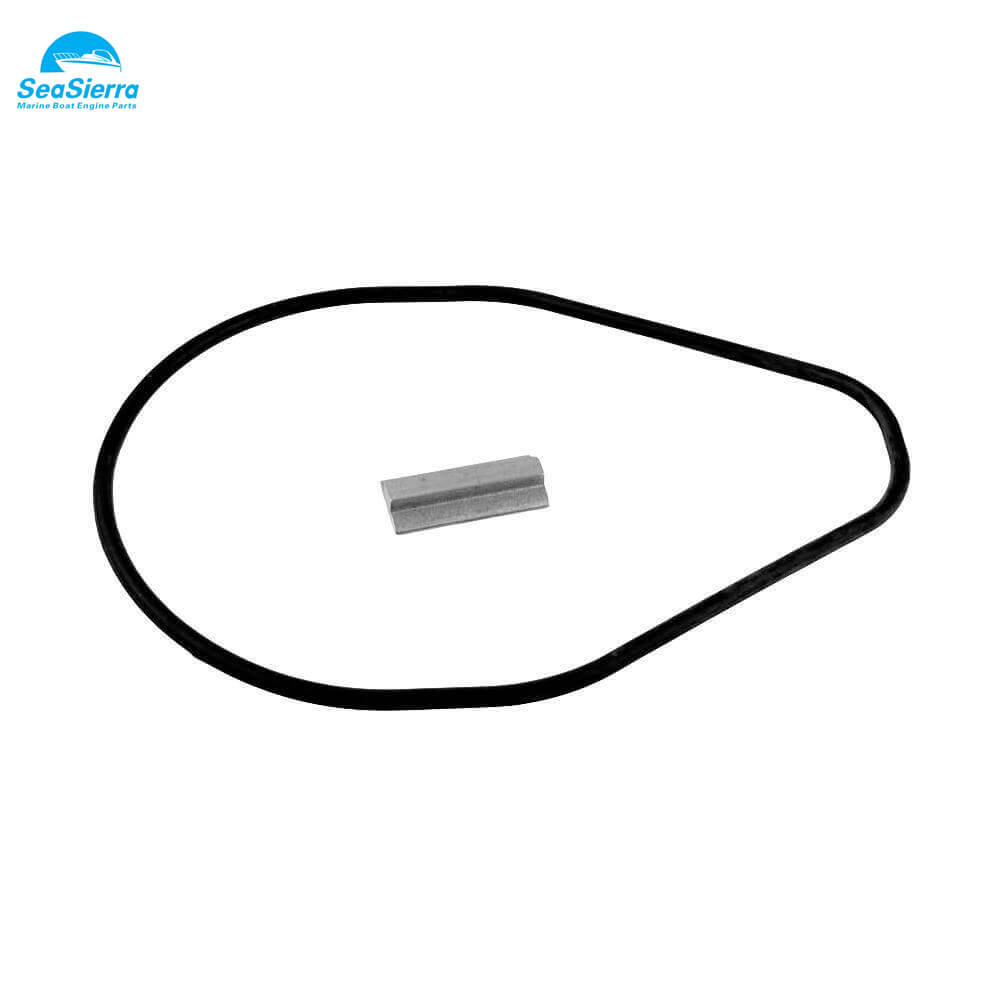

2. O-ring (91356-ZY3-000, 91356-ZY3-003)
3. Key Driveshaft (90752-ZY3-003)

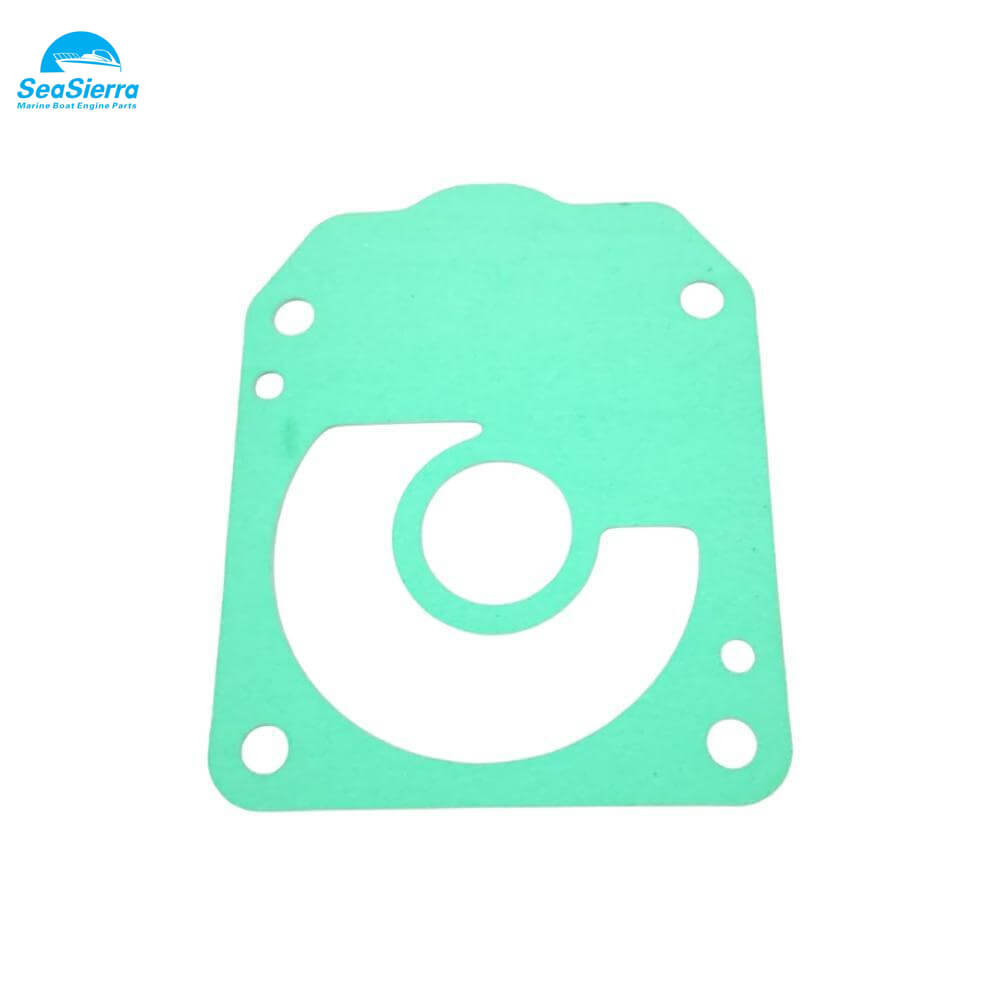

4. Water Pump Gasket (19234-ZY3-000)

Additional Information

• Materials: The strongest marine and chemical corrosion-resistant metal alloy and scientifically engineered high-performance neoprene rubber.
• Fits: Honda BF175/200/225
• Packaging Dimensions: WEIGHT: 0.43, HEIGHT: 1.5, DEPTH: 8.9, WIDTH: 5.95
• Superceded: Not provided in the original information
• Unit of Measure: EA
• Item Status: A
• UPC: 808282227128
• Case Packaging: 1
• Standard Packaging: 1
• HSC: 401699
• ECCN: 4016.99.6050
• Installation Tips: Lubricate with silicone grease, glycerin, or dish soap when installing (not included). Remember to lubricate your pump and NEVER run the pump dry. NEVER pump flammable liquids.
