18-3382 Water Pump Impeller Kit for Johnson Evinrude OMC Outboards 20 25 30 35 HP | SeaSierra

Product Details

• SKU: 183382
• Brand & Manufacturer: SeaSierra
• Part Type: Water Pump Impeller Repair Kit
• Item Weight: 0.71
• Package Dimensions: HEIGHT: 2.8, DEPTH: 4.6, WIDTH: 4.9

Compatibility

This kit is compatible with the following Johnson Evinrude OMC Outboards:

• 20hp: 1985 & Later
• 25hp: 1985 & Later
• 25hp Commercial: 1998-2001
• 30hp: 1980-1982, (2 Cyl) 1983 & Later
• 35hp: 1980-1982, (2 Cyl) 1983 & Later

Part Numbers and Replacements

• Replaces OEM Part Numbers: 393630, 0777803, 0393509, 0390344, 0391636
• Replaces Sierra Part Number: 18-3382, 18-3381
• GLM Part Number: 12070
• Other Replaced Part Numbers: Mallory Marine 9-48211, 9-48205; OBR Red Rhino JE-393; SEI 96-362-01K; Johnson/Evinrude Outboard 0393630

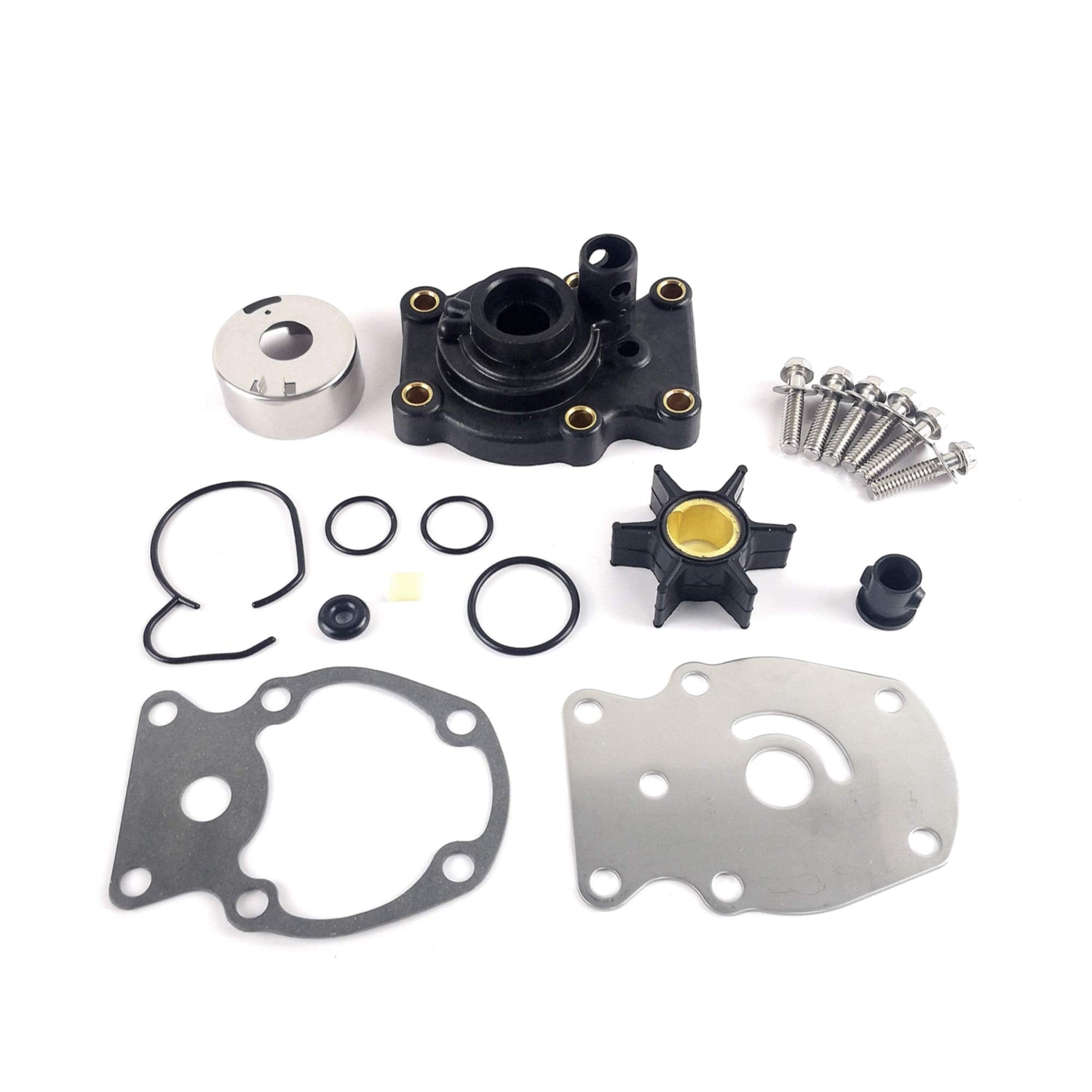

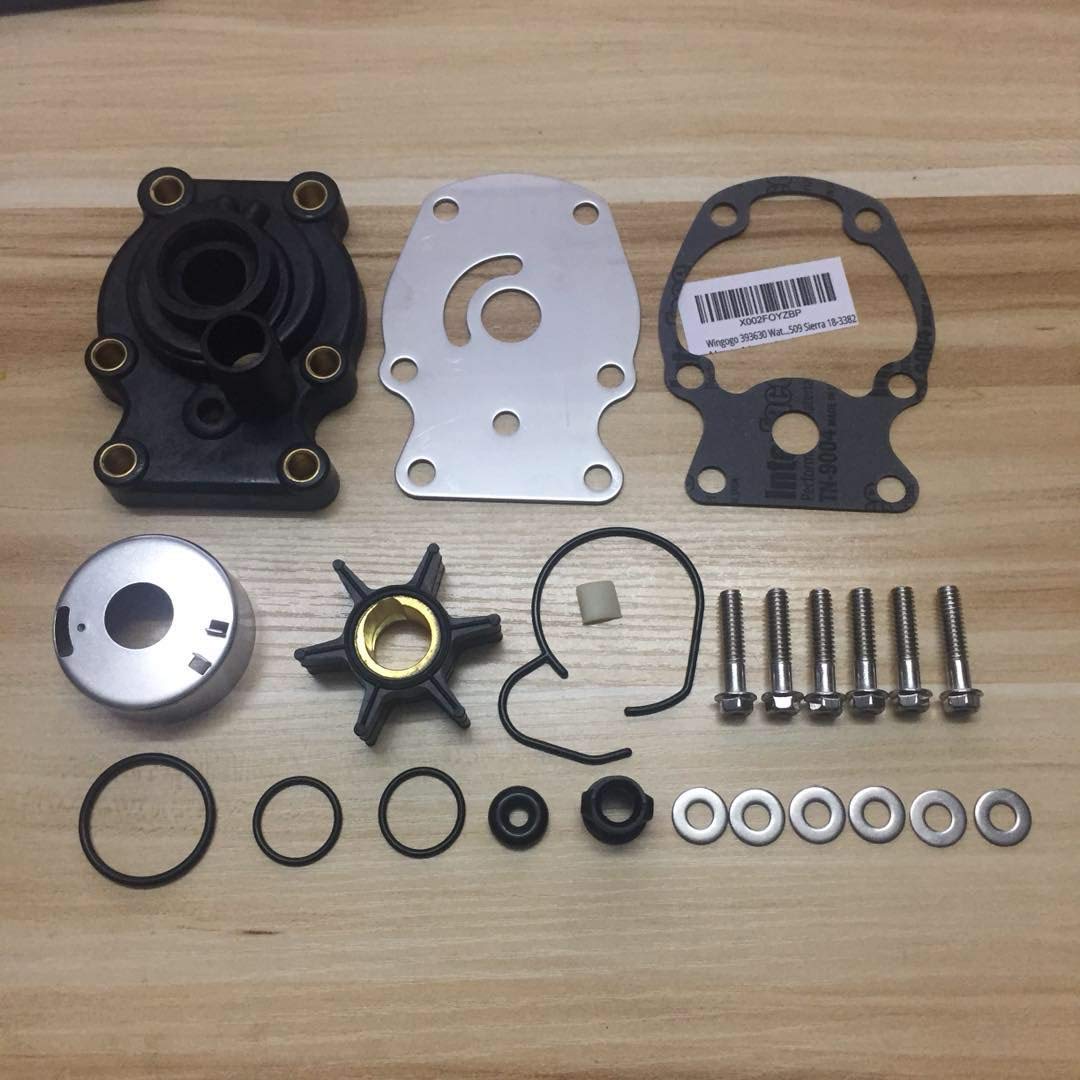

Kit Components

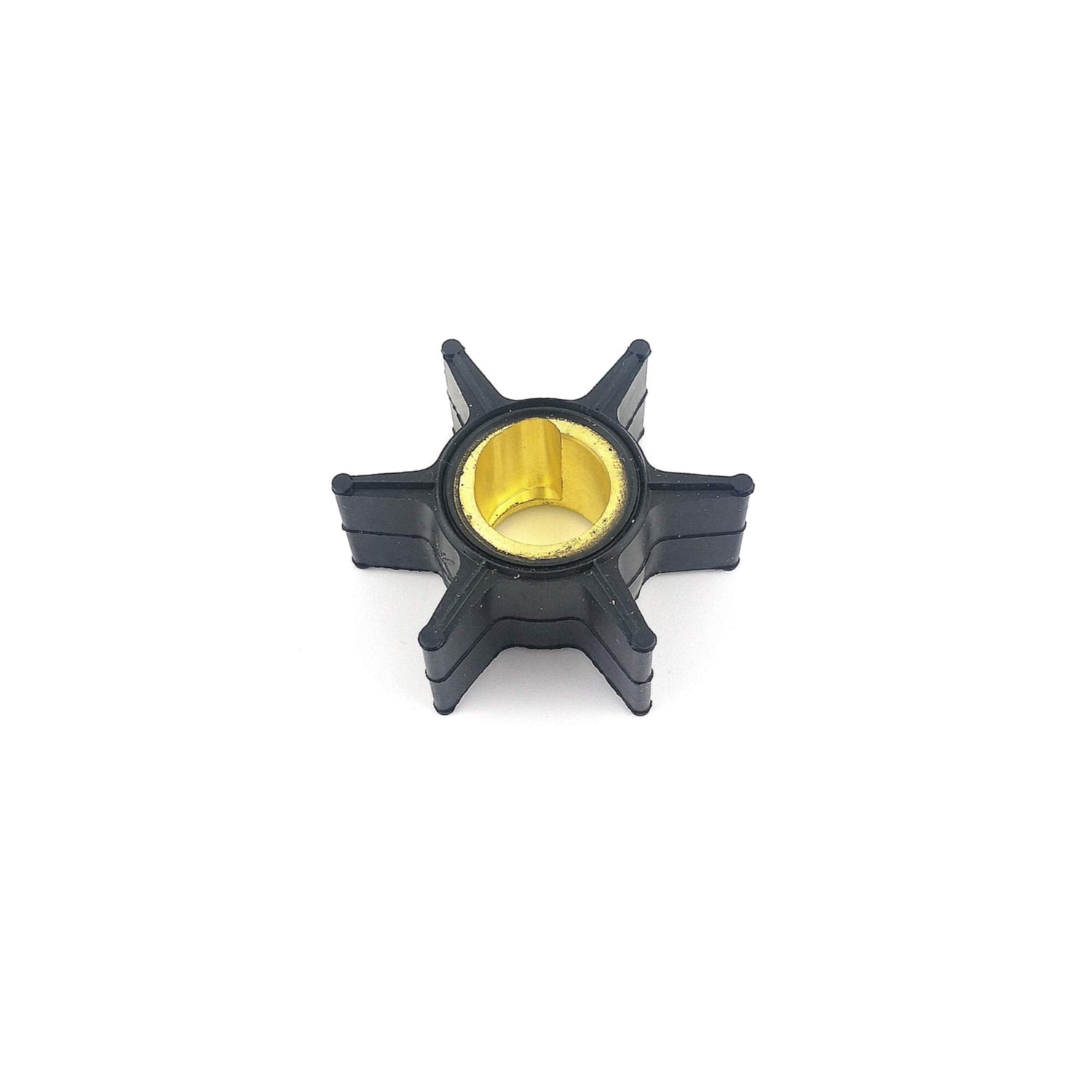

1. Neoprene Impeller (395289) - Suitable for engines with 20-35HP

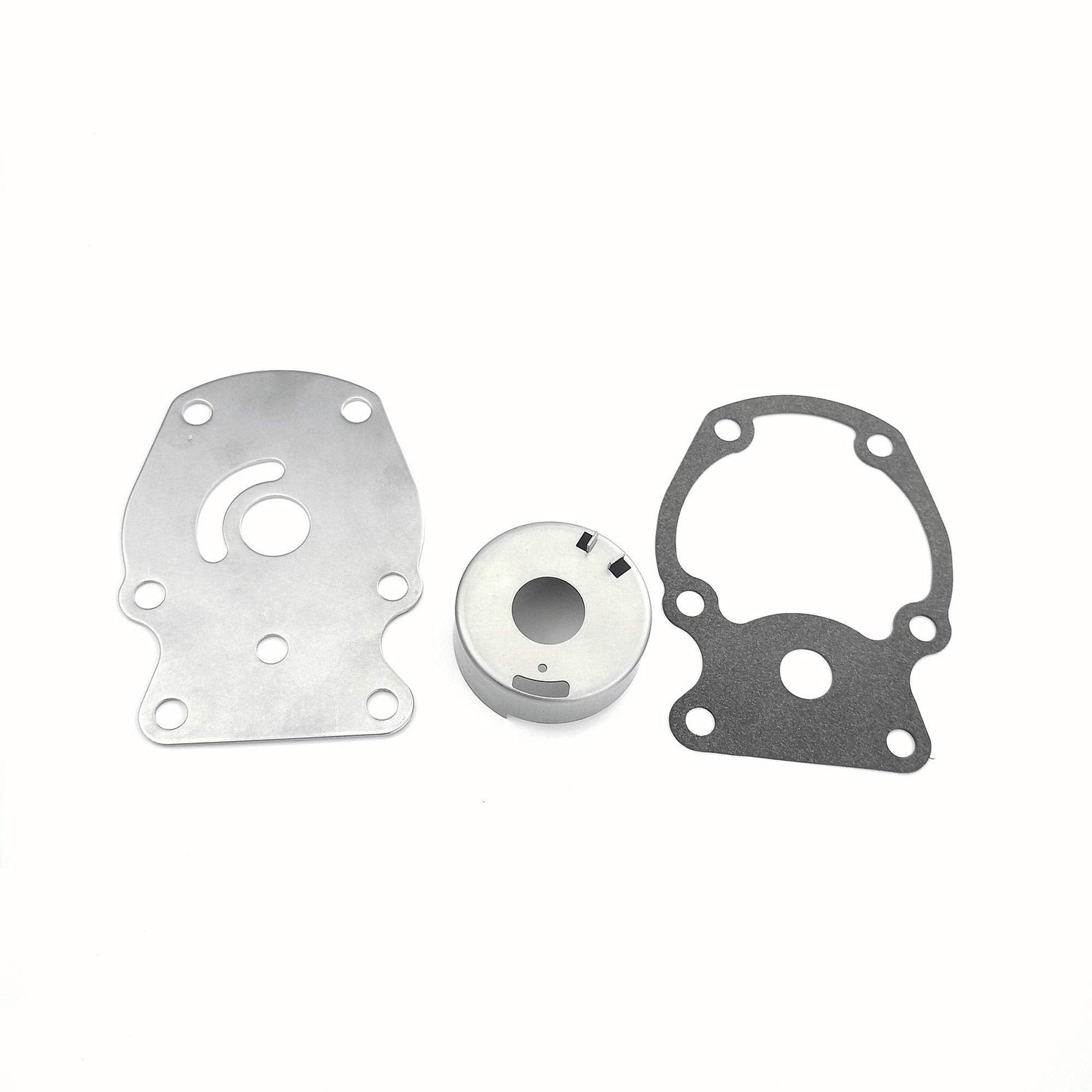

2. Wear Plate (328755) - Suitable for engines with 20-35HP

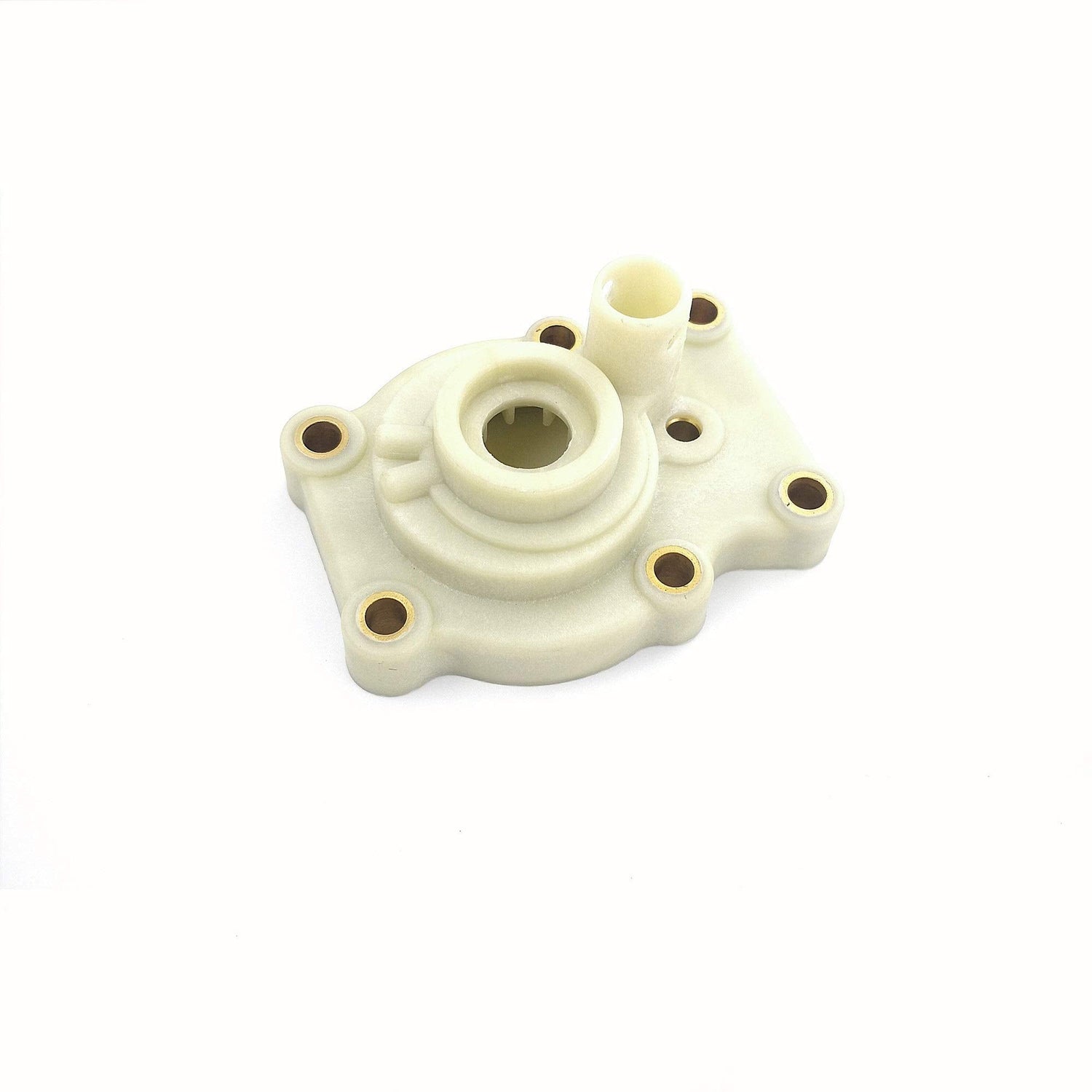

3. Pump Housing (393632, 18-3367) - Suitable for engines with 20-35HP
4. Pump Cup (328751) - Suitable for engines with 20-35HP
5. Impeller Plate Gasket (325537, 18-0124-9) - Suitable for engines with 20-35HP
6. Grommet (302497, 18-3329) - Suitable for engines with 20-35HP
7. Impeller Key (330619, 344470, 777845) - Suitable for engines with 20-35HP
8. Rubber Seal (328753) - Suitable for engines with 20-35HP
9. Brass Bushing (328754) - Suitable for engines with 20-35HP
10. O-Ring for Brushing (301877) - Suitable for engines with 20-35HP

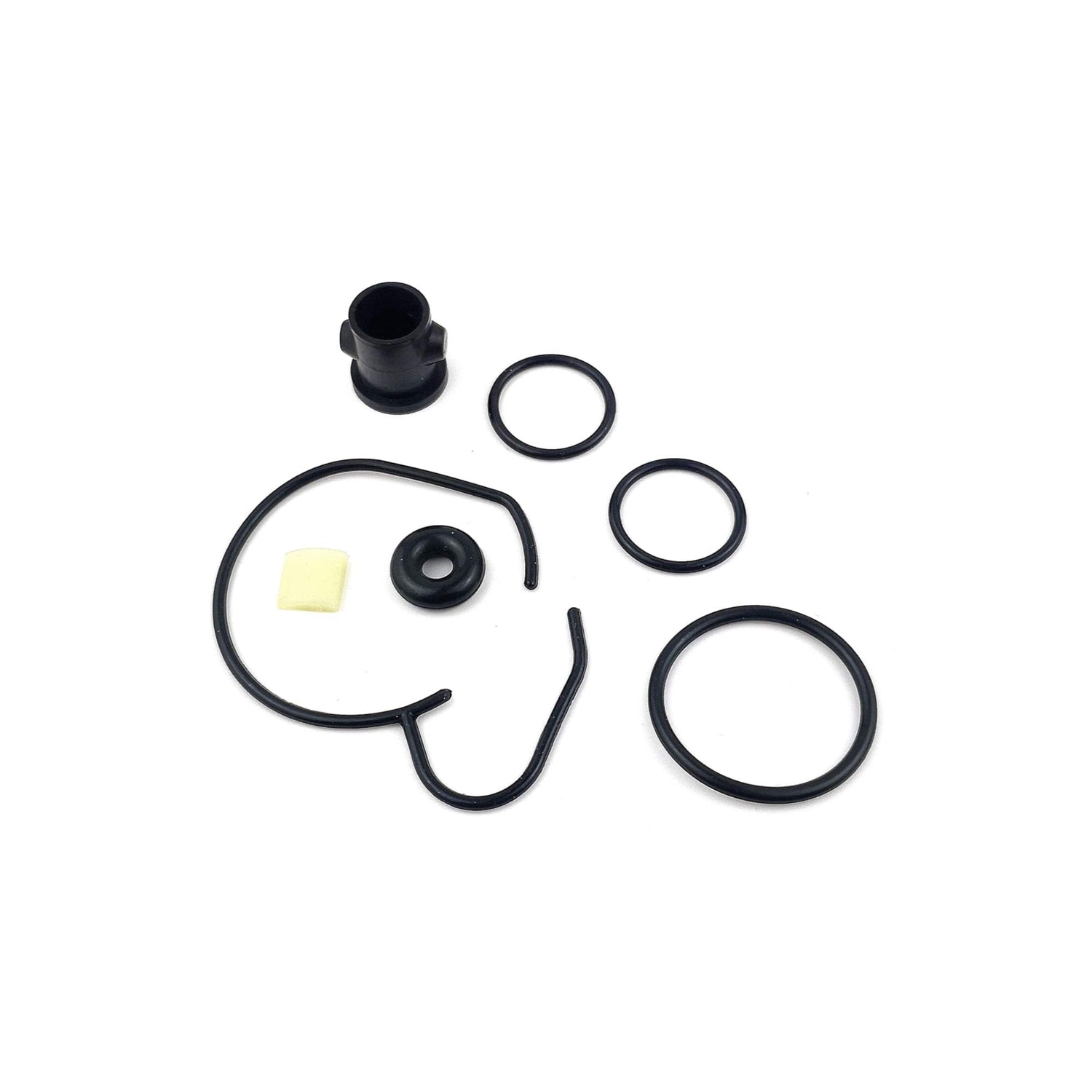

11. O-Ring (554545, 18-7100-9, 18-7105-9, 18-7146) - Suitable for engines with 20-35HP

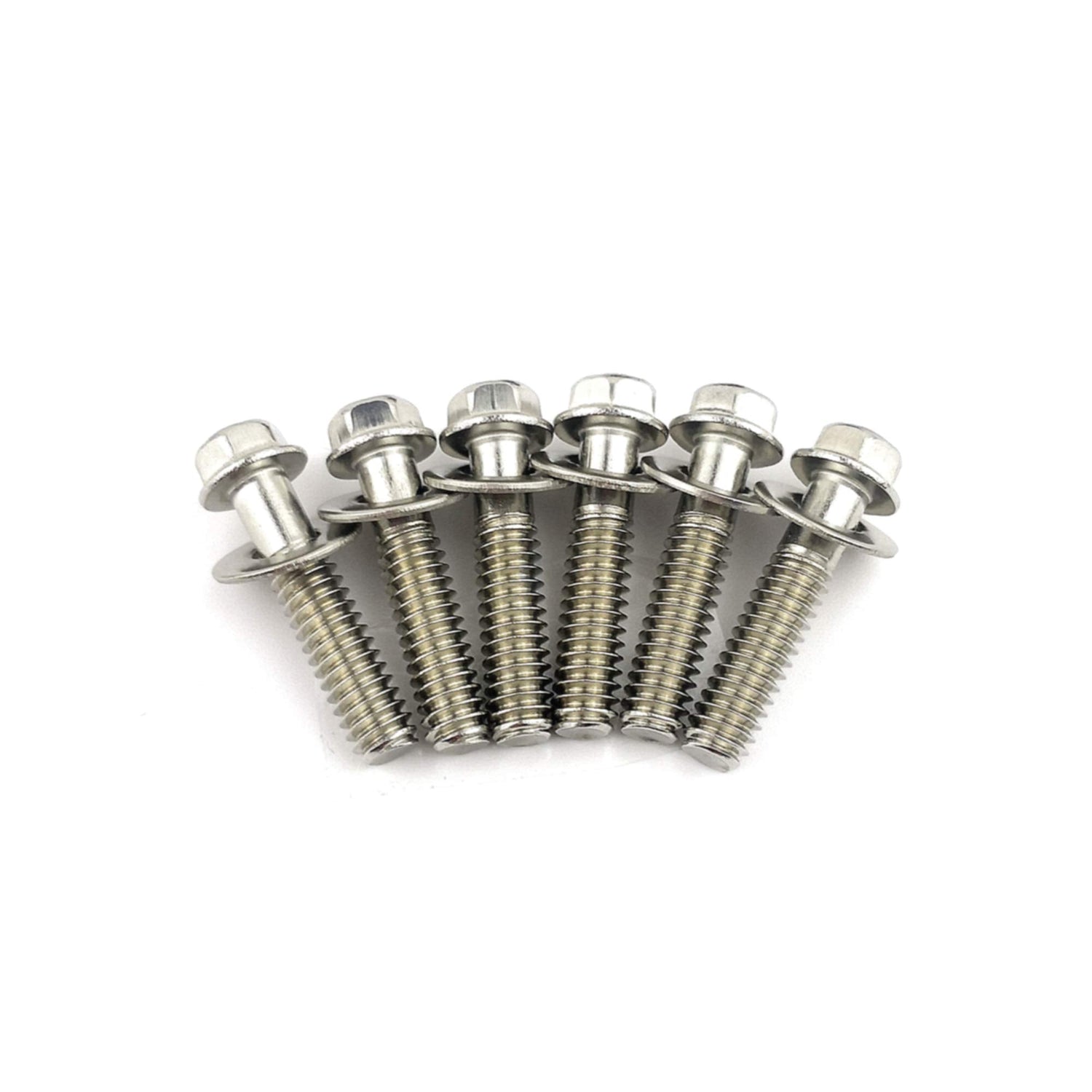

12. Stainless Steel Bolt with Washer (331979, 324960, 318452) - Suitable for engines with 20-35HP

Additional Information

• Packaging Dimensions: WEIGHT: 0.71, HEIGHT: 2.8, DEPTH: 4.6, WIDTH: 4.9
• UNIT OF MEASURE: EA
• ITEM STATUS: A
• UPC: 030999753595
• CASE PACKAGING: 1
• STANDARD PACKAGING: 1
• HSC: 841391
• ECCN: 8413.91.9010
• GLM: 12070
• Mallory: 9-48211
• Wear Plate, Bolt, Washer: NSS
• Impeller Plate Gasket (Priced Per Pkg of 2): 18-0124-9
• Grommet: 18-3329
• Impeller: 18-3051
• Insert Cup: 18-3358
• O-Ring (Priced Per Pkg of 5): 18-7100-9, 18-7105-9
• O-Ring: 18-7146
• Water Pump Housing: 18-3367
