18-3392 Water Pump Impeller Kit with Housing for Johnson Evinrude V4 V6 V8 85-300HP Boat Motor Parts | SeaSierra

Product Details

• SKU: 183392
• Brand & Manufacturer: SeaSierra
• Part Type: Water Pump Impeller Repair Kit
• Item Weight: 1.5001
• Package Dimensions: HEIGHT 5.4001 x WIDTH 5.8001 x DEPTH 5.3001

Compatibility

This kit is compatible with the following Johnson Evinrude Outboard models:

• 85 hp: 1979 & UP
• 90/115 HP Looper (except SL Model): 1995-2006
• 90/100/115/140/150/175/235/250/300 HP: 1979 & UP
• 100 HP commercial: 1984 & UP
• V4 V6 V8: 1982-1994
• 130/135/150/225 HP V4 V6 V8 (20 inches driveshaft): 1993 & UP
• 125 HP 25 inches driveshaft S- suffix model: 1993 & UP

Part Numbers and Replacements

• Replaces OEM Part Numbers: 5001594, 390768, 391637, 392750, 393082, 395060, 395062, 435447, 434421, 435929
• Replaces Sierra Part Number: 18-3390, 18-3392
• GLM Part Number: 12102, 12101
• Other Replaced Part Numbers: Mallory Marine 9-48203, 9-48210; SEI Marine 96-306-01AK

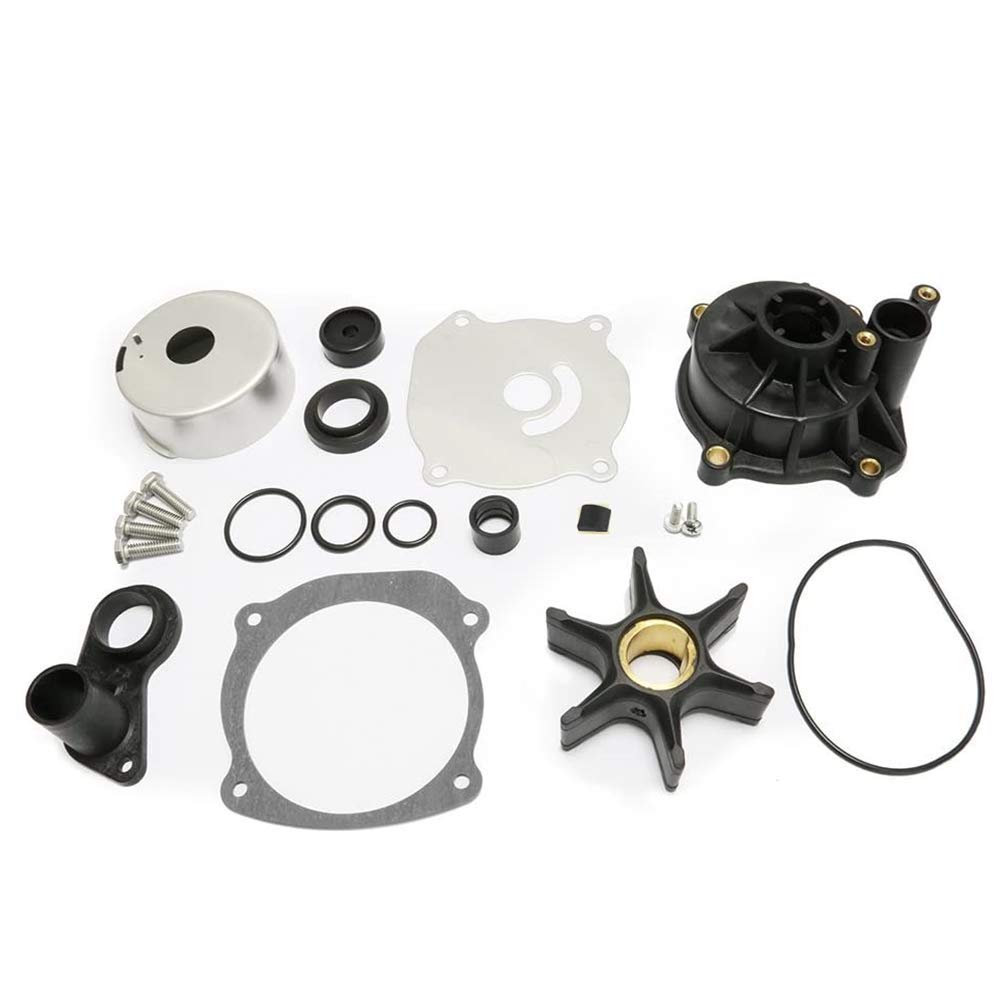

Kit Components

The package includes the following items:

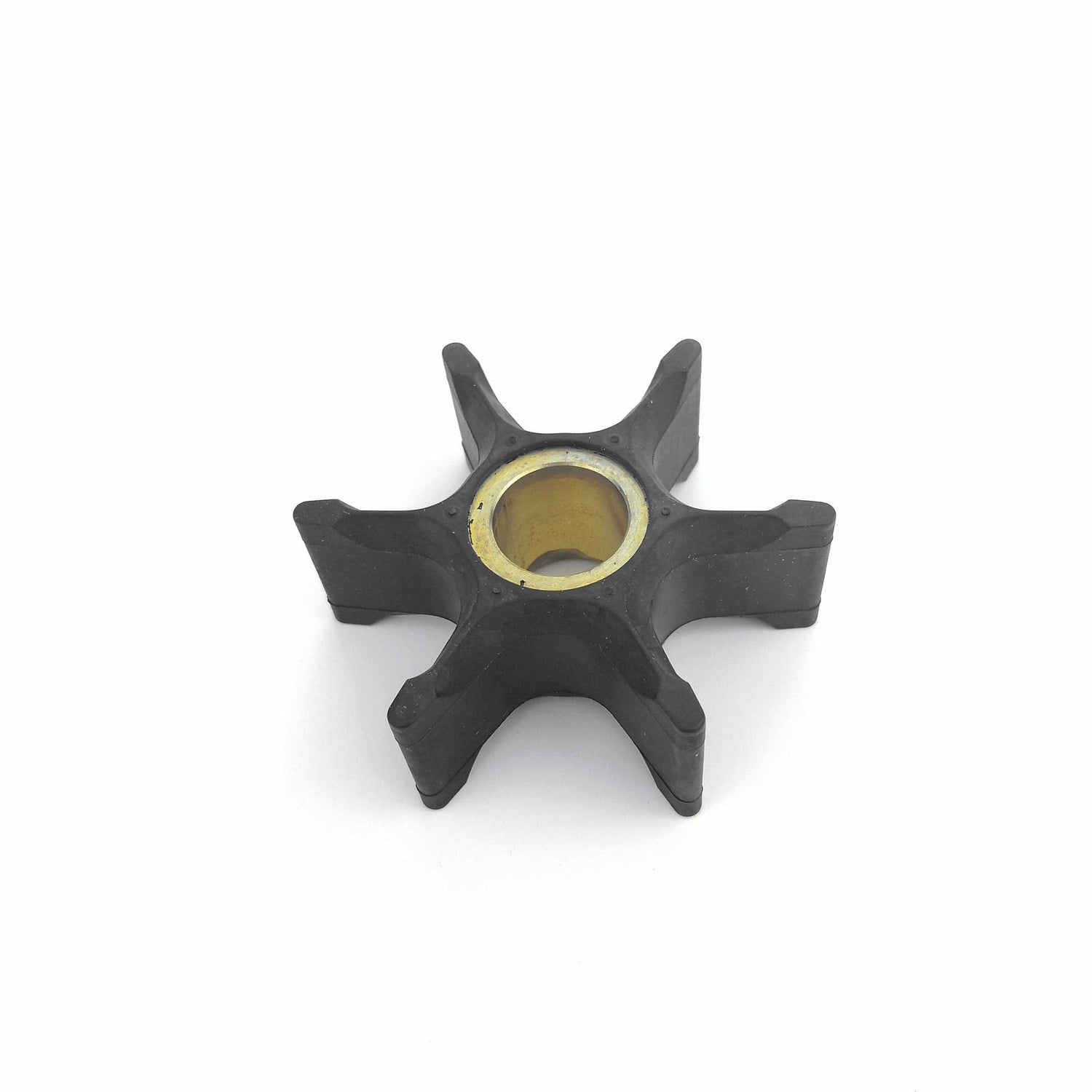

1. Water Pump Impeller (395864, 397131, 435821 18-3059)
2. Impeller Key (331107 18-3299)

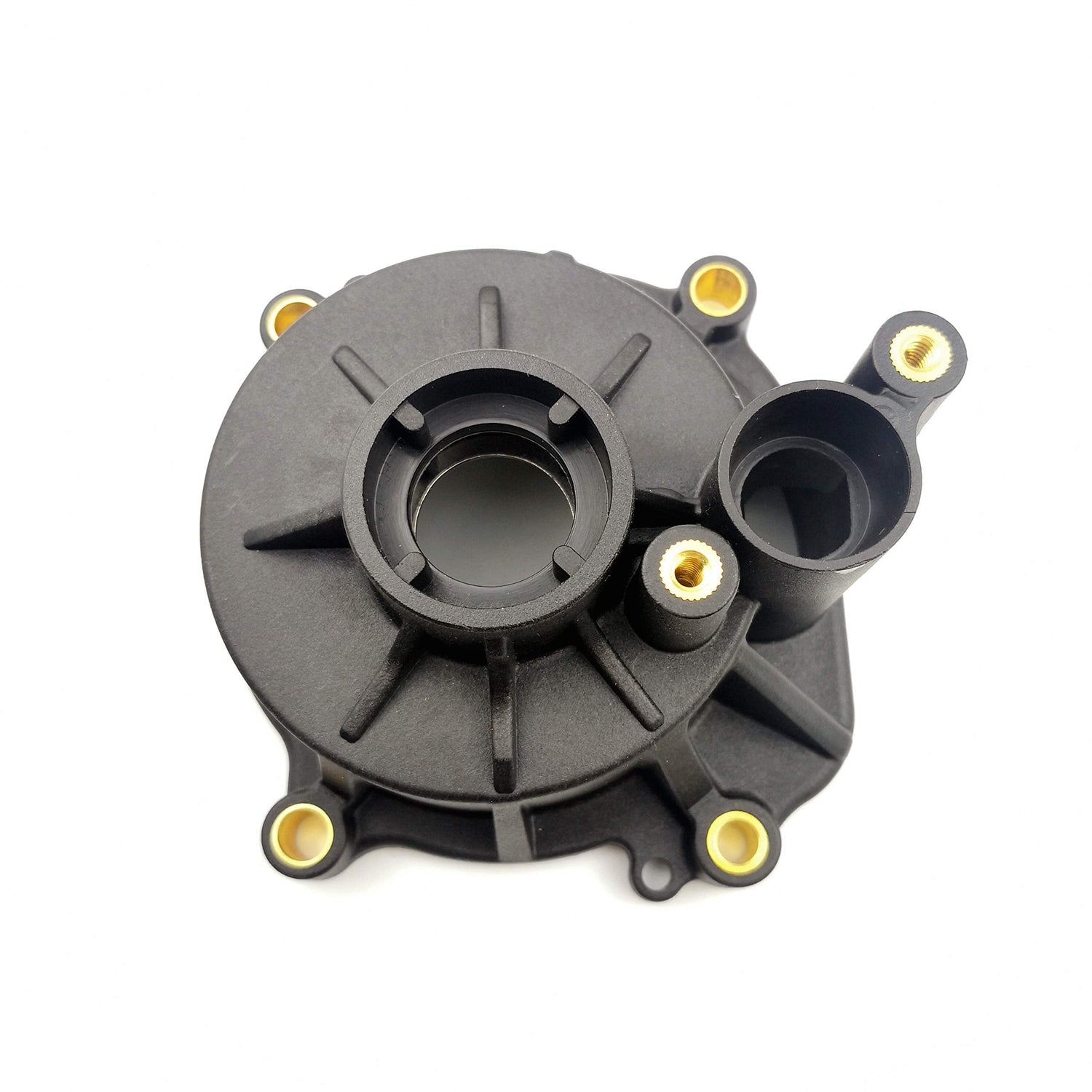

3. Pump Housing (435959)

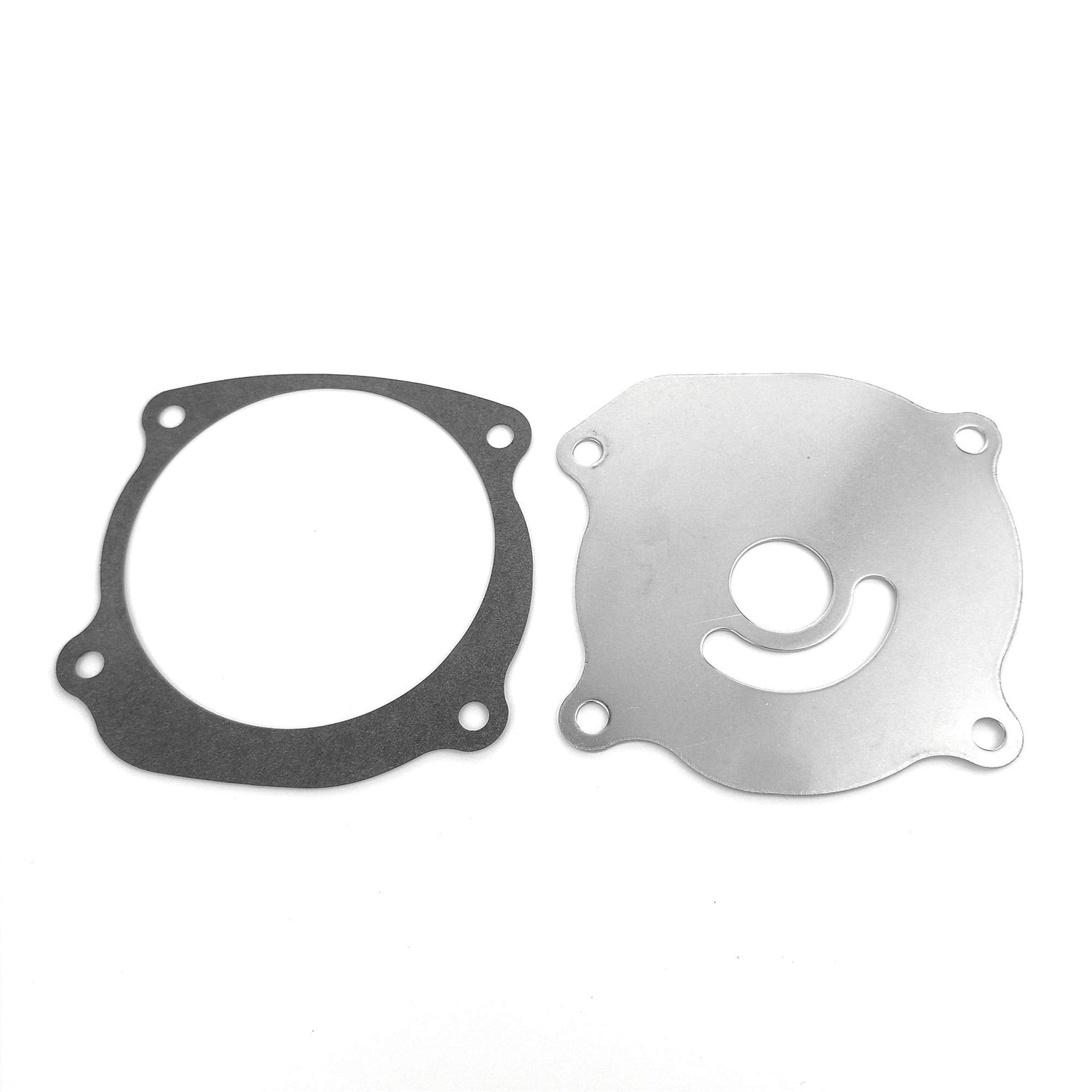

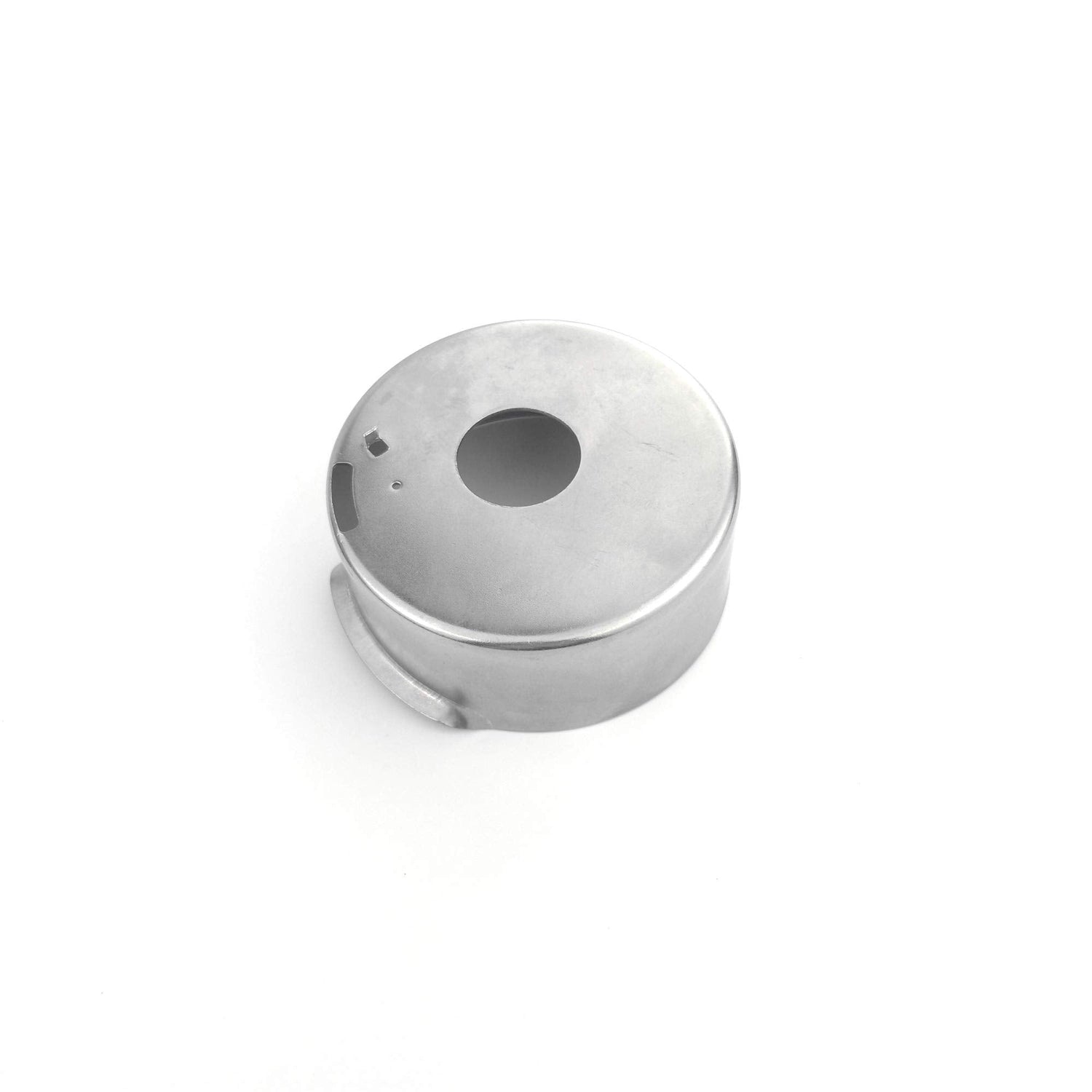

4. Cup & Wear Plate Assembly (435027 18-3346)
5. Gasket (324701, 338484 18-2557)

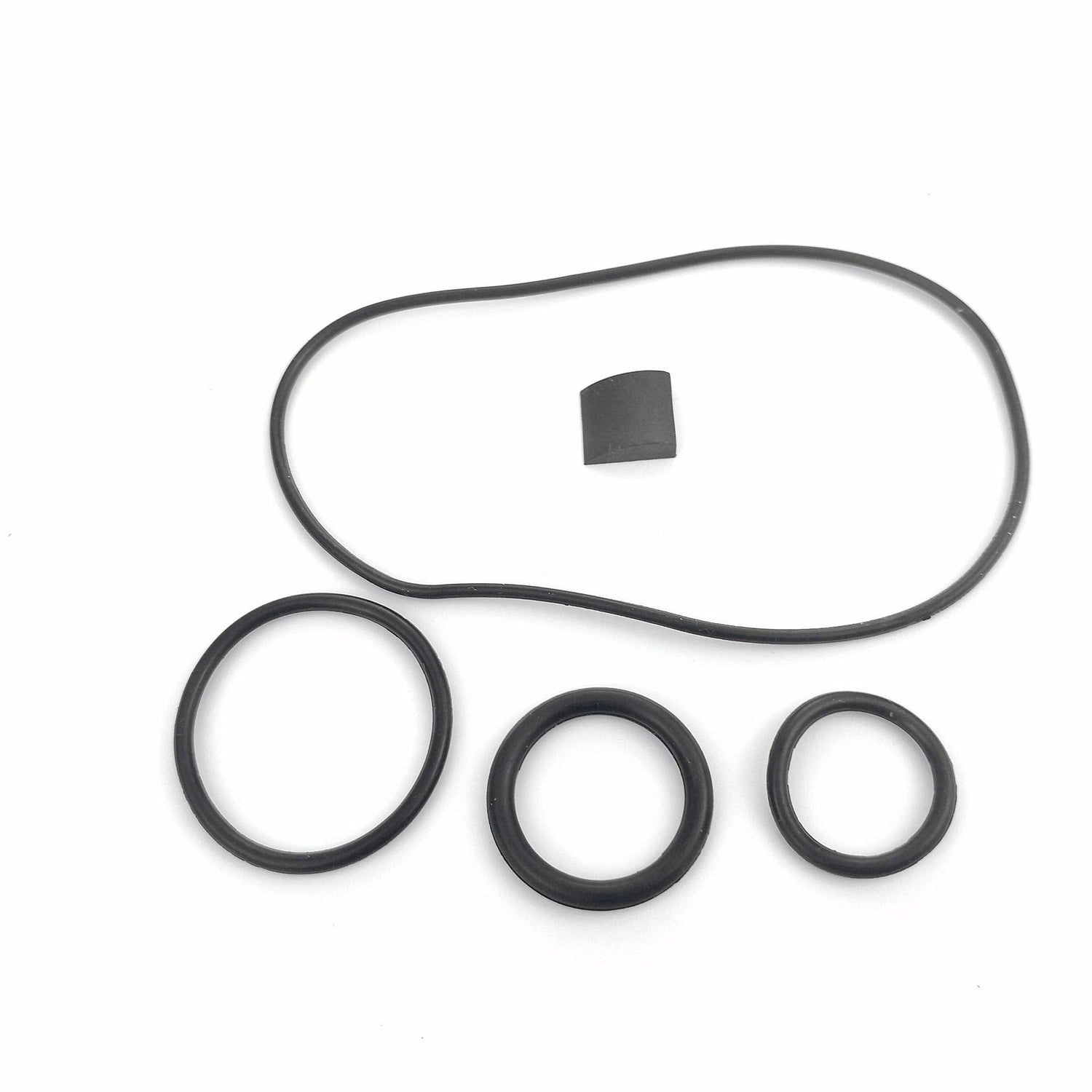

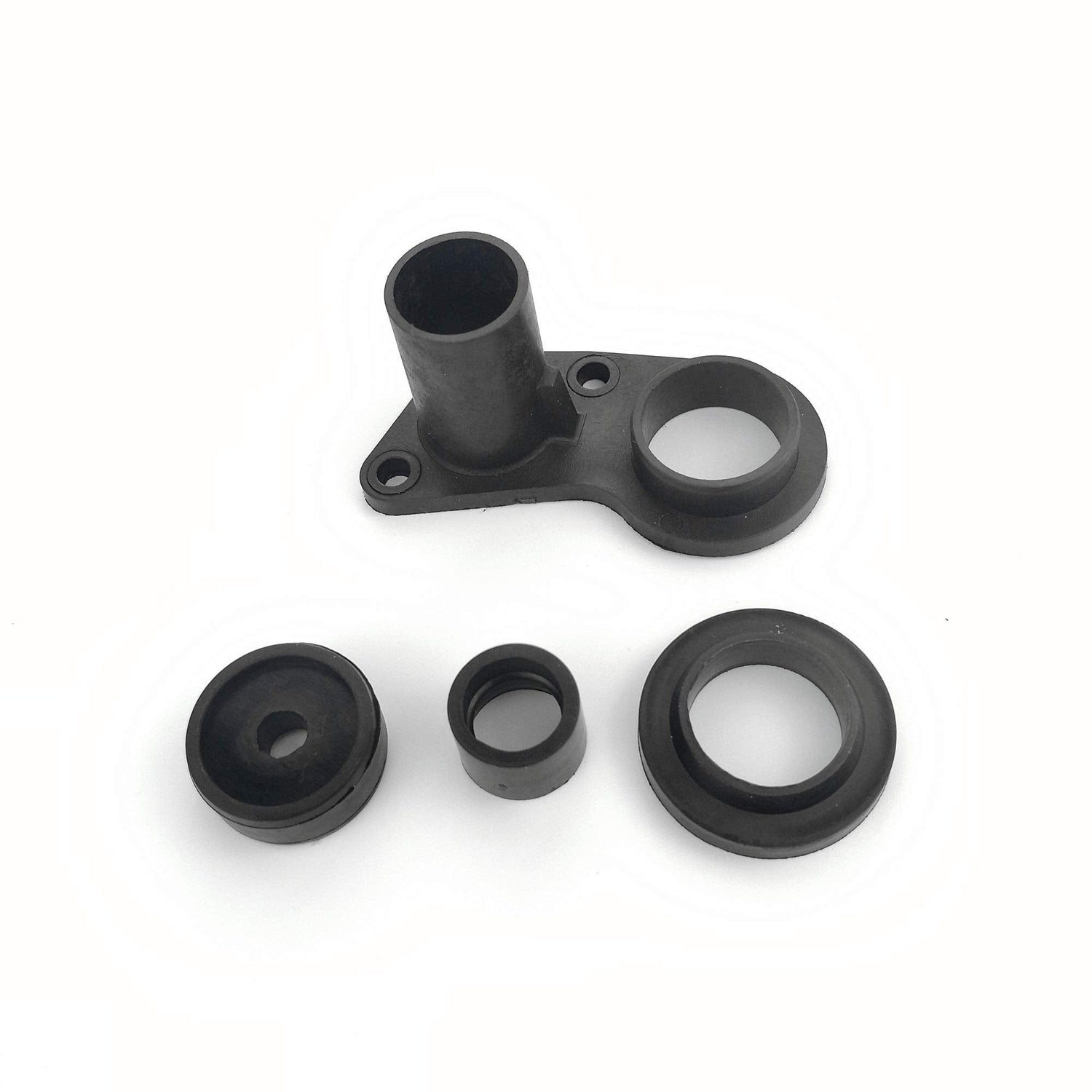

6. 5 O-Rings and 4 Grommets
7. 4 Stainless Steel Bolts & 2 Stainless Steel Screws

Additional Information

• Attention: Different Model would make a significant difference. Please confirm the serial number of the kit before placing the order.
• Reference: If this is not what you want, please refer to the kit: 5001595. If unsure, please message for clarification. Questions will be answered within 24 hours.
• UPC: 030999621603
• CASE PACKAGING: 1
• STANDARD PACKAGING: 1
• HSC: 841391
• ECCN: 8413.91.9010
