18-3433 Water Pump Kit for Yamaha 9.9 15 hp 2/4 stroke 2 cylinders Outboard 1996-2019 | SeaSierra

Product Details

• SKU: 183433
• Brand & Manufacturer: SeaSierra
• Category: Water Pump Impeller Repair Kit
• Part Type: Impeller Repair Kit
• Item Weight: 0.4551
• Package Dimensions: HEIGHT: 2.8001, DEPTH: 4.4001, WIDTH: 5.0001

Compatibility

This kit is compatible with Yamaha 9.9 15 hp 2/4 stroke 2 cylinders Outboard models from 1996 to 2019.

Part Numbers and Replacements

• Replaces Part Numbers:
  • Yamaha: 63V-W0078-00-00, 63V-W0078-01-00, 63V-44301-00
  • Mallory: 9-48609, 9-48617
  • Sierra: 18-3410, 18-3412
• Equivalent Kit: 18-3412 (without housing)
• Other Replaced Part Numbers: 18-3433, 63V-W0078-02, 63V-W0078-03

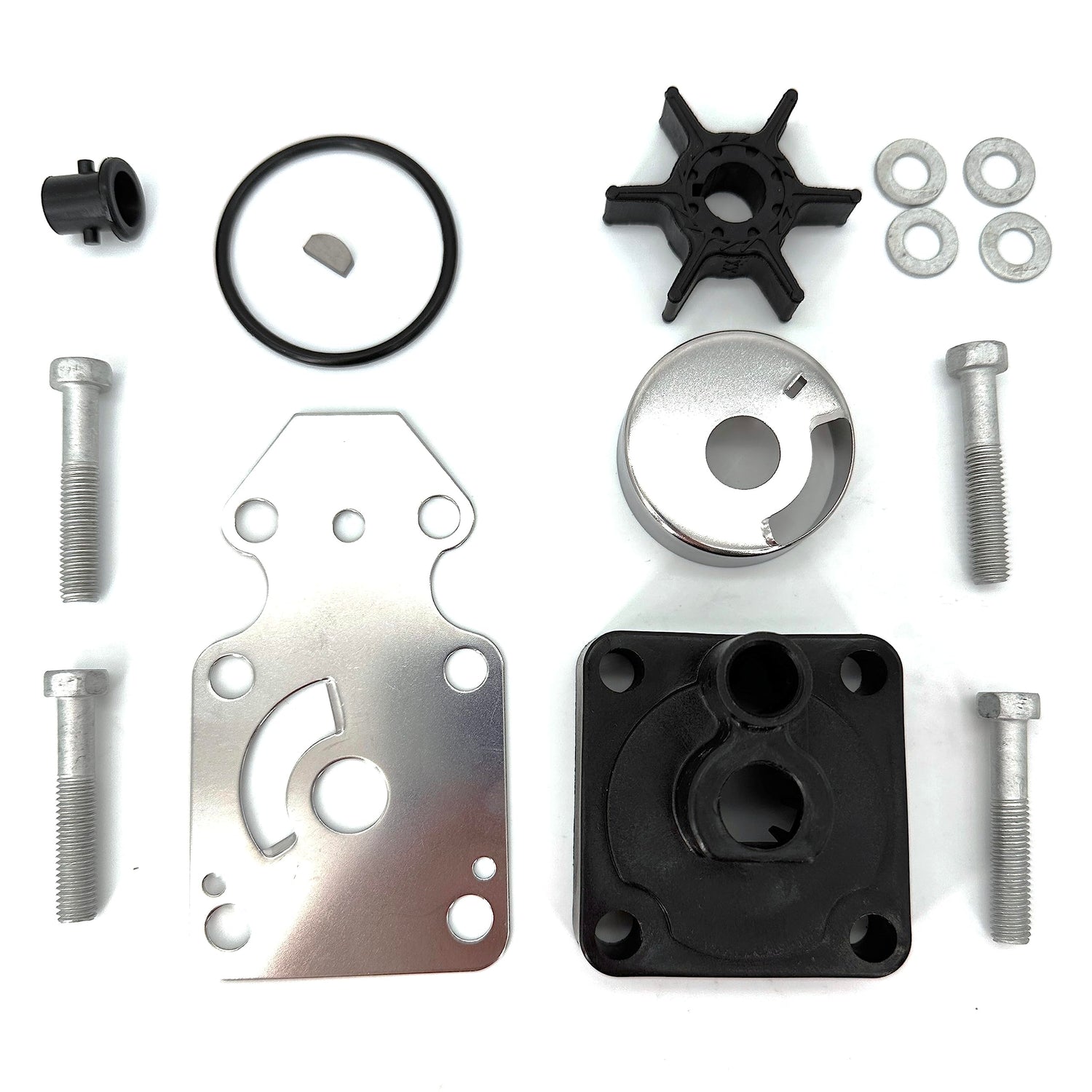

Kit Components

The package includes the following items:

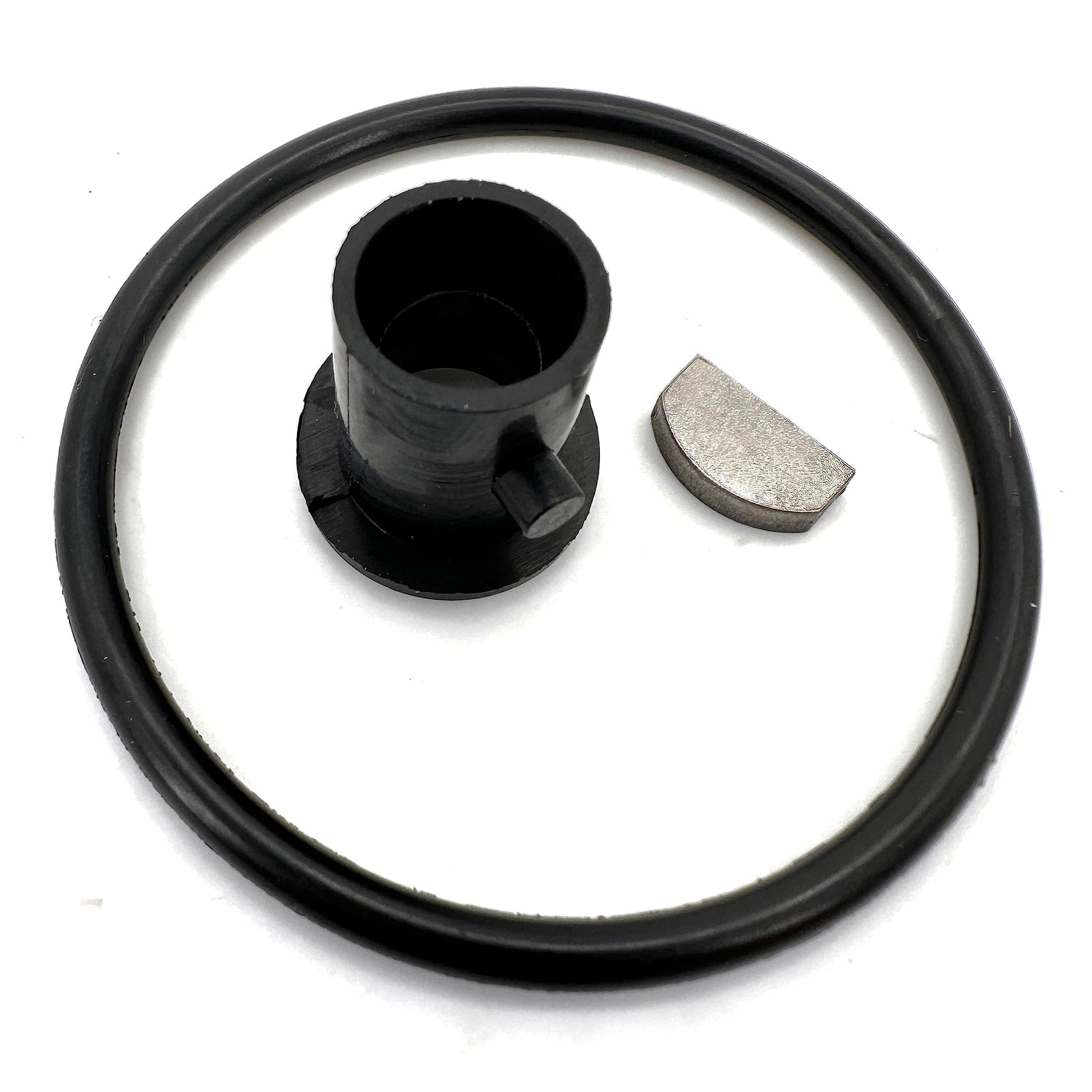

1. Impeller Key (Part Numbers: NSS)

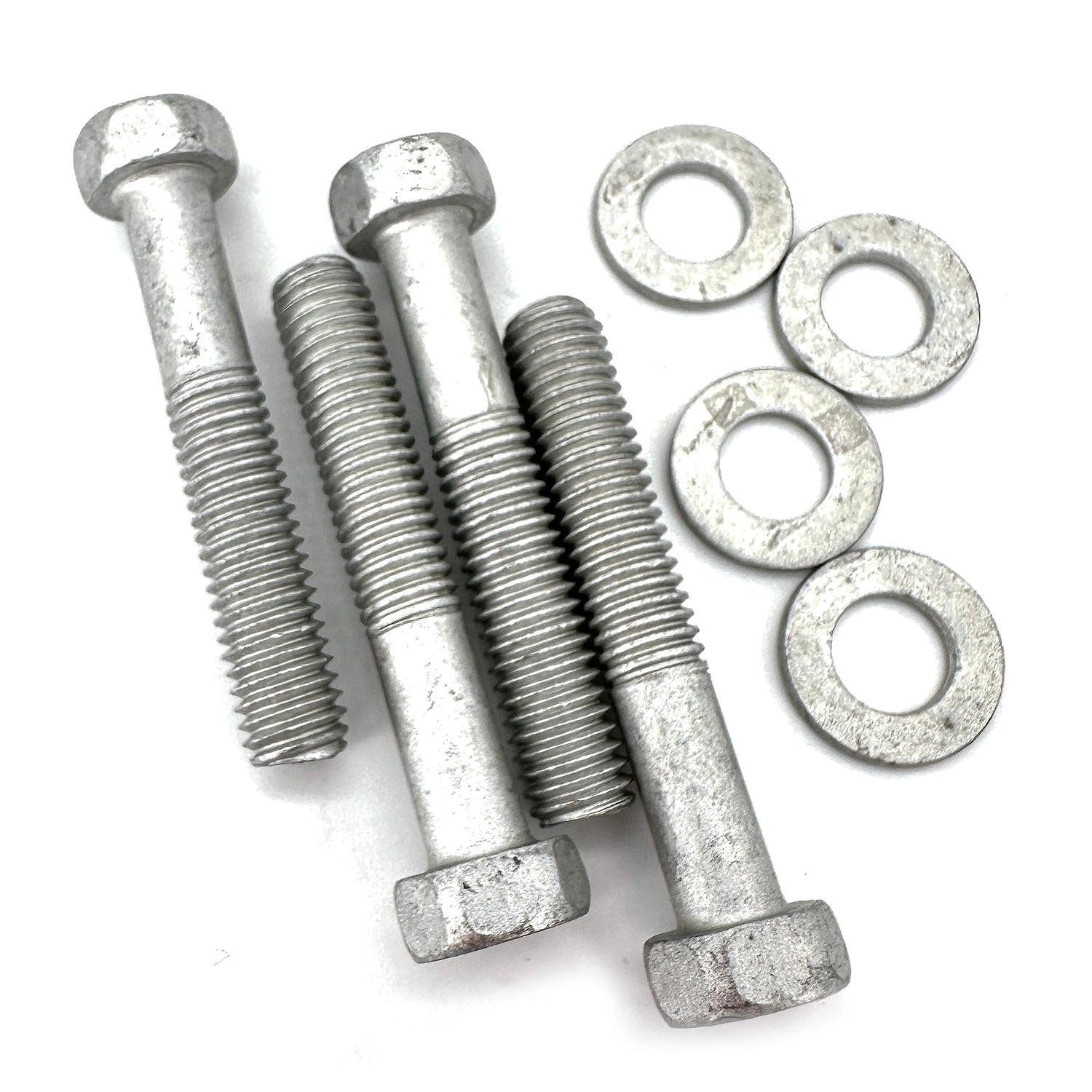

2. Bolt (Part Numbers: 18-0256)

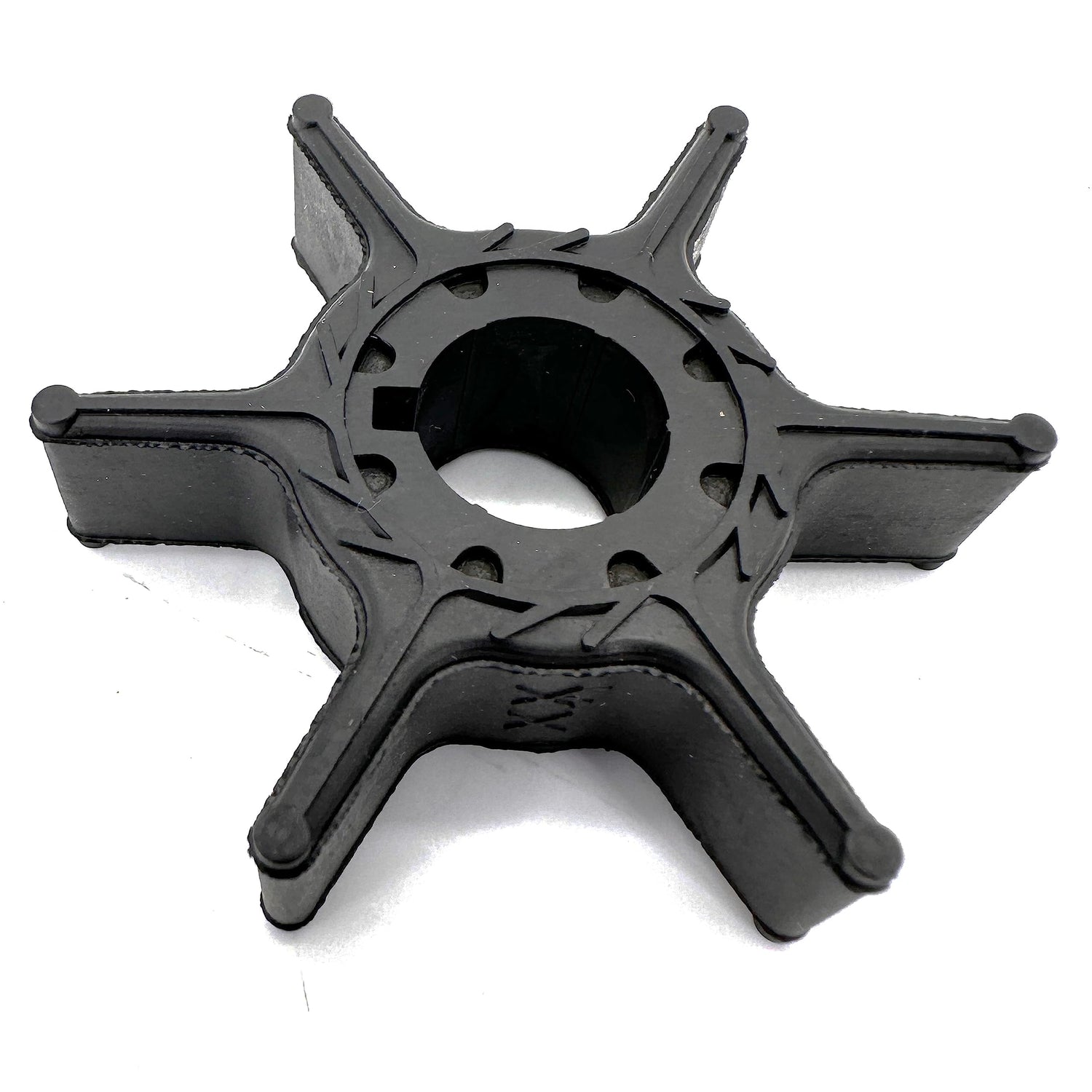

3. Impeller (Part Numbers: 18-3040)

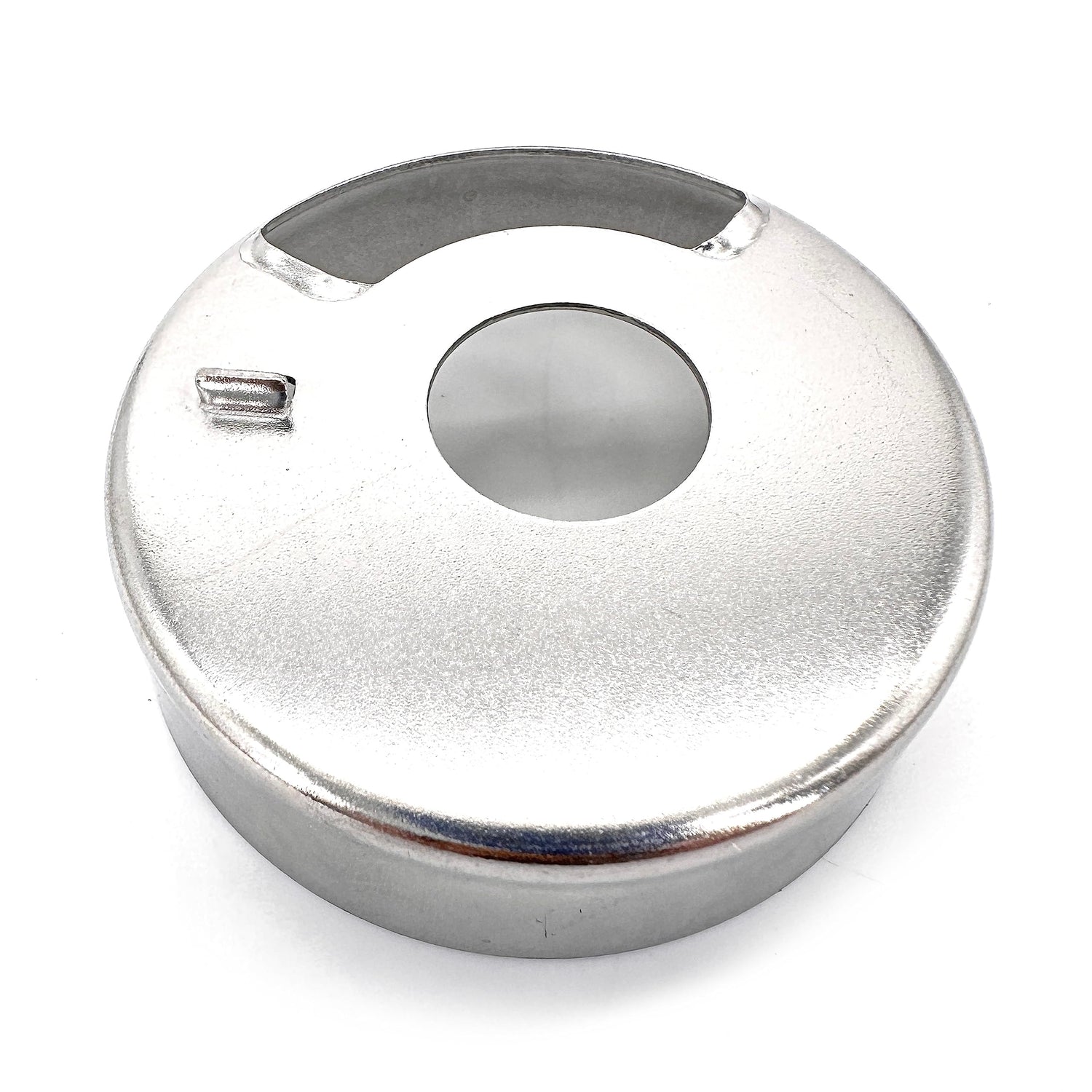

4. Insert Cup (Part Numbers: 18-3444)

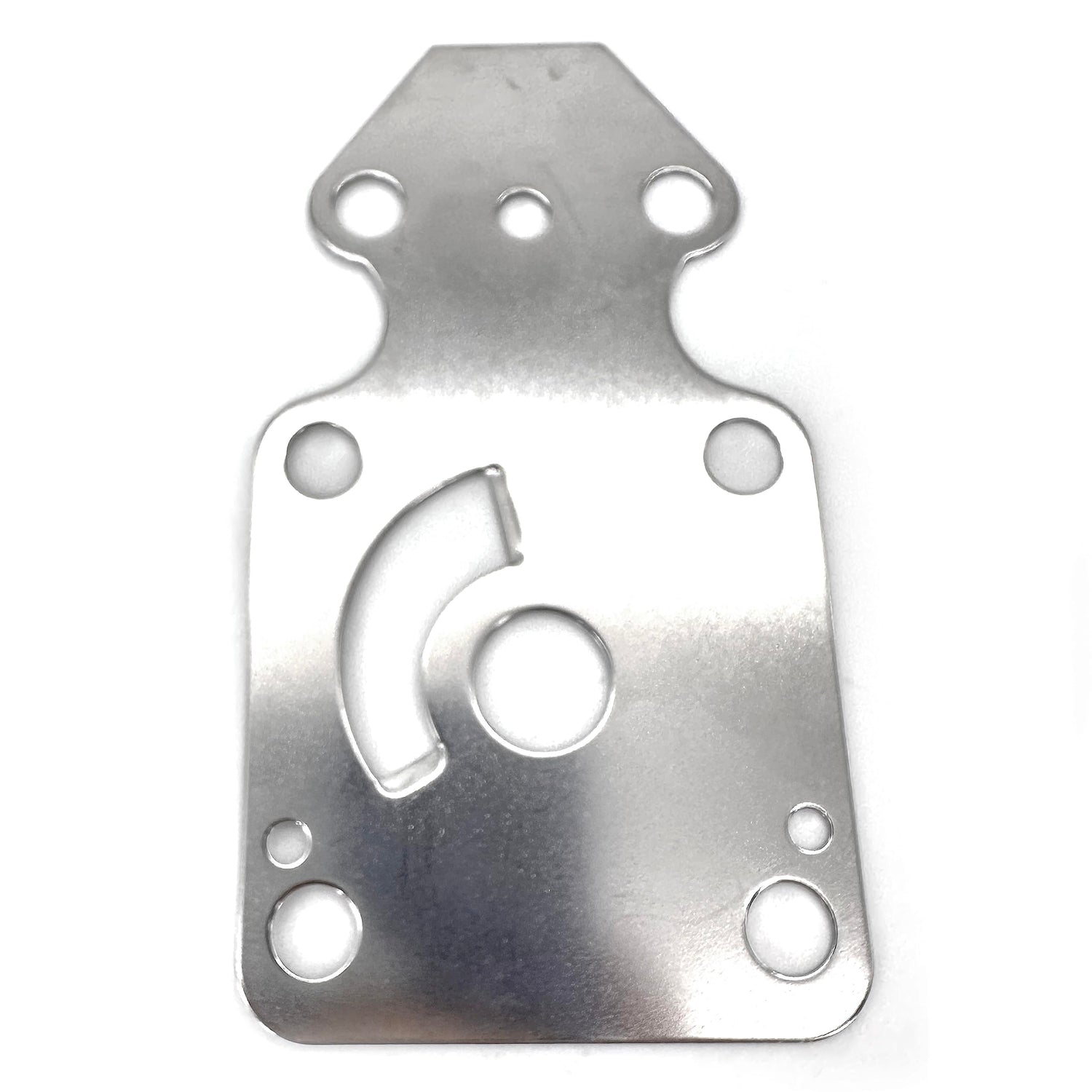

5. Impeller Plate (Part Numbers: 18-3195)
6. Water Seal Damper (Part Numbers: 18-1833)

Additional Information

• Quality: The impellers are manufactured from high-quality rubber and are durable even after prolonged immersion in salt water.
• Packaging: Highly rigid cardboard boxes and foam wool packaging ensure product safety.
• Inquiry Service: Check your engine part number before purchasing. If unsure, contact the seller for assistance.
