18-3454 Water Pump Impeller Kit with Housing for Johnson Evinrude OMC 25-50 HP | SeaSierra

Product Details

• SKU: 183454
• Brand & Manufacturer: SeaSierra
• Category: Cooling Systems / Pump/Pump Kits
• Part Type: Water Pump Impeller Repair Kit
• Item Weight: 1.1001
• Package Dimensions: 6.9001 x 4.9001 x 3.6001 inches

Compatibility

This kit is compatible with the following Johnson Evinrude OMC Outboard models:

• 25 Jet: 1995-UP
• 30 Jet: 1995-UP
• 28 hp: 1995-1996
• 35 hp: 1991-1996
• 40 hp: 1989-2005
• 48 hp: 1989-2005
• 50 hp: 1989-2005

Part Numbers and Replacements

• Replaces OEM Part Numbers: 0438592, 0433548, 0433549, 0777805
• Replaces Sierra Part Number: 18-3454
• GLM Part Number: 12245
• Equivalent Kit: Not specified
• Other Replaced Part Numbers: 438592, 433548, 433549, 777805, 18-3394, 9-48209, 96-364-01AK, JE-222

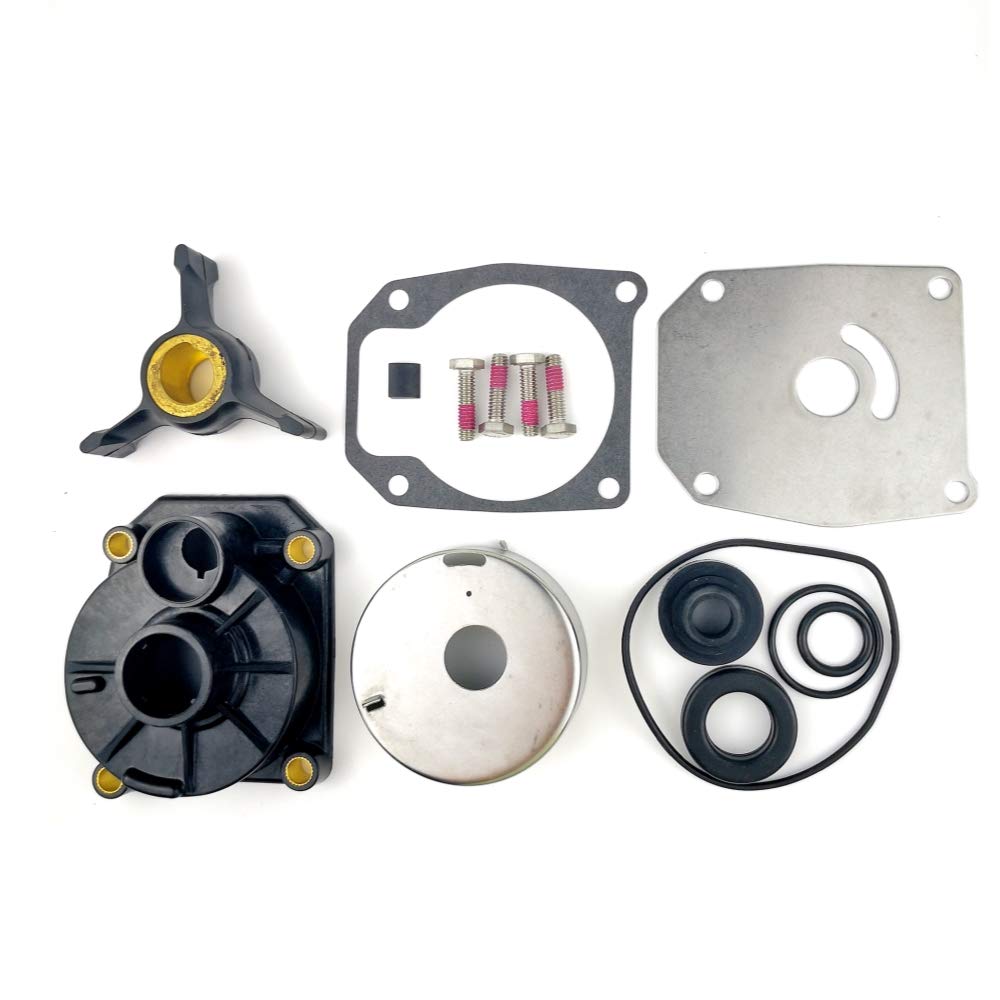

Kit Components

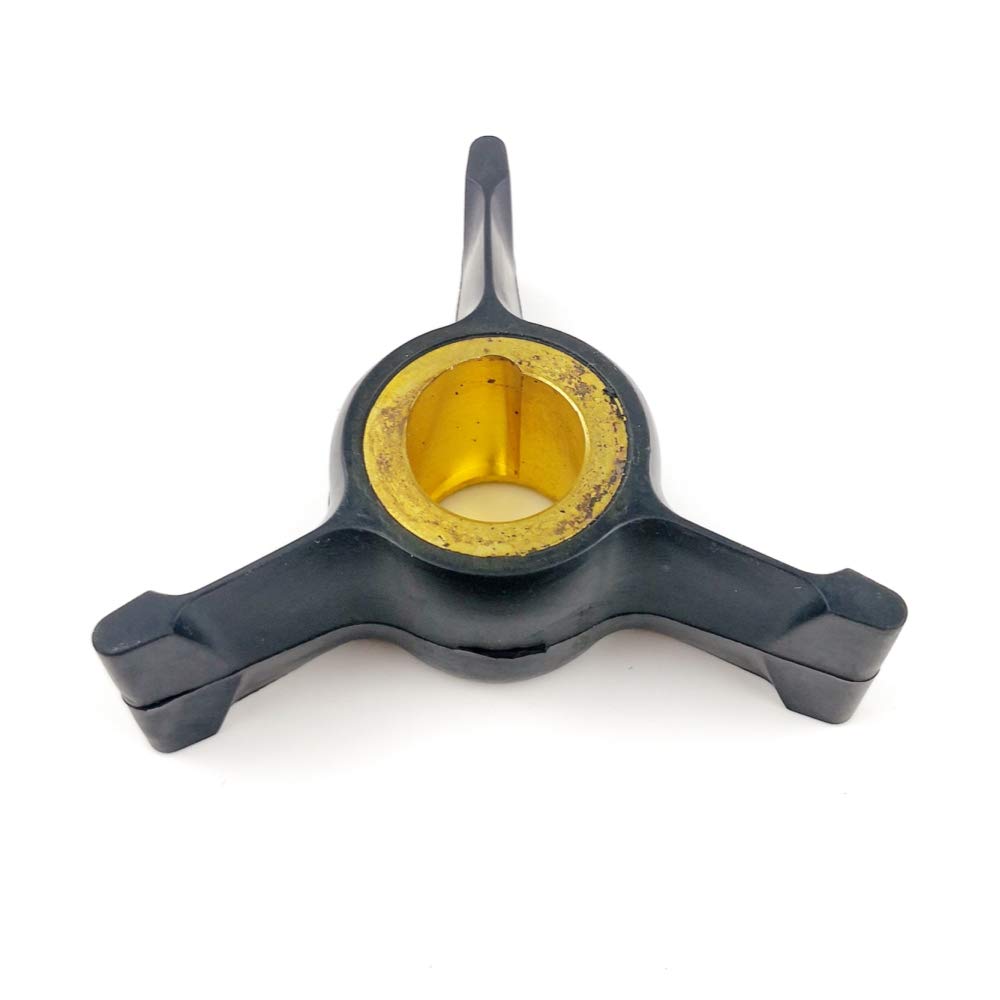

1. Water Pump Impeller: 0432941, 18-3104
2. Woodruff Key: 0334897, 18-3138

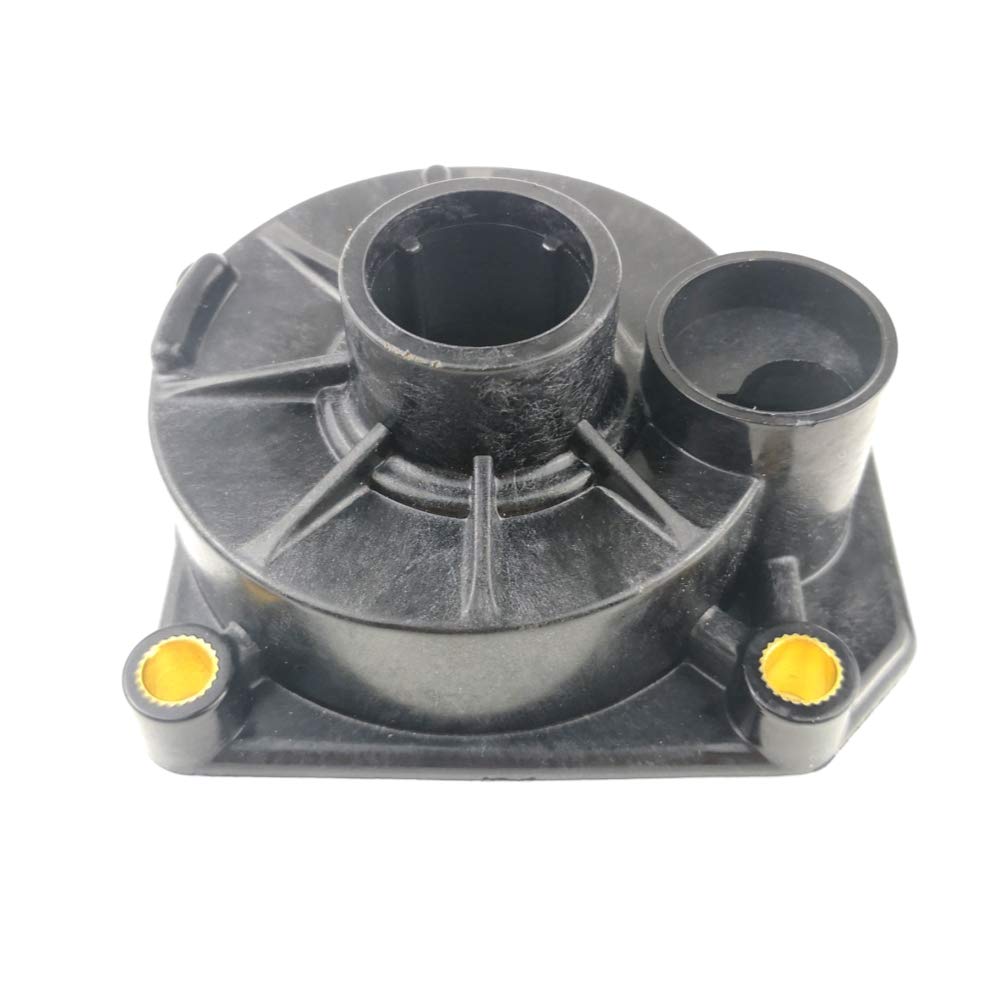

3. Housing Assembly: 0438544, 0437058, 0435594

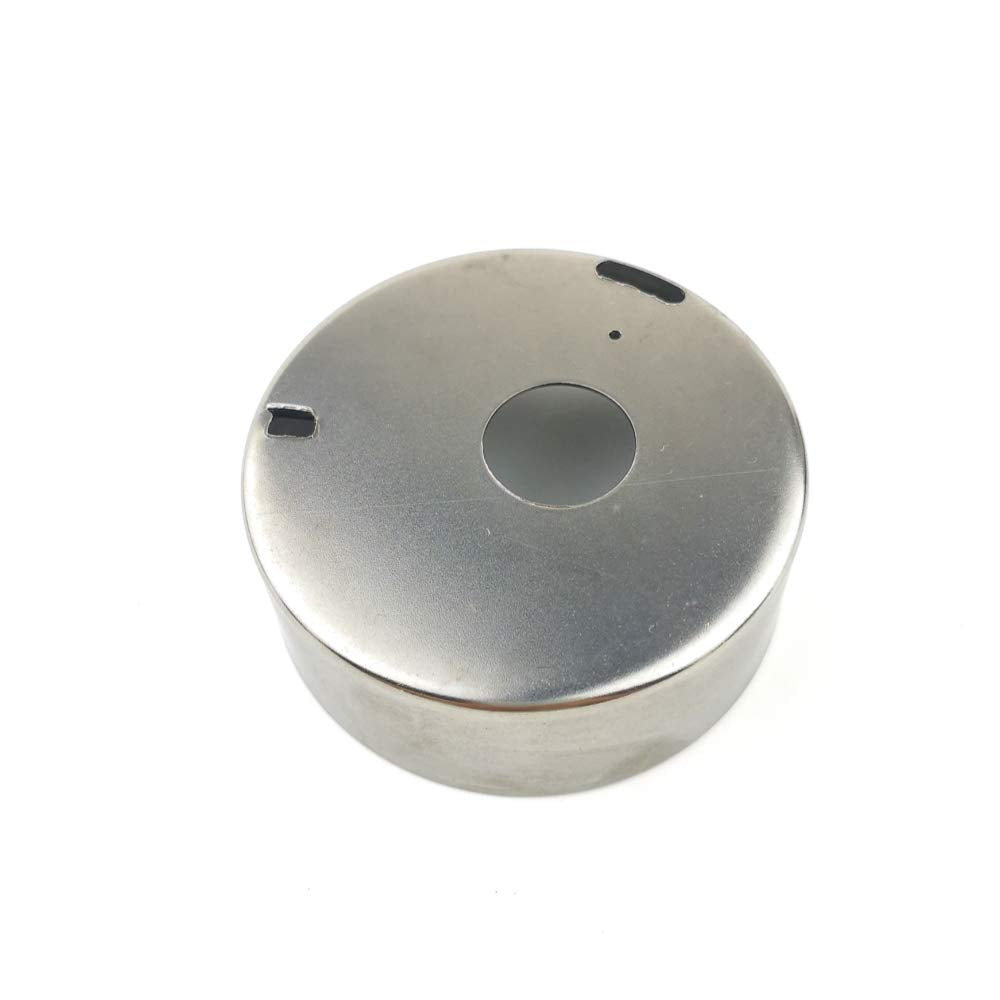

4. Cup: 0340619, 18-3455

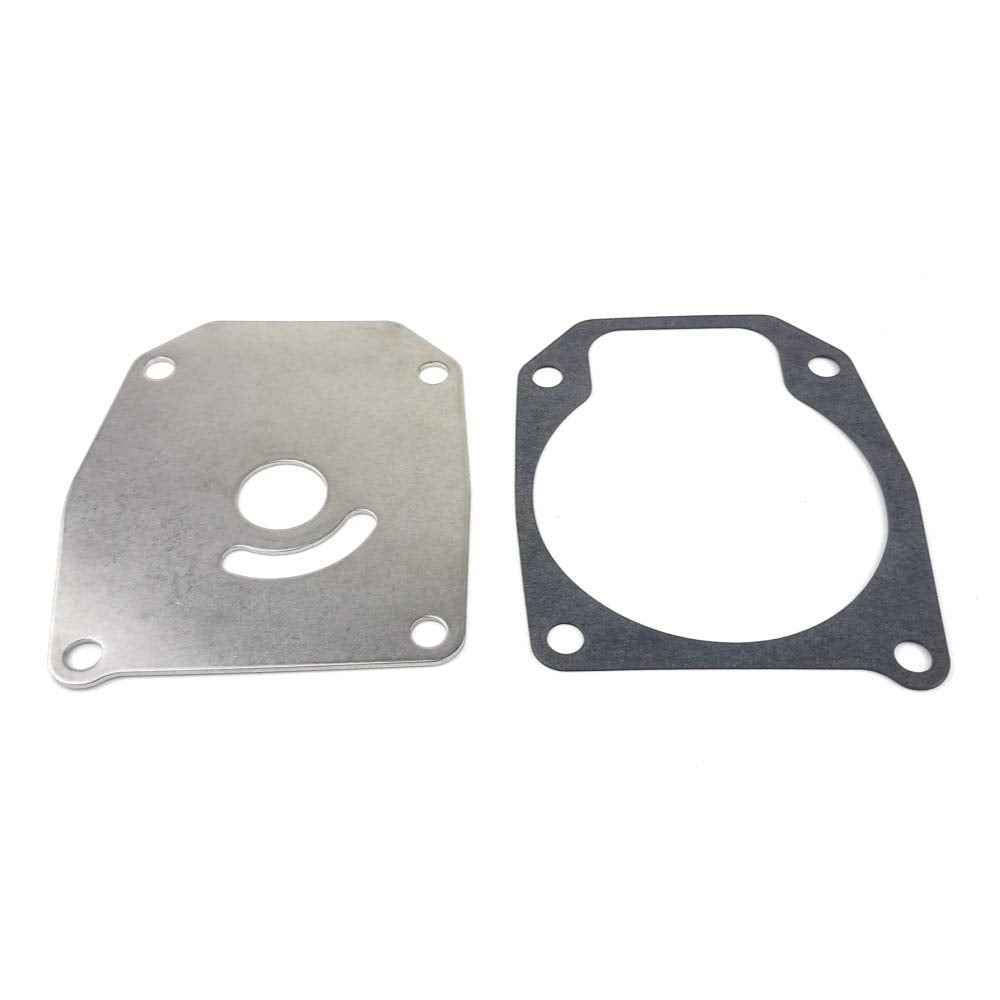

5. Wear Plate: 0321940, 18-3126
6. Gasket: 0336530, 18-2709

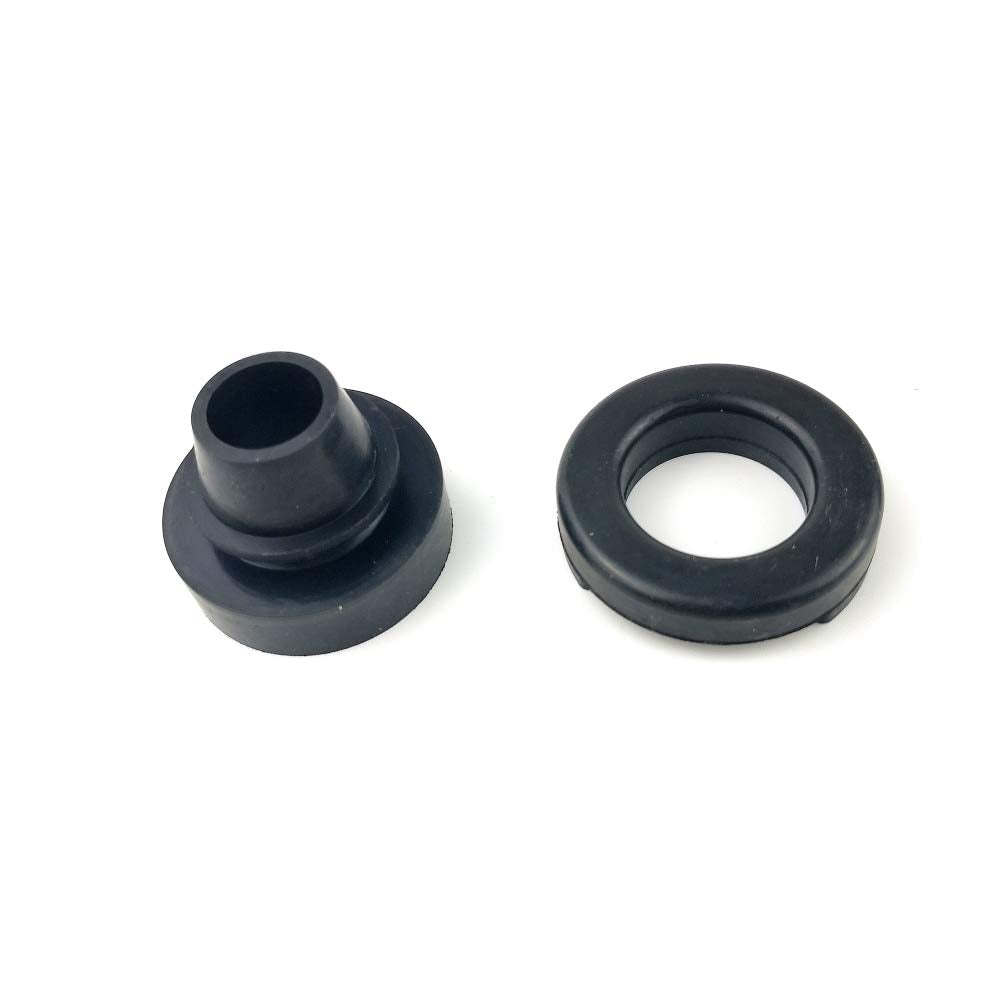

7. Grommet: 0333758, 18-2708
8. Seal: 0324981, 18-7481

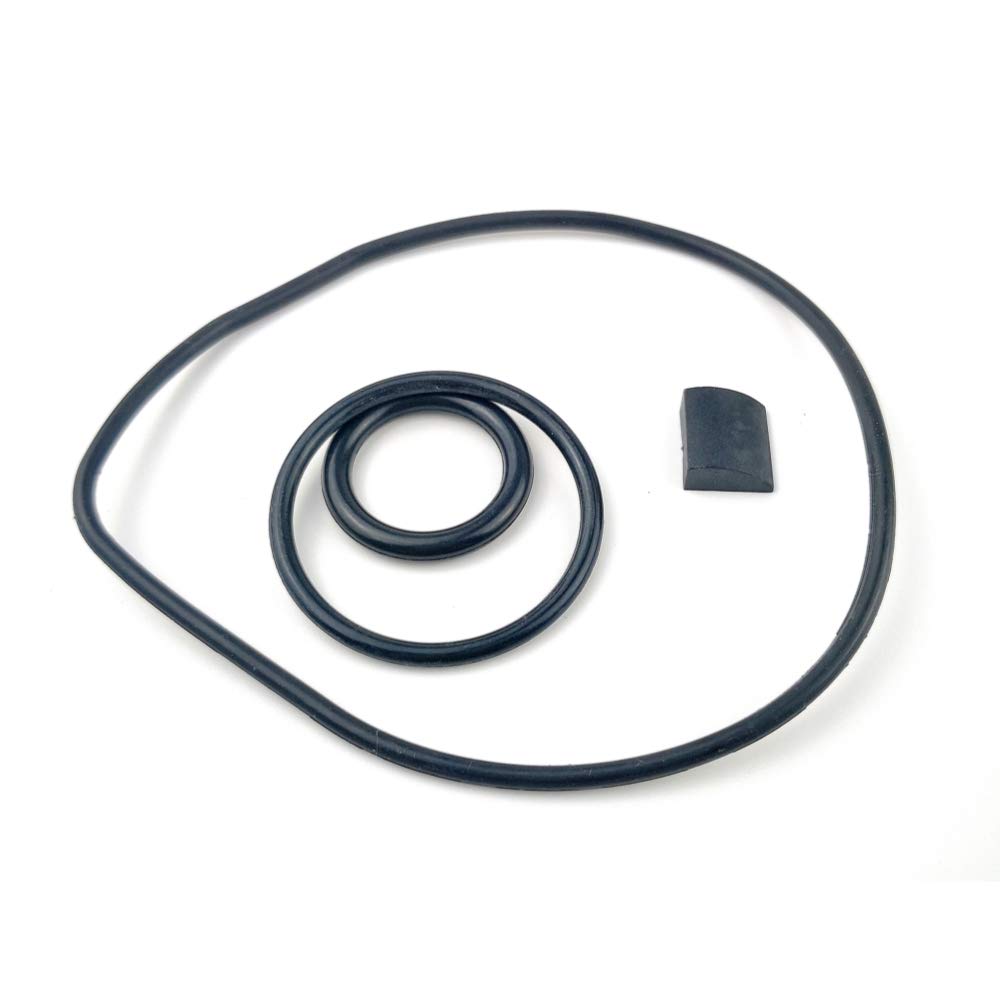

9. O-Ring: 0310584, 3852089, 18-7135, 0331188
10. Bolts and Screws: 0302325, 0328315, 18-3133

Additional Information

• This kit fits most Evinrude Johnson 2 cylinder 2-stroke 40 - 48 - 50 HP models from 1989 up to 2005. These models have the gas assist tilt or trim cylinder feature operated by a lever on the side of the mounting bracket or single ram power trim integrated inside the mounting brackets.
• The kit includes water pump impeller, drive key, face plate, gaskets, O-ring, Grommet, seal, bolts, and screws.
• To find the correct impeller kits for your boat motor, it is essential to check your outboard model or s/n before purchase. If unsure, you can leave messages regarding the boat engine model, horsepower, or year.
