5007420 VRO Fuel Pump Assembly

VRO Fuel Pump — Compatible with select Johnson Evinrude 150 / 175 HP V6 2-Stroke

Which pump is this?

This is a VRO fuel/oil pump for Johnson / Evinrude 150 / 175 HP V6 2-stroke outboards. 4-wire 5007420 covers 1991–2006 150 / 175 HP rows. 5007423 is the 3-wire-to-4-wire kit on 1984–1991 150 HP and 1985–1991 175 HP rows. Predecessors: 5004558 / 5004559 / 5004562 and 438400. Compatible with the six HP/stamp groups in the table. Two of those rows are stamped 5007422 — that is the premix / fuel-only conversion (21FP008), not what this SKU ships. This page keeps oil injection working. Not 5007421 (40–50 / 60 TTL). Not 60/70 3-cyl (21FP006) and not 90/115 V4 (21FP007).

Signs yours is due

• 150 / 175 HP V6 smokes, or the oil tank stays full while the motor runs lean on oil — VRO not pumping.
• No-oil horn with a dry oil hose at a 4-wire pump on a V6 2-stroke.
• Fuel at the VRO body after a pulse-limiter failure; oil tank still on the motor.
• If you already decided to premix instead of repairing VRO, stop — that kit is 5007422 (21FP008).

Will it fit?

Compatible with Johnson / Evinrude 150 HP and 175 HP V6 2-stroke groups: 5007423 on 1984–91, 5007420 on 1991–2006. The table also prints 5007422 on 1994–2001 150 HP and 1994–95 175 HP — those rows are the premix conversion, sold as 21FP008. Match the stamp and wire count. Not 200 HP, not 90/115 V4, not 4-stroke 150/175.

Engine horsepower alone does not prove fit. Match the number stamped on the pump you remove to the OEM column.

Every row is from this SKU fitment workbook (6 rows after empty-line filter). Same horsepower name shipped different pumps.

OEM and swap numbers

OEM / predecessor numbers keep the engine-brand column. Aftermarket cross-refs are numbers only.

Wrong part

• NOT 5007422 — premix / fuel-only conversion (21FP008). Opposite function.
• NOT 5007421 — small-engine 4-wire pump, zero rows on this 150/175 table.
• NOT 1399-07352 as this SKU — that is a non-oiling / premix-direction number.
• NOT 60/70 3-cyl (21FP006) and NOT 90/115 V4 (21FP007).

What ships

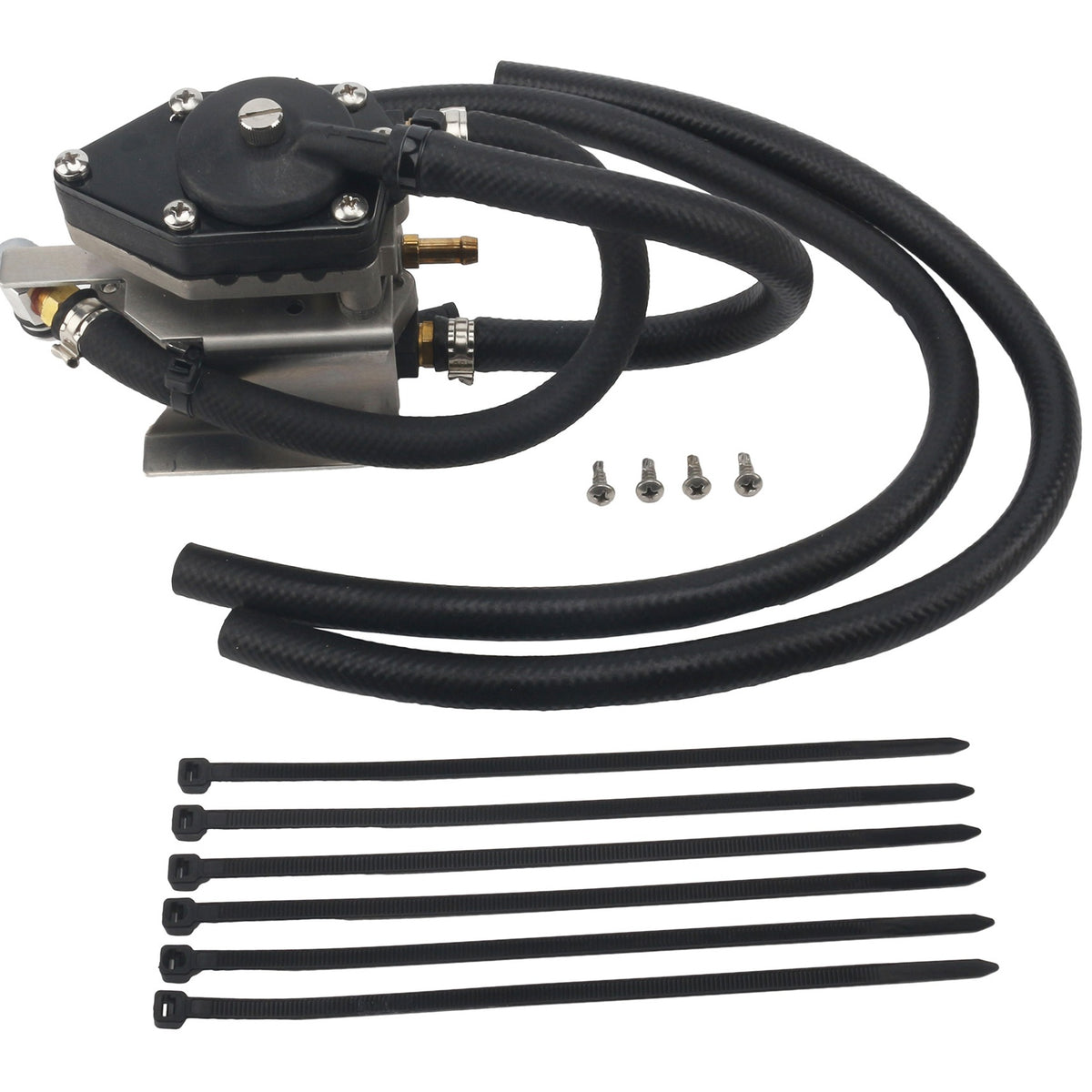

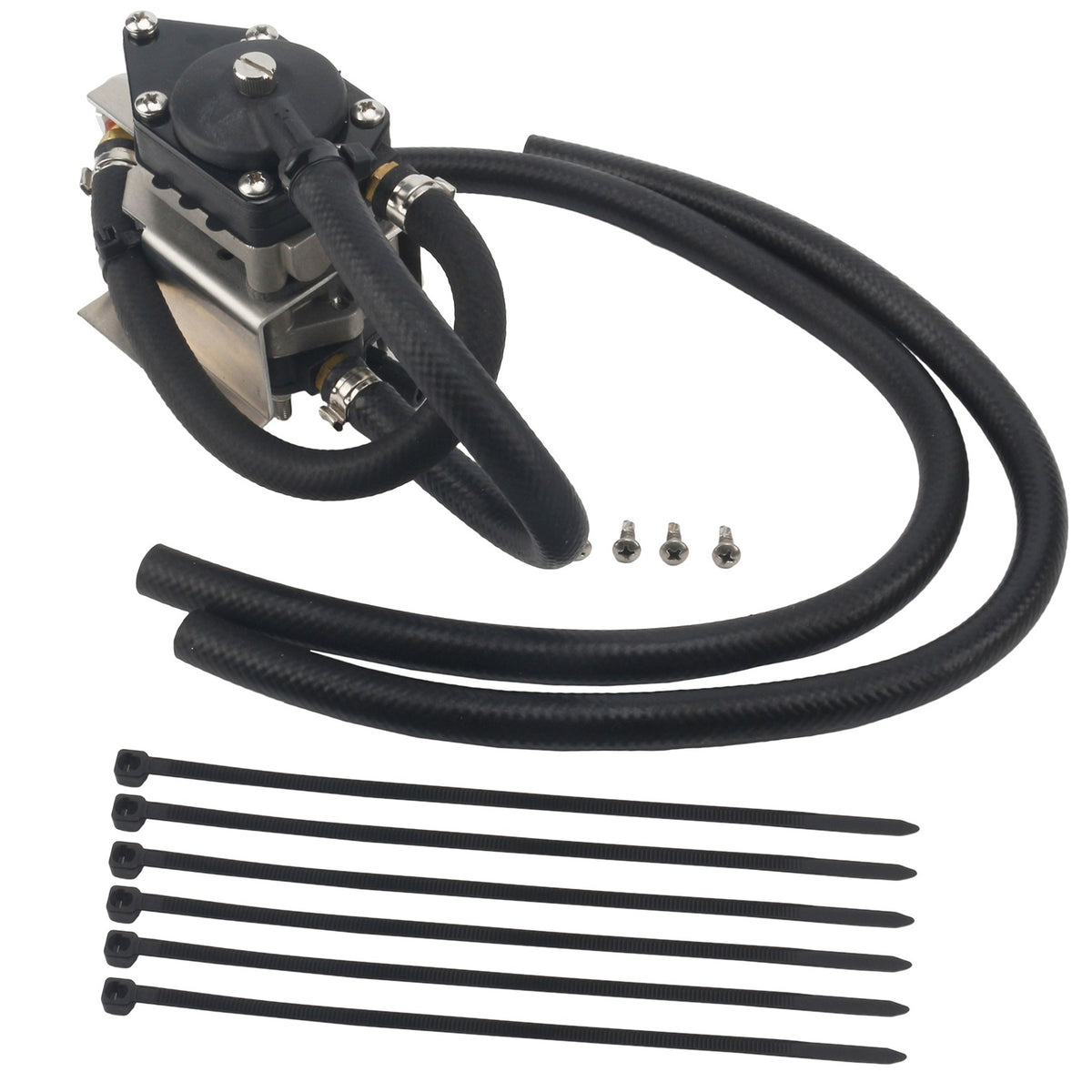

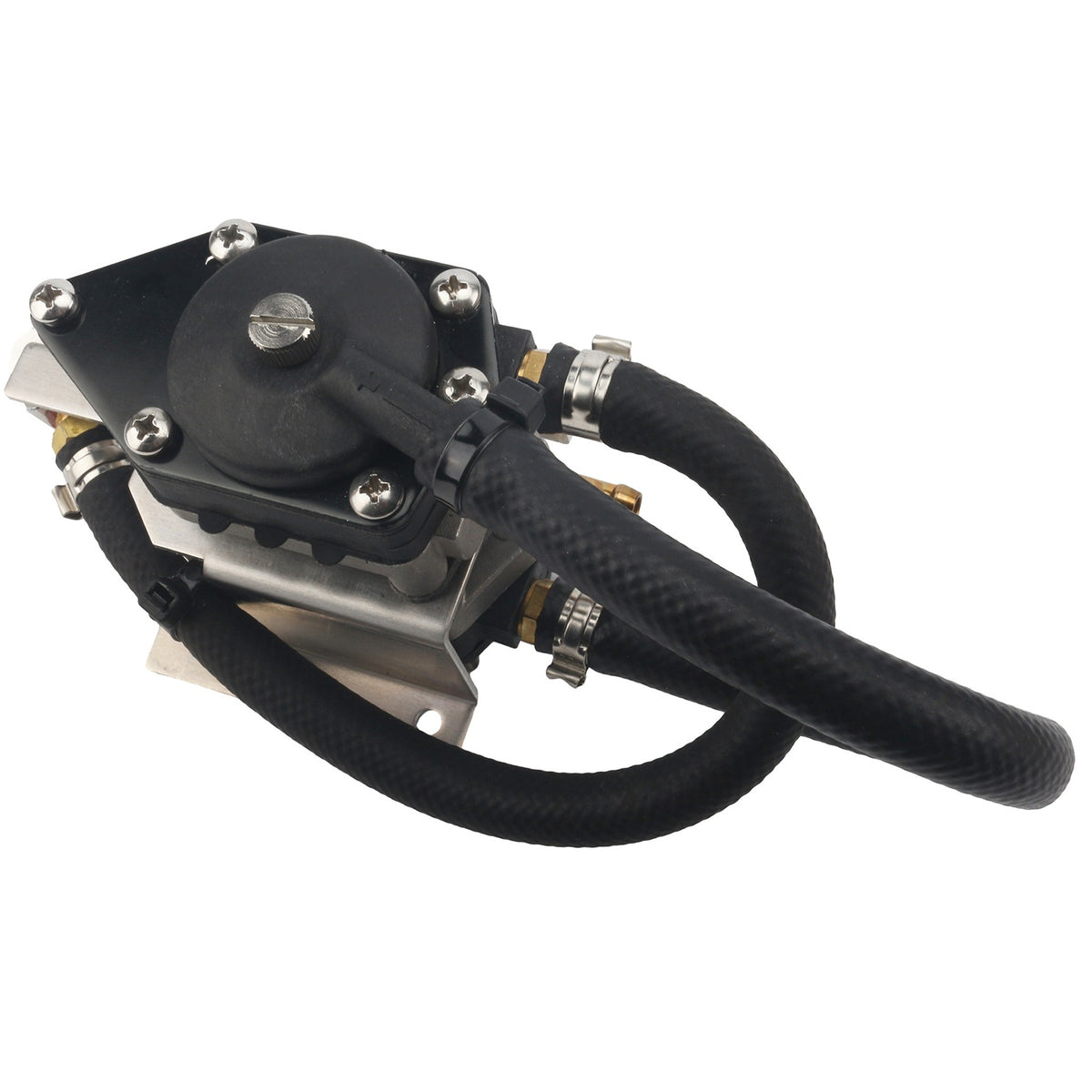

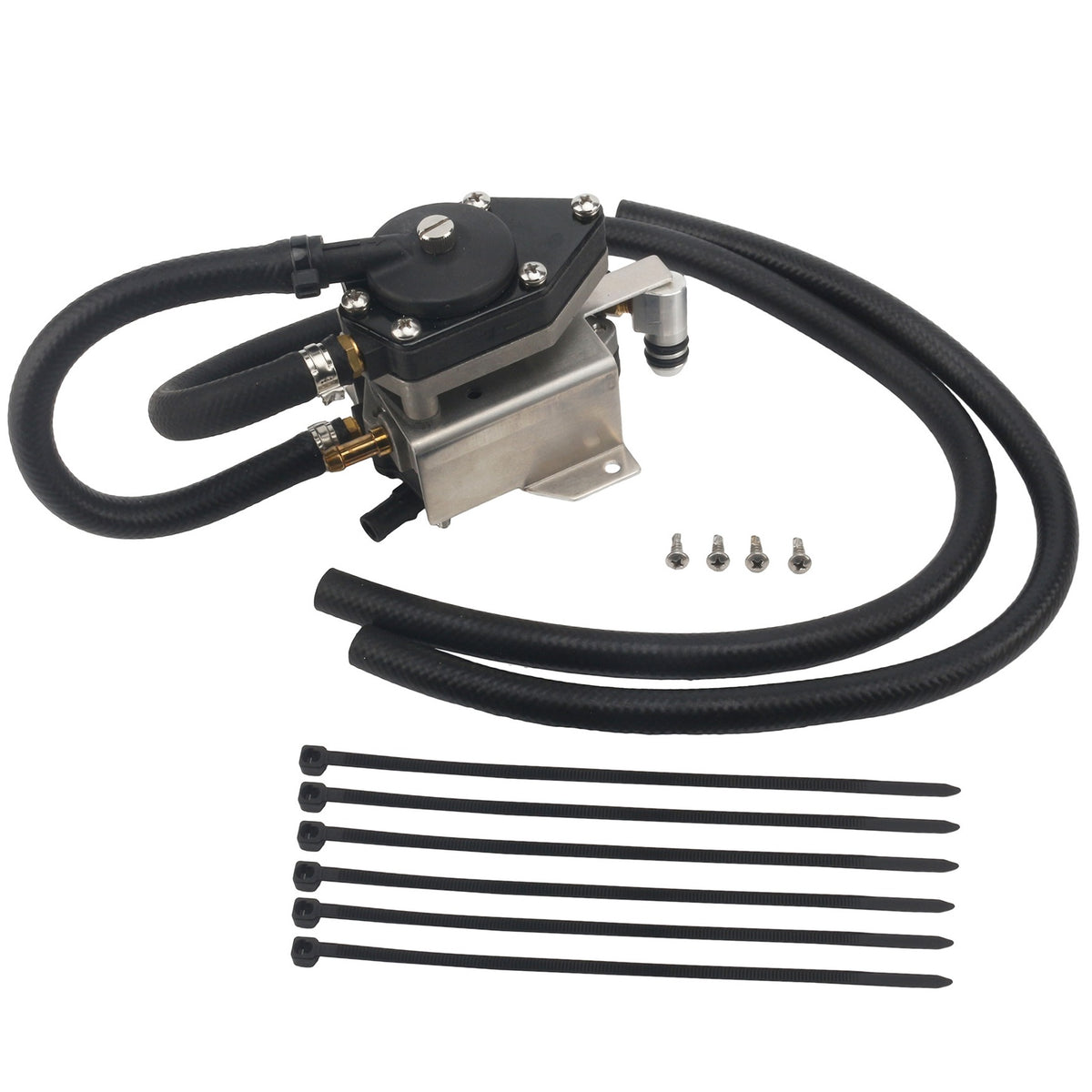

One VRO fuel/oil pump assembly (5007420 4-wire or 5007423 3-to-4-wire kit style). Not a premix conversion. No extra tank.

Often replaced together

60/70 3-cyl VRO is 21FP006. 90/115 V4 VRO is 21FP007. Premix conversion 5007422 is 21FP008. Pulse limiter sold separately.

Install

Confirm 150 / 175 HP V6 2-stroke with an oil tank. Photograph oil, fuel, pulse, and the 3-wire vs 4-wire plug. 1984–91 motors often need 5007423. Do not fit 5007422 unless you are abandoning VRO for premix. Prime oil and fuel, then verify the oil line moves after start.

Frequently Asked Questions

Will this fit my 150 HP Johnson V6?

If it is a 2-stroke V6 in the 1984–2006 groups, match 5007420 vs 5007423. 4-stroke 150 HP is not this pump. Premix kit 5007422 is 21FP008.

Same number as 21FP006 / 007?

Same 5007420 family, different HP table. This page is 150 / 175 HP V6 only.

Is 5007422 included?

No. That conversion is 21FP008. The table shows 5007422 rows so you do not mix stamps.

Old listing said fuel filter.

Template error. This is a VRO fuel/oil pump.

What ships?

One VRO pump assembly. Not premix kit 5007422.

Please note

Aftermarket fuel pump by GHMarine. Not affiliated with the engine brands named above. «Compatible with», «Replaces», and cross-ref numbers mean this part is built to work like the originals listed — always confirm the stamp on the removed pump, the engine model, and the serial range before you order. This page is the pump only, not a multi-part kit.
