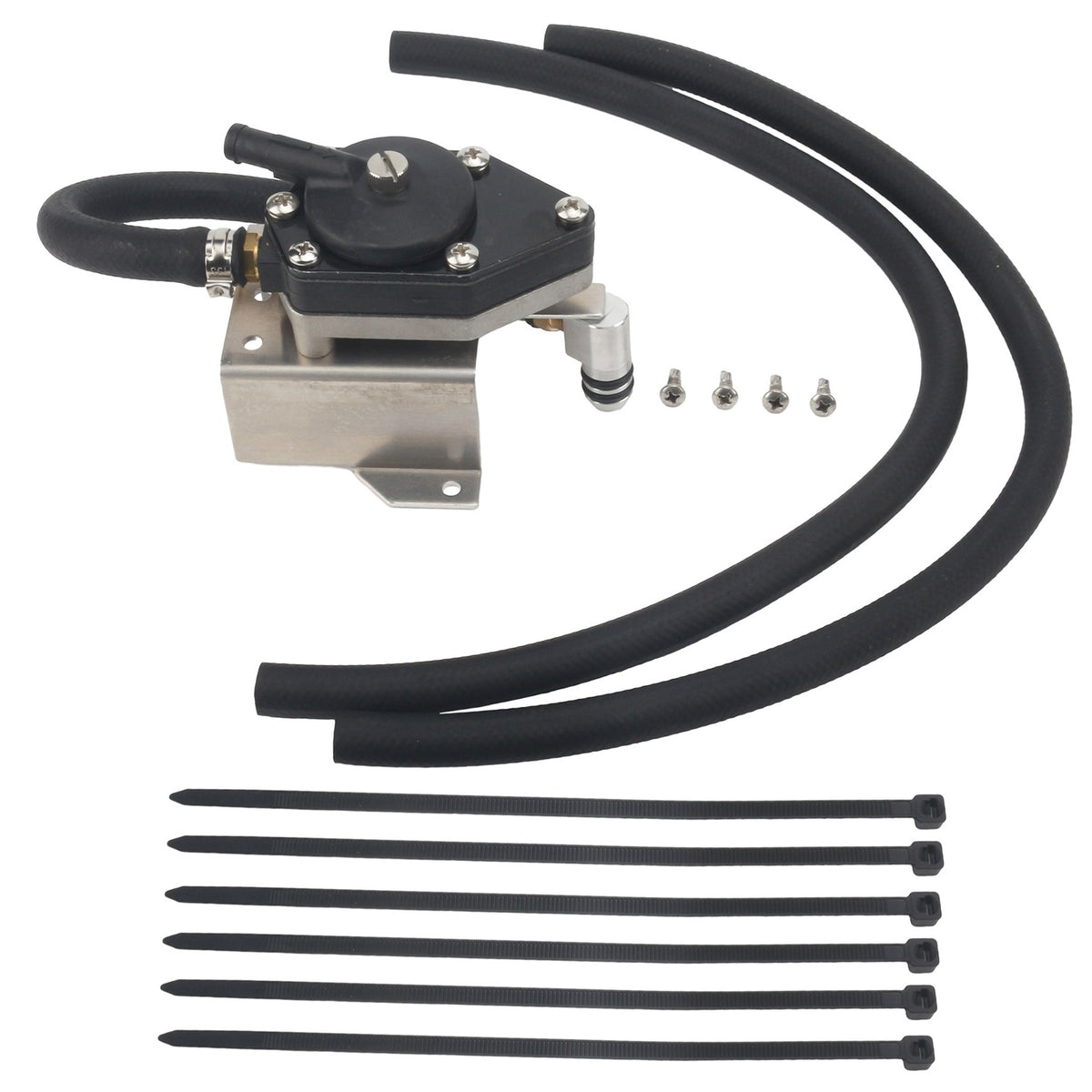

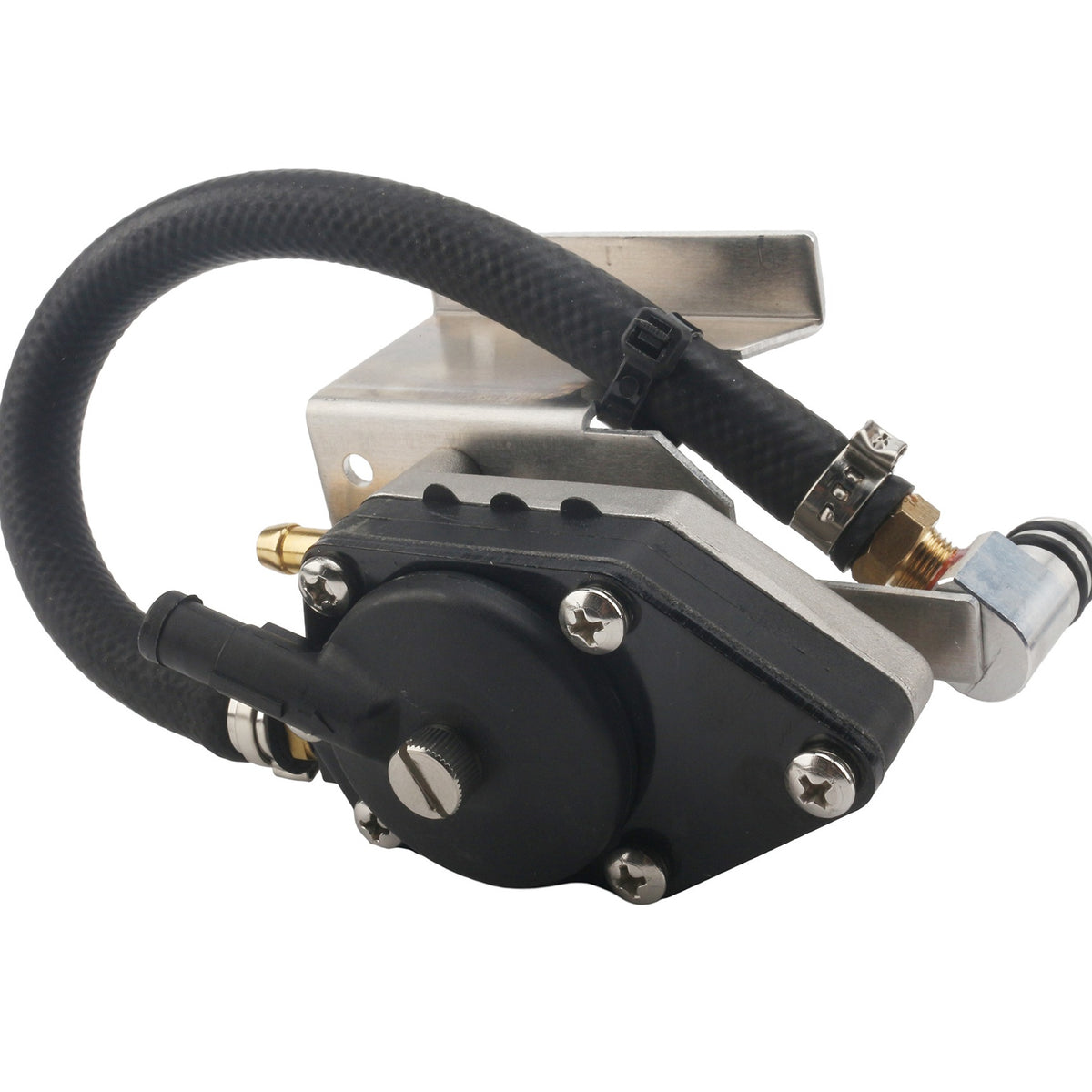

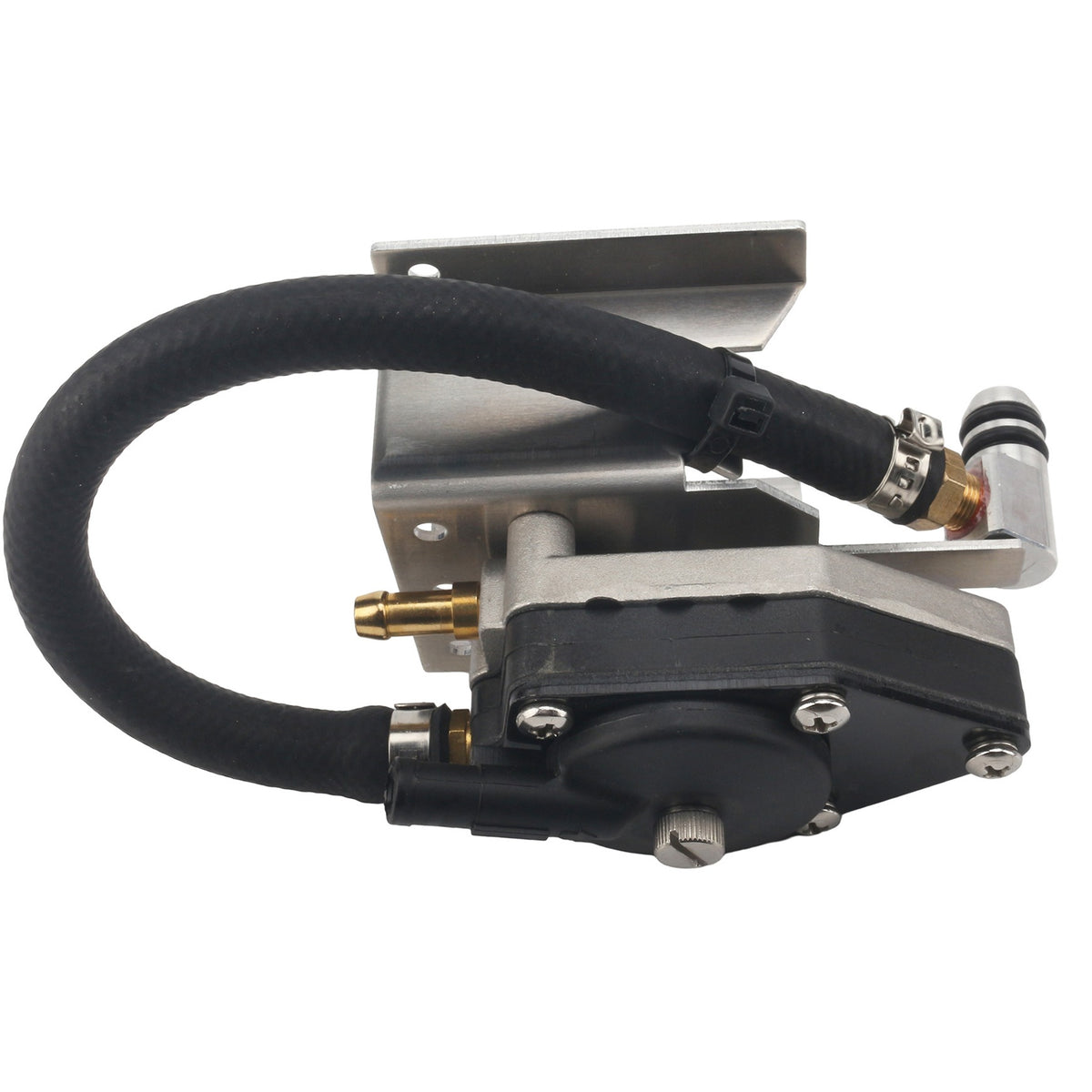

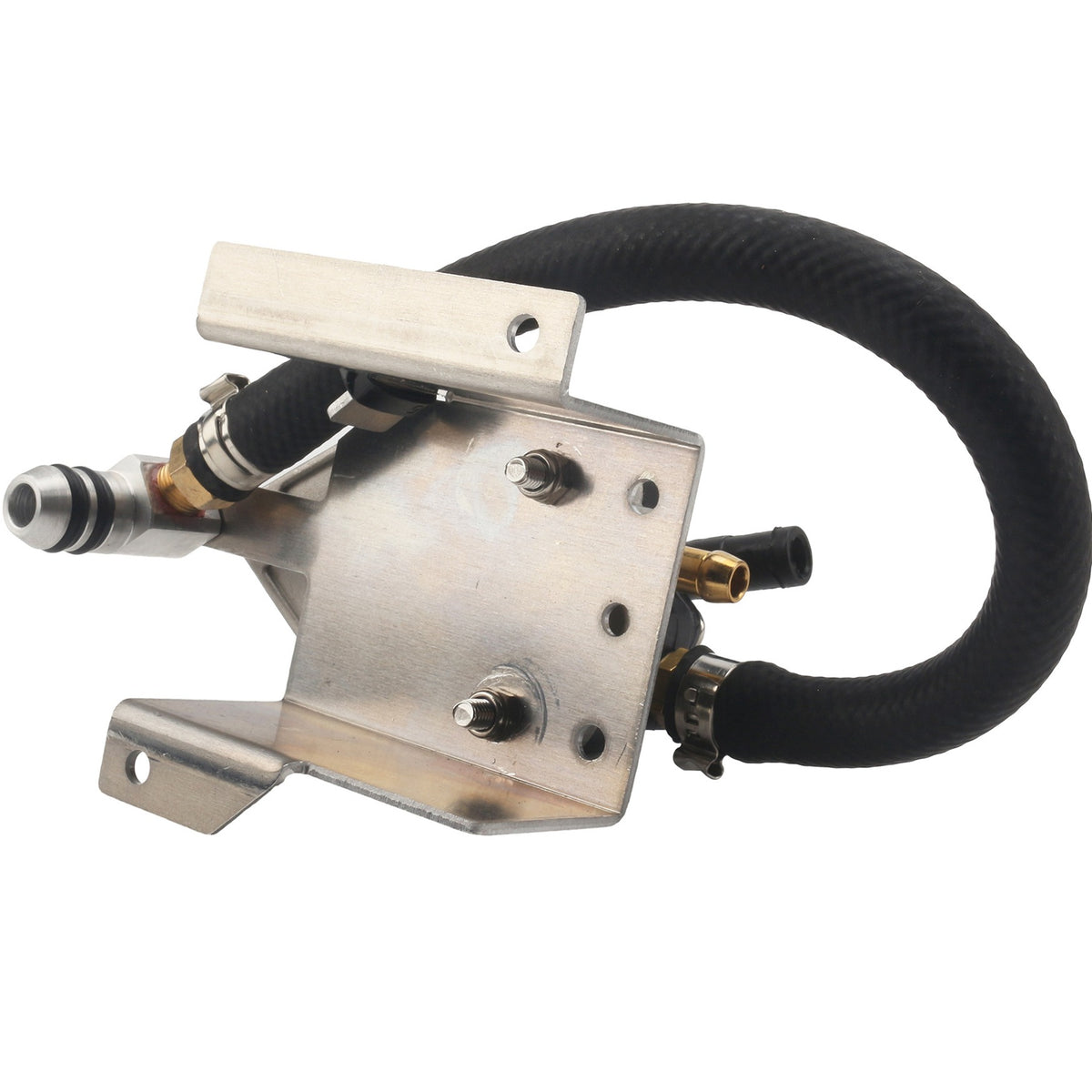

5007420 VRO Fuel Pump Assembly

VRO Fuel Pump — Compatible with select Johnson Evinrude 90 / 115 HP 60° V4 2-Stroke

Which pump is this?

This is a VRO fuel/oil pump for Johnson / Evinrude 60-degree V4 90 / 115 HP 2-stroke outboards. 4-wire replacement 5007420 covers 1991–2006 90 / 115 HP rows. 5007423 is the 3-wire-to-4-wire kit on 1984–1990 90 / 115 HP rows. Predecessors: 5004558 / 5004559 / 5004562 and 438400. Compatible with the four groups in the table. It is not 5007421 (that small 4-wire pump is for 40–50 HP / 60 TTL, zero rows on this 90/115 table). It is not 5007422 premix conversion, and not the 90° V4 / V6 non-oiling 1399-07352 pump.

Signs yours is due

• 90 / 115 HP V4 smokes, or oil tank stays full while the motor runs lean on oil — VRO not pumping.
• No-oil horn with a dry oil hose at a 4-wire pump on a 60° V4.
• Fuel at the VRO body after a pulse-limiter failure; motor still 2-stroke V4 with oil tank.
• Not electric pump 5032617. Not a 3-cyl 60/70 (21FP006).

Will it fit?

Compatible with Johnson / Evinrude 90 HP and 115 HP 60° V4 2-stroke groups: 5007423 on 1984–1990, 5007420 on 1991–2006. Match stamp and wire count. Not 120–140 HP 90° V4 and not V6 150–200 premix conversion (21FP008). Horsepower 90 on a later 4-stroke is a different pump entirely.

Engine horsepower alone does not prove fit. Match the number stamped on the pump you remove to the OEM column.

Every row is from this SKU fitment workbook (4 rows after empty-line filter). Same horsepower name shipped different pumps.

OEM and swap numbers

OEM / predecessor numbers keep the engine-brand column. Aftermarket cross-refs are numbers only.

Wrong part

• NOT 5007421 — small-engine 4-wire pump, not on this 90/115 table.
• NOT 5007422 — premix / fuel-only conversion (21FP008).
• NOT 1399-07352 — non-oiling pump for 90° V4 / V6.
• NOT electric 5032617 and NOT 3-cyl 60/70 (21FP006).

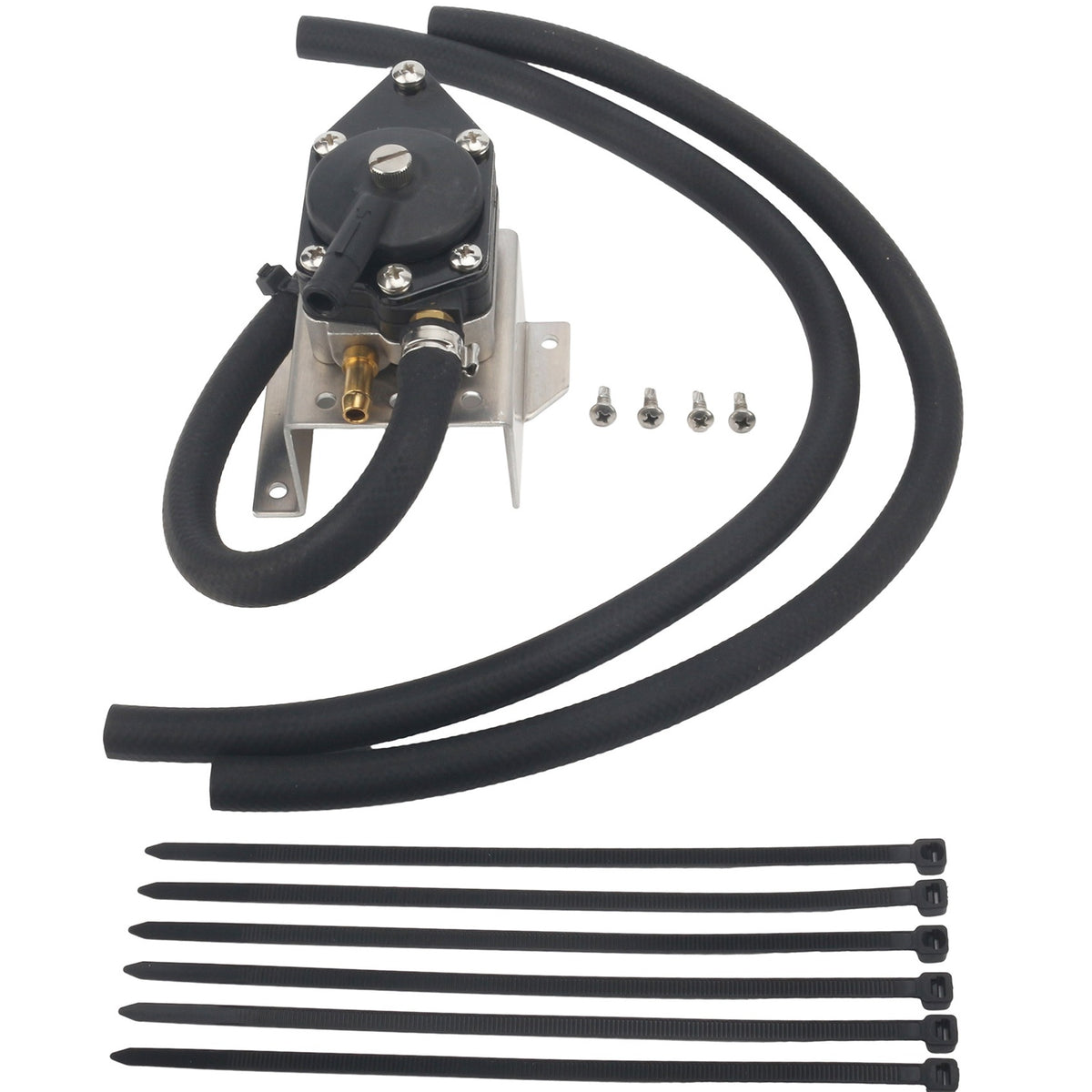

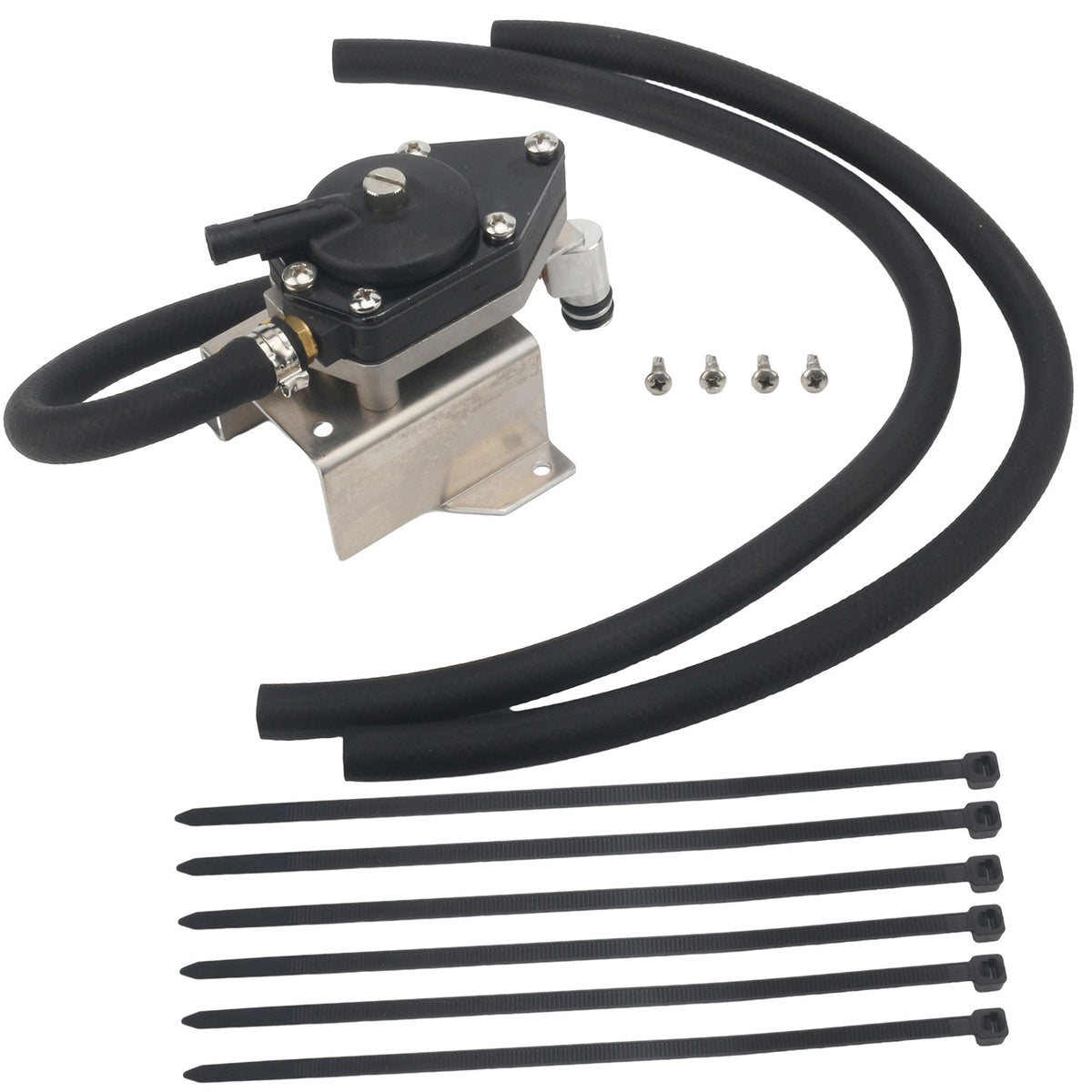

What ships

One VRO fuel/oil pump assembly (5007420 4-wire or 5007423 3-to-4-wire kit style). Not a premix conversion. No extra tank.

Often replaced together

60 / 70 HP 3-cyl VRO is 21FP006. Premix conversion 5007422 is 21FP008. Pulse limiter sold separately.

Install

Confirm 60° V4 90 / 115, not 3-cyl 60/70 and not 90° V6. Photograph oil, fuel, pulse, and plug. 1984–90 motors often need the 5007423 3-to-4-wire kit style. Do not fit 5007422 unless you are abandoning VRO for premix. Prime oil and fuel, then verify the oil line moves after start.

Frequently Asked Questions

Will this fit my 115 HP Johnson V4?

If it is a 60° V4 2-stroke in 1984–2006 as in the table, yes — match 5007420 vs 5007423. 4-stroke 115 HP is not this pump.

Same pump as 60/70 HP 21FP006?

Same 5007420 family number, different HP table. This page is 90 / 115 HP 60° V4 only.

Is 5007422 included?

No. That is the premix conversion on 21FP008.

Old listing said fuel filter.

Template error. This is a VRO fuel/oil pump.

What ships?

One VRO pump assembly. Not premix kit 5007422.

Please note

Aftermarket fuel pump by GHMarine. Not affiliated with the engine brands named above. «Compatible with», «Replaces», and cross-ref numbers mean this part is built to work like the originals listed — always confirm the stamp on the removed pump, the engine model, and the serial range before you order. This page is the pump only, not a multi-part kit.
