67D-24410-03-00 5037518 Mechanical Fuel Pump Assembly for 4-6HP 4-Stroke Outboards, Compatible with Yamaha F4 F6C, Suzuki DF4 DF5 DF6 and Johnson 4-6 HP, Replaces ref 15100-91J02 5033371

67D-24410-03-00 5037518 Mechanical Fuel Pump Assembly for 4-6HP 4-Stroke Outboards, Compatible with Yamaha F4 F6C, Suzuki DF4 DF5 DF6 and Johnson 4-6 HP, Replaces ref 15100-91J02 5033371

Which pump is this?

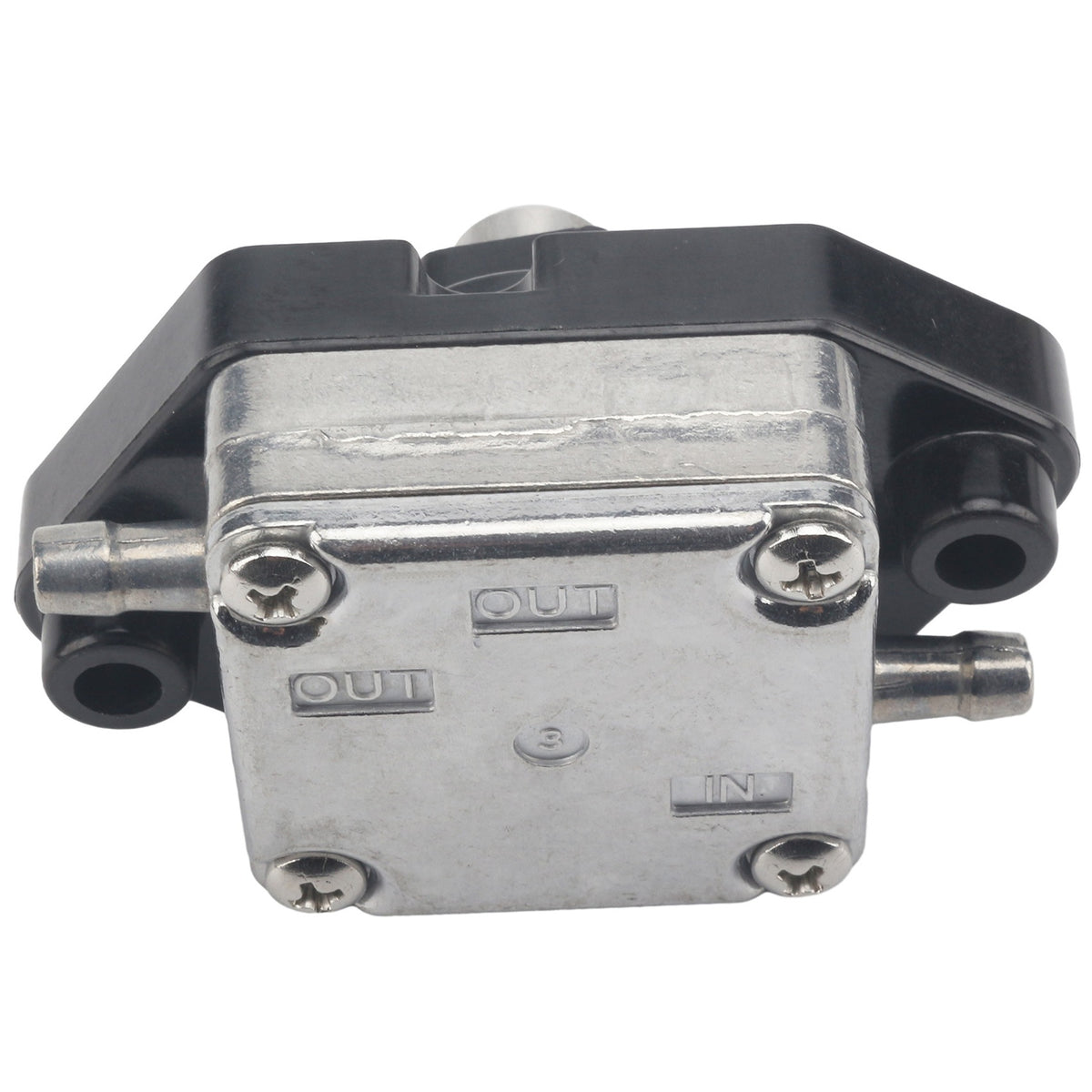

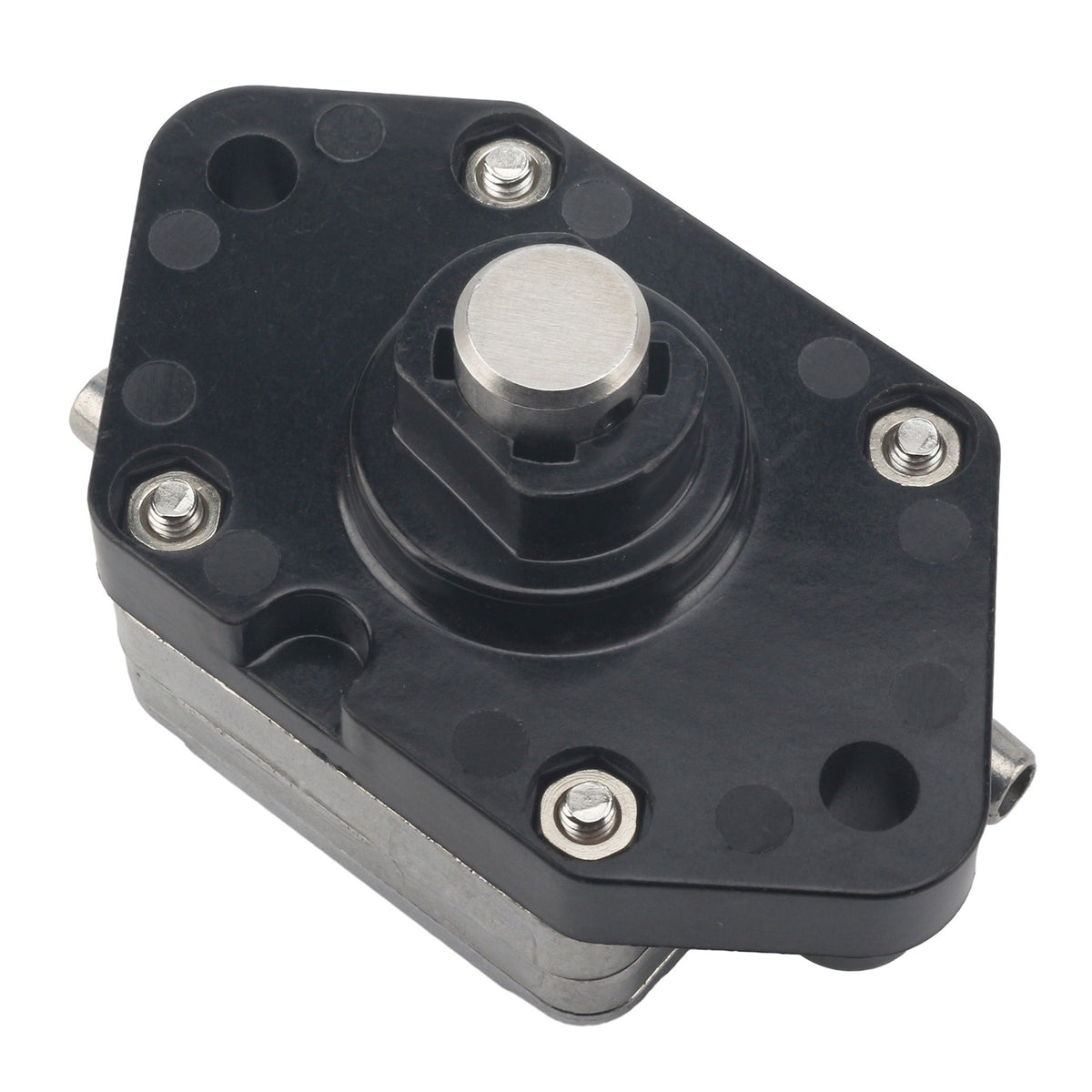

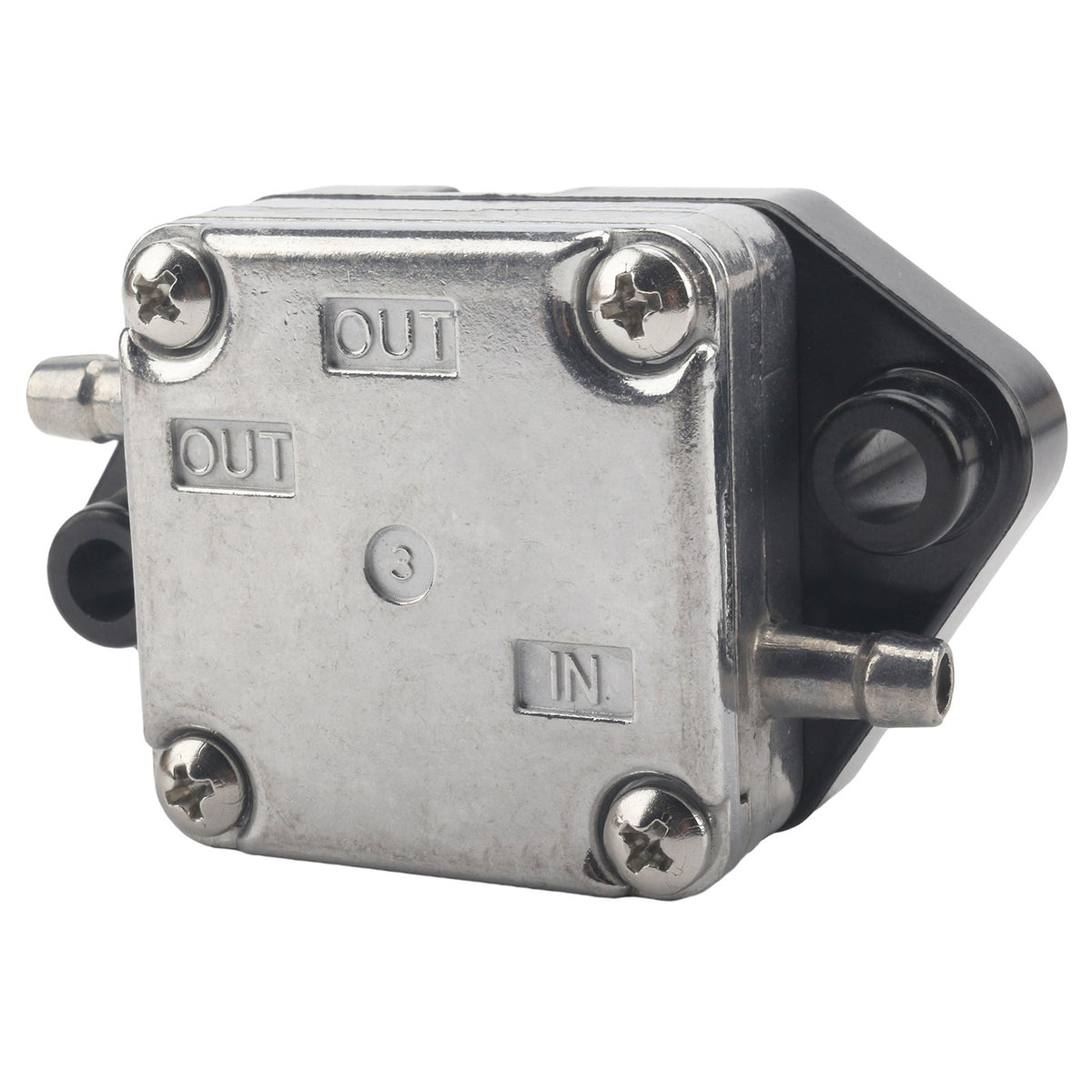

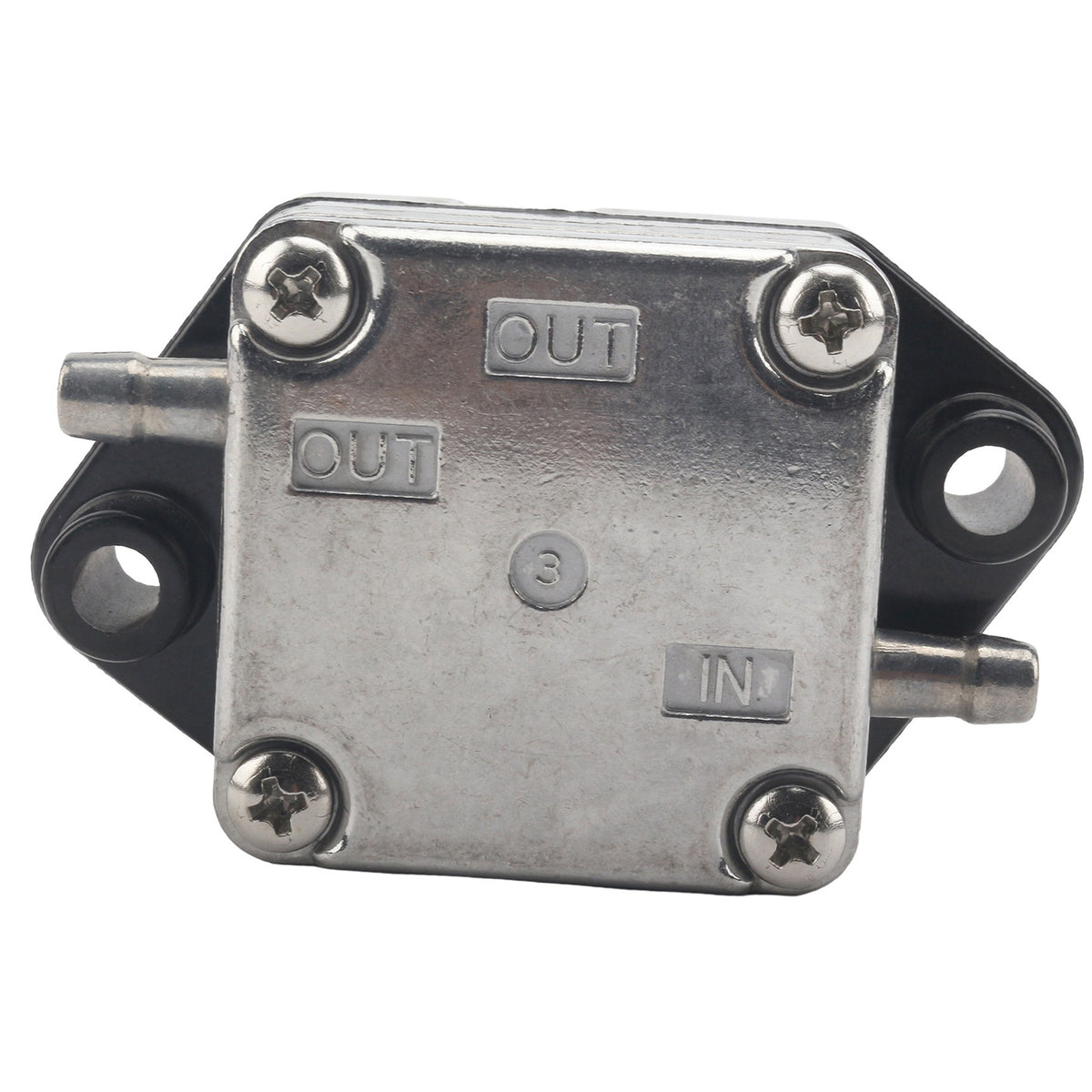

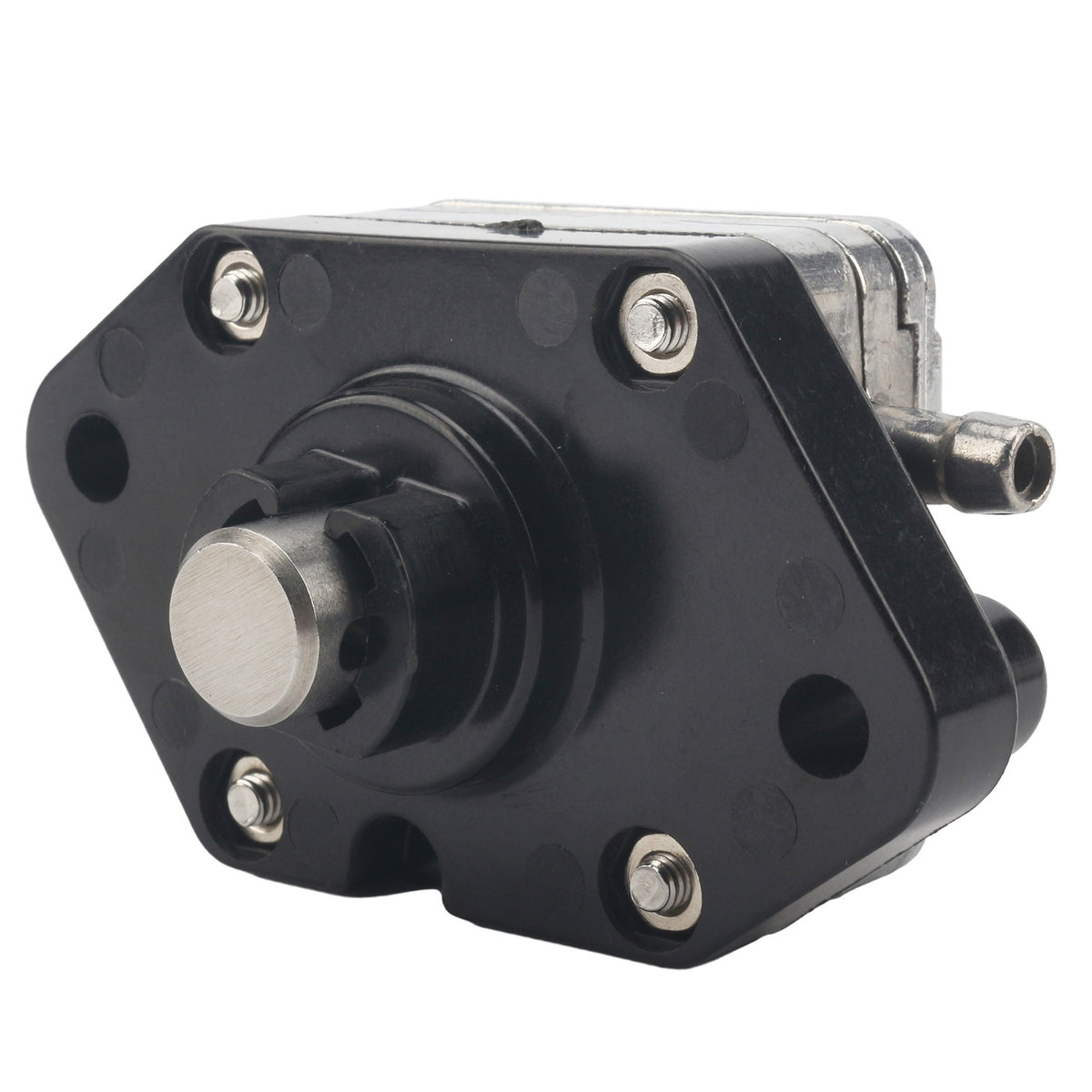

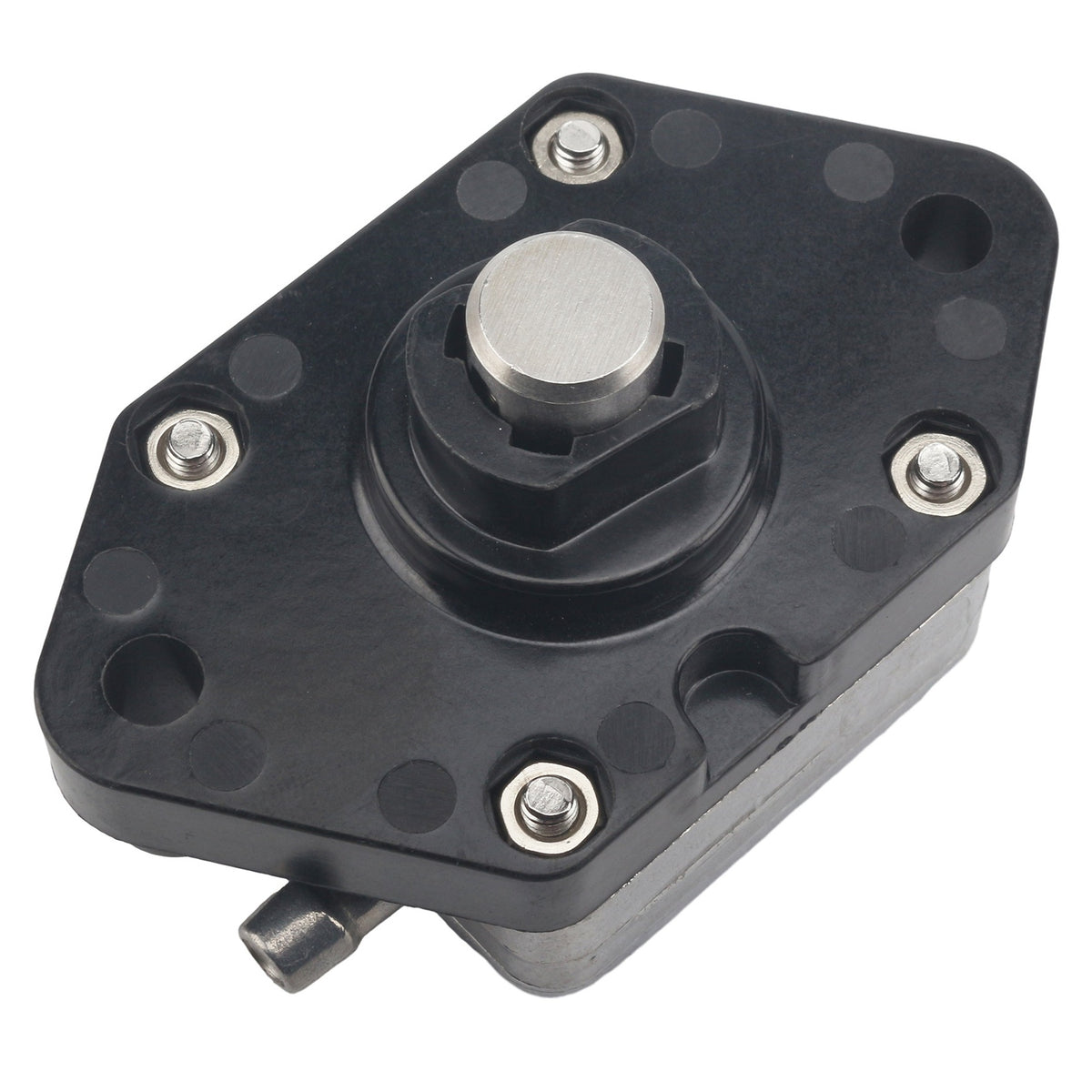

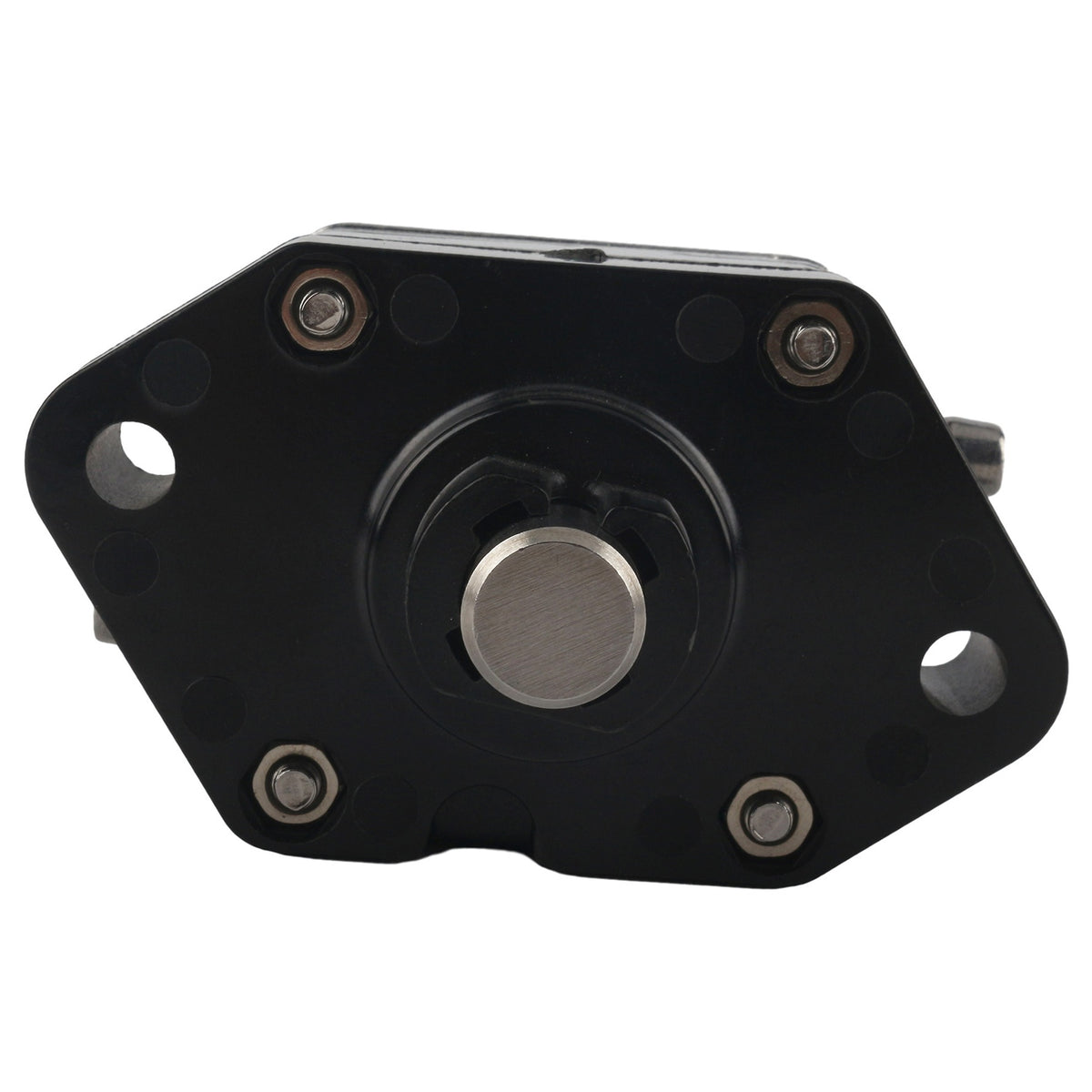

MECHANICAL LOW-PRESSURE DESIGN: This engine-mounted diaphragm pump uses a plunger, diaphragm, return springs and check valves to move fuel from the boat tank toward the carburetor, matching the official Yamaha FUEL 2 exploded view and the Suzuki FUEL PUMP figure for this part family. It is not an electric in-tank pump and not a high-pressure EFI pump. Similar-looking pumps from other Yamaha families are not interchangeable.

Signs yours is due

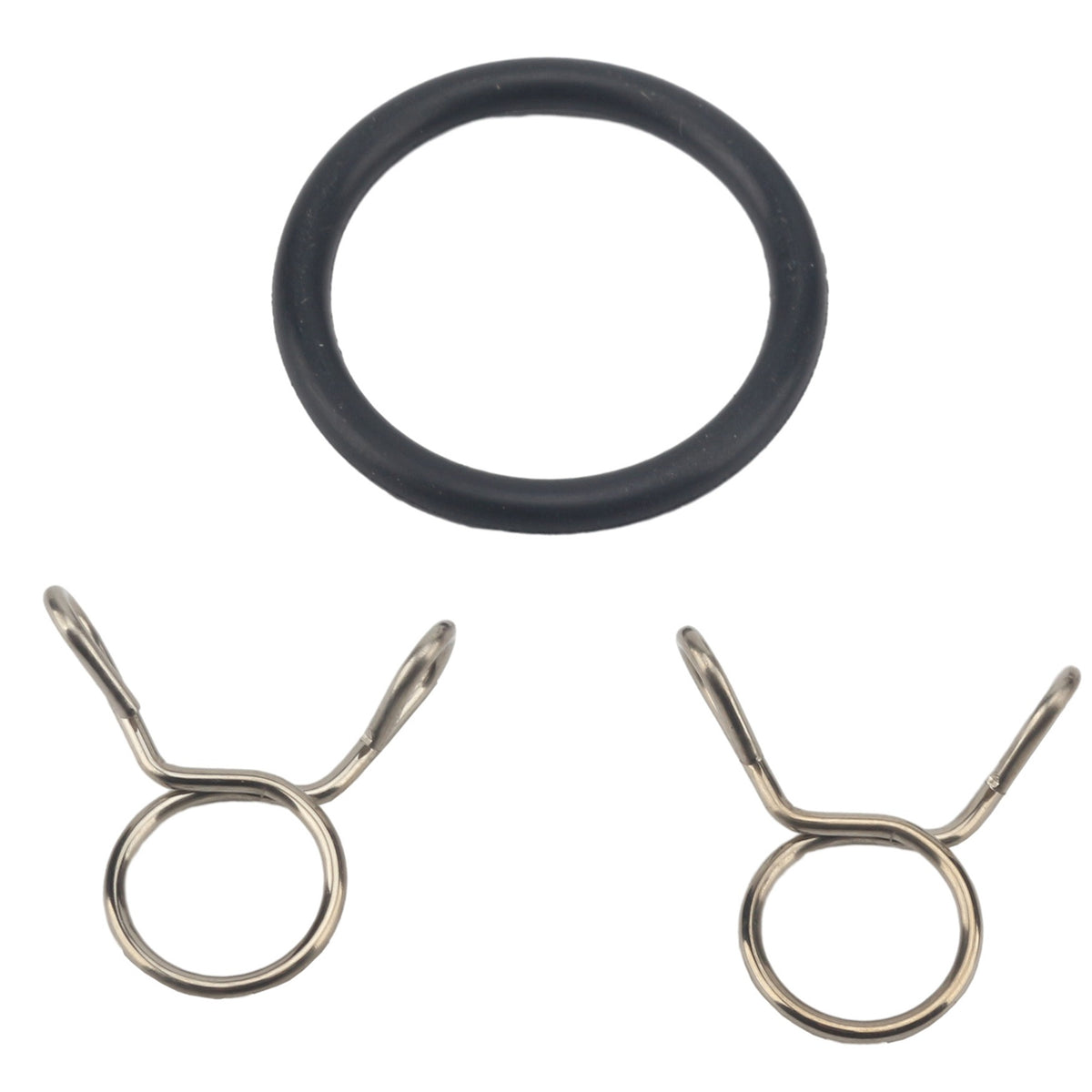

REPLACE THE COMPLETE PUMP: Intended as a complete-pump replacement for symptoms such as stalling when throttle is applied, a primer bulb that will not stay firm, fuel starvation under load, external fuel seepage from the pump body or gasket, after the rest of the fuel path has been checked. The package contains one fuel-pump assembly only; fuel filter, hoses, clamps, mounting bolts, gaskets and repair-kit parts are not included unless pictured by the seller.

Will it fit?

COMPATIBLE FITMENT: Compatible with select Yamaha F4 and F6C four-stroke outboards listed in official catalog records for the 67D-24410 and 6BX-24410 families, select Suzuki DF4, DF5 and DF6 P01-generation models covered by the manufacturer-issued parts catalogue, and select Johnson 4-6 HP four-stroke models listed for 5033371 and 5037518. Match the original pump number and engine model before ordering. Not for two-stroke engines, Yamaha F6A, or electric high-pressure fuel systems.

Every row is from this SKU fitment workbook. Match the number stamped on the pump you remove. Same horsepower name shipped different pumps.

OEM and swap numbers

VERIFIED PART-NUMBER CHAIN: Replaces ref 67D-24410-00-00, 67D-24410-02-00, 67D-24410-03-00, 6BX-24410-00-00, 6BX-24410-01-00, Suzuki 15100-91J02 and Johnson 5033371 superseded to 5037518. Catalog-supported aftermarket references include 18-35304, 9-35304, PAF4-04090000 and 1-32-67D24410. Do not use 18-35302 or 18-35303 as a cross-reference for this pump family.

Wrong part

If the number on your old pump is not in the table above, this is the wrong pump.

What ships

One complete mechanical fuel-pump assembly. No hose, no filter, no bolts, no carburetor, no rebuild kit.

Install

INSTALL WITH PART-NUMBER DISCIPLINE: Work in a ventilated area away from ignition sources, label the inlet and outlet hoses, compare the check-valve order and port orientation with the removed pump, renew damaged seals, use the engine manual's fastener torque, prime the line and inspect for leaks. If the old pump number cannot be read, send the engine model and a photo of the original pump before purchase.

FAQ

Q: Will it fit my Suzuki DF5 from 2007? A: The manufacturer-issued Suzuki parts catalogue covers this pump on the DF4/DF5/DF6 P01 generation by engine-number range. Match the original pump number on your engine before ordering.

Q: Will it fit an Evinrude 4HP four-stroke? A: Official BRP records list this pump on Johnson models only. Evinrude-badged fitment is not officially confirmed; match the original pump number.

Q: Is 18-35302 or 18-35303 the correct replacement? A: No. Published catalogs map those numbers to different pump families.

Q: Is this electric or high-pressure? A: No. It is an engine-driven mechanical low-pressure diaphragm pump.

Please note

Aftermarket fuel pump by GHMarine. Not affiliated with the engine brands named above. Confirm the number on the removed pump, the engine model, and the serial range before you order. This page is the pump only, not a multi-part kit.
