68T-24410-02-00 Mechanical Fuel Pump Assembly for Portable 4-Stroke Outboards, Compatible with select Yamaha F6A F8C F8F F9.9F F9.9J FT8D FT9.9G FT9.9L, Replaces ref 68T-24410-00-00 68T-24410-01-00

68T-24410-02-00 Mechanical Fuel Pump Assembly for Portable 4-Stroke Outboards, Compatible with select Yamaha F6A F8C F8F F9.9F F9.9J FT8D FT9.9G FT9.9L, Replaces ref 68T-24410-00-00 68T-24410-01-00

Which pump is this?

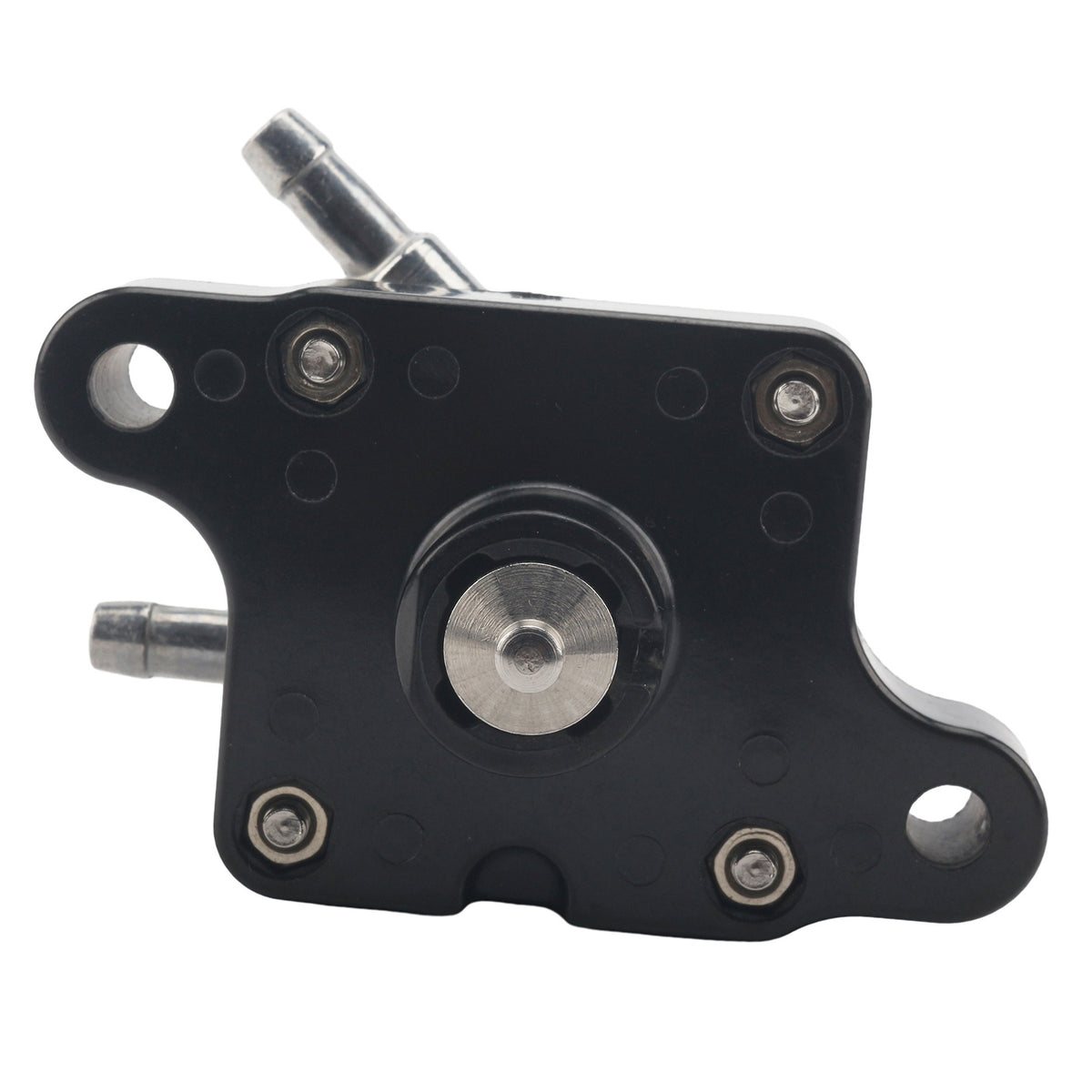

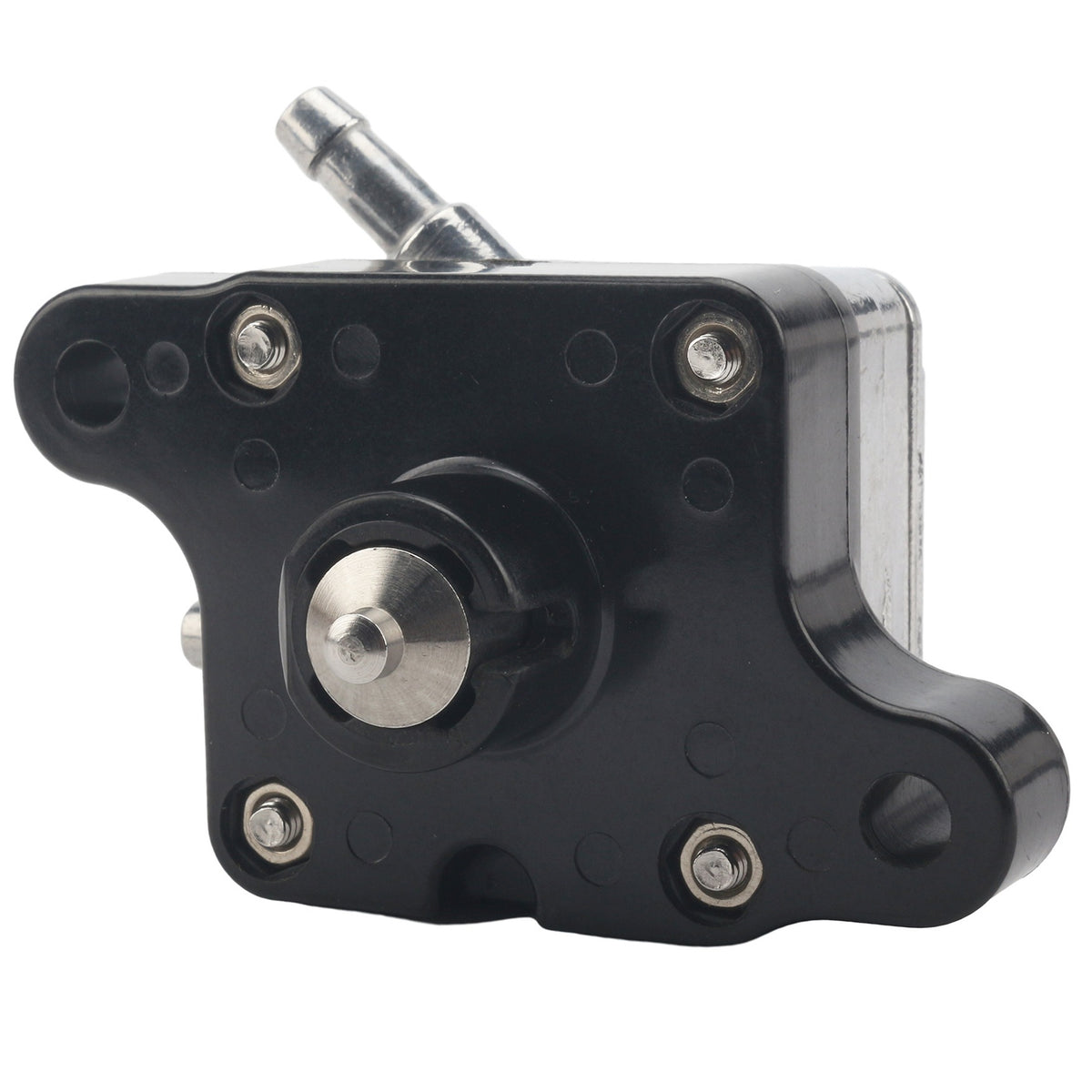

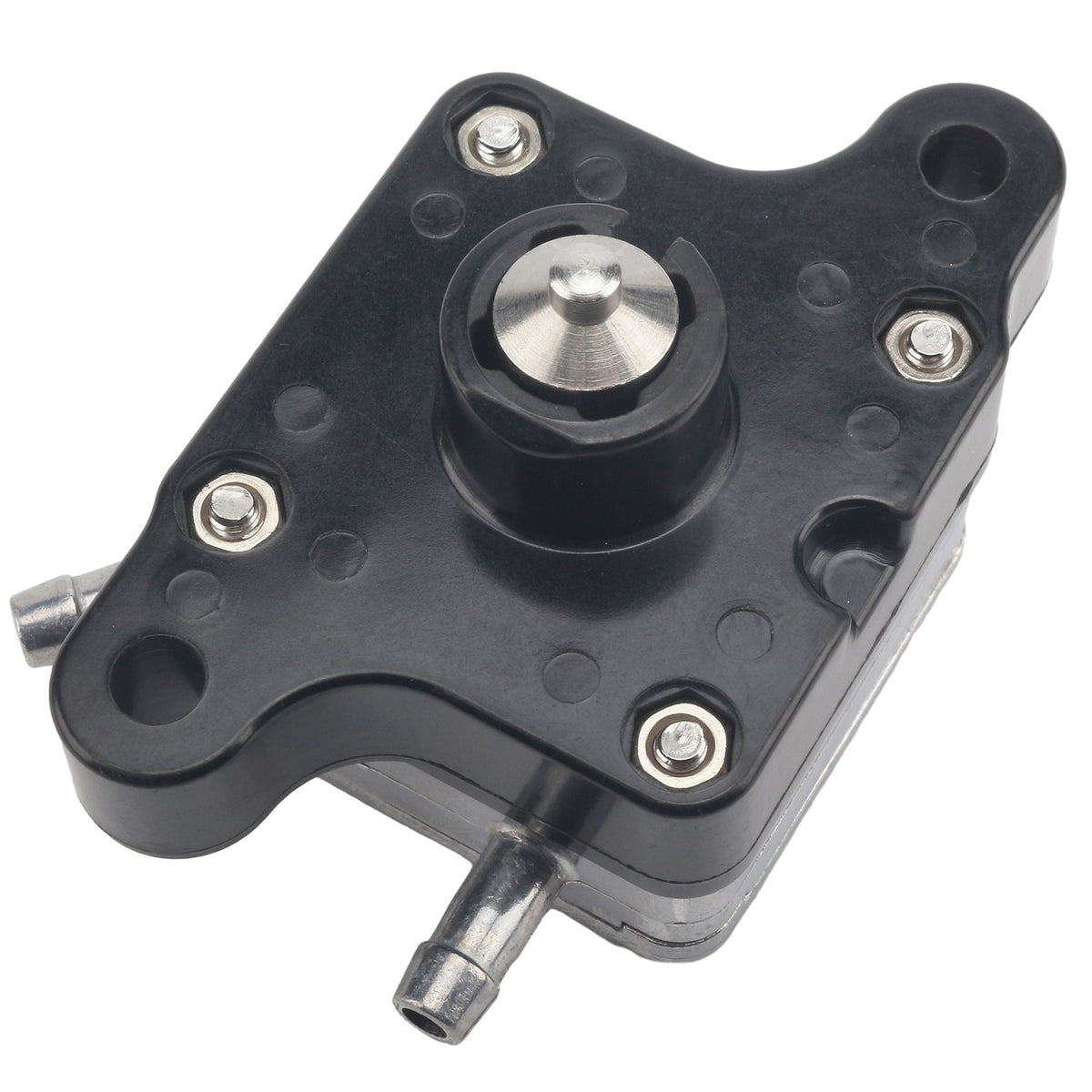

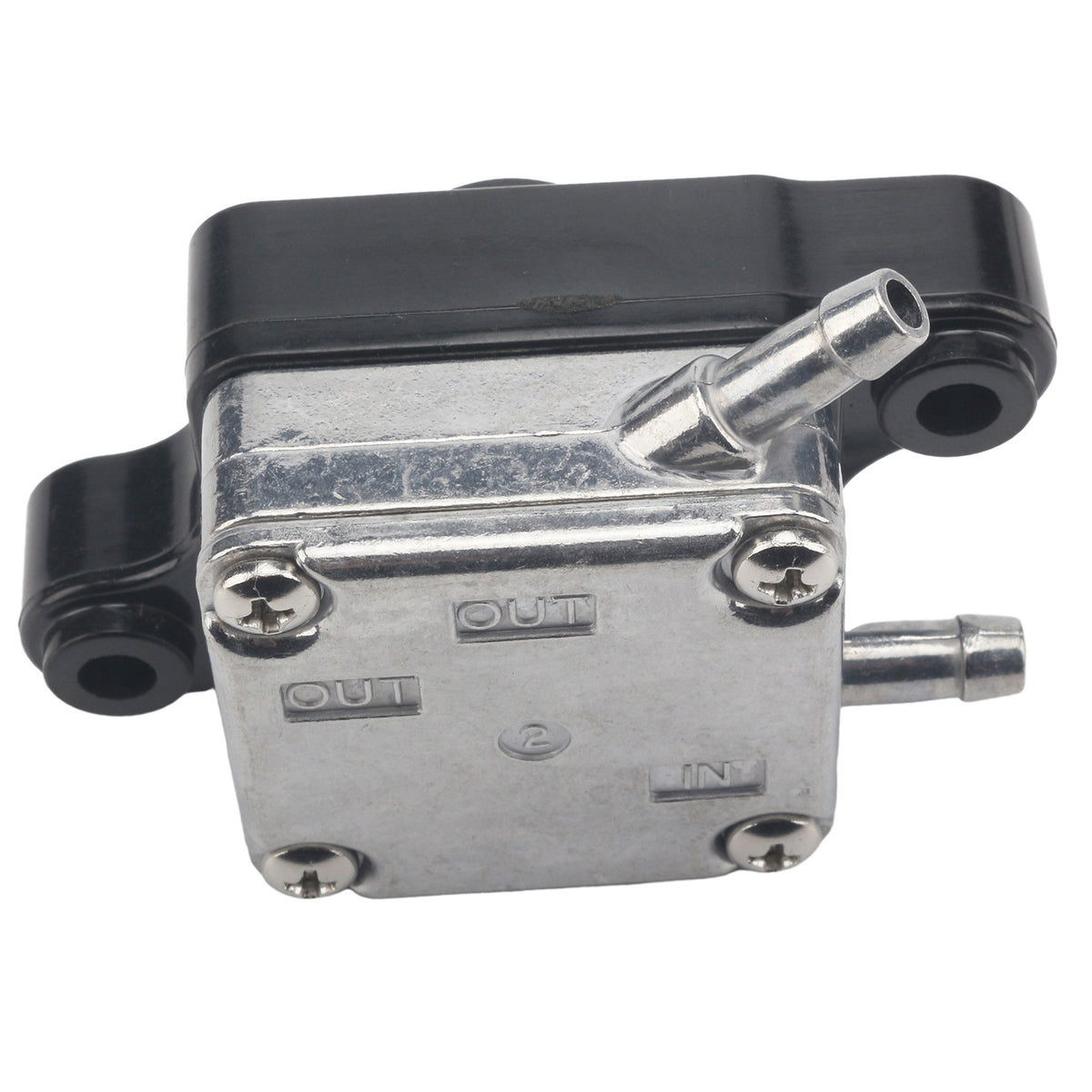

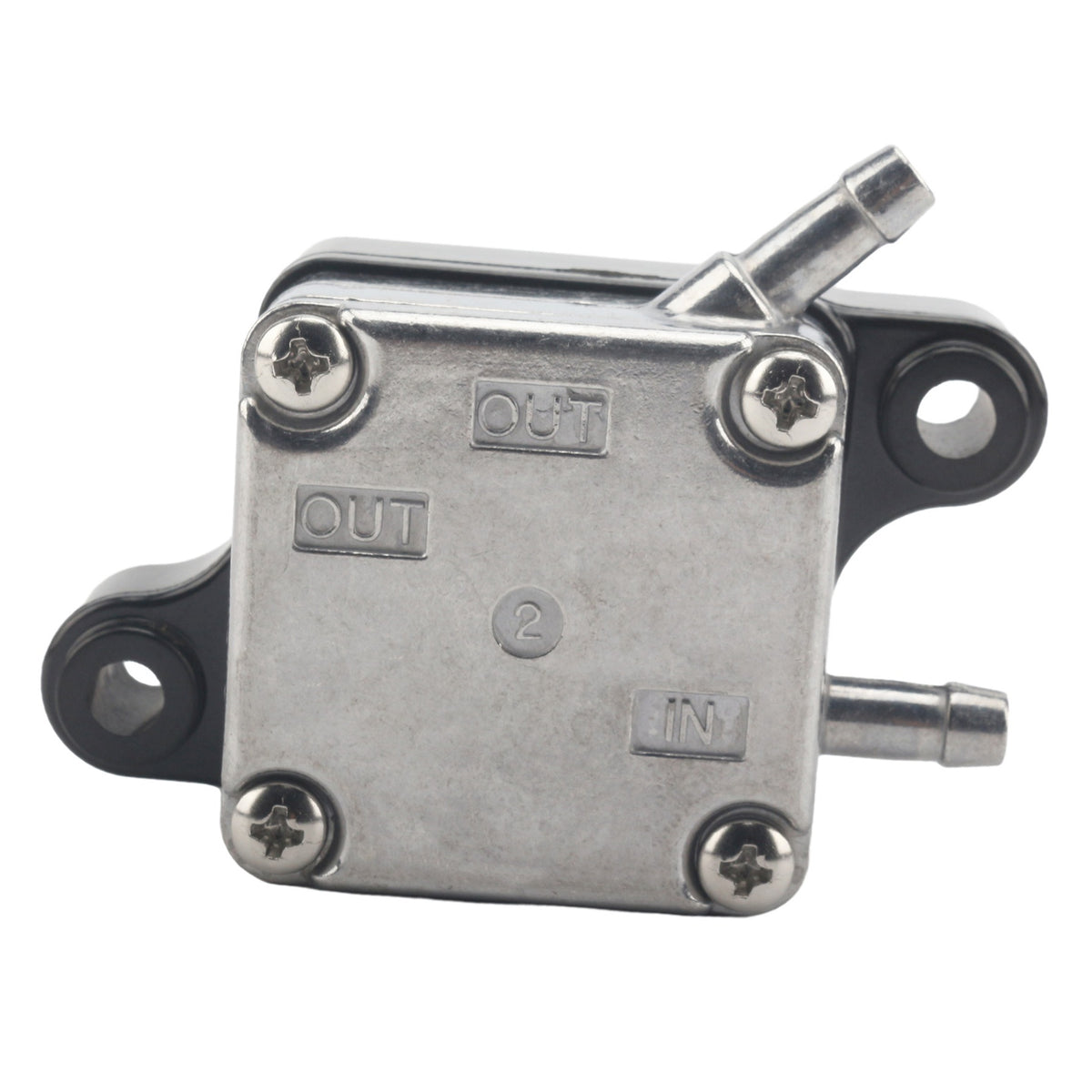

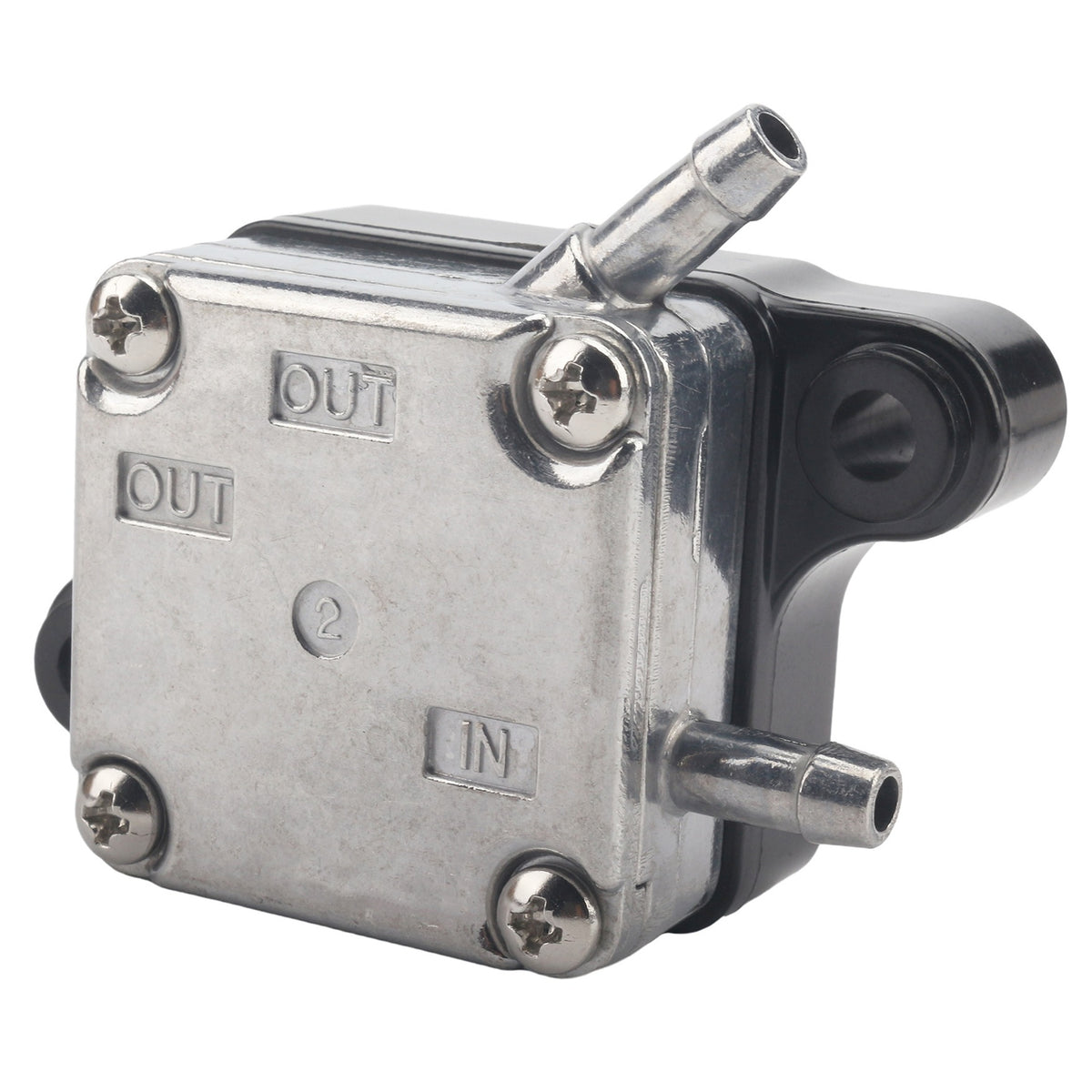

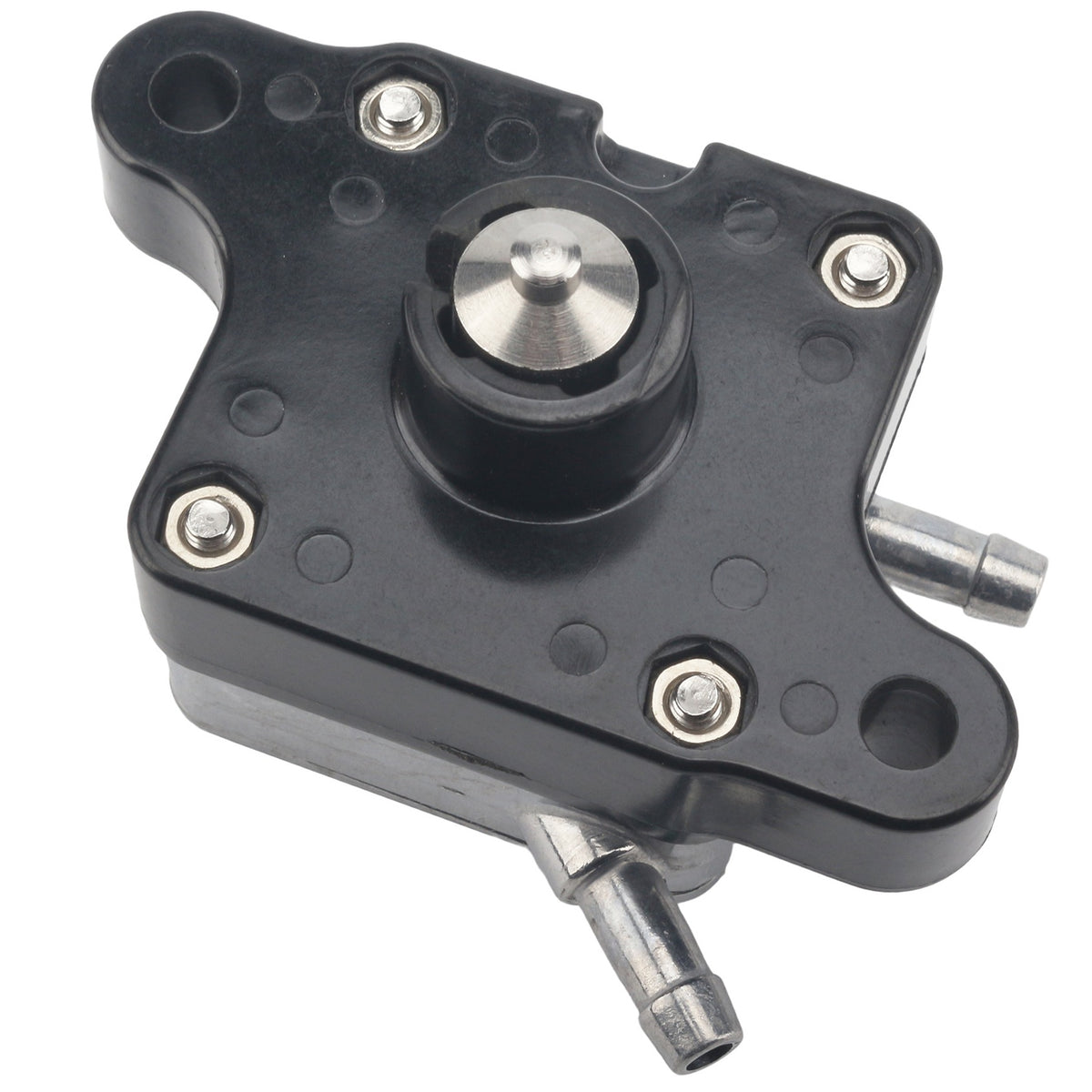

MECHANICAL LOW-PRESSURE DESIGN: This engine-mounted diaphragm pump uses crankcase pressure pulses to drive a plunger, diaphragm, return springs and check valves that move fuel from the boat tank toward the carburetor. It is not an electric in-tank pump, not a high-pressure EFI pump, and not the water-cooled pump used on earlier Yamaha 9.9 models. Similar-looking pumps from other Yamaha families are not interchangeable.

Signs yours is due

REPLACE THE COMPLETE PUMP: Intended as a complete-pump replacement for symptoms such as fuel in the crankcase oil, a rising or gasoline-smelling oil level, stalling when throttle is applied, a primer bulb that will not stay firm, or external fuel seepage from the pump body, after the rest of the fuel path has been checked. The package contains one fuel-pump assembly only; the mounting O-ring, fuel filter, hoses, clamps and bolts are not included unless pictured by the seller.

Will it fit?

COMPATIBLE FITMENT: Compatible with select Yamaha four-stroke outboards listed in official catalog records for the 68T-24410 pump family, including select F6A, F8C, F8F, FT8D, F9.9F, F9.9J, FT9.9G and FT9.9L high-thrust kicker models. Same-name engines shipped different pumps across generations, so match the original pump number and engine model before ordering. Not for two-stroke engines or electric high-pressure fuel systems.

Every row is from this SKU fitment workbook. Match the number stamped on the pump you remove. Same horsepower name shipped different pumps.

OEM and swap numbers

VERIFIED PART-NUMBER CHAIN: Replaces ref 68T-24410-00-00, 68T-24410-01-00 and 68T-24410-02-00, covering the full supersession sequence for this pump family. Catalog-supported aftermarket references include 1-32-68T24410, 1399-39550 and REC68T-24410-00-00. Do not use 18-35304, 18-35302 or 18-35303 as a cross-reference for this pump family; those numbers belong to different Yamaha pump families.

Wrong part

If the number on your old pump is not in the table above, this is the wrong pump.

What ships

One complete mechanical fuel-pump assembly. No hose, no filter, no bolts, no carburetor, no rebuild kit.

Install

INSTALL WITH PART-NUMBER DISCIPLINE: Work in a ventilated area away from ignition sources, label the inlet and outlet hoses, compare the port orientation and O-ring seat with the removed pump, renew the mounting O-ring if flattened or nicked, use the engine manual's fastener torque, prime the line with the primer bulb and inspect for leaks. If the old pump number cannot be read, send the engine model, year and a photo of the original pump before purchase.

FAQ

Q: Will it fit my 2005 T9.9? A: No. The 2000-2007 T9.9 (FT9.9D) uses the 66M-24410 pump family. This pump fits T9.9 from 2008 onward (FT9.9G/L). Match the original pump number.

Q: Will it fit my Yamaha F6? A: Only F6A models listed in official records use this pump. The F6C uses the 67D pump family. Check the pump number on your engine.

Q: Is 18-35304 the correct cross? A: No. does not catalog this pump family; 18-35304 maps to the 67D family.

Q: Is this electric or high-pressure? A: No. It is an engine-driven mechanical low-pressure diaphragm pump.

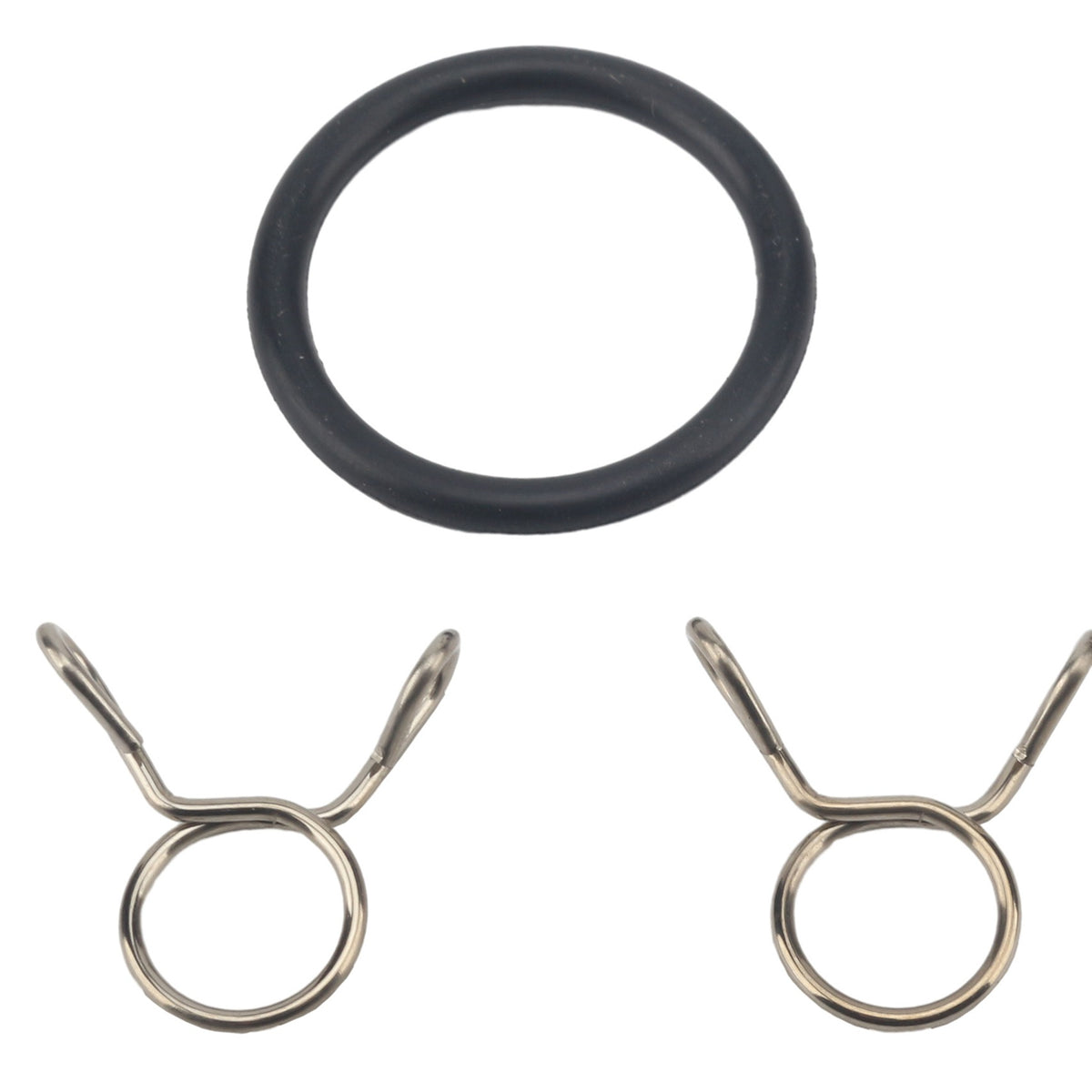

Q: Does the pump include the mounting O-ring? A: No. The mounting O-ring (93210-20M65) is separate — reuse or replace it during installation.

Please note

Aftermarket fuel pump by GHMarine. Not affiliated with the engine brands named above. Confirm the number on the removed pump, the engine model, and the serial range before you order. This page is the pump only, not a multi-part kit.
