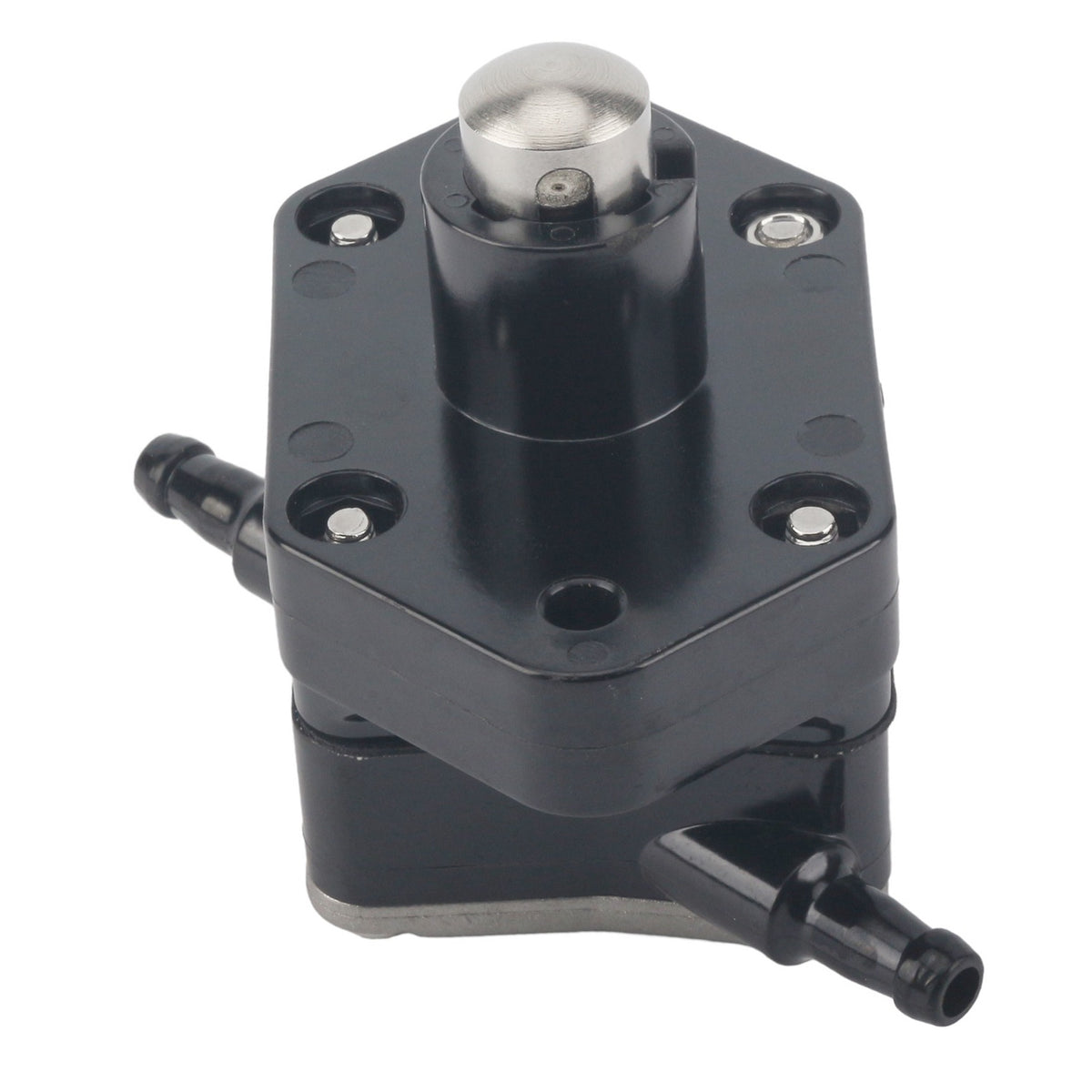

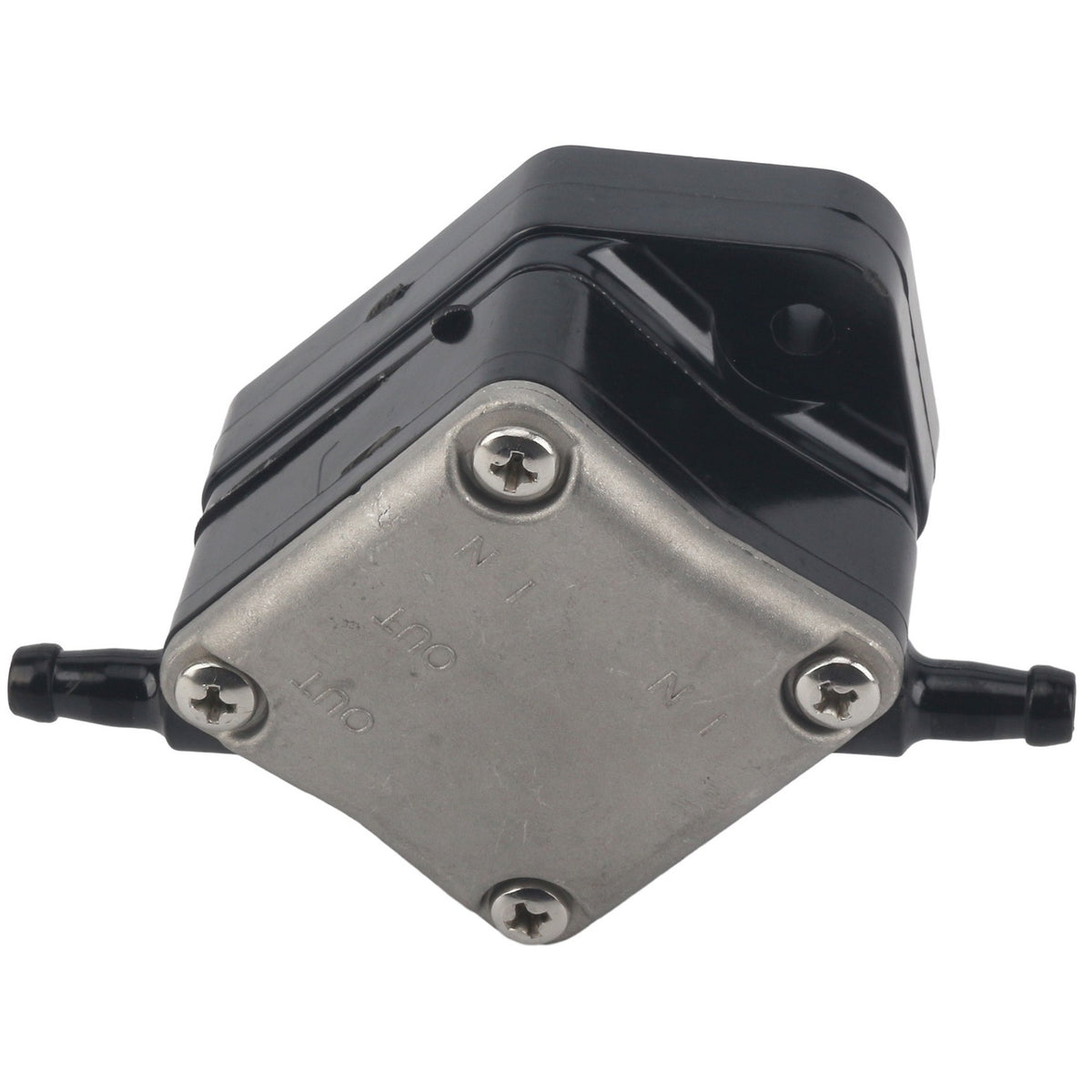

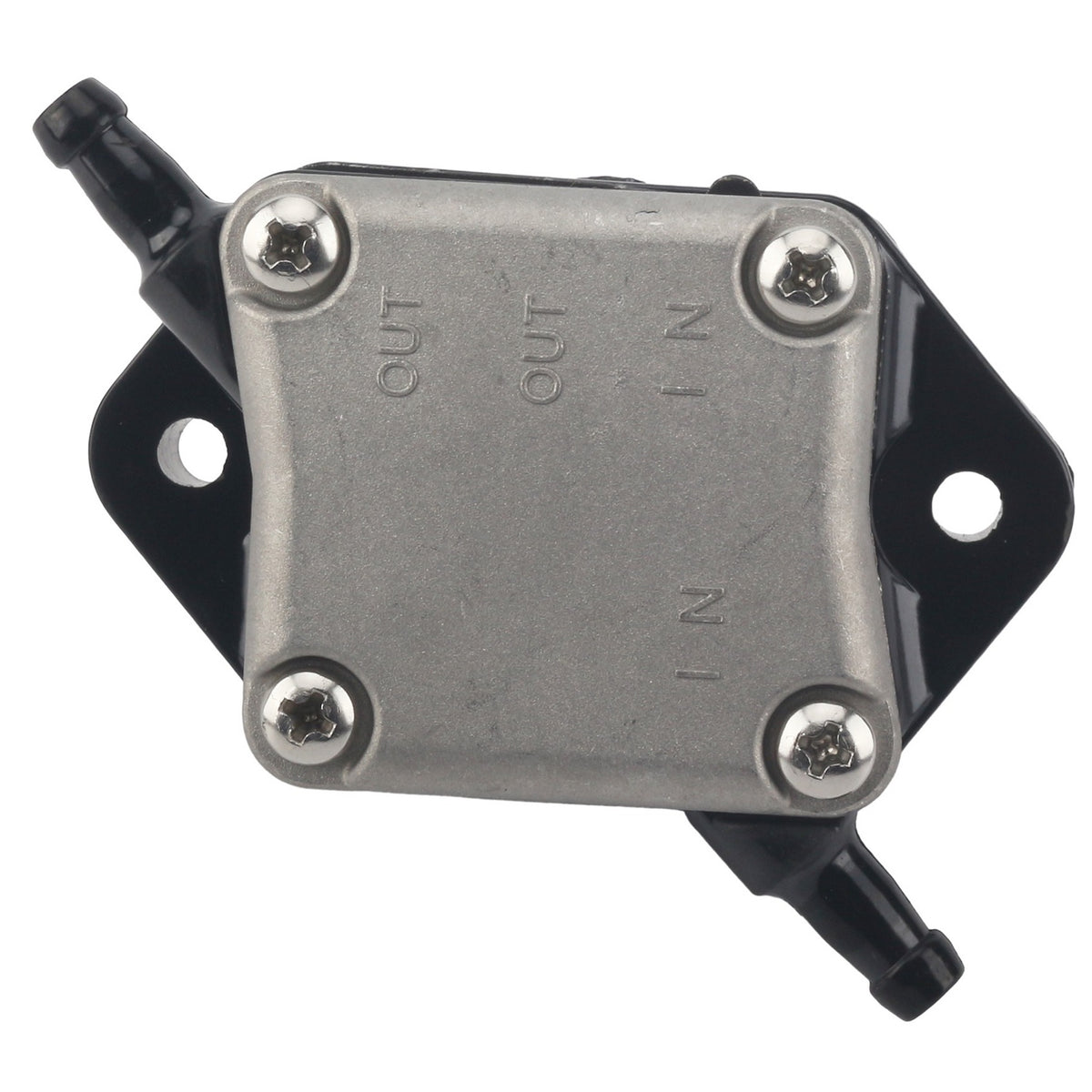

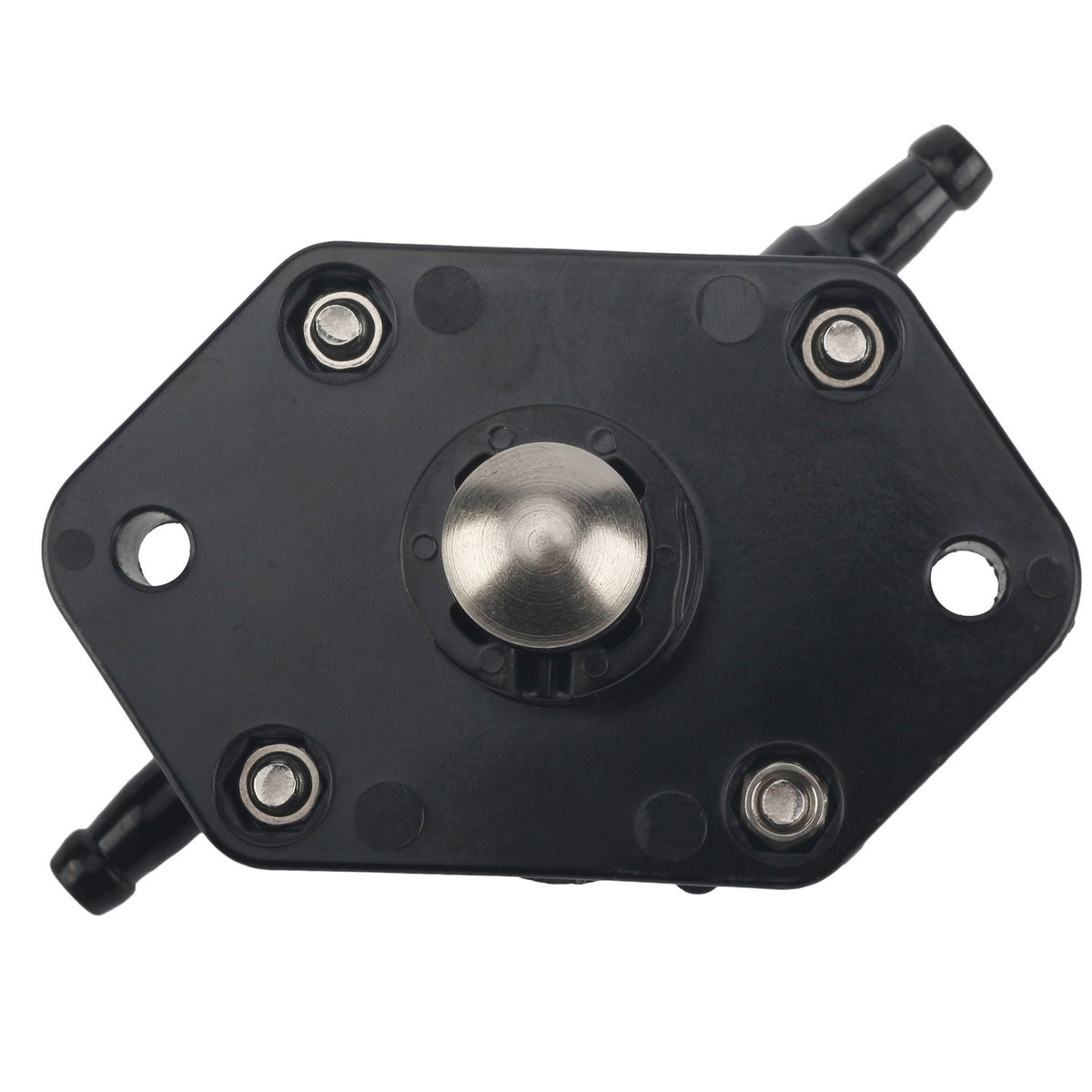

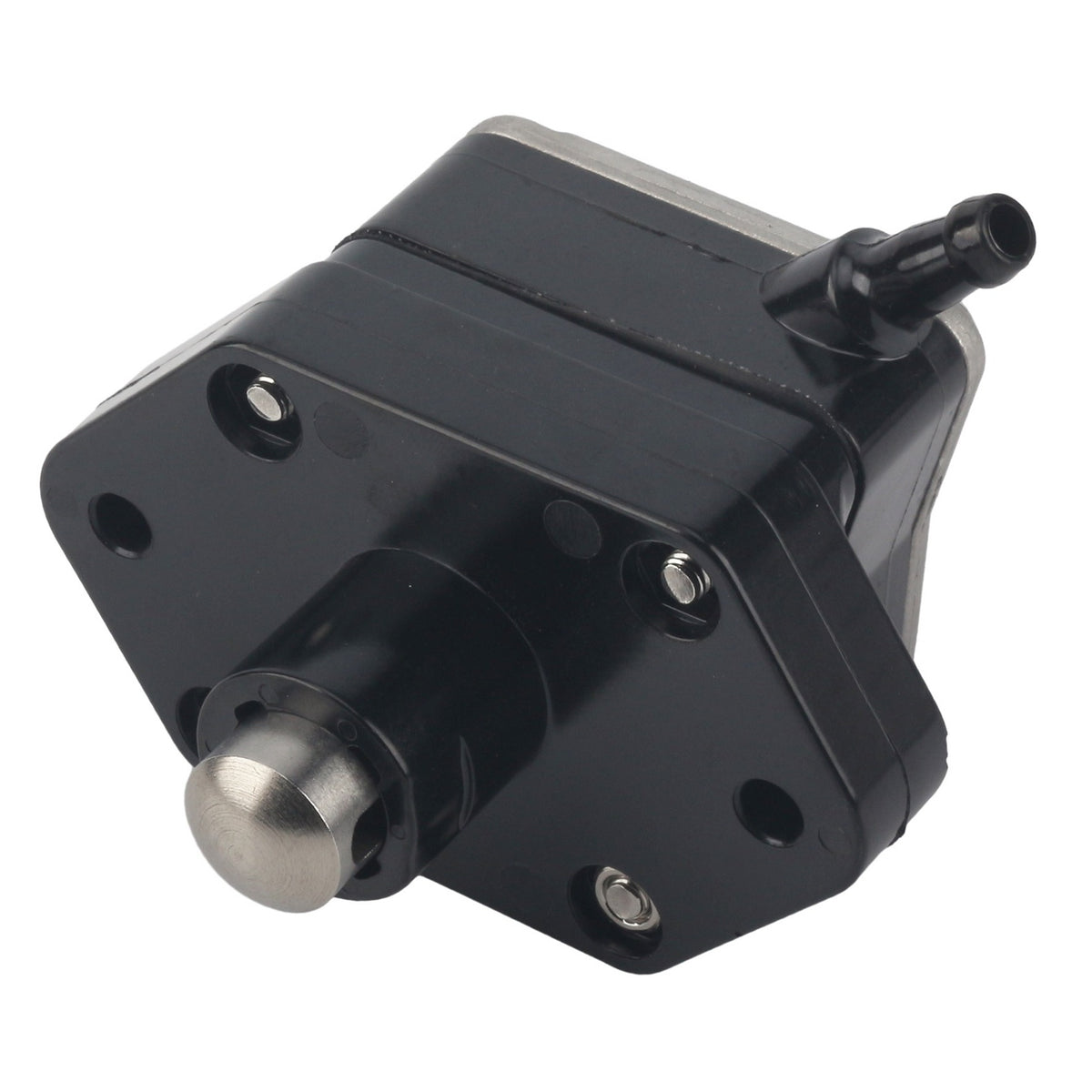

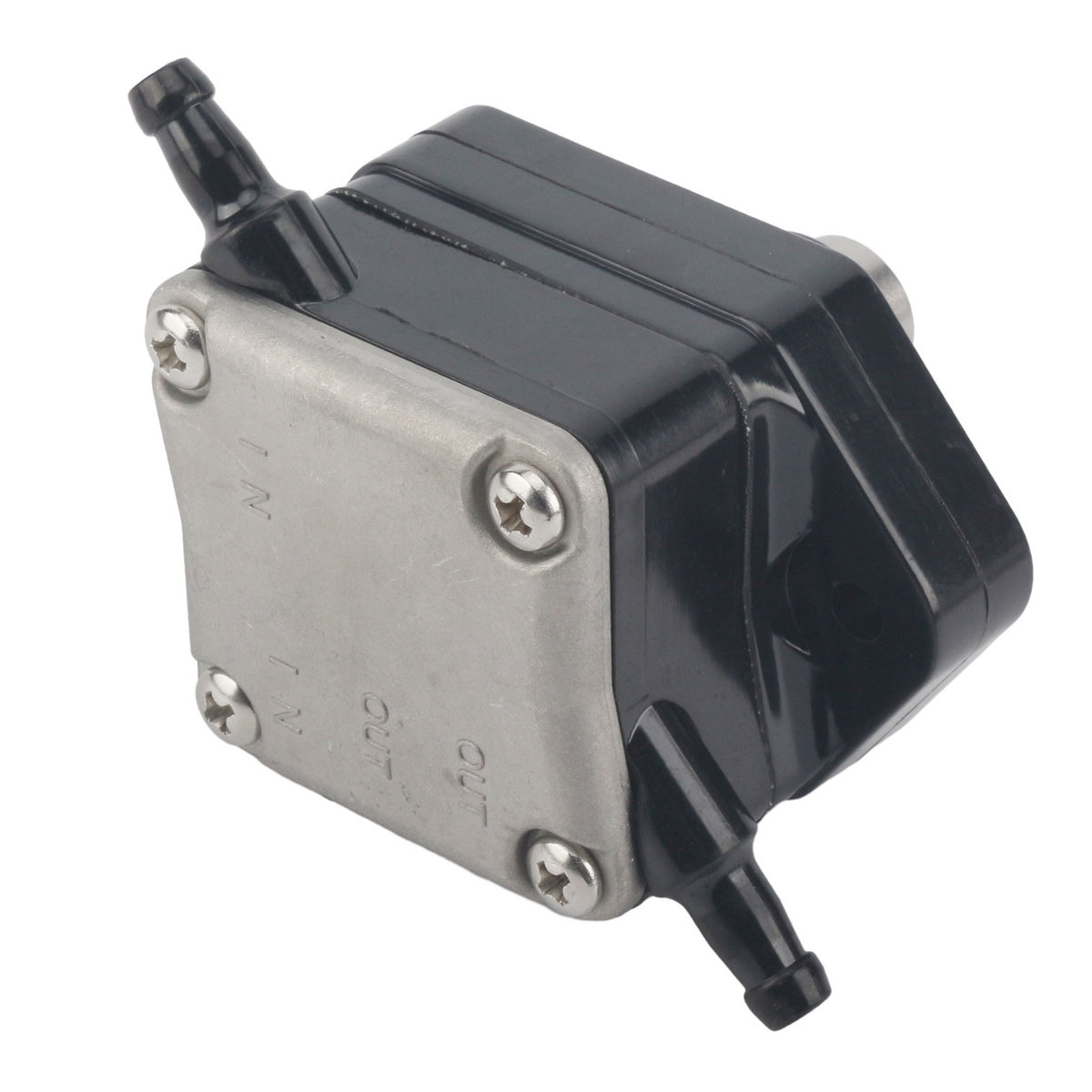

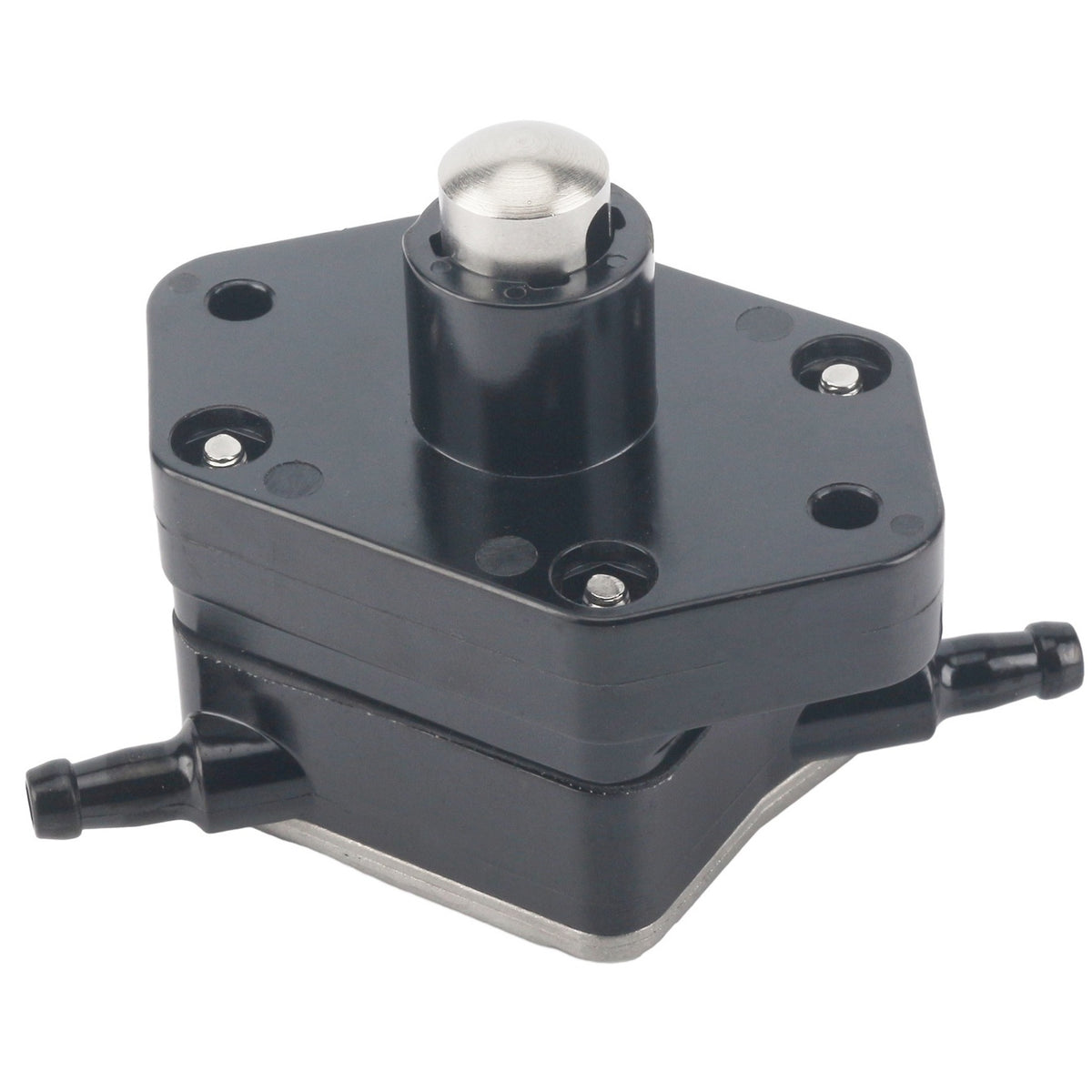

6C5-24410-00-00 Fuel Pump Assembly Mechanical Diaphragm Lift Pump EFI VST Feed - Compatible with select Yamaha F50 F60 T50 T60 F30 F40 - Replaces 6C5-24410-01-00

6C5-24410-00-00 Fuel Pump Assembly Mechanical Diaphragm Lift Pump EFI VST Feed - Compatible with select Yamaha F50 F60 T50 T60 F30 F40 - Replaces 6C5-24410-01-00

Which pump is this?

FOUR STROKE EFI FITMENT FIRST: Compatible with select Yamaha four-stroke EFI F30 F40 F50 F60 T50 and T60 outboards that use fuel pump 6C5-24410-00-00, superseded on dealer FUEL diagrams by 6C5-24410-01-00. 2007 F40TLR uses 62Y-24410-05 and stays out. 2024 T60LB injection-pump diagrams list 6C5-13910 electric hardware, not this SKU. Confirm the serial plate and the FUEL diagram, not a year band.

Will it fit?

Every row is from this SKU fitment workbook. Match the number stamped on the pump you remove. Same horsepower name shipped different pumps.

OEM and swap numbers

Wrong part

NOT THE F70 6CJ AND NOT 80890P: Do not order this SKU for Yamaha F70 6CJ-24410, 80890P F75-115, 6C5-13907 rail pumps, 62Y carburetor pumps, or 18-8864 sterndrive oil pumps. Those neighbor numbers sit on nearby catalog rows and on series-table row 1067. Neighbor combo 26FFK057 is a bundle, not this single pump. Confirm F30 through F60 EFI and the 6C5-24410 stamp before checkout. F70 buyers need a different listing.

NOT A VST AND NOT A 2007 F40 62Y PUMP: This is the low-pressure mechanical pump on the powerhead FUEL diagram, not the vapor-separator assembly and not the electric pump you hear at key-on. 2010 and 2021 F40 EFI diagrams list 6C5-24410-01-00. 2007 F40TLR still lists 62Y-24410-05. If your F40 is a 2007 plate, do not buy this listing. If your 2024 T60 only shows 6C5-13910 on the injection-pump fiche, you need that electric assembly, not this diaphragm pump.

What ships

One complete mechanical fuel-pump assembly. No hose, no filter, no bolts, no carburetor, no rebuild kit.

Install

INSTALL CHECK HOSES AND LEAK TEST: Work on a cold engine. Photograph inlet and outlet hoses. Match the stamp on the old pump to 6C5-24410-00-00 or 6C5-24410-01-00. Yamaha f50f service p75 leak-tests the pump at 50 kPa positive and 30 kPa negative. Cover-bolt torque was not on the pages we checked, so use the serial-matched service manual. After install, confirm the primer bulb stays firm and the VST does not run dry. Do not confuse this job with replacing the electric pump inside the VST.

Please note

Aftermarket fuel pump by GHMarine. Not affiliated with the engine brands named above. Confirm the number on the removed pump, the engine model, and the serial range before you order. This page is the pump only, not a multi-part kit.
