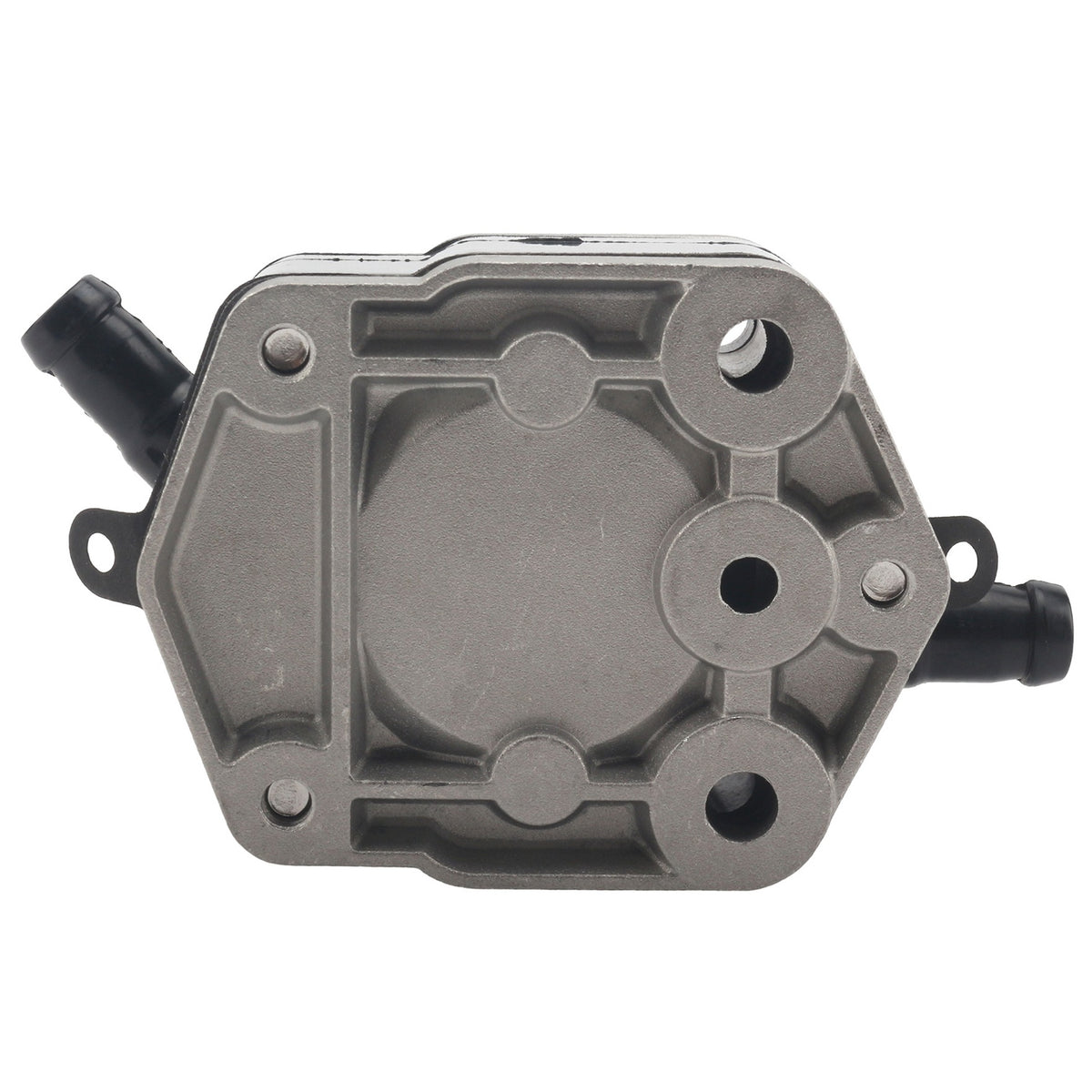

Mechanical Fuel Pump — Compatible with select Yamaha 115–300 HP 2-Stroke V4 / V6
Which pump is this?

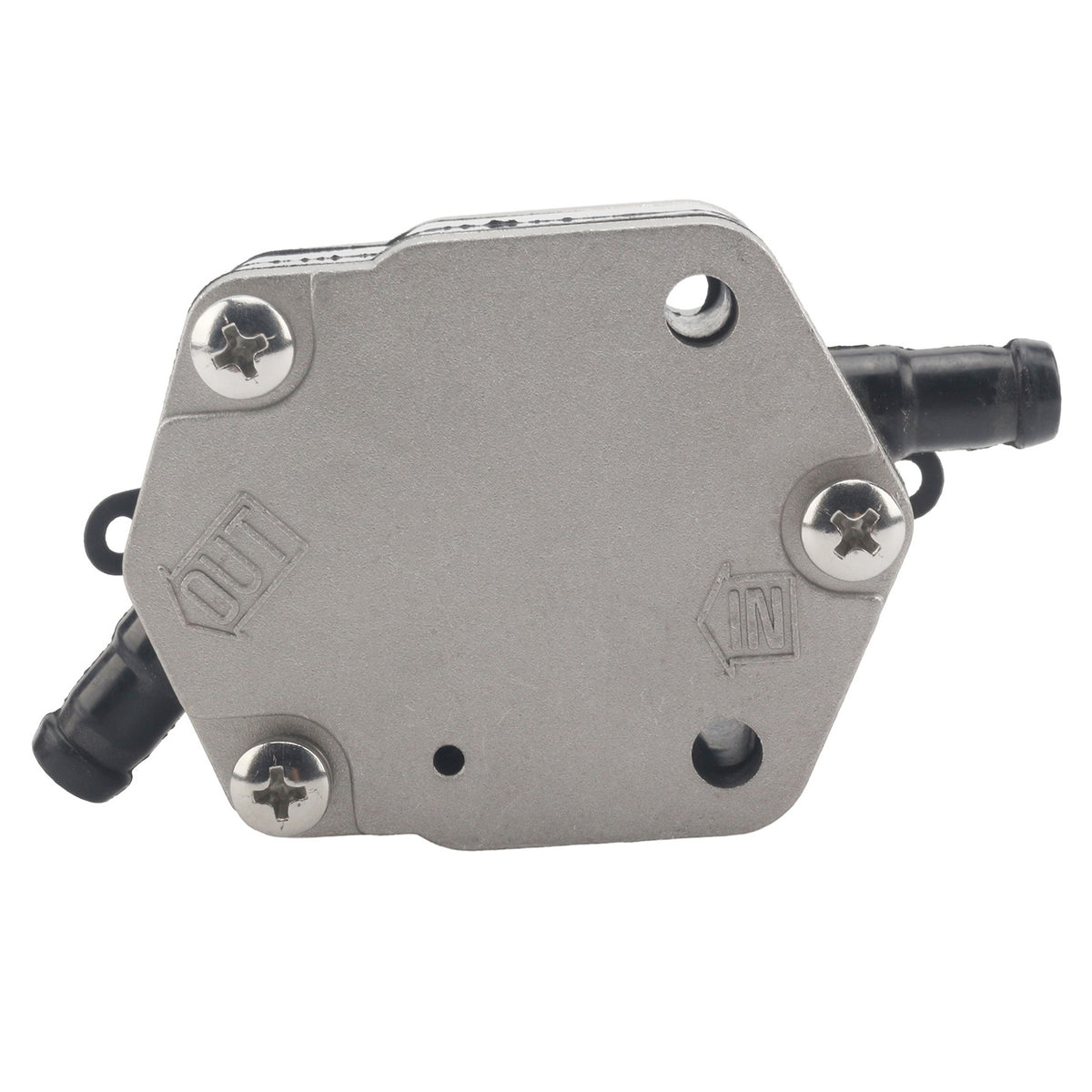

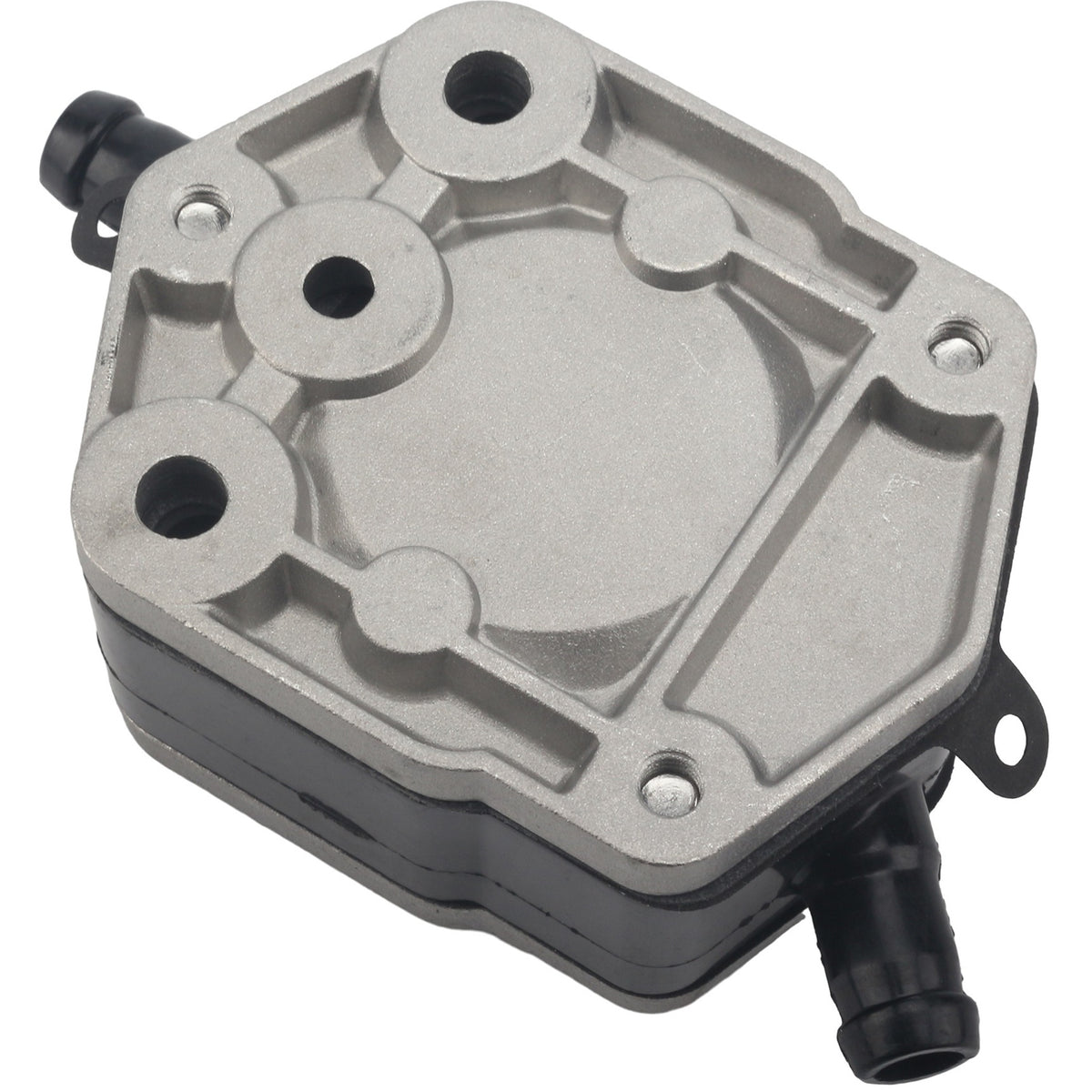

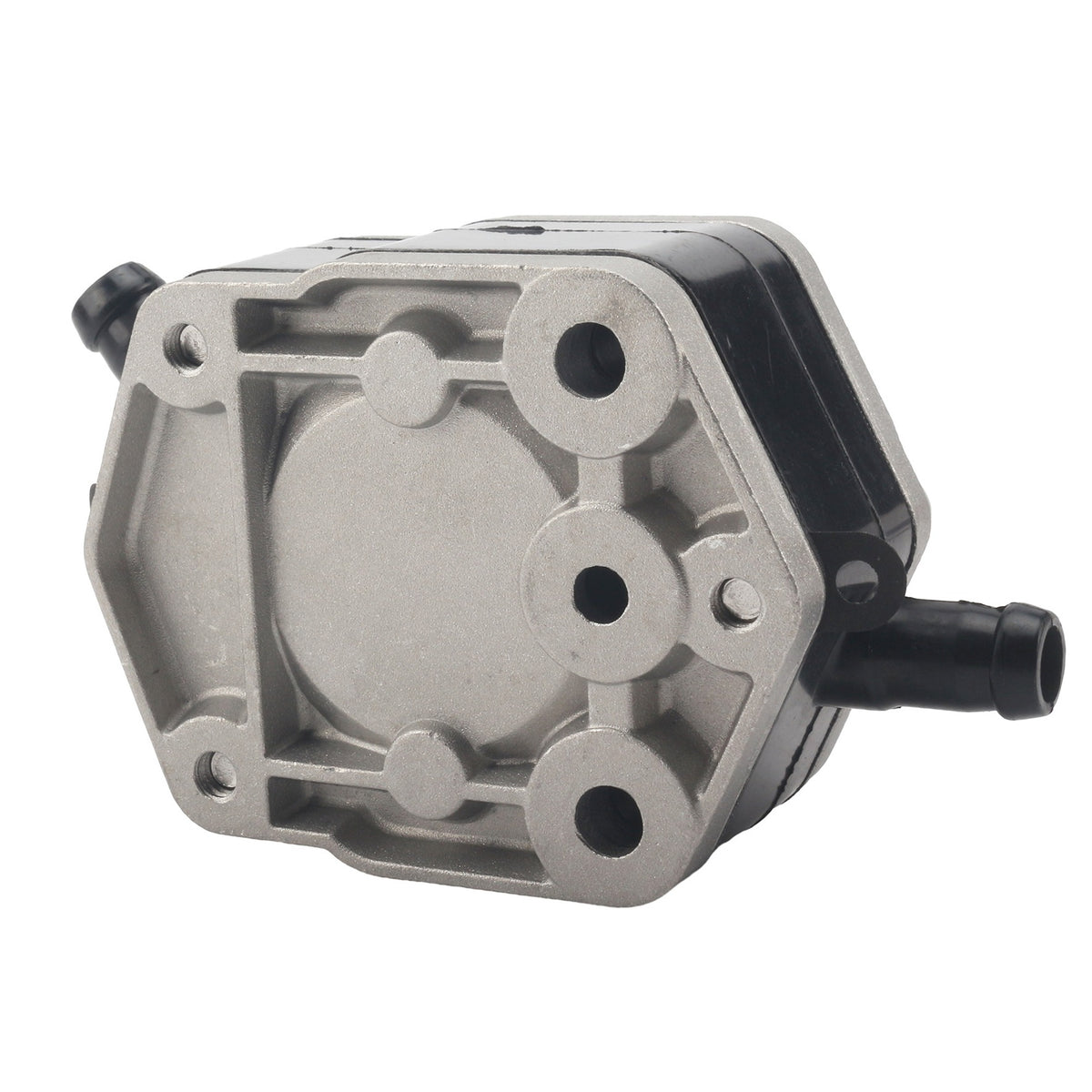

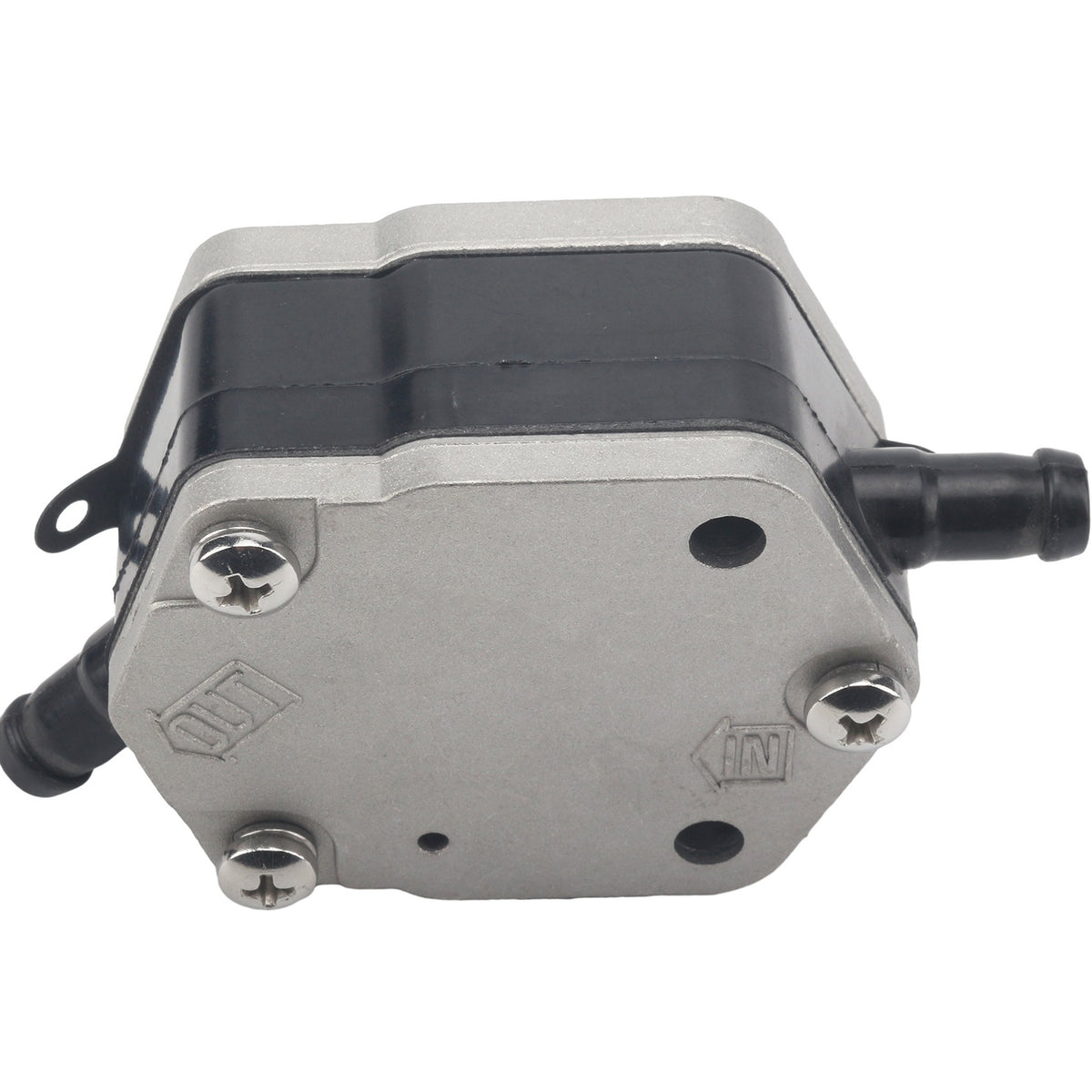

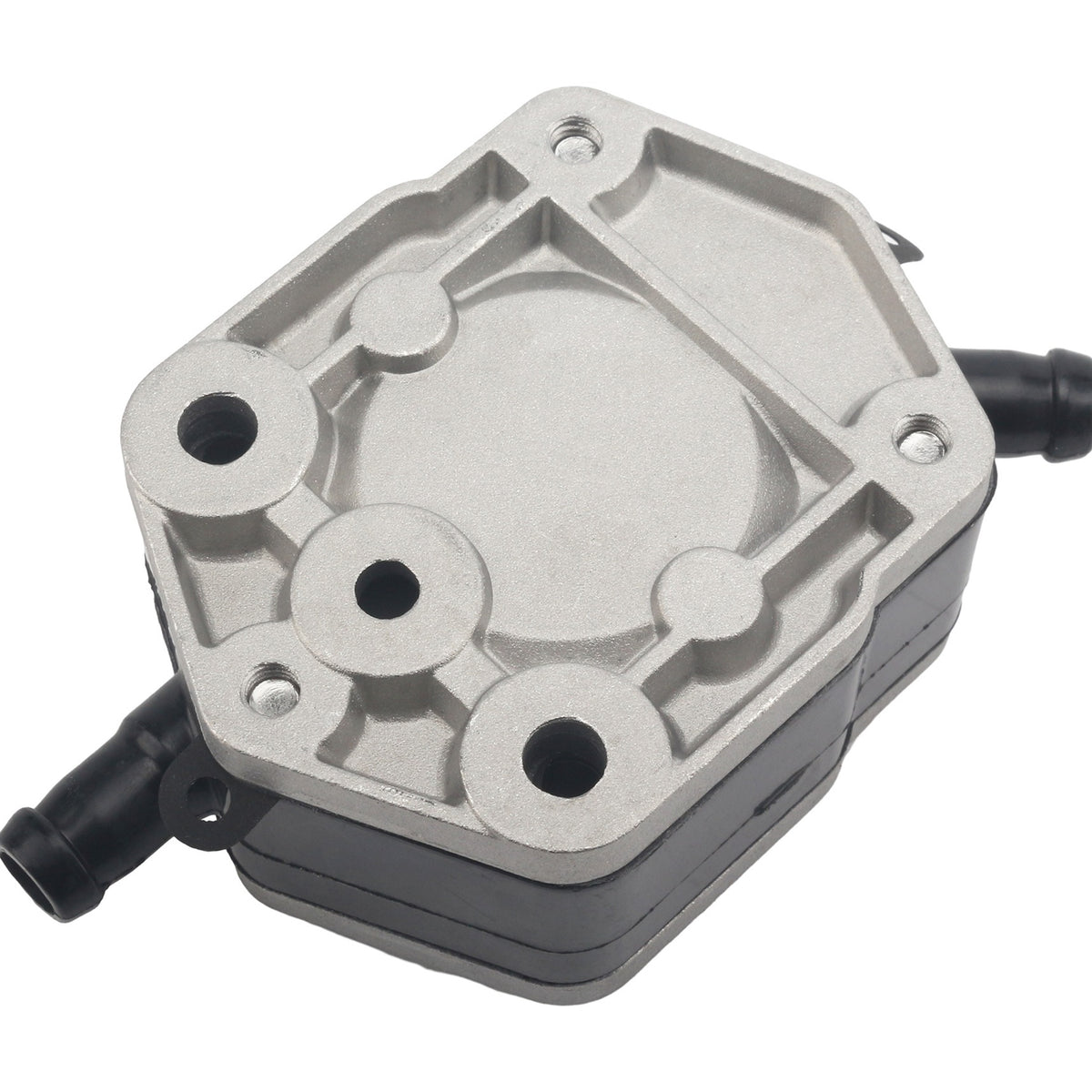

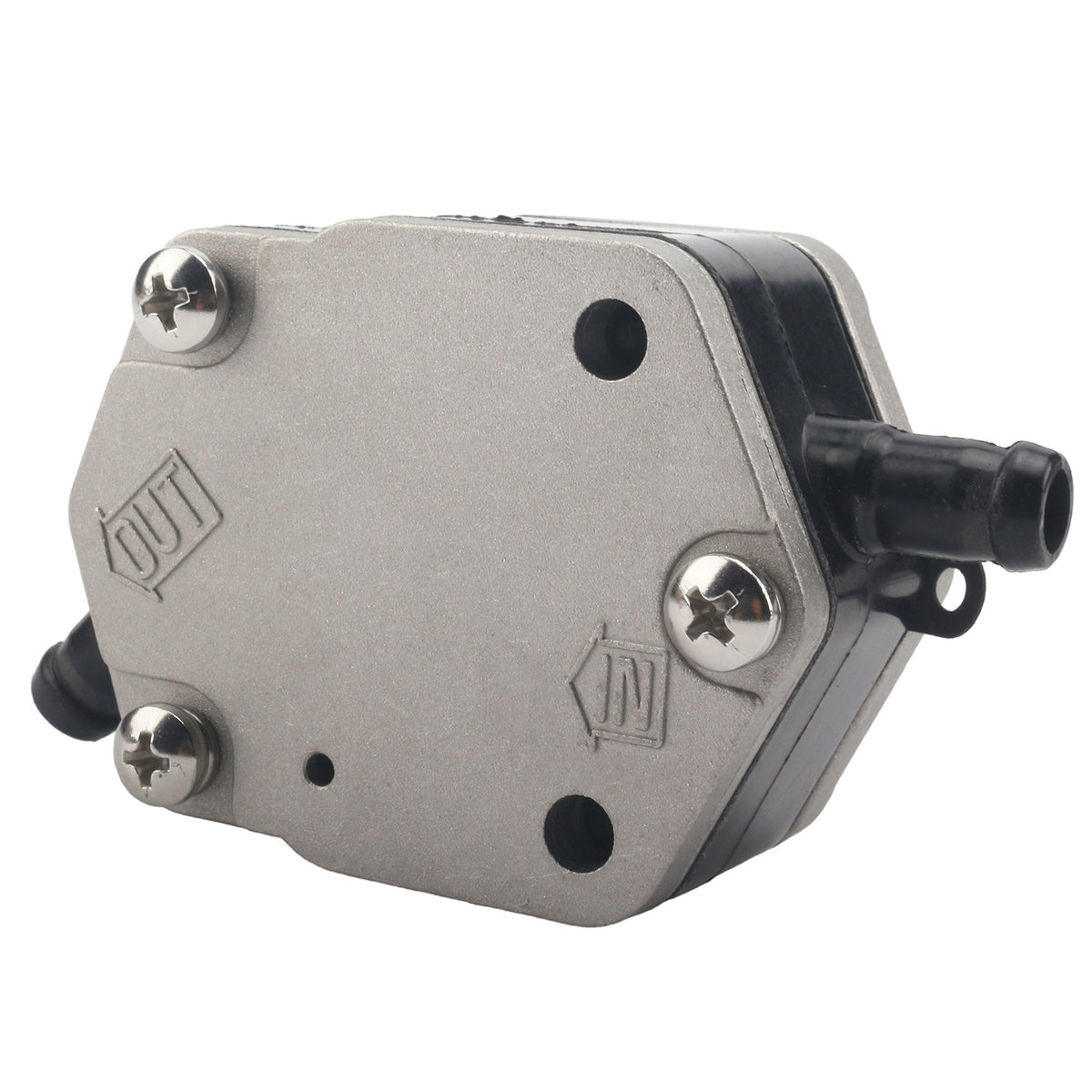

This is one Yamaha 6E5-24410 mechanical diaphragm fuel-pump assembly for 2-stroke V4 / V6 outboards. Current / common stamps include 6E5-24410-10-00 with the same-family suffixes 6E5-24410-04 / -03 / -02 / -01, predecessor 6E5-24410-00, and superseding 6E5-24410-09. Compatible with the Yamaha 115–300 HP 2-stroke rows in the table (115B / 130 / 150 / 175 / 200 / 225-class codes and later V6 rows). Some of those motors run two of these pumps. This page is a single pump, not the pair (17FP013) and not a 26FFK pump-plus-filter kit. It is not an electric VST pump (6E5-13907 / 63P-13907).
Signs yours is due
- V6 150–225 2-stroke goes lean on one bank at cruise; the other bank still smells rich — one of the two mechanical pumps has a torn diaphragm.
- Fuel in the cowling around a 6E5-24410 body, or a pulse hose that is hard and cracked next to the pump.
- Hard to restart after a hot shutdown on a big 2-stroke that still has compression and spark.
- Not EFI electric-pump failure: if the engine is four-stroke F150 / F200 with a VST, you want an electric pump, not this 2-stroke diaphragm unit.
Will it fit?
Compatible with Yamaha 2-stroke V4 / V6 models in the table. Factory parts catalogs list many year-by-year codes (115B, 130E, 150A, 175A, 200AET, and later rows) often without serial fields. Suffix -10 vs -03 vs -00 is the same pump family on this SKU — still match the stamp and the barb layout. Not Yamaha 25–90 HP 692-24410 (17FP008) and not four-stroke 6C5 / 6CJ pumps.
Engine horsepower alone does not prove fit. Match the number stamped on the pump you remove to the OEM column.
| Brand | Model | Years | Serial | HP | OEM no. |
|---|---|---|---|---|---|
| Compatible with Yamaha | 115B | 1990 | — | 115 HP | 6E5-24410-01-00 |
| Compatible with Yamaha | 130E | 1990 | — | 130 HP | 6E5-24410-01-00 |
| Compatible with Yamaha | 150A | 1991 | — | 150 HP | 6E5-24410-01-00 |
| Compatible with Yamaha | 175A | 1991 | — | 175 HP | 6E5-24410-01-00 |
| Compatible with Yamaha | 200AET | 1990 | — | 200 HP | 6E5-24410-01-00 |
| Compatible with Yamaha | 200T | 1991 | — | 200 HP | 6E5-24410-01-00 |
| Compatible with Yamaha | 115B | 1990–1991 | — | 115 HP | 6E5-24410-02-00 |
| Compatible with Yamaha | 115C | 1990 | — | 115 HP | 6E5-24410-02-00 |
| Compatible with Yamaha | 115TRP | 1991 | — | 115 HP | 6E5-24410-02-00 |
| Compatible with Yamaha | 130B | 1990–1991 | — | 130 HP | 6E5-24410-02-00 |
| Compatible with Yamaha | 150DETO | 1991 | — | 150 HP | 6E5-24410-02-00 |
| Compatible with Yamaha | 200B | 1991 | — | 200 HP | 6E5-24410-02-00 |
| Compatible with Yamaha | 200CETO | 1991 | — | 200 HP | 6E5-24410-02-00 |
| Compatible with Yamaha | 200ETD | 1990 | — | 200 HP | 6E5-24410-02-00 |
| Compatible with Yamaha | 225B | 1990–1991 | — | 225 HP | 6E5-24410-02-00 |
| Compatible with Yamaha | 250A | 1991 | — | 250 HP | 6E5-24410-02-00 |
| Compatible with Yamaha | 250ETD | 1990 | — | 250 HP | 6E5-24410-02-00 |
| Compatible with Yamaha | L130BETO | 1990–1994 | — | 130 HP | 6E5-24410-02-00 |
| Compatible with Yamaha | L200BETO | 1991 | — | 200 HP | 6E5-24410-02-00 |
| Compatible with Yamaha | L200ETD | 1990 | — | 200 HP | 6E5-24410-02-00 |
| Compatible with Yamaha | L200TRP | 1991 | — | 200 HP | 6E5-24410-02-00 |
| Compatible with Yamaha | L250AETO | 1991–1992 | — | 250 HP | 6E5-24410-02-00 |
| Compatible with Yamaha | L250ETD | 1990 | — | 250 HP | 6E5-24410-02-00 |
| Compatible with Yamaha | ProV150D | 1990 | — | 150 HP | 6E5-24410-02-00 |
| Compatible with Yamaha | V150D | 1990 | — | 150 HP | 6E5-24410-02-00 |
| Compatible with Yamaha | 115B | 1992–1998 | — | 115 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | 115C | 1992–2004 | — | 115 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | 115D | 1997 | — | 115 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | 115DETO | 1993–1996 | — | 115 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | 130B | 1992–2003 | — | 130 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | 150C | 1992–1994 | — | 150 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | 150DETO | 1992–1995 | — | 150 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | 150F | 1996–2000 | — | 150 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | 150G | 1997 | — | 150 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | 150J | 2003 | — | 150 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | 150L | 2002–2003 | — | 150 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | 175CETO | 1994–1995 | — | 175 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | 175D | 1997 | — | 175 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | 175F | 1997 | — | 175 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | 200A | 2003 | — | 200 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | 200B | 1992–1994 | — | 200 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | 200CETO | 1992–1993 | — | 200 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | 200F | 1996–2000 | — | 200 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | 200G | 1997 | — | 200 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | 200H | 2002–2003 | — | 200 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | 200J | 2001–2003 | — | 200 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | 225B | 1992–1994 | — | 225 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | 225C | 1994–2004 | — | 225 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | 225CETO | 1996 | — | 225 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | 225D | 1996–1997 | — | 225 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | 225F | 1997–2003 | — | 225 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | 225G | 2002–2003 | — | 225 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | 250A | 1992–1996 | — | 250 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | 250B | 1997–2003 | — | 250 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | 250C | 2003 | — | 250 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | D150N | 2003 | — | 150 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | L130BETO | 1995–1996 | — | 130 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | L150F | 1997 | — | 150 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | L150J | 2001–2003 | — | 150 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | L200A | 2003 | — | 200 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | L200BETO | 1992–1995 | — | 200 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | L200F | 1996–1997 | — | 200 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | L200J | 2001 | — | 200 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | L200TRQ | 1992 | — | 200 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | L225C | 2004 | — | 225 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | L225CETO | 1994–1998 | — | 225 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | L225F | 1997–2002 | — | 225 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | L250A | 1995–2003 | — | 250 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | L250AET | 1993–1996 | — | 250 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | L250AETO | 1993 | — | 250 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | L250B | 1997–2002 | — | 250 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | LZ150P | 2003–2004 | — | 150 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | LZ200N | 2003 | — | 200 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | LZ250D | 2003–2004 | — | 250 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | LZ300A | 2004 | — | 300 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | ProV200 | 1994–1995 | — | 200 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | Z150P | 2002–2004 | — | 150 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | Z150Q | 2002–2004 | — | 150 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | Z175G | 2003–2004 | — | 175 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | Z175H | 2002–2004 | — | 175 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | Z200N | 2002–2004 | — | 200 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | Z200P | 2003–2004 | — | 200 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | Z225H | 2003–2004 | — | 225 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | Z250D | 2003–2004 | — | 250 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | Z250F | 2003–2004 | — | 250 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | Z300A | 2004 | — | 300 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | Z300B | 2004 | — | 300 HP | 6E5-24410-03-00 |
| Compatible with Yamaha | LZ200N | 2005–2006 | — | 200 HP | 6E5-24410-04-00 |
| Compatible with Yamaha | LZ250D | 2005–2006 | — | 250 HP | 6E5-24410-04-00 |
| Compatible with Yamaha | LZ300A | 2005 | — | 300 HP | 6E5-24410-04-00 |
| Compatible with Yamaha | Z150P | 2005–2009 | — | 150 HP | 6E5-24410-04-00 |
| Compatible with Yamaha | Z150Q | 2005–2010 | — | 150 HP | 6E5-24410-04-00 |
| Compatible with Yamaha | Z175G | 2005–2006 | — | 175 HP | 6E5-24410-04-00 |
| Compatible with Yamaha | Z175H | 2005–2010 | — | 175 HP | 6E5-24410-04-00 |
| Compatible with Yamaha | Z200N | 2005–2008 | — | 200 HP | 6E5-24410-04-00 |
| Compatible with Yamaha | Z200P | 2005–2009 | — | 200 HP | 6E5-24410-04-00 |
| Compatible with Yamaha | Z200R | 2005–2009 | — | 200 HP | 6E5-24410-04-00 |
| Compatible with Yamaha | Z225H | 2005–2009 | — | 225 HP | 6E5-24410-04-00 |
| Compatible with Yamaha | Z250D | 2005–2006 | — | 250 HP | 6E5-24410-04-00 |
| Compatible with Yamaha | Z250F | 2005–2009 | — | 250 HP | 6E5-24410-04-00 |
| Compatible with Yamaha | Z300A | 2005–2008 | — | 300 HP | 6E5-24410-04-00 |
| Compatible with Yamaha | Z300B | 2005–2009 | — | 300 HP | 6E5-24410-04-00 |
| Compatible with Yamaha | 100A | 2000 | — | 100 HP | 6E5-24410-10-00 |
| Compatible with Yamaha | 115C | 2000–2001 | — | 115 HP | 6E5-24410-10-00 |
| Compatible with Yamaha | 130B | 2000–2001 | — | 130 HP | 6E5-24410-10-00 |
| Compatible with Yamaha | 150F | 2000 | — | 150 HP | 6E5-24410-10-00 |
| Compatible with Yamaha | 150G | 2000 | — | 150 HP | 6E5-24410-10-00 |
| Compatible with Yamaha | 150L | 2001 | — | 150 HP | 6E5-24410-10-00 |
| Compatible with Yamaha | 175F | 2000 | — | 175 HP | 6E5-24410-10-00 |
| Compatible with Yamaha | 200F | 2000 | — | 200 HP | 6E5-24410-10-00 |
| Compatible with Yamaha | 200G | 2000 | — | 200 HP | 6E5-24410-10-00 |
| Compatible with Yamaha | 200J | 1999–2001 | — | 200 HP | 6E5-24410-10-00 |
| Compatible with Yamaha | 225F | 2000–2001 | — | 225 HP | 6E5-24410-10-00 |
| Compatible with Yamaha | 250B | 2000–2001 | — | 250 HP | 6E5-24410-10-00 |
| Compatible with Yamaha | 250C | 2001 | — | 250 HP | 6E5-24410-10-00 |
| Compatible with Yamaha | D150N | 2001 | — | 150 HP | 6E5-24410-10-00 |
| Compatible with Yamaha | L150J | 2001 | — | 150 HP | 6E5-24410-10-00 |
| Compatible with Yamaha | L200J | 1999–2001 | — | 200 HP | 6E5-24410-10-00 |
| Compatible with Yamaha | L225F | 2000–2001 | — | 225 HP | 6E5-24410-10-00 |
| Compatible with Yamaha | L250B | 2000–2001 | — | 250 HP | 6E5-24410-10-00 |
| Compatible with Yamaha | LZ200N | 2001 | — | 200 HP | 6E5-24410-10-00 |
| Compatible with Yamaha | VZ200T | 2001 | — | 200 HP | 6E5-24410-10-00 |
| Compatible with Yamaha | Z150P | 2000–2001 | — | 150 HP | 6E5-24410-10-00 |
| Compatible with Yamaha | Z150Q | 2000–2001 | — | 150 HP | 6E5-24410-10-00 |
| Compatible with Yamaha | Z175H | 2001 | — | 175 HP | 6E5-24410-10-00 |
| Compatible with Yamaha | Z200N | 2000–2001 | — | 200 HP | 6E5-24410-10-00 |
Every row is from this SKU fitment workbook (126 rows after empty-line filter). Same horsepower name shipped different pumps.
OEM and swap numbers
OEM / predecessor numbers keep the engine-brand column. Aftermarket cross-refs are numbers only.
| Class | Part no. | Brand | Name |
|---|---|---|---|
| OEM | 6E5-24410-10-00 | Compatible with Yamaha | FUEL PUMP ASSY |
| OEM | 6E5-24410-03-00 | Compatible with Yamaha | FUEL PUMP ASSY |
| OEM | 6E5-24410-04-00 | Compatible with Yamaha | FUEL PUMP ASSY |
| OEM | 6E5-24410-02-00 | Compatible with Yamaha | FUEL PUMP ASSY |
| OEM | 6E5-24410-01-00 | Compatible with Yamaha | FUEL PUMP ASSY |
| predecessor | 6E5-24410-00-00 | Compatible with Yamaha | FUEL PUMP ASSY |
| OEM | 6E5-24410-09-00 | Compatible with Yamaha | FUEL PUMP ASSY |
| cross-ref | 18-7349 | — | 6E5-24410 |
| cross-ref | 9-35301 | — | 6E5-24410-01-00/-03-00 |
| cross-ref | 8M6010284 | — | 6E5-24410 |
| cross-ref | 8M0175309 | — | 6E5-24410 |
| cross-ref | 6E5-24410-03 | — | 6E5-24410-01-00 |
| cross-ref | 40792 | — | 6E5-24410 |
| cross-ref | WT-1047 | — | 6E5-24410-10-00/-04-00 |
Wrong part
- NOT 692-24410 / 6A0-24410 / 663-24410 — 25–90 HP 2-stroke family (17FP008).
- NOT electric / VST pumps 6E5-13907 / 63P-13907.
- NOT the two-pump pair SKU 17FP013, and NOT 26FFK047–051 kits that add filters / extra parts.
- NOT the series-table neighbor 3C7-04000-1 Tohatsu 115–140 HP pump. This page is Yamaha 6E5-24410 only.
What ships

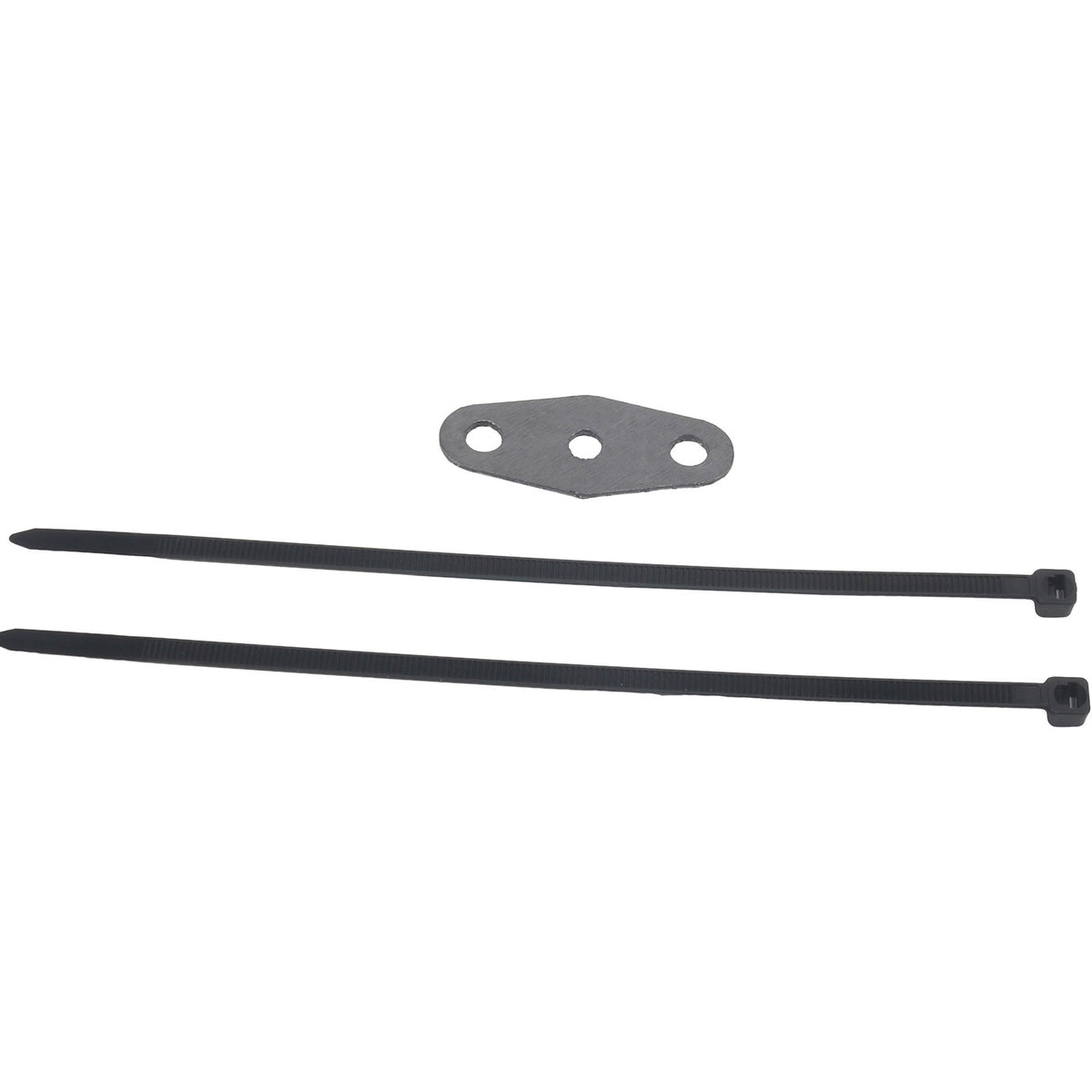

One complete mechanical fuel-pump assembly. If your V4 / V6 uses two pumps, order two of this page (or the pair SKU when it is listed). No filter, no hose kit.
Often replaced together
Pulse hoses and fuel filters on 115–250 HP 2-stroke kits are separate 26FFK SKUs. The pair listing 17FP013 is two of this pump. Electric VST pumps are a different product line.
Install
On V4 / V6 2-stroke Yamaha motors the pump (or pumps) sit on the block with pulse passages in the gasket. Photograph both sides if there are two pumps so you do not mix port and starboard hoses. Replace one failed pump at a time or both if they are original-age. Clean the pad, align the pulse hole, and torque the flange screws evenly — a warped cover leaks pulse and the engine goes lean at the top end. Prime, leak-check, then a muffs run before you load the boat. Do not install this diaphragm pump on an EFI four-stroke VST system.
Frequently Asked Questions
My motor has two fuel pumps. Do I buy one or two?
This page is one assembly. If the parts diagram shows two 6E5-24410 pumps, buy two (or the pair SKU). Replace the failed side at minimum; many owners do both while the cowl is off.
Will this fit my Yamaha 150 / 200 / 225 2-stroke?
Those HP names appear throughout the table. Compatible with the listed 2-stroke V4 / V6 codes only. Four-stroke F150 / F200 electric pumps are not this part.
Is 18-7349 the same?
18-7349 is a cross-ref number for the 6E5-24410 family. We list the number only.
Does this include Tohatsu 3C7-04000-1?
No. This page is Yamaha 6E5-24410 only. 3C7-04000-1 is a different OEM family.
What ships?
One mechanical pump assembly. No second pump, no filter.
Please note
Aftermarket fuel pump by GHMarine. Not affiliated with the engine brands named above. «Compatible with», «Replaces», and cross-ref numbers mean this part is built to work like the originals listed — always confirm the stamp on the removed pump, the engine model, and the serial range before you order. This page is the pump only, not a multi-part kit.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
