763758 Water Pump Impeller Kit with Housing for Johnson Evinrude OMC Outboards 25-50 HP | SeaSierra

Product Details

• SKU: 763758
• Brand & Manufacturer:SeaSierra
• Category: Cooling Systems / Pump/Pump Kits
• Part Type: Water Pump Impeller Repair Kit

Compatibility

This kit is compatible with the following Johnson Evinrude OMC Outboard models:

• 25 Jet: 1995-UP
• 30 Jet: 1995-UP
• 28 hp: 1995-1996
• 35 hp: 1991-1996
• 40 hp: 1989-2005
• 48 hp: 1989-2005
• 50 hp: 1989-2005

Part Numbers and Replacements

• Replaces OEM Part Numbers: 438592, 433548, 433549, 777805, 0438592, 0433548, 0433549, 0777805
• Replaces Sierra Part Number: 18-3454
• Other Replaced Part Numbers: Sierra Marine 18-3454, Mallory Marine 9-48209, GLM Marine 12245, SEI Marine 96-364-01AK, OBR Red Rhino JE-222

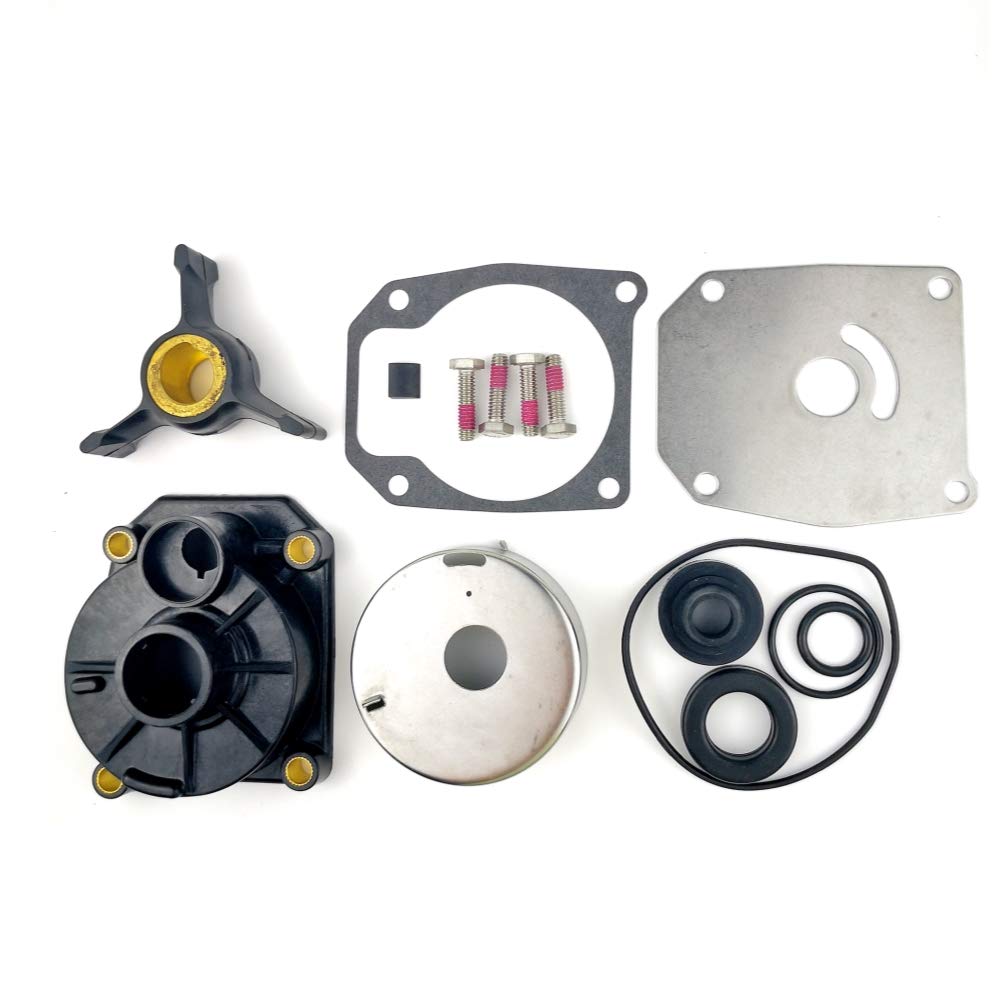

Kit Components

The package includes the following items:

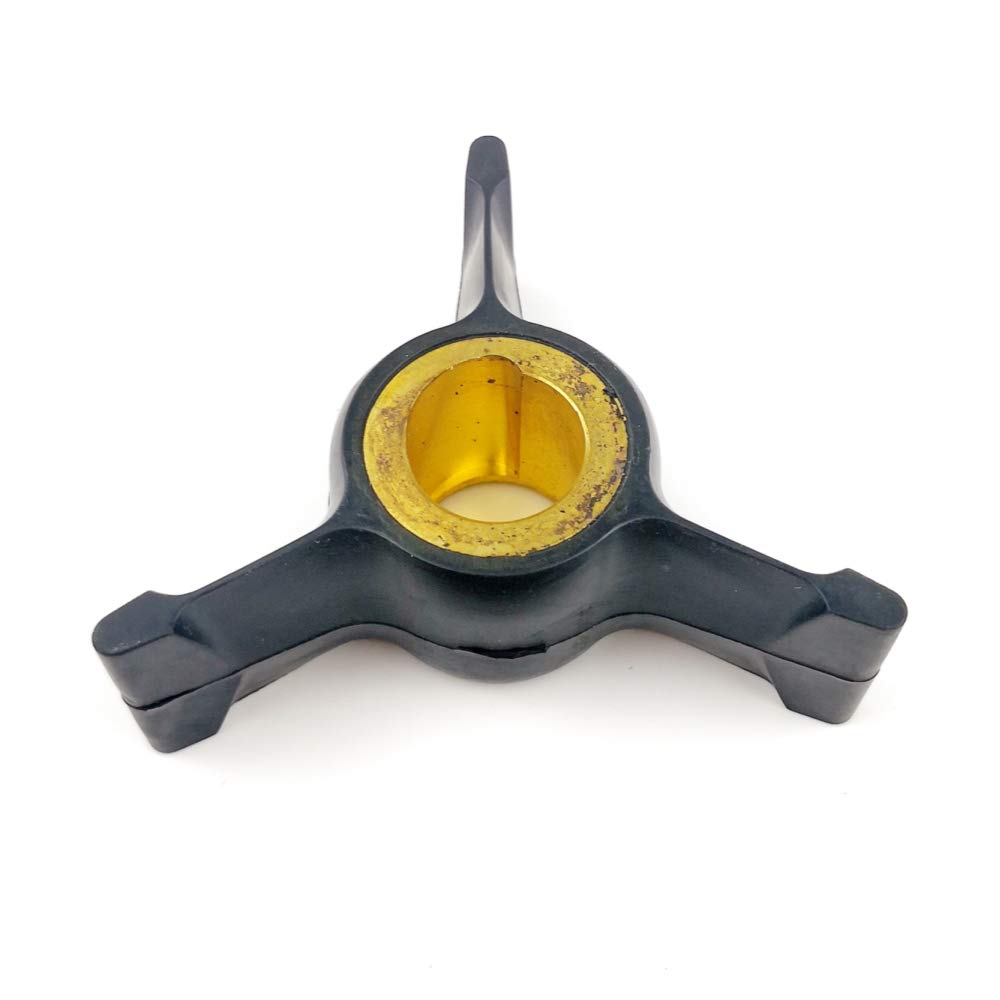

1. Impeller Assembly (0432941, 0437059, 0765350, 18-3104)
2. Impeller Key (0334897, 18-3138)

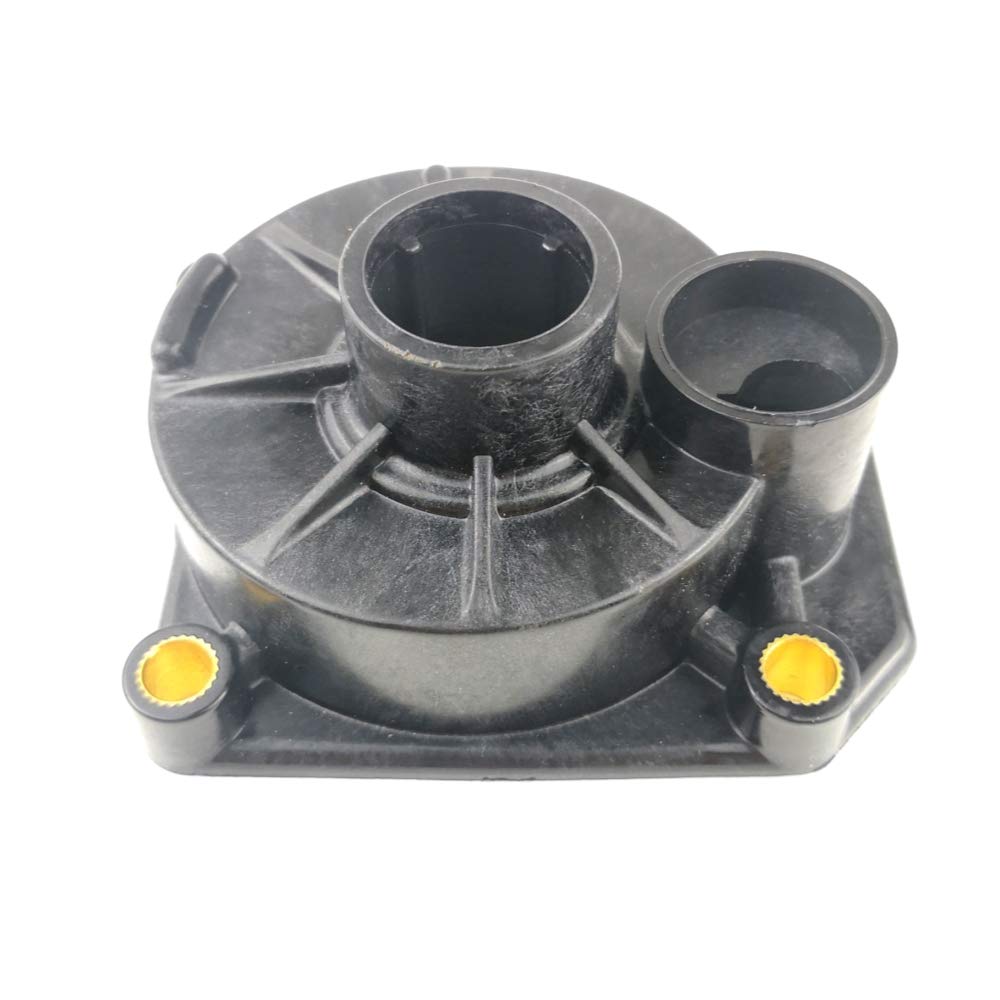

3. Impeller Housing Assembly (0438544, 0437058, 0435594)

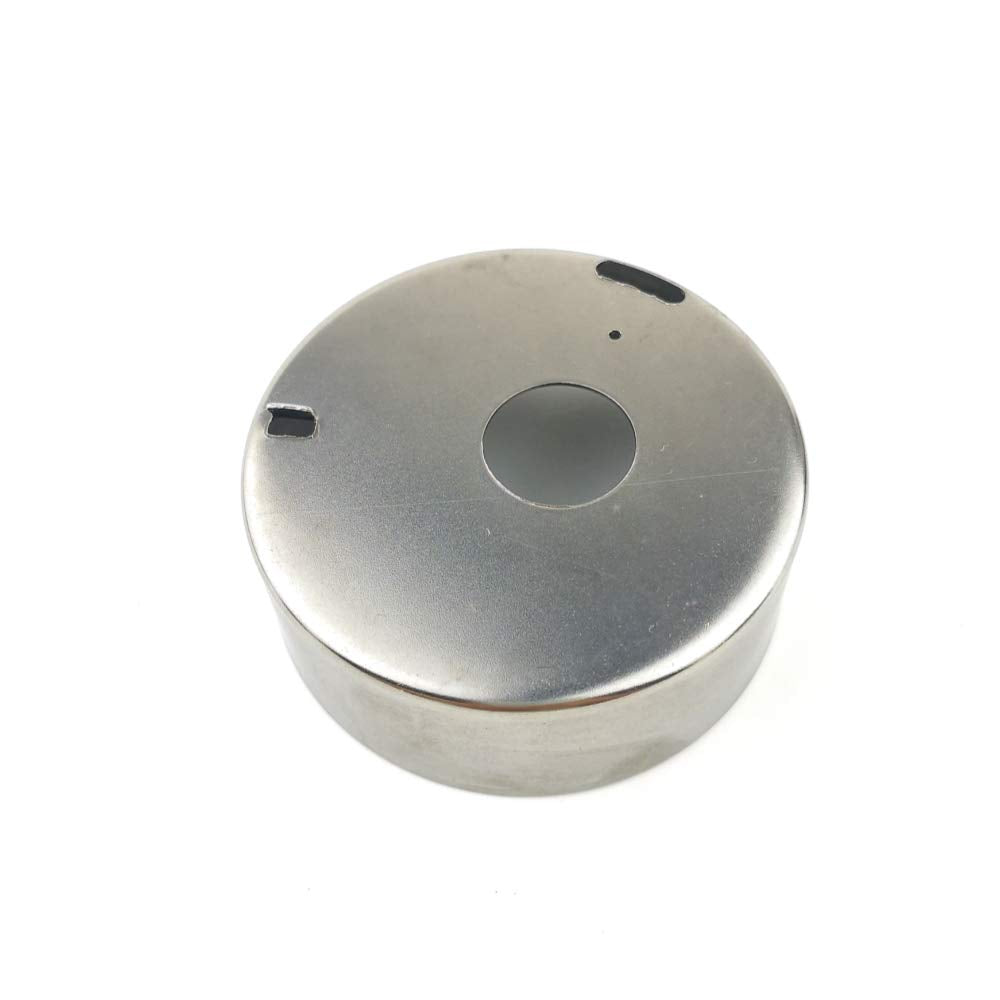

4. Cup Impeller Housing (0340619, 18-3455)

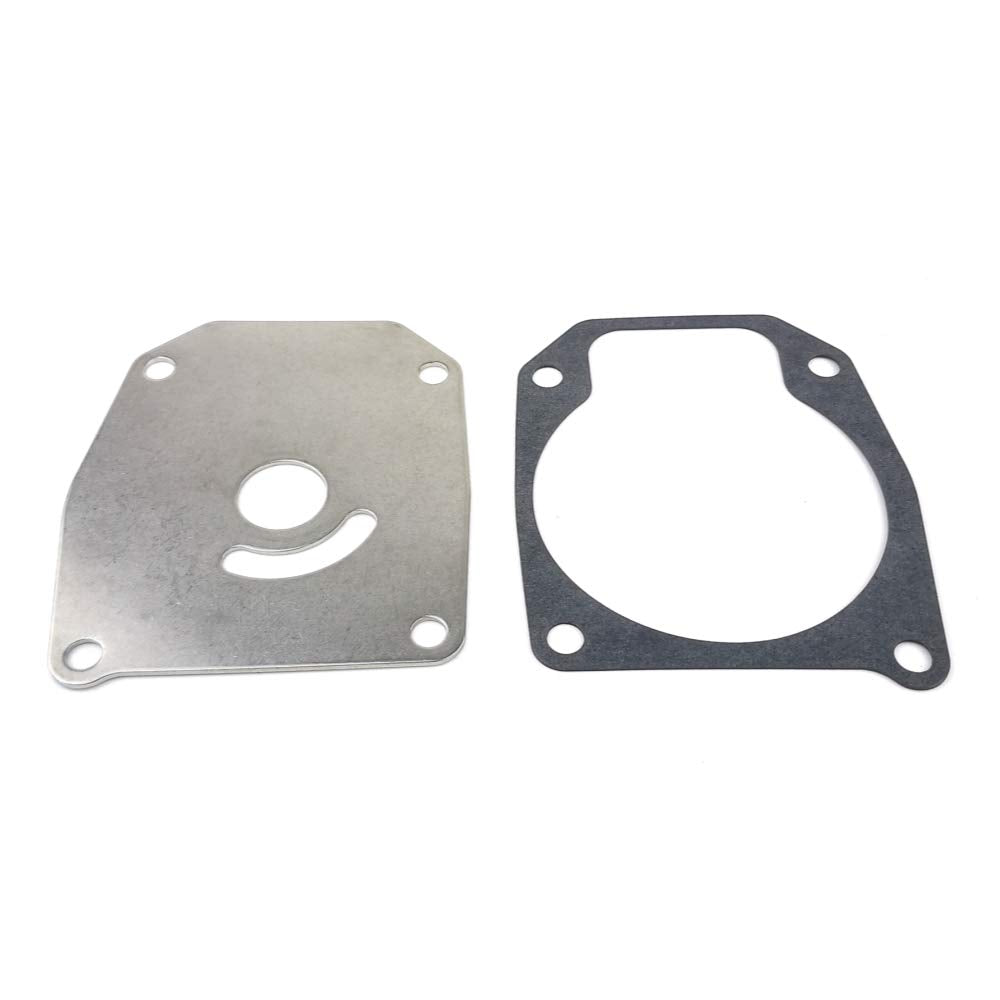

5. Impeller Housing Plate (0321940, 0341038, 0336251, 0319275, 18-3126)
6. Wear Plate Gasket (0336530, 18-2709)
7. Seal Housing (0324981, 0777871, 18-7481)

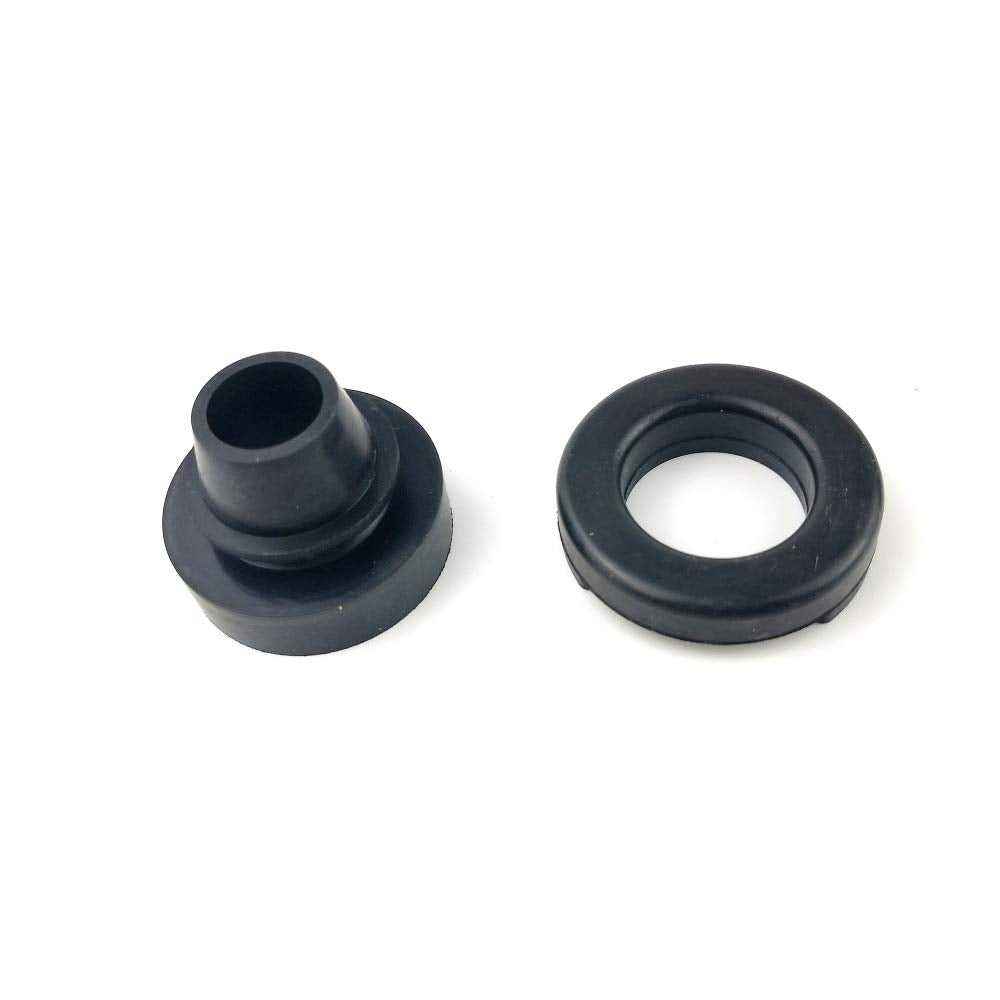

8. Grommet (0333758, 18-2708, 0341732, 0315748, 18-2705) - 2 pieces

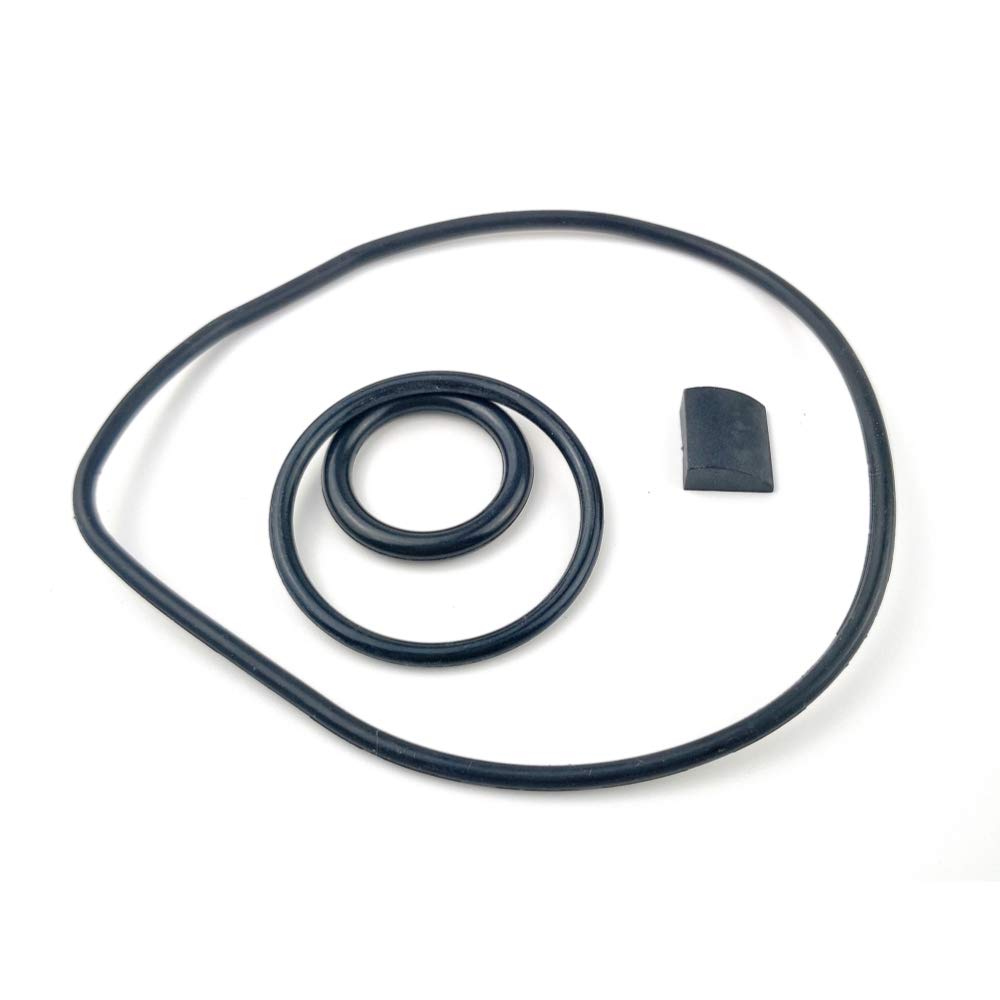

9. O Ring (0310584, 3852089, 0777973, 18-7135, 0331188, 25-65936, 18-7143) - 2 pieces
10. Screws (0302325, 0328315, 331979, 18-3133) - 4 pieces

Additional Information

• It's crucial to check your boat motor part number before purchase. If unsure, please message with engine year and horsepower for assistance.
• This impeller kit simplifies the repair and maintenance of water pumps.
• The kit is designed for most Evinrude Johnson 2 cylinder 2-stroke 40 - 48 - 50 HP models from 1989 up to 2005, especially those with the gas assist tilt or trim cylinder feature operated by a lever on the side of the mounting bracket or single ram power trim integrated inside the mounting brackets.
