6N6-W0078-02-0 Water Pump Kit for Yamaha 115, 130 HP C115 F115 S115 L130 S130 | SeaSierra

6N6-W0078-02-00 Water Pump Impeller Repair Kit for Yamaha 115, 130 HP C115 F115 S115 L130 S130 | SeaSierra

Product Details

• SKU: 183490
• Manufacturer: SeaSierra
• Brand: Sea Sierra
• Category: Cooling Systems / Pump/Pump Kits
• Part Type: Water Pump Impeller Repair Kit
• Item Weight: 0.6101 pounds
• Package Dimensions: Height 5.5001, Depth 5.4001, Width 5.8001 inches
• Materials: Marine and chemical corrosion-resistant metal alloy and high-performance neoprene rubber

Compatibility

This kit is compatible with the following Yamaha Outboard models:

• 115 hp: 115TLR (2006 and Newer), 115TLRA (2002), 115TLRB (2003), 115TLRC (2004), 115TLRD (2005), 115TXR (2006 and Newer), 115TXRA (2002), 115TXRB (2003), 115TXRC (2004), 115TXRD (2005), F115TLRY (2000), F115TLRZ (2001), F115TXRY (2000), F115TXRZ (2001)
• 130 hp: 130TLRA (2002), 130TLRB (2003), 130TLRC (2004), 130TXRA (2002), 130TXRB (2003), 130TXRC (2004)

Part Numbers and Replacements

• Replaces Yamaha Part Numbers:
  • 6N6-W0078-01-00
  • 6N6-W0078-02-00
  • 6N6-W0078-00-000
• Replaces Sierra Part Number: 18-3313-1, 18-3313

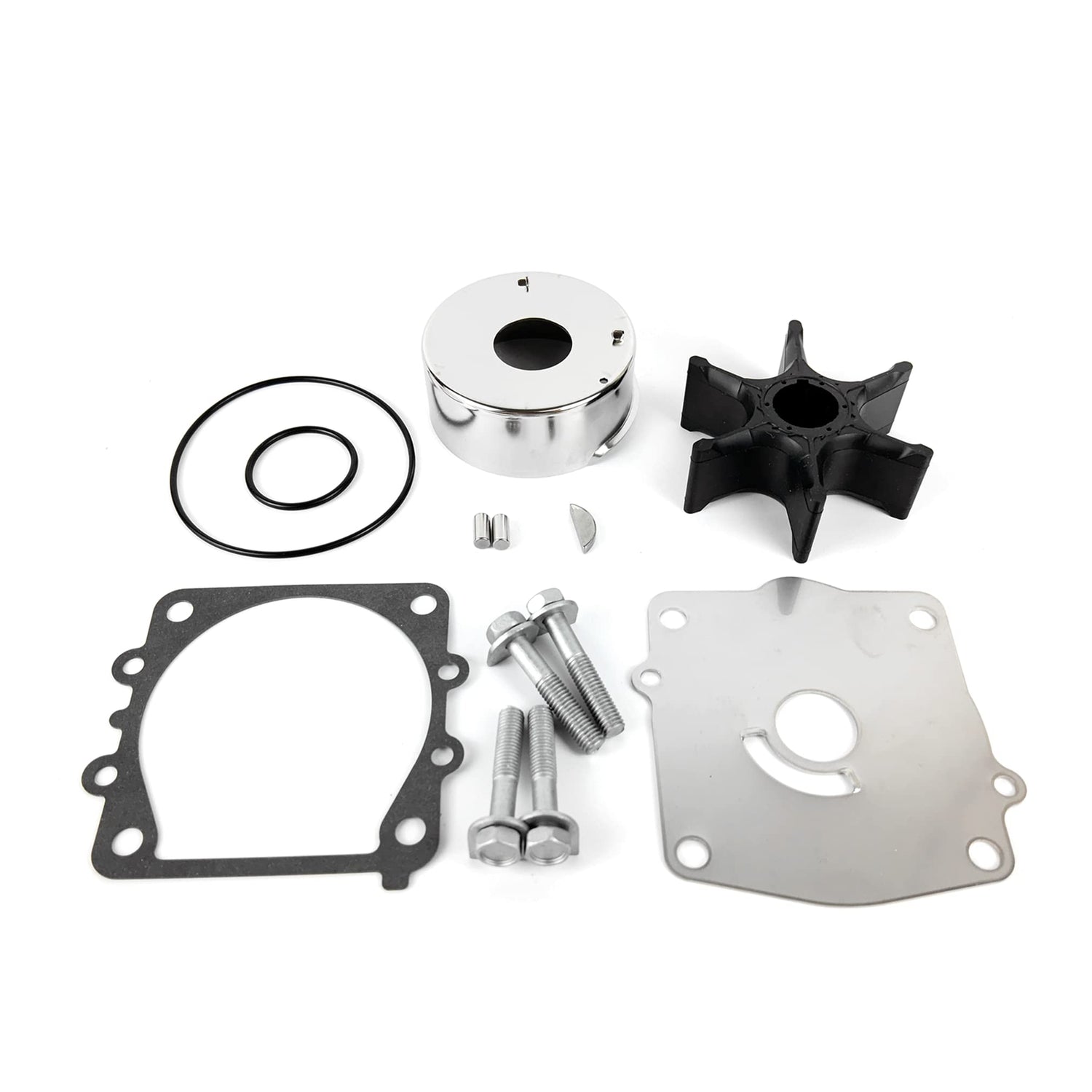

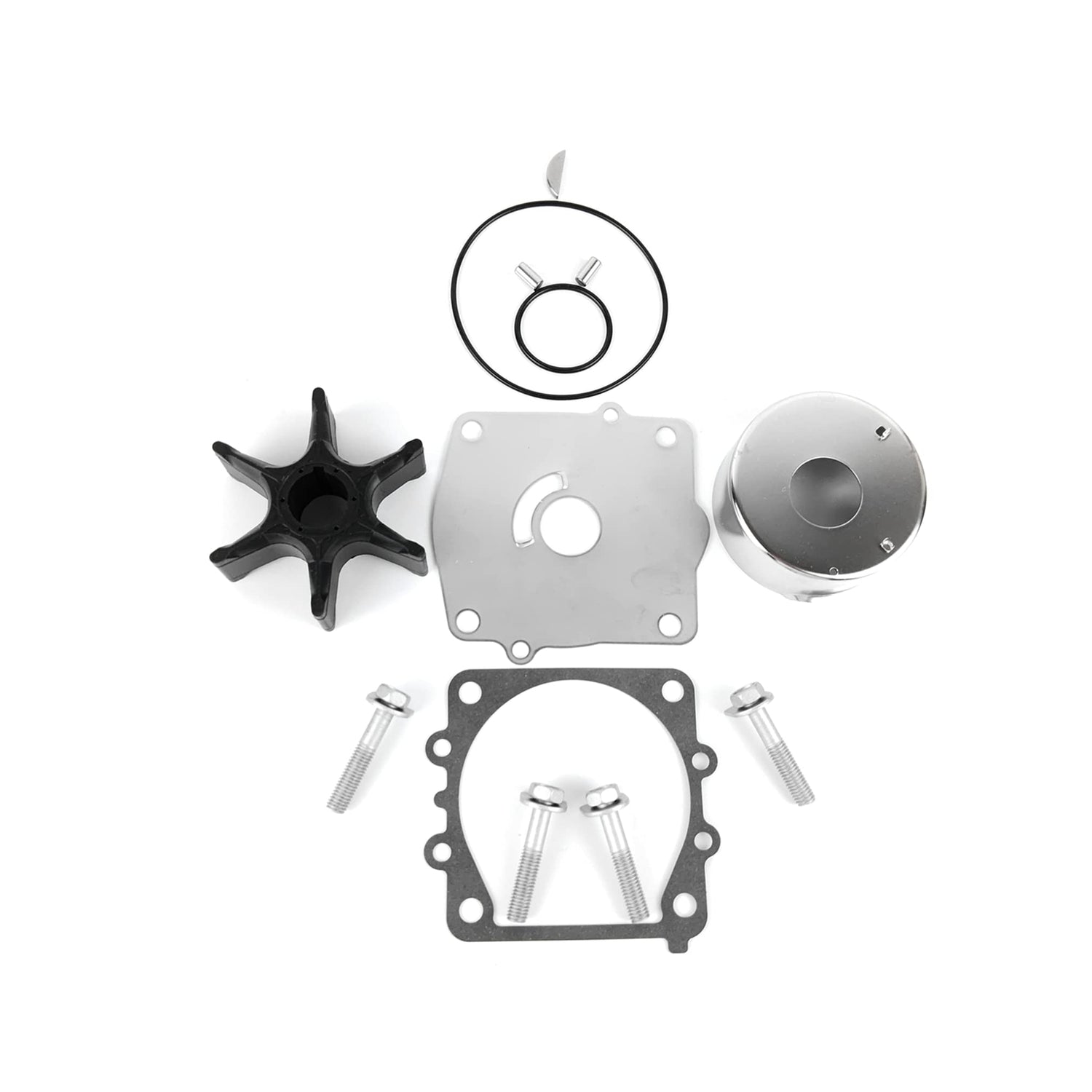

Kit Components

The package includes the following items:

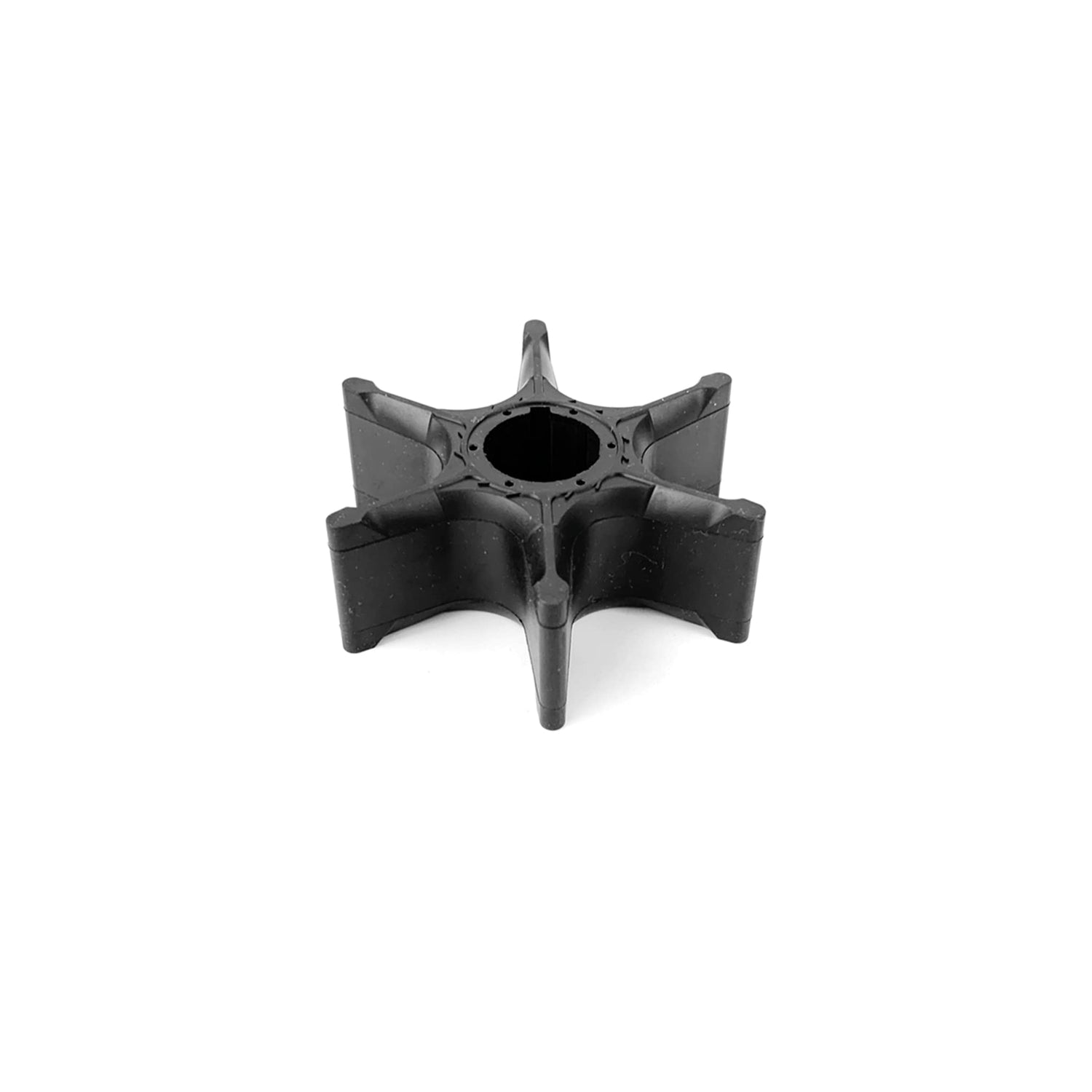

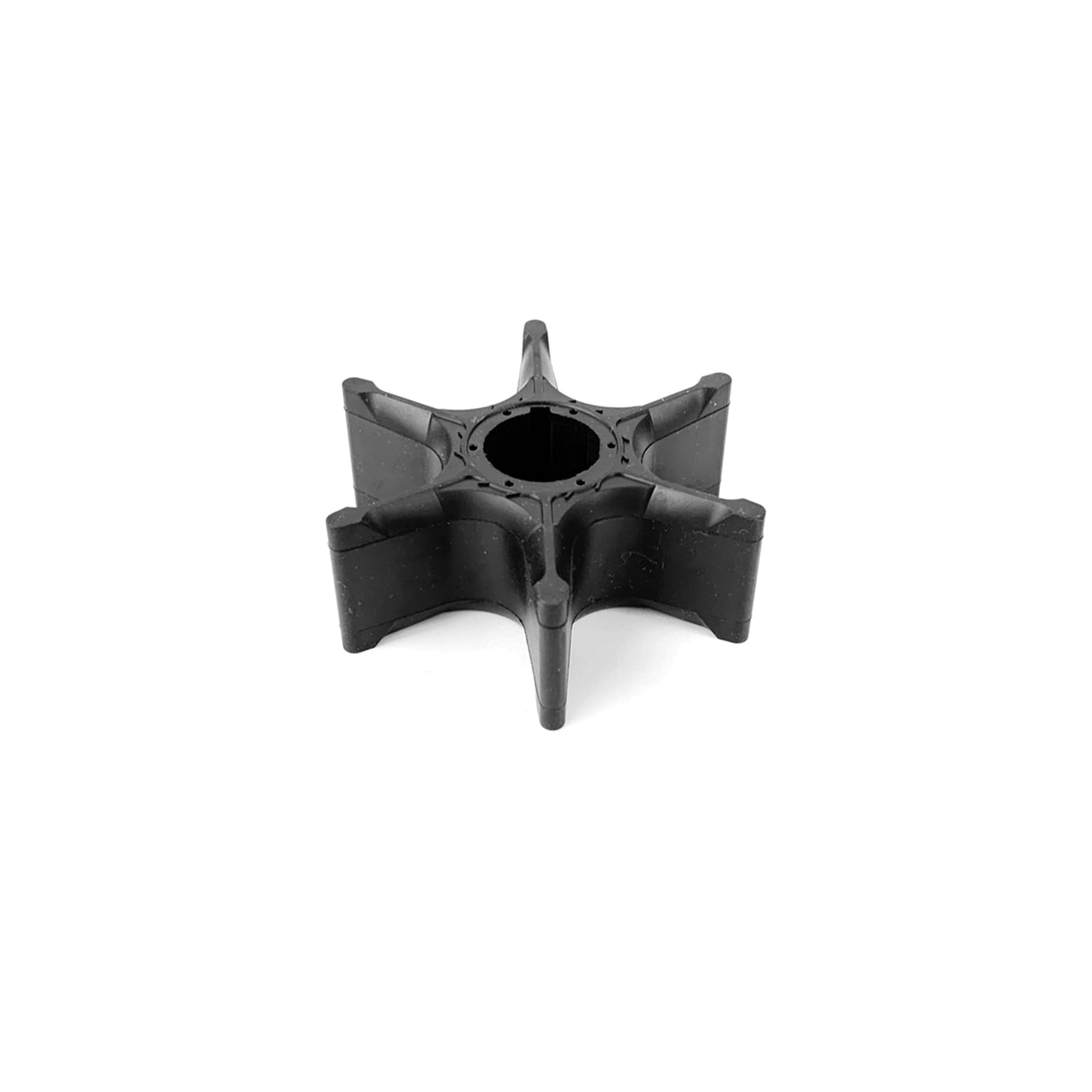

1. Water Pump Impeller (6E5-44352-01-00)

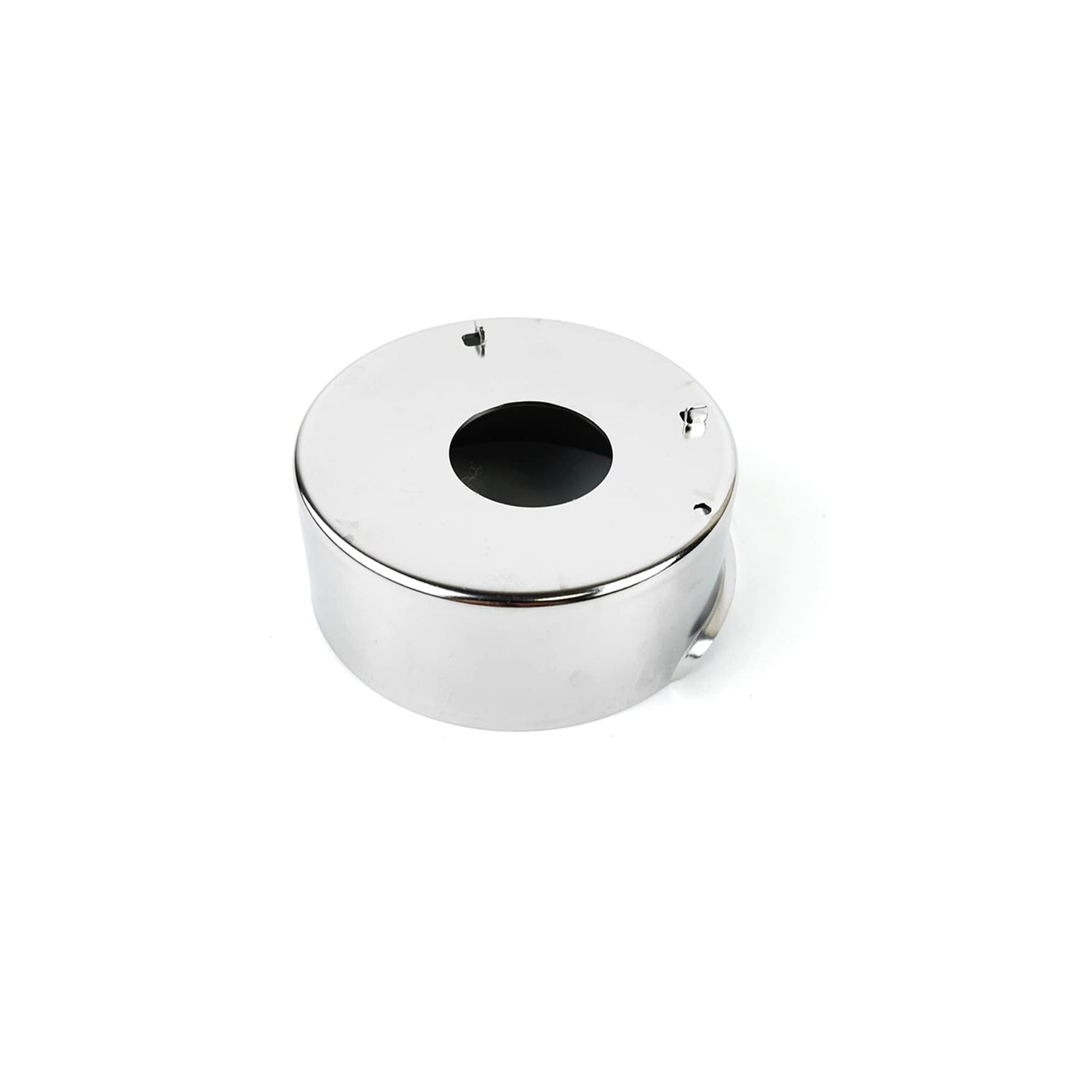

2. Insert Cartridge (61A-44322-02-00)

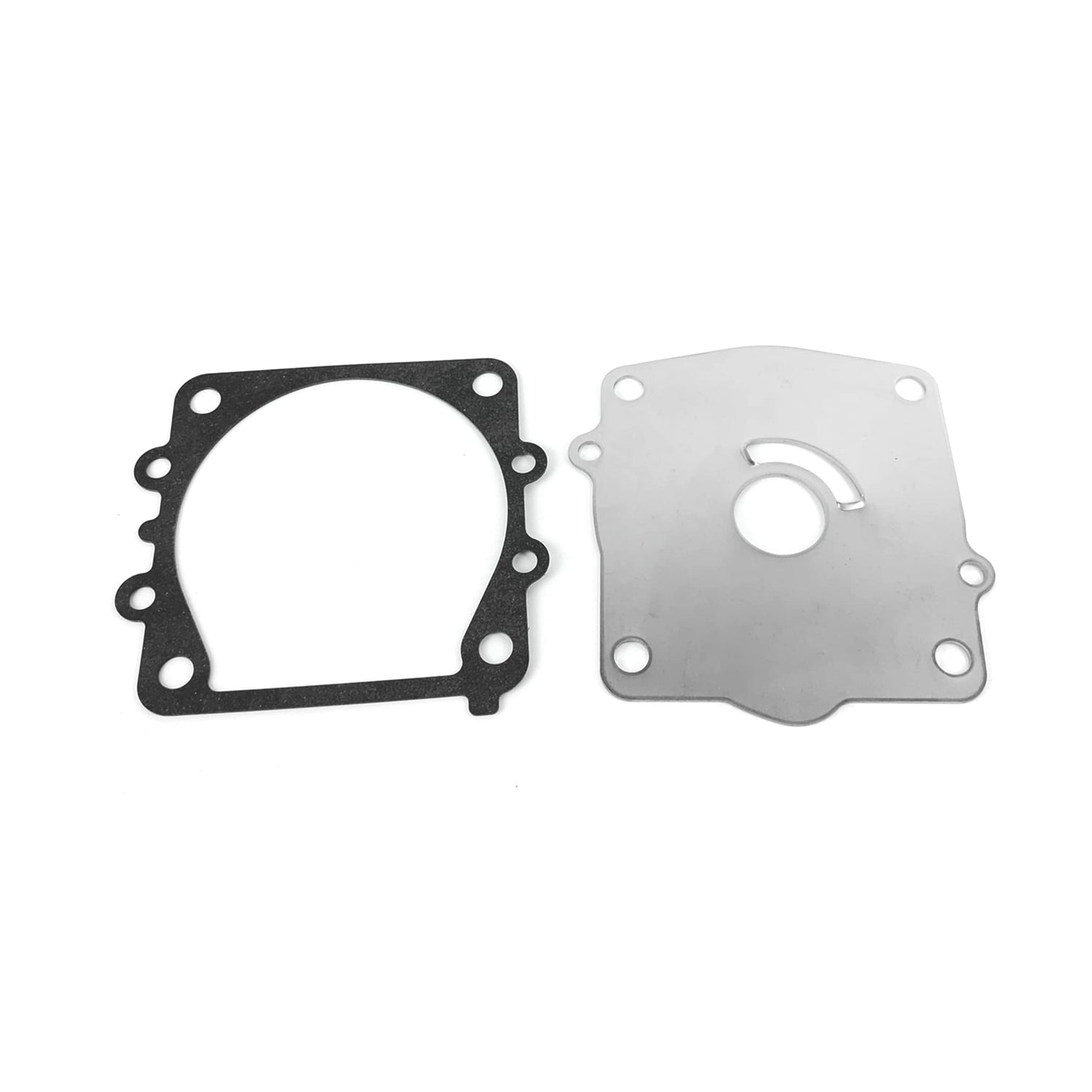

3. Outer Plate Cartridge (6E5-44323-00-00)
4. Gasket Water Pump (6E5-44315-A0-00)

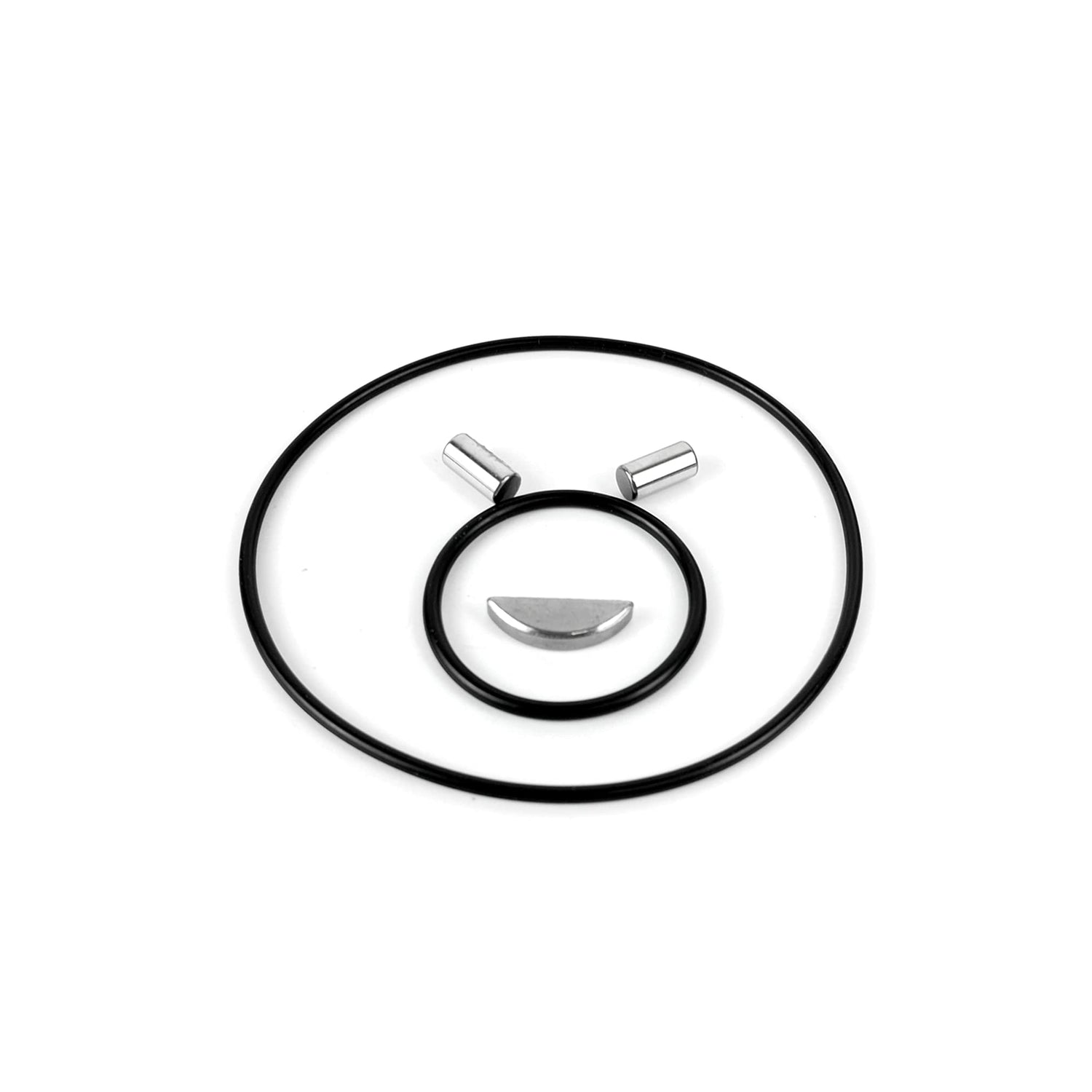

5. O-Ring (93210-37M67-00)
6. O-Ring (93210-86M38-00)
7. Woodruff Key (90280-04002-00)
8. Dowell Pin (93606-12019) x 2

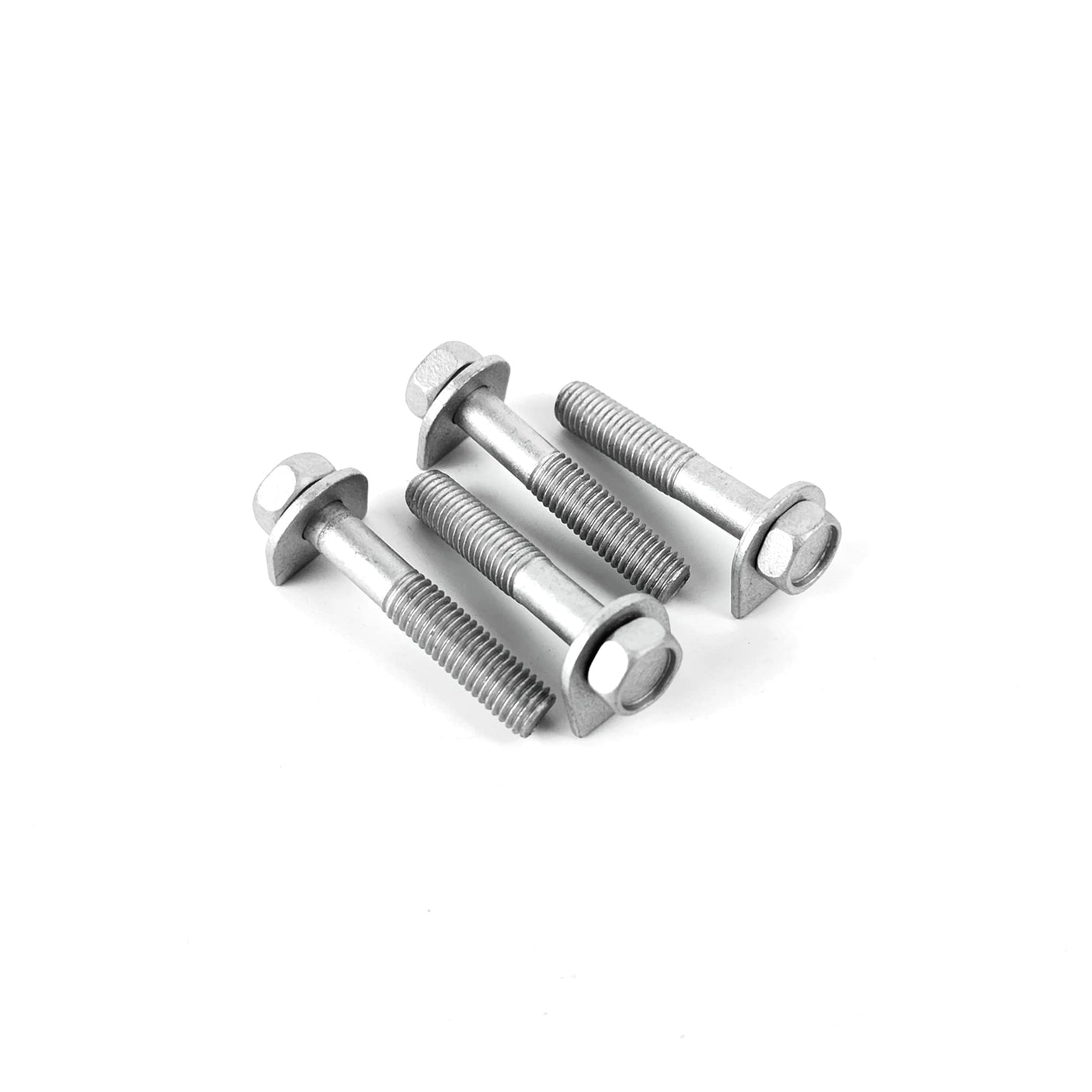

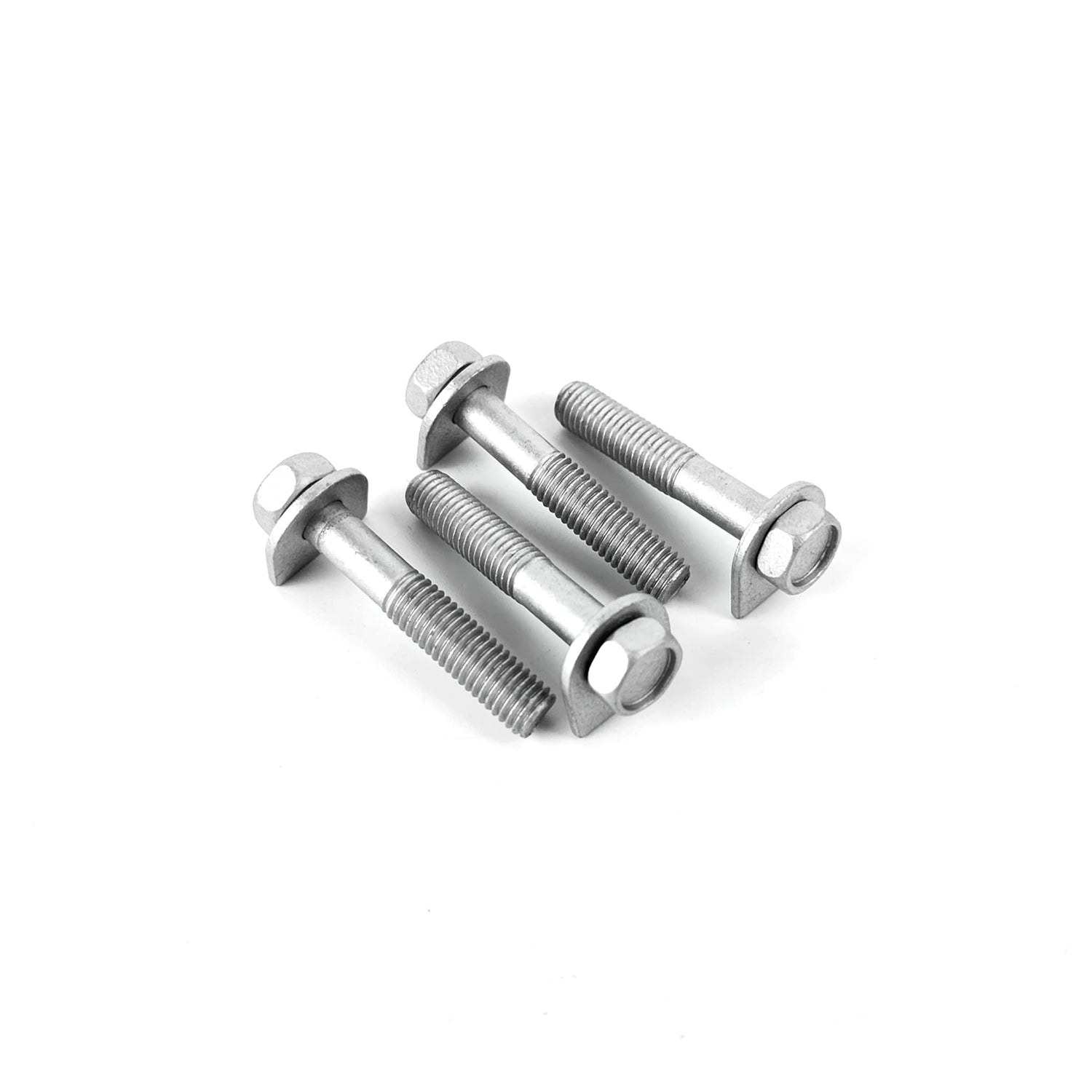

9. Bolt with Washer (90119-08M14-00) x 2
