Product Details

• SKU: 1835231
• Weight: 1.6351
• Dimensions (H x D x W): 5.4001 x 5.4001 x 5.8001 inches
• Unit of Measure: EA
• Item Status: A
• UPC: 808282362140
• Case Packaging: 1
• Standard Packaging: 1
• HSC Code: 841391
• ECCN Code: 8413.91.9010
• Condition: New with housing

Compatibility

This kit is compatible with the following Yamaha models:

• F115: 2002 & Up
• LF115: 2002 & Up

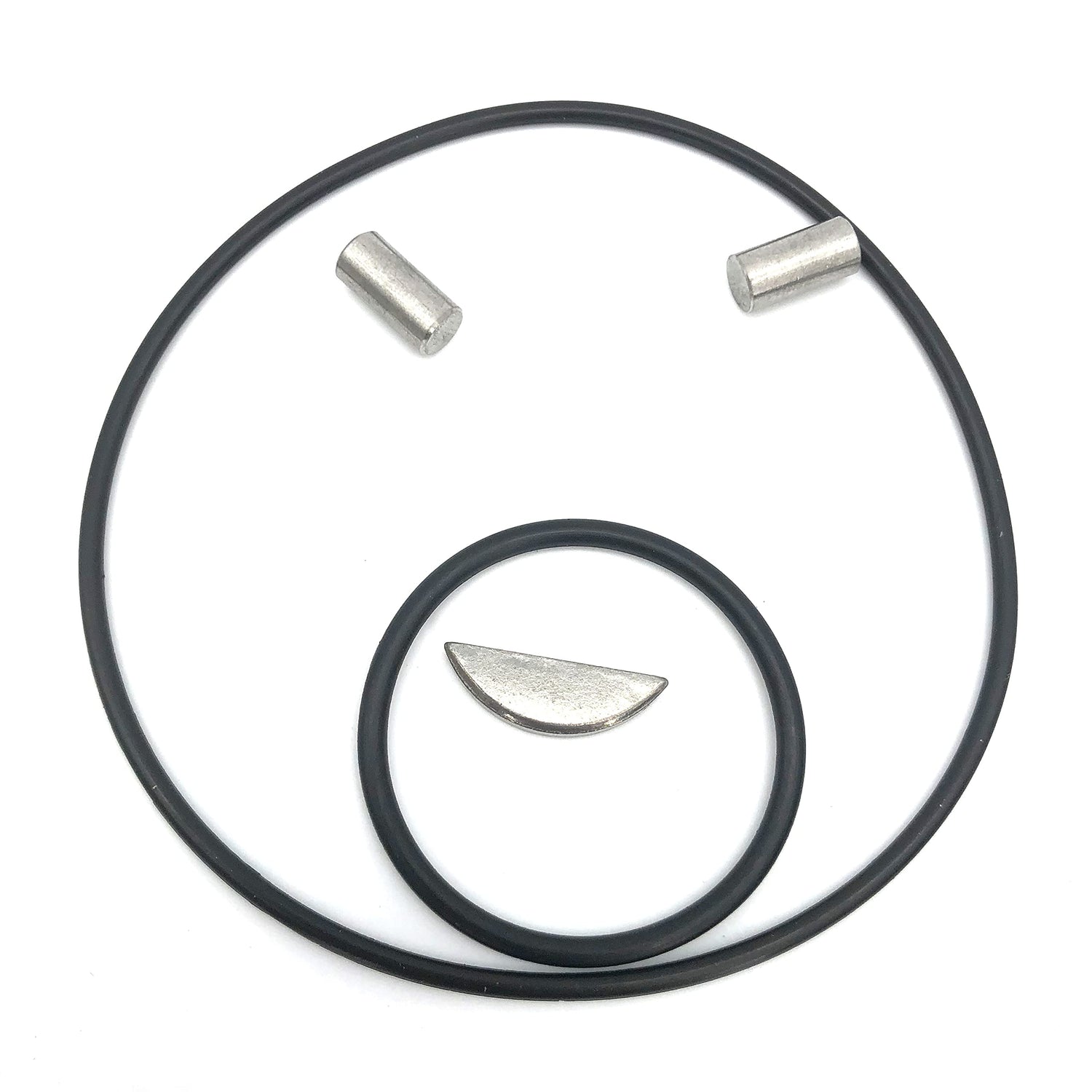

Kit Components

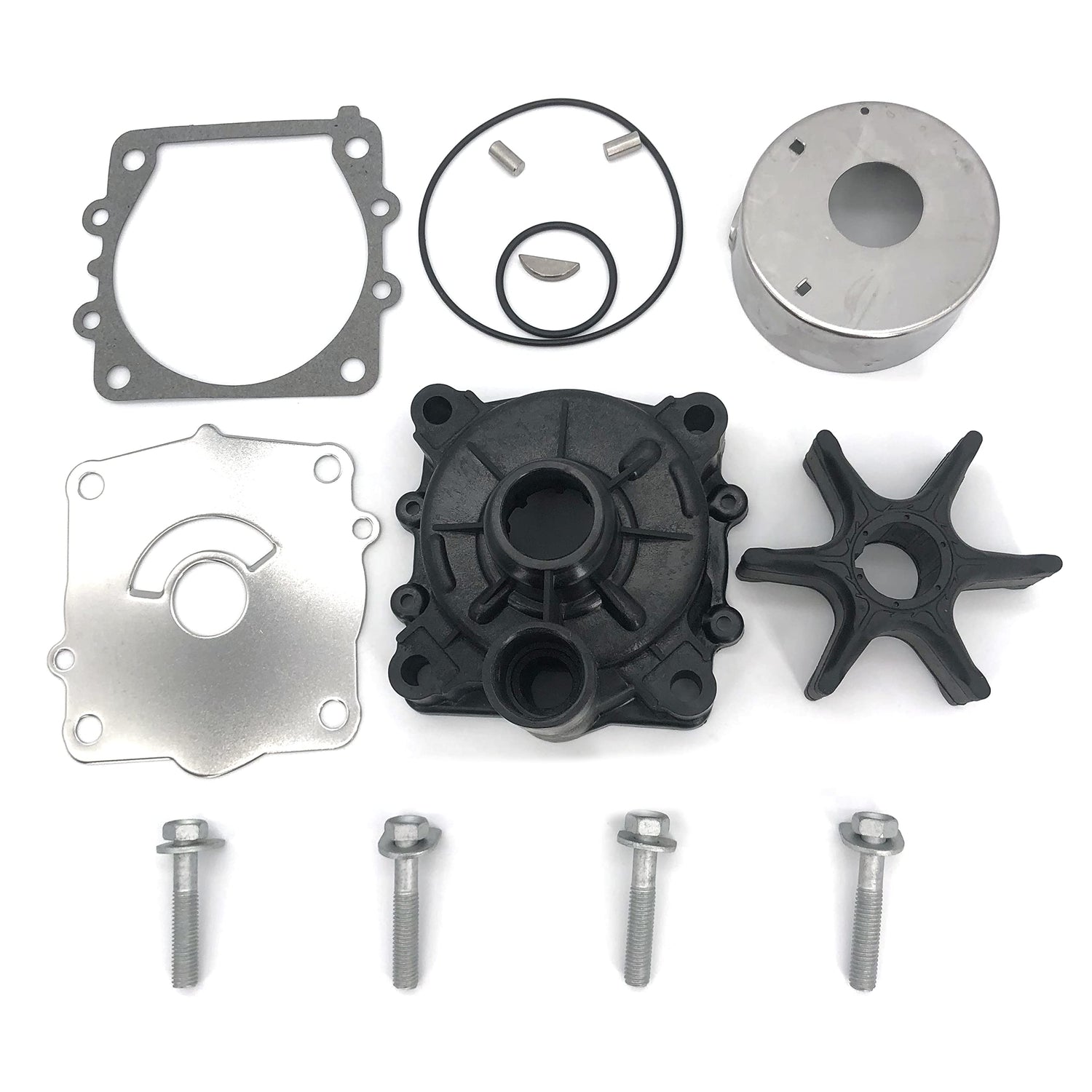

The package includes the following items:

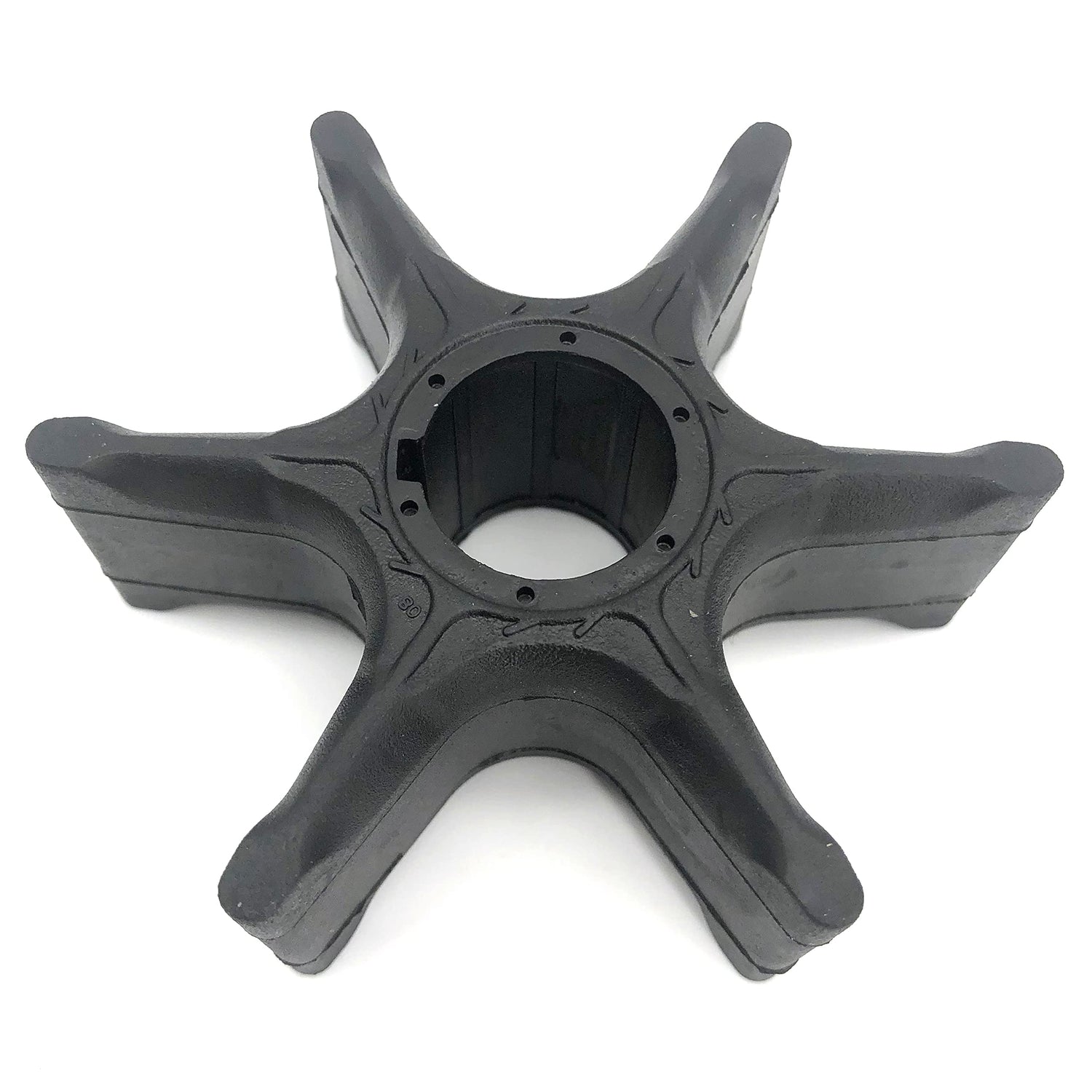

1. Impeller (18-3071, Part Number: 6E5-44352-01-00) - 1 qty

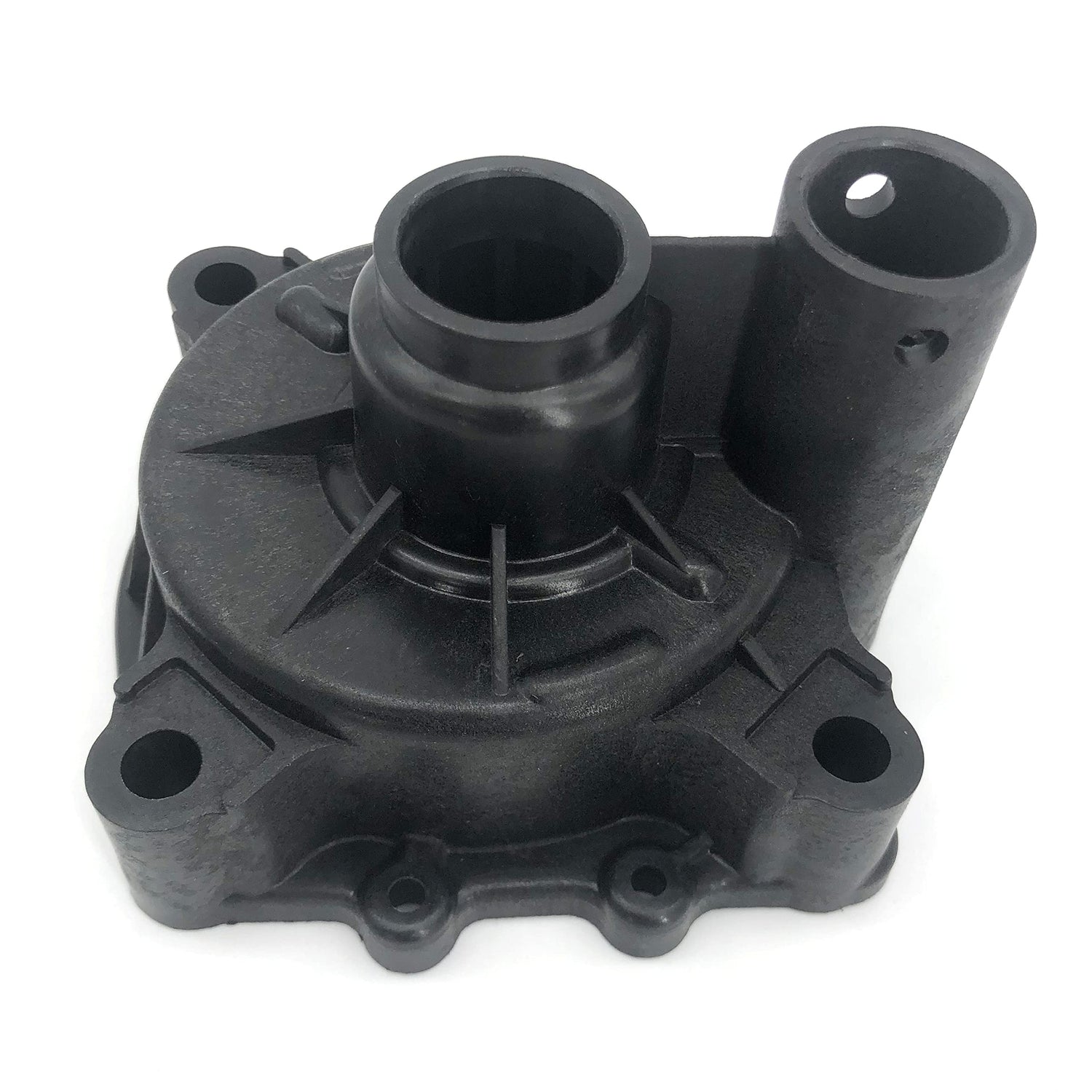

2. Water Pump Housing (18-3173-1, Part Number: 61A-44311-01-00) - 1 qty

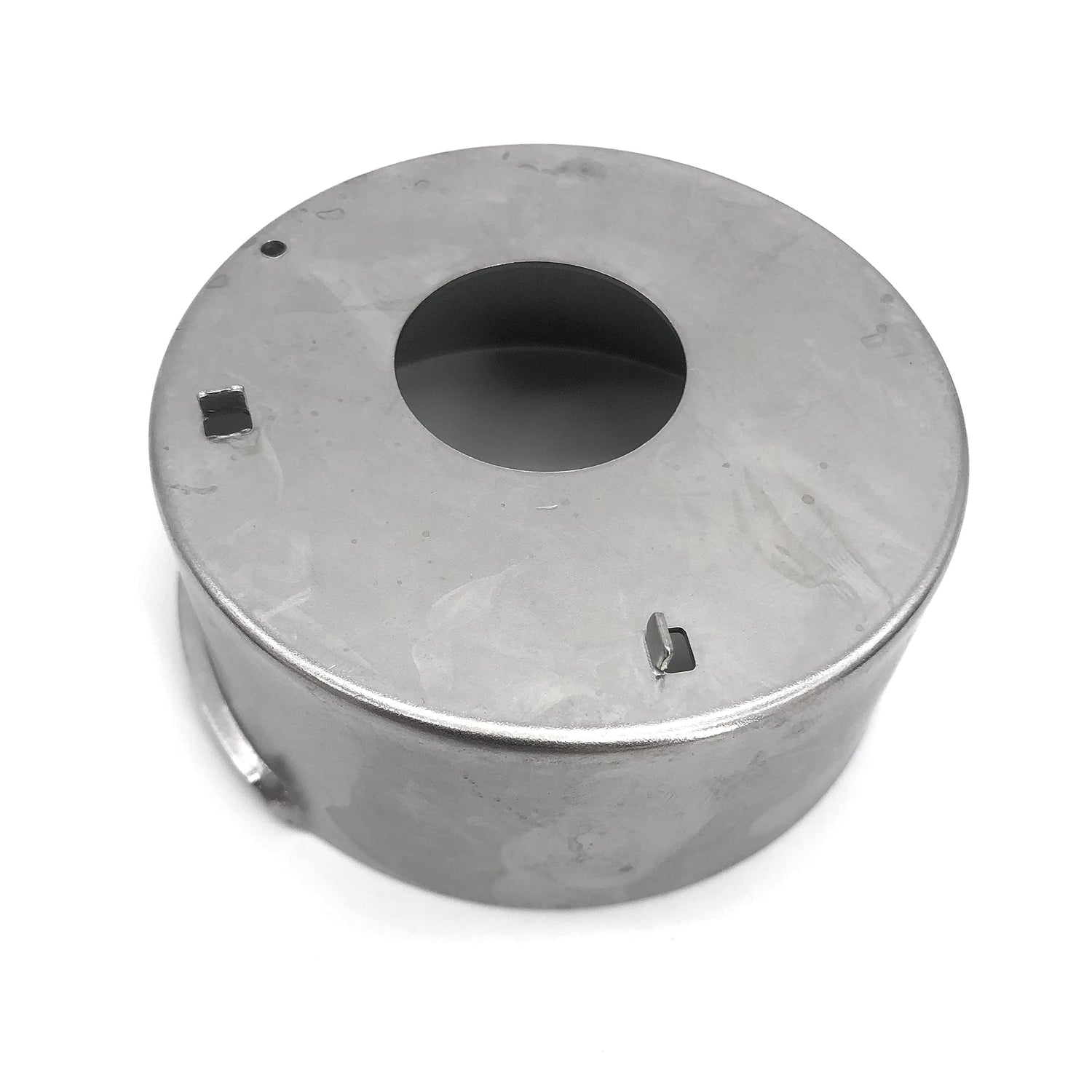

3. Housing Insert Cup (18-3519, Part Number: 61A-44322-02-00) - 1 qty
4. Impeller Key (18-3302, Part Number: 90280-04M05-00) - 1 qty
5. O-Ring (18-7485, Part Number: 93210-86M38-00) - 1 qty
6. O-Ring (18-7483, Part Number: 93210-37M67-00) - 1 qty

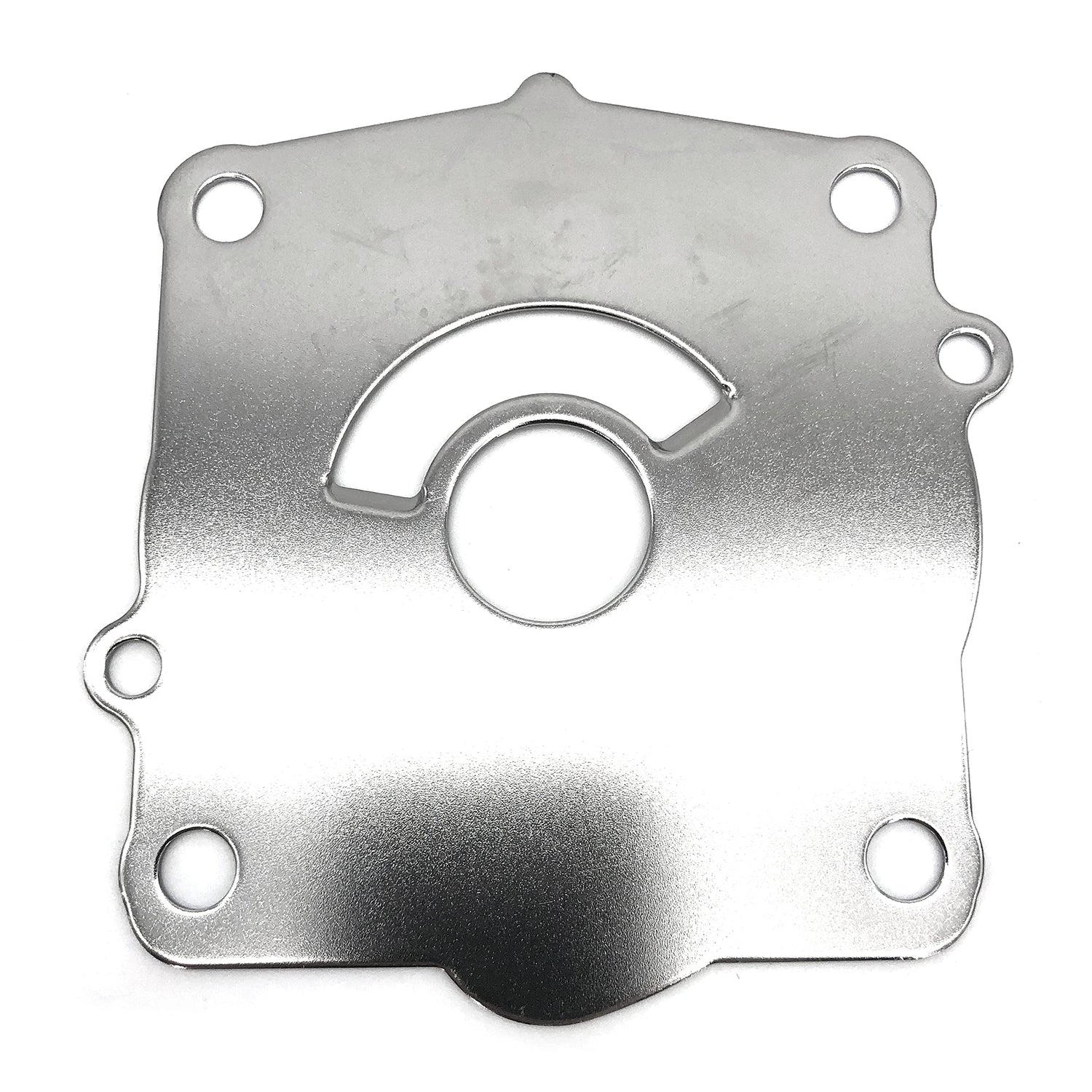

7. Water Pump Base Outer Plate (18-3521, Part Number: 68V-44323-00-00) - 1 qty

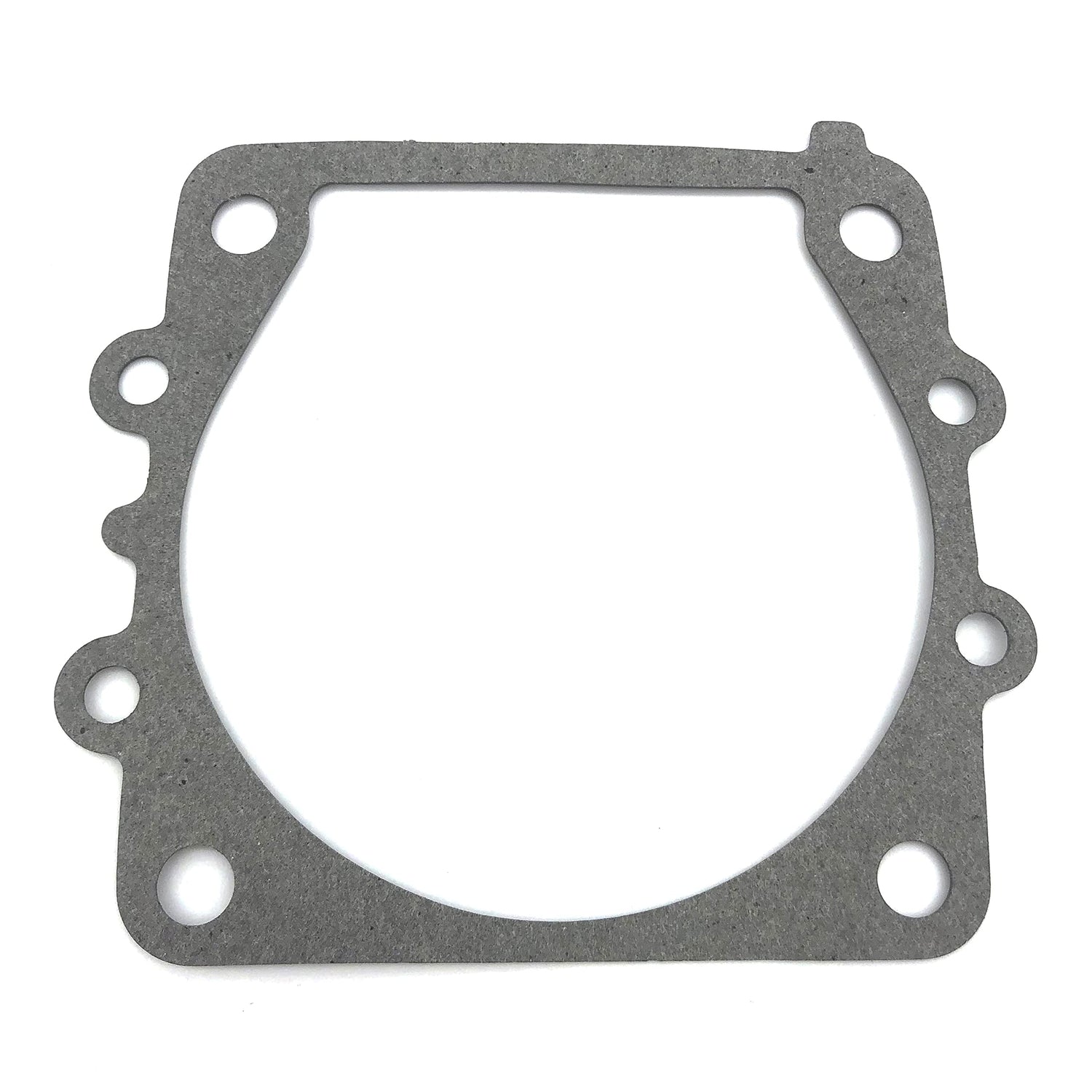

8. Gasket, Water Pump (18-0244, Part Number: 6E5-44315-A0-00) - 2 qty

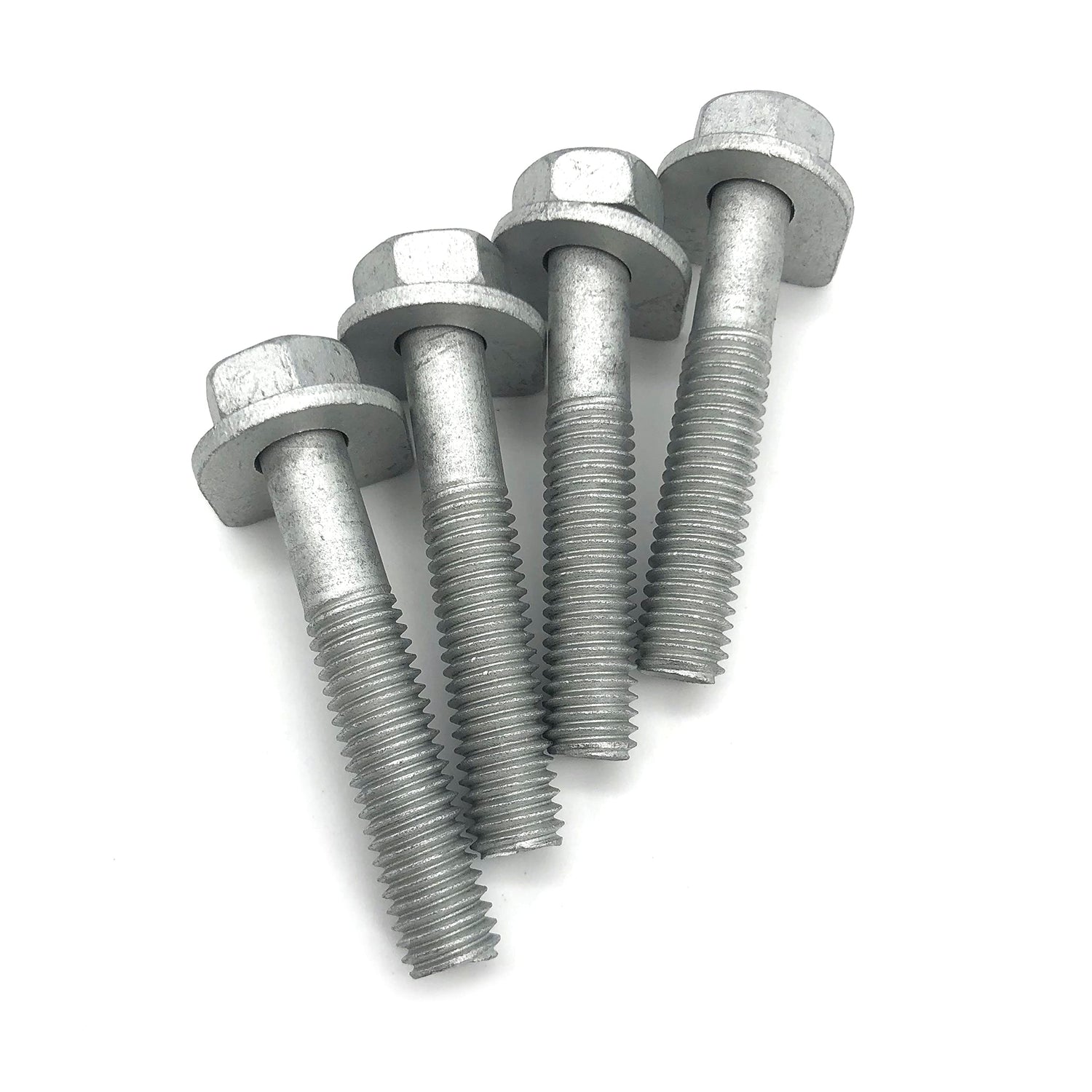

9. Bolt (18-0256, Part Number: 97095-08045-00) - 4 qty
10. Pin, Dowel (NSS, Part Number: 93606-12019-00) - 2 qty
11. Washer, Bolt (NSS, Part Number: 90209-08M02-00) - 4 qty

Part Numbers and Replacements

• Original Part Numbers: 68V-W0078-00-00, 61A-44311-01-00
• Kit Number: 18-3523-1
• Equivalent to: 18-3442 (but includes water pump housing)
• Replaced Part Numbers: 68V-W0078-00, 61A-44311-01, 18-3523-1
